Allen-Bradley 1771-HS3A IMC-123 3-Axis Servo Module | Replacement, Equivalent & Selection Guide

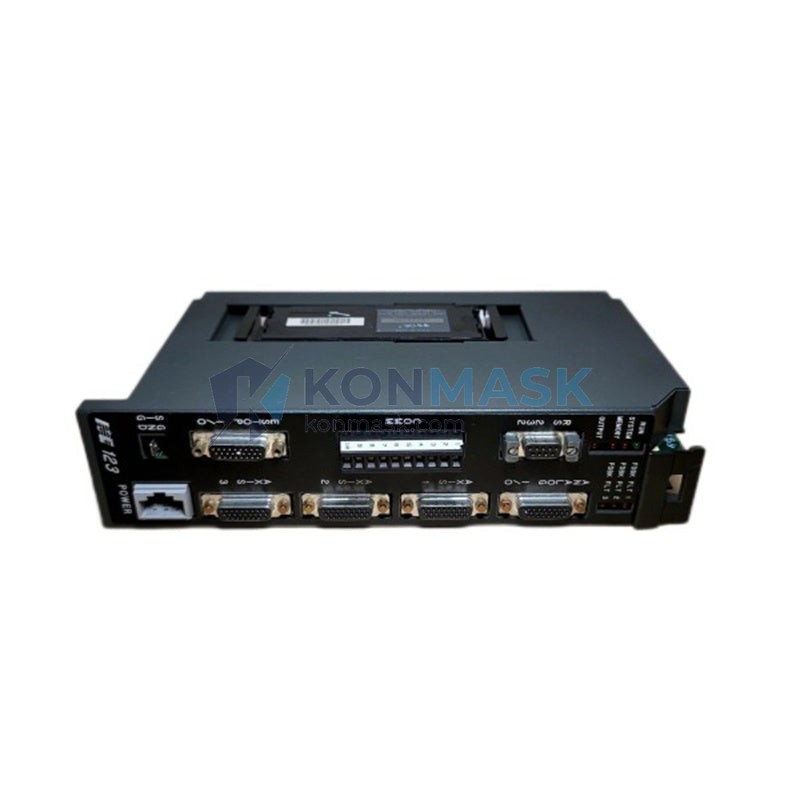

The Allen-Bradley 1771-HS3A is the IMC-123 3-Axis Servo Motion Control Module designed for use within the PLC-5 I/O chassis system. It provides closed-loop servo axis control for up to three axes simultaneously, interfacing directly with the PLC-5 processor via the 1771 I/O backplane. This module is a cornerstone of legacy Rockwell Automation motion control architectures widely deployed in manufacturing, packaging, and process automation.
Buyers searching for a 1771-HS3A replacement or IMC-123 equivalent often face challenges sourcing this discontinued module. Whether you need a drop-in substitute for an aging system or are evaluating a functional equivalent for a retrofit project, this guide provides the technical clarity needed to make a confident procurement decision.
Technical Specifications
- Part Number: 1771-HS3A
- Series / Firmware: IMC-123, Series A
- Number of Axes: 3 (simultaneous closed-loop servo control)
- Platform: Allen-Bradley PLC-5 / 1771 I/O Chassis
- Backplane Interface: 1771 I/O single-slot module
- Encoder Input: Incremental quadrature encoder, differential TTL
- Analog Output: ±10 VDC velocity/torque command per axis
- Communication: PLC-5 backplane (DH+/RIO compatible system)
- Power Supply: Supplied via 1771 backplane (5 VDC logic)
- Operating Temperature: 0°C to 60°C
- Humidity: 5% to 95% non-condensing
- Certifications: UL Listed, CE Marked
- Form Factor: Single-slot 1771 I/O module
- Weight: Approx. 1,200 g
- ⚠️ Key Replacement Decision Parameters: Number of axes (3), encoder interface type (TTL differential), analog output range (±10 VDC), and chassis slot compatibility (1771 single-slot) are the critical parameters that must match any substitute.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
The following are hardware-identical or series-equivalent units that install in the same 1771 chassis slot without firmware or wiring changes:
- Allen-Bradley 1771-HS3A (Series B/C) — Later series revisions of the same part number. Verify firmware compatibility with your PLC-5 processor revision before substituting.
- Refurbished / Tested 1771-HS3A — Factory-tested surplus units sourced from certified channels (such as Konmask) are the safest drop-in option for legacy systems.
2. Functional Equivalents (Same Platform)
These modules perform equivalent servo motion control within the PLC-5 / 1771 ecosystem but may require configuration changes:
- Allen-Bradley 1771-HS1A (IMC-121) — Single-axis version; suitable if only one axis is required. Same backplane interface and encoder/analog architecture.
- Allen-Bradley 1771-HS2A (IMC-122) — Two-axis equivalent. Prerequisite: confirm axis count meets application needs before substituting.
- Allen-Bradley 1771-QDC — Quad-axis servo module for PLC-5; functional superset. Note: requires updated ladder logic and axis mapping.
3. Cross-Brand Alternatives (Retrofit / Migration)
For system modernization or when original-platform parts are unavailable:
- Siemens SIMOTION D410 / D425 — Multi-axis motion controller; requires full system redesign including HMI and drive interface. Not a plug-in substitute.
- Mitsubishi MR-J4 Series + Motion CPU — Functional alternative for new installations; incompatible with 1771 backplane.
- Rockwell Automation Kinetix 5500 + CompactLogix — Recommended migration path endorsed by Rockwell for PLC-5 end-of-life systems. Requires chassis replacement and full re-commissioning.
- ⚠️ Important: Cross-brand alternatives are not plug-and-play substitutes. Always consult Konmask engineers before committing to a cross-brand replacement to validate wiring, software, and safety implications.
Why Choose the Original Model
- Precision & Repeatability: The 1771-HS3A is factory-calibrated for ±10 VDC analog output accuracy, ensuring servo loop stability that generic substitutes cannot guarantee.
- OEM Certification: UL Listed and CE Marked; critical for facilities with compliance audits or insurance requirements tied to OEM-specified components.
- Seamless Backplane Compatibility: Designed exclusively for the 1771 I/O chassis — no adapter, converter, or firmware patch required.
- Existing PLC-5 Program Integrity: Retaining the original module preserves all existing ladder logic, axis configurations, and tuning parameters without re-commissioning.
- Manufacturer Technical Support: Rockwell Automation legacy support documentation and Konmask application engineers are available for 1771-HS3A-specific troubleshooting.
- Warranty & Traceability: Konmask-supplied units include documented sourcing, test reports, and a minimum 12-month warranty — reducing operational risk versus unverified surplus.
Typical Applications
- Automotive Assembly Lines: Multi-axis servo positioning for welding fixtures and transfer systems controlled by PLC-5 processors.
- Packaging Machinery: Coordinated 3-axis motion for form-fill-seal and cartoning equipment with legacy Rockwell control architecture.
- CNC Retrofit Systems: Closed-loop servo control for retrofitted machine tools retaining PLC-5 as the master controller.
- Material Handling: Gantry and pick-and-place systems requiring synchronized multi-axis servo coordination.
- Printing & Converting: Web tension and registration control in press lines using PLC-5 motion programs.
- Process Automation: Valve actuator positioning and dosing systems in chemical and food processing plants with existing 1771 I/O infrastructure.
System Compatibility
The 1771-HS3A is designed to operate within the following Allen-Bradley / Rockwell Automation ecosystem components:
- 1771 I/O Chassis (e.g., 1771-A1B, 1771-A2B, 1771-A3B1, 1771-A4B) — Host chassis; single-slot installation
- PLC-5 Processors (e.g., 1785-L20, 1785-L40, 1785-L80) — Master controller communicating via backplane
- 1771-P4S / 1771-P6S Power Supply — Chassis power supply providing 5 VDC backplane logic power
- Servo Drives (e.g., 1391-DES, 1394 GMC) — Receive ±10 VDC analog velocity command from the HS3A
- Incremental Encoders (TTL differential, 5 VDC) — Feedback devices wired directly to the module’s encoder input terminals
- RSLogix 5 / 6200 Programming Software — Required for axis configuration, tuning, and motion program development
Selection Guide
Before ordering, confirm the following three criteria to ensure the 1771-HS3A is the correct module for your application:
- Chassis & Slot Compatibility: Is your existing chassis a 1771 I/O series with an available single-slot position? If you are using a 1746 (SLC 500) or 1756 (ControlLogix) chassis, this module is not compatible — contact Konmask for the correct equivalent.
- Axis Count & Encoder Type: Do you require exactly 3 axes of closed-loop servo control with TTL differential incremental encoders? If your application requires absolute encoders or more than 3 axes, a different module may be required.
- Drive Interface: Does your servo drive accept a ±10 VDC analog velocity or torque command signal? If your drive uses a digital interface (e.g., EtherNet/IP, SERCOS), a different motion controller is needed.
Not sure? Contact Konmask at support@konmask.com or +0086 19859288691 — our engineers will review your system configuration and confirm compatibility before you order.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources the 1771-HS3A exclusively from OEM-authorized distributors, certified industrial surplus channels, and factory-refurbished stock. We do not source from unverified secondary markets.
4-Step Inspection Process:
- Visual Inspection: Board-level examination for physical damage, corrosion, counterfeit markings, and date code verification.
- Functional Power-On Test: Module powered in a 1771 chassis with a live PLC-5 processor to verify backplane communication and axis initialization.
- Analog Output Calibration Check: Each axis analog output measured against ±10 VDC specification using calibrated test equipment.
- Burn-In & Final QC: Extended operational test under load conditions; results logged and retained for traceability.
Available Documentation: Test report, sourcing declaration, CE/UL certification copies, and optional third-party inspection certificate upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (1771-HS3A), required quantity, and any system configuration details. Alternatively, use the product page inquiry form.
- Receive Confirmation & Quote: Konmask will confirm stock availability, provide a formal quotation, and clarify any compatibility questions — within 24 hours on business days.
- Order & Ship: Upon order confirmation, units are prepared with full documentation and dispatched via your preferred freight method. Expedited shipping available for urgent requirements.
Replacement & Compatibility FAQ
Q1: Can I use a 1771-HS2A as a direct replacement for the 1771-HS3A?
The 1771-HS2A (IMC-122) is a functional equivalent for 2-axis applications and uses the same backplane interface and analog output architecture. However, it is not a direct substitute if your application requires all 3 axes. If only 2 axes are active in your current program, the HS2A may be a compatible replacement — contact Konmask to verify your axis utilization before ordering.
Q2: Is there a ControlLogix-compatible equivalent or substitute for the 1771-HS3A?
The 1771-HS3A is not compatible with the 1756 ControlLogix chassis. The functional equivalent in the ControlLogix platform is the 1756-M02AE (2-axis) or 1756-M03SE (3-axis SERCOS) servo module, but these require a full platform migration including new chassis, processor, and software. Konmask can support both legacy sourcing and migration planning.
Q3: How do I confirm whether a surplus 1771-HS3A is genuine and not a counterfeit substitute?
Verify the Rockwell Automation holographic label, date code, and board revision markings. Request a test report and sourcing declaration from your supplier. All Konmask-supplied units undergo the 4-step inspection process described above and include full documentation — ensuring you receive a genuine, tested module rather than an untested or counterfeit equivalent.
