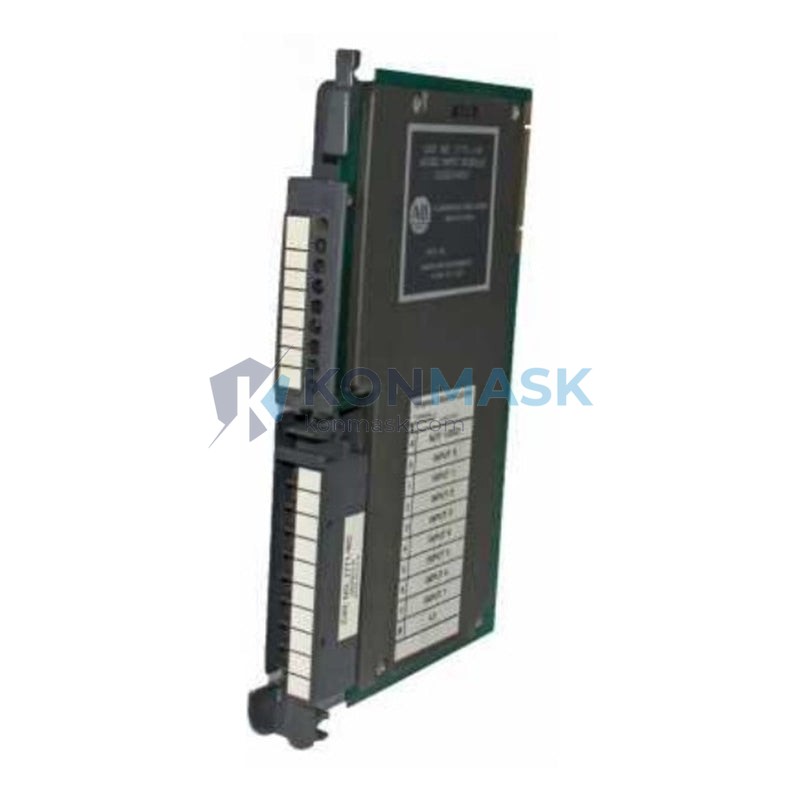

Allen-Bradley 1771-IM – AC Digital Input Module 220Vac | PLC-5 I/O Platform
Engineering Background
The Allen-Bradley 1771-IM is a legacy AC digital input module designed for the Rockwell Automation PLC-5 programmable controller platform. Operating on 220 Vac field signals, this module serves as the critical interface between high-voltage AC field devices—such as pushbuttons, limit switches, and proximity sensors—and the PLC-5 processor backplane. It remains widely deployed in continuous-process and discrete manufacturing environments where PLC-5 infrastructure is still in service.
Product Positioning
Konmask.com supplies the 1771-IM as a verified surplus and refurbished component for maintenance, MRO replacement, and system-life-extension projects. This module is the preferred choice for engineers who need a direct drop-in replacement without undertaking a full control-system migration.
Complete Technical Specifications
| Catalog Number | 1771-IM |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | AC Digital Input |
| Input Voltage | 220 Vac (nominal) |
| Input Voltage Range | 85–265 Vac |
| Input Frequency | 47–63 Hz |
| Number of Input Points | 16 points (2 groups of 8) |
| Input Current (per point) | ≈ 10 mA at 220 Vac |
| ON-State Voltage Range | 85–265 Vac |
| OFF-State Voltage Max | ≤ 20 Vac |
| Input Impedance | Approx. 22 kΩ at 50 Hz |
| Isolation | Optical isolation, field side to backplane |
| Backplane Current Draw | 800 mA @ 5 Vdc |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Compatible Platform | Allen-Bradley PLC-5 (1771 I/O chassis) |
| Chassis Compatibility | 1771-A1B, A2B, A3B, A4B series |
| Wiring Style | Screw-terminal wiring arm (1771-WN or equivalent) |
| Dimensions (H × W × D) | Standard 1771 single-slot form factor |
| Weight | Approx. 500 g |
| Certifications | UL Listed, CE (original production) |
Proven Application Environments
- Oil & Gas: Compressor station control panels monitoring high-voltage AC pressure switches and solenoid feedback signals.
- Water & Wastewater: Pump station PLCs reading 220 Vac float switches, motor run contacts, and valve limit switches.
- Automotive Manufacturing: Transfer line and body-shop PLC-5 systems interfacing with 220 Vac machine interlocks and safety gates.
- Food & Beverage: Conveyor and filling-line control systems where 220 Vac field wiring is the plant standard.
- Power Generation: Auxiliary control panels in power plants using PLC-5 for BOP (Balance of Plant) monitoring.
- MRO / Spare Parts: Direct replacement for failed 1771-IM modules to restore production without system redesign.
Engineering Advantages
- Wide AC Input Range (85–265 Vac): Tolerates voltage fluctuations common in industrial environments without nuisance faults.
- Optical Isolation: Protects the PLC-5 backplane and processor from high-voltage transients and ground loops originating in the field.
- 16-Point Density: Maximizes chassis slot utilization, reducing hardware cost per I/O point in legacy systems.
- Direct Drop-In Replacement: Identical form factor and backplane connector as all 1771-series modules—no chassis modification required.
- Proven Field Reliability: Decades of deployment data across heavy industry confirm robust MTBF under continuous-duty conditions.
- No Firmware Update Required: Plug-and-play compatibility with existing PLC-5 processor programs and I/O configuration tables.
System Architecture & Signal Flow
Field AC devices (switches, contacts, sensors) connect to the 1771-IM wiring arm terminals. The module’s internal circuitry rectifies and filters the 220 Vac signal, then drives an optocoupler to produce a logic-level signal on the backplane. The PLC-5 processor reads the 16-bit input image word from the module’s assigned I/O slot address during each scan cycle. Status LEDs on the module faceplate provide real-time per-point indication for rapid field diagnostics without requiring a programming terminal.
Typical Wiring Topology: Field device → 1771-WN wiring arm terminal → 1771-IM input circuit → optical isolation → 1771 backplane data bus → PLC-5 processor input image table.
Sourcing & Quality Verification
All 1771-IM units offered by Konmask.com undergo the following verification process before shipment:
- Visual inspection: PCB, connector pins, faceplate label, and LED indicators.
- Functional bench test: AC input signal applied at rated voltage; all 16 input points verified for correct ON/OFF state response.
- Backplane connector inspection: pin straightness, plating condition, and seating depth checked.
- Firmware/hardware revision documented and disclosed upon request.
- Anti-static packaging with humidity indicator card for transit protection.
Konmask.com does not sell counterfeit or untested components. Certificate of conformance and test report available upon request for critical applications.
Procurement Process
- Confirm Part Number: Verify catalog number 1771-IM and any required hardware revision (Series A, B, C, etc.) with your engineering team.
- Request a Quote: Contact support@konmask.com or call +0086 19859288691 for current stock availability and lead time.
- Purchase Order: Submit PO with delivery address, required quantity, and any revision or test-report requirements.
- Shipment: Units ship within 1–3 business days from confirmed stock. Express and freight options available for urgent MRO needs.
- Incoming Inspection: Recommended: verify module serial number, inspect packaging integrity, and perform bench test before installation.
Technical FAQ
Q: Can the 1771-IM be used in a 1771-A4B (64-slot) chassis?
A: Yes. The 1771-IM is compatible with all standard 1771 I/O chassis variants (A1B through A4B) and the 1771-ASB remote I/O adapter.
Q: What is the difference between 1771-IM and 1771-IM/B?
A: The /B suffix denotes a hardware revision with minor component changes. Both are functionally equivalent and interchangeable in most applications. Confirm with your system documentation if revision-specific replacement is required.
Q: Is a wiring arm included?
A: Wiring arms (1771-WN or 1771-WG) are sold separately. Please specify when ordering if a wiring arm is required.
Q: Can this module be used with ControlLogix or CompactLogix?
A: No. The 1771-IM is exclusively compatible with the PLC-5 / 1771 I/O platform. ControlLogix and CompactLogix use the 1756 and 1769 I/O families respectively.
Q: What is the typical lead time for out-of-stock units?
A: Lead time for sourced units is typically 2–4 weeks. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested surplus modules. Extended warranty options are available upon request.
