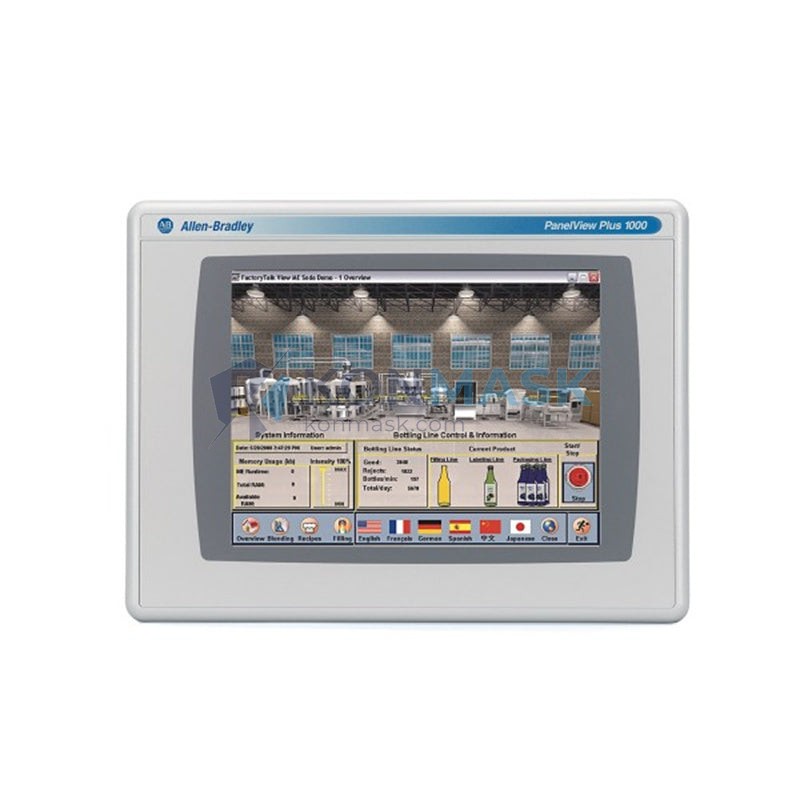

Allen-Bradley 2711PC-T10C4D8 – 10″ Color Touchscreen HMI Terminal | PanelView Plus Compact Series
Engineering Background
The PanelView Plus Compact family was developed by Rockwell Automation (Allen-Bradley) as a cost-optimized operator interface platform for machine-level HMI applications. Designed to integrate natively with Logix-based control systems via EtherNet/IP, these terminals eliminate the need for third-party HMI middleware and reduce panel engineering overhead in discrete and process automation environments.
Product Positioning
The 2711PC-T10C4D8 is the 10-inch color touchscreen variant of the PanelView Plus Compact 1000 line, targeting mid-complexity machine control panels where screen real estate, native Logix tag browsing, and DC power compatibility are primary engineering requirements. It is widely deployed in automotive assembly, material handling, food & beverage, and OEM machine builder applications globally.
Complete Technical Specifications
| Part Number | 2711PC-T10C4D8 |
| Series | Series A |
| Platform | PanelView Plus Compact 1000 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 10.4″ (diagonal) |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 640 × 480 (VGA) |
| Touch Technology | Resistive analog touchscreen |
| Input Power | 18–32 VDC |
| Power Consumption | Approx. 25 W (typical) |
| Communication Port | EtherNet/IP (RJ-45) |
| USB Ports | 1× USB Type-A (host), 1× USB Type-B (device/programming) |
| Memory | 512 MB Flash / 128 MB RAM |
| Operating System | Windows CE 6.0 |
| Software | FactoryTalk View ME (pre-installed runtime) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front face) |
| Panel Cutout | Refer to Rockwell publication 2711PC-TD001 |
| Weight | Approx. 1.1 kg |
| Certifications | UL, CE, cUL, RCM |
| Catalog Number | 2711PC-T10C4D8 |
Proven Application Environments
- Discrete Manufacturing: Machine-level operator panels for CNC, press, and assembly line control integrated with CompactLogix or MicroLogix PLCs.
- Food & Beverage: Washdown-compatible front face (IP65) suitable for hygienic production environments with frequent cleaning cycles.
- Material Handling: Conveyor and sortation system HMI nodes with EtherNet/IP connectivity to distributed I/O and drive systems.
- OEM Machine Builders: Compact form factor and DC power supply compatibility make it ideal for space-constrained control enclosures.
- Water & Wastewater: Outdoor-rated enclosure compatibility (NEMA 4X) for pump station and treatment plant operator interfaces.
- Automotive Assembly: High-cycle touchscreen durability for shift-intensive production environments requiring reliable operator interaction.
Engineering Advantages
- Native EtherNet/IP Integration: Direct tag-based communication with Logix controllers — no OPC server or driver configuration required.
- FactoryTalk View ME Runtime: Pre-installed runtime eliminates software licensing complexity for machine-level deployments.
- DC Power Architecture: 18–32 VDC input aligns with standard 24 VDC panel power rails, simplifying power supply selection.
- IP65 Front Face: Sealed against dust and water jets — suitable for industrial washdown and harsh ambient conditions.
- USB Dual-Port Design: Host port for USB memory transfer; device port for direct PC programming without network dependency.
- Compact Footprint: Optimized panel cutout dimensions reduce enclosure size requirements versus larger PanelView Plus 6 variants.
- Windows CE 6.0 Stability: Deterministic OS with long field-proven track record in industrial HMI applications.
System Architecture & Signal Flow
The 2711PC-T10C4D8 operates as an EtherNet/IP adapter node on the plant network. The FactoryTalk View ME application communicates directly with Logix controller tags over the EtherNet/IP protocol stack. Typical signal flow:
- Operator Input → Resistive touchscreen event captured by Windows CE HMI runtime.
- Tag Write → FactoryTalk View ME writes tag value to target Logix controller via EtherNet/IP implicit or explicit messaging.
- Controller Response → PLC executes ladder/function block logic and updates output tags.
- Display Update → HMI polls controller tags and refreshes screen objects (indicators, numeric displays, alarms) in real time.
- Alarm Management → FactoryTalk Alarms & Events (if configured) logs and displays alarm states with timestamps.
USB device port enables direct application download from FactoryTalk View ME Studio on an engineering workstation. USB host port supports application backup/restore via USB flash drive without PC connection.
Sourcing & Quality Verification
- Source Traceability: Units sourced from authorized distributors, certified resellers, or verified surplus channels with documented chain of custody.
- Pre-Shipment Inspection: Each unit undergoes visual inspection for physical integrity, label authenticity, and firmware version verification prior to dispatch.
- Authenticity Markers: Genuine Allen-Bradley units carry Rockwell Automation holographic labels, traceable serial numbers, and catalog-matched firmware builds.
- Warranty: 90-day Konmask operational warranty covering verified functional defects. Extended warranty available on request.
- Condition: New surplus or refurbished units clearly indicated in listing. All refurbished units are tested to OEM functional specifications.
Procurement Process
- Inquiry: Submit part number, required quantity, and delivery timeline via the product page or email support@konmask.com.
- Quotation: Konmask issues a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order or online checkout accepted. Proforma invoice available for wire transfer payments.
- Quality Check & Dispatch: Pre-shipment inspection completed; unit packed with anti-static protection and shipped via tracked courier.
- Documentation: Commercial invoice, packing list, and test report provided. Certificate of Origin available on request.
- After-Sales Support: Technical support available via email or WhatsApp for installation, commissioning, and compatibility queries.
Technical FAQ
Q: Is the 2711PC-T10C4D8 compatible with CompactLogix L3x/L4x/L5x controllers?
A: Yes. The terminal communicates via EtherNet/IP and is fully compatible with all CompactLogix, ControlLogix, and MicroLogix 1400 controllers running FactoryTalk View ME applications.
Q: What FactoryTalk View ME version is supported?
A: FactoryTalk View ME v5.x through v8.x. Verify runtime version compatibility with your Studio development environment before deployment.
Q: Can this terminal replace a 2711PC-T10C4D2 (AC-powered variant)?
A: No direct drop-in replacement — the D8 suffix denotes DC power input (18–32 VDC) while D2 denotes AC input (100–240 VAC). Panel power supply must match the variant suffix.
Q: Is remote access or VNC supported?
A: The PanelView Plus Compact platform supports FactoryTalk View ME remote access via FactoryTalk ViewPoint (web-based) when configured on the same EtherNet/IP network.
Q: What is the typical lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock units typically have a 5–15 business day lead time depending on sourcing channel. Contact us for real-time availability.
Q: Do you provide export documentation for international shipments?
A: Yes. Full export documentation including commercial invoice, packing list, HS code declaration, and Certificate of Origin is provided for all international orders.
