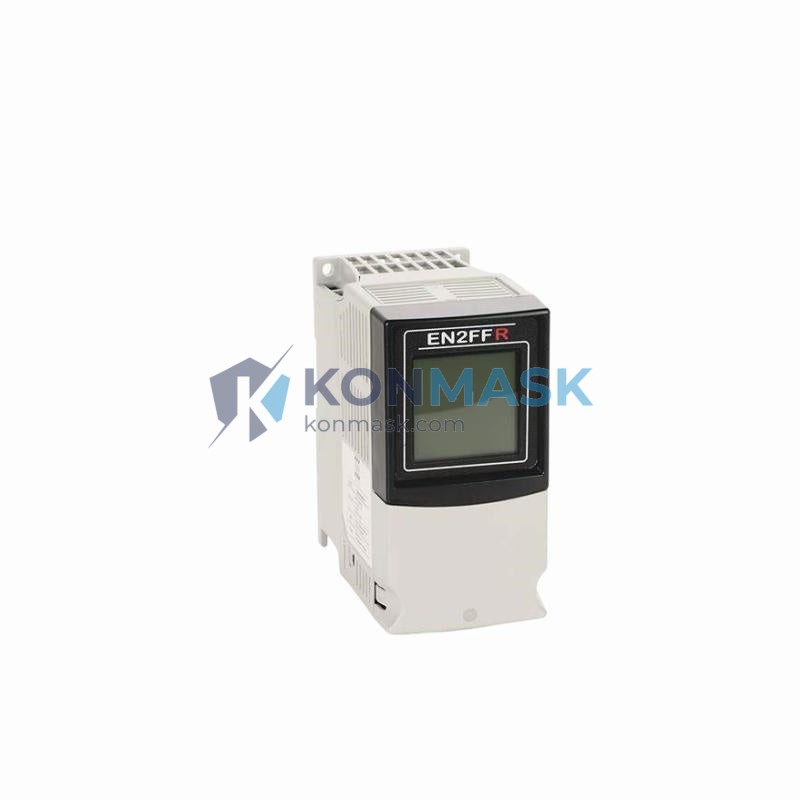

Allen-Bradley 1788-EN2FFR ControlNet-to-EtherNet/IP Linking Device – 1788 Series
When a ControlNet segment loses its bridge to the EtherNet/IP backbone, the consequences cascade instantly: HMI screens go blank, SCADA systems lose visibility, and production lines halt without warning. Maintenance engineers scramble to diagnose a fault that may span two entirely different network protocols, while every minute of downtime translates directly into lost output and escalating costs. The Allen-Bradley 1788-EN2FFR exists precisely to prevent this scenario — it is the critical translation layer that keeps your legacy ControlNet infrastructure communicating seamlessly with modern EtherNet/IP systems, ensuring uninterrupted data flow across your entire automation architecture.
Within Rockwell Automation’s 1788 Linking Device series, the 1788-EN2FFR occupies a strategic position as the dual-port EtherNet/IP variant with integrated ControlNet media redundancy support. As industrial facilities worldwide transition toward unified Ethernet-based architectures while maintaining substantial investments in ControlNet infrastructure, this module has become a cornerstone component in brownfield integration projects across automotive, oil & gas, food & beverage, and discrete manufacturing sectors globally.
Technical Specifications
- Part Number: 1788-EN2FFR
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: 1788 Linking Device
- Function: ControlNet-to-EtherNet/IP Protocol Bridge
- EtherNet/IP Ports: Dual RJ-45 (supports Device Level Ring / linear topology)
- ControlNet Ports: Dual BNC (coaxial, supports redundant media)
- Network Protocol: EtherNet/IP (CIP) ↔ ControlNet (CIP)
- Mounting: DIN rail or panel mount
- Power Supply: 24V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: UL, CE, cUL
- Weight: Approx. 1,300 g
Note: All specifications are based on published Rockwell Automation documentation. Verify against the official product manual for your specific application requirements.
Key Features & Benefits
- Seamless Protocol Translation: Bridges CIP-based ControlNet and EtherNet/IP networks without requiring PLC reprogramming, protecting your existing automation investment.
- Dual EtherNet/IP Ports: Supports Device Level Ring (DLR) topology for built-in Ethernet network resiliency, eliminating single points of failure on the Ethernet side.
- Redundant ControlNet Media: Dual BNC coaxial ports enable ControlNet media redundancy, providing fault-tolerant communication on the ControlNet segment.
- Transparent CIP Routing: Allows EtherNet/IP controllers and software (RSLogix 5000 / Studio 5000, RSLinx) to browse, configure, and communicate with ControlNet devices as if natively connected.
- Brownfield Integration Ready: Ideal for facilities upgrading to EtherNet/IP infrastructure while retaining existing ControlNet I/O, drives, and controllers.
- Compact DIN-Rail Form Factor: Space-efficient design fits standard control panel layouts without requiring additional enclosure space.
- Wide Industrial Temperature Range: Rated for harsh industrial environments from 0°C to 60°C ambient.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding lines, paint shop conveyors, and assembly robots using legacy ControlNet I/O with modern EtherNet/IP supervisory systems.
- Oil & Gas: Pipeline SCADA integration, compressor station control, and wellhead automation where ControlNet PLCs interface with EtherNet/IP DCS platforms.
- Food & Beverage: Packaging lines, filling machines, and CIP (Clean-in-Place) systems requiring reliable cross-protocol communication.
- Water & Wastewater: Pump station control and treatment plant SCADA systems bridging older ControlNet networks to modern Ethernet infrastructure.
- Discrete Manufacturing: Machine tool control, press lines, and material handling systems with mixed-generation network architectures.
- Power Generation & Utilities: Substation automation and turbine control systems requiring deterministic ControlNet communication with Ethernet-based SCADA.
System Integration & Compatible Parts
The 1788-EN2FFR is designed to integrate within the broader Rockwell Automation ecosystem. Compatible and commonly paired components include:
- Controllers: ControlLogix (1756 series), CompactLogix (1769 series) with EtherNet/IP communication modules
- ControlNet Scanner Modules: 1756-CNB, 1756-CNBR (for redundant ControlNet)
- EtherNet/IP Modules: 1756-EN2T, 1756-EN2TR (DLR-capable)
- ControlNet I/O: 1794-ACN15 (FLEX I/O ControlNet adapter), 1771-ACN15 (PLC-5 ControlNet)
- Software: Studio 5000 Logix Designer, RSLinx Classic/Enterprise, RSNetWorx for ControlNet
- Power Supply: 1606-XLP series 24VDC power supplies
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 1788-EN2FFR unit we supply undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against Rockwell Automation authorized distributor documentation and catalog records.
- Physical Inspection: Label integrity, firmware revision markings, connector condition, and housing inspection for signs of refurbishment or tampering.
- Functional Testing: Where applicable, modules are bench-tested for power-on self-test (POST) completion and basic communication response.
- Packaging Integrity: Anti-static packaging, moisture barrier bags, and shock-absorbing materials used for all shipments.
- Documentation: Certificate of conformity and test report available upon request for critical infrastructure projects.
How to Order
- Submit an Inquiry: Contact us via email at support@konmask.com or use the inquiry form on this page with your required quantity and delivery timeline.
- Receive a Quote: Our technical sales team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice. Payment terms available for qualified B2B accounts.
- Shipment & Tracking: We ship via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) provided for international orders.
- After-Sales Support: Our engineering team is available post-delivery for integration questions and technical guidance.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: We focus exclusively on PLC, DCS, and industrial communication components — not a generalist electronics distributor.
- ✅ Global B2B Supply: Serving engineering firms, system integrators, and OEMs across Asia, Europe, the Middle East, and the Americas.
- ✅ Competitive Lead Times: Extensive supplier network enables fast sourcing of both current-production and legacy/obsolete parts.
- ✅ Technical Pre-Sales Support: Our team can advise on compatibility, firmware requirements, and system architecture before you commit to a purchase.
- ✅ Flexible MOQ: Single-unit orders accepted for urgent maintenance needs; volume pricing available for project quantities.
- ✅ Secure Transactions: T/T bank transfer, PayPal, and other B2B payment methods supported with full documentation.
Frequently Asked Questions
Q: What is the difference between 1788-EN2FFR and 1788-EN2F?
A: The 1788-EN2FFR features dual EtherNet/IP ports supporting Device Level Ring (DLR) topology for Ethernet media redundancy, whereas the 1788-EN2F has a single EtherNet/IP port. Both support dual ControlNet BNC ports for ControlNet media redundancy. Choose the EN2FFR for applications requiring Ethernet ring topology resilience.
Q: Can the 1788-EN2FFR connect a ControlLogix controller to ControlNet I/O without a ControlNet scanner card in the chassis?
A: Yes. The 1788-EN2FFR allows an EtherNet/IP-connected ControlLogix controller to own and communicate with ControlNet I/O adapters across the linked ControlNet segment, effectively acting as the ControlNet network manager and bridge — eliminating the need for a 1756-CNB module in the controller chassis in many configurations.
Q: Is the 1788-EN2FFR compatible with Studio 5000 / RSLogix 5000?
A: Yes. The module is fully supported by Rockwell Automation’s Studio 5000 Logix Designer and RSLinx Classic/Enterprise. RSNetWorx for ControlNet is required for ControlNet network scheduling configuration.
Q: What firmware version should I use?
A: Firmware requirements depend on your controller firmware and Studio 5000 version. Please consult the Rockwell Automation Product Compatibility and Download Center (PCDC) or contact our technical team with your system details for guidance.
Q: Do you supply new, surplus, or refurbished units?
A: We supply new-in-box, factory-sealed units as well as tested surplus stock. All units are clearly identified by condition in your quotation. We do not supply unmarked or unverified refurbished units.
Q: How long does international shipping take?
A: Standard express shipping (DHL/FedEx) to most destinations takes 3–7 business days. Expedited options are available. Lead time for sourcing varies by stock availability — confirmed at time of quotation.
