Genuine Allen-Bradley 1786-RPFRXL ControlNet Fiber Ring Ex Long Repeater | 1786 Series – Verified Source

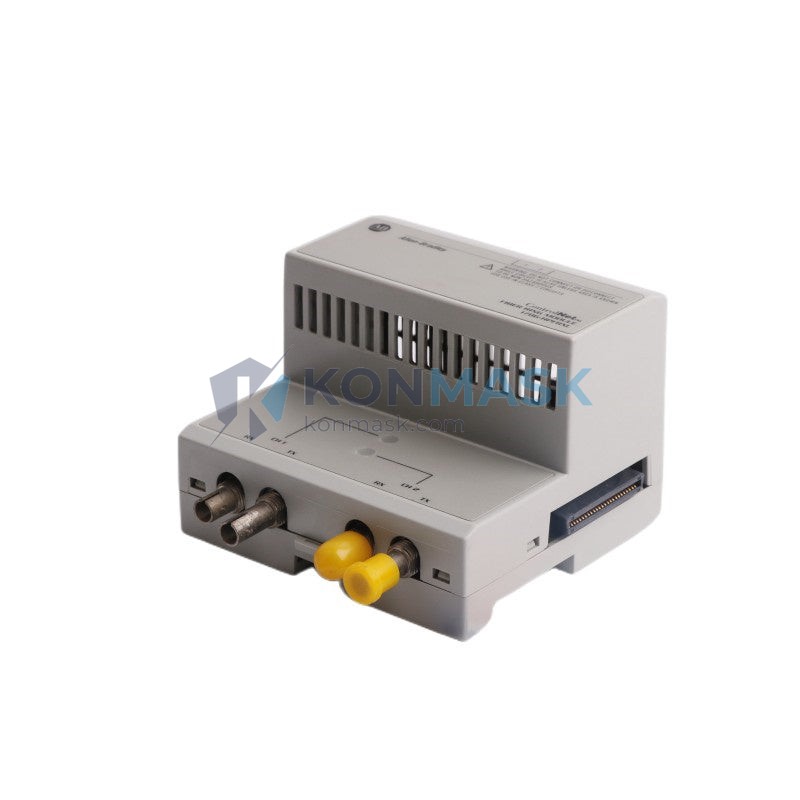

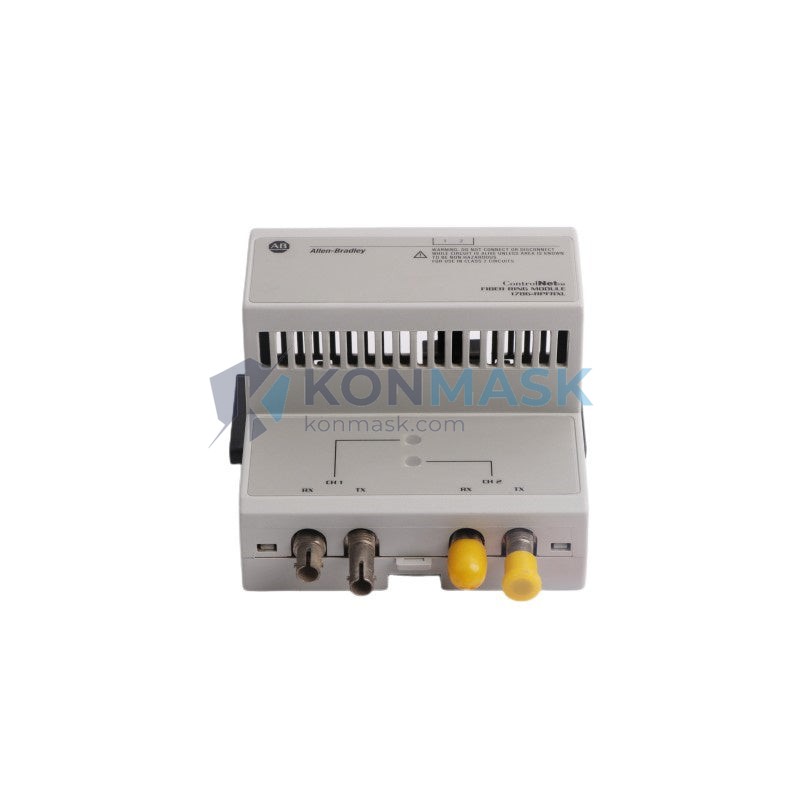

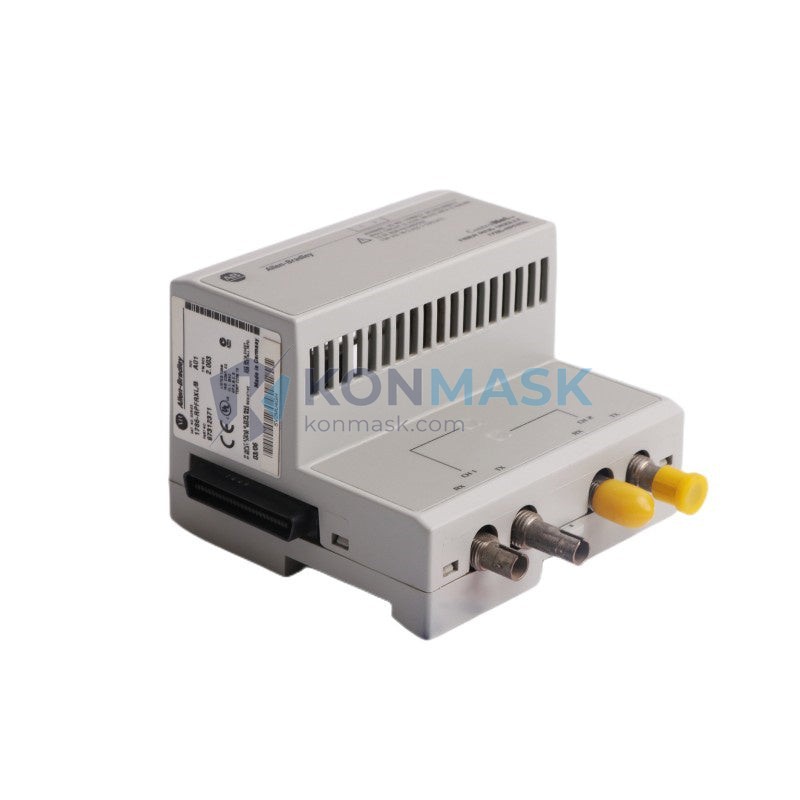

The Allen-Bradley 1786-RPFRXL is a ControlNet Fiber Ring Extended-Length Repeater designed for demanding industrial network environments. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes a rigorous multi-step inspection process to ensure authenticity, functionality, and compliance with Rockwell Automation specifications.
Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Part Number: 1786-RPFRXL
- Series: 1786 ControlNet
- Function: ControlNet Fiber Ring Extended-Length Repeater
- Network Type: ControlNet (IEEE 802.4 / ANSI/EIA-709.1)
- Media Type: Fiber Optic (Ring Topology)
- Transmission Distance: Extended-length (XL) — supports longer fiber spans than standard repeaters
- Data Rate: 5 Mbps (ControlNet standard)
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Power Supply: 24 VDC (external)
- Enclosure Rating: IP20 (panel-mount)
- Weight: Approx. 180 g
- Certifications: CE, UL, cUL
Our 4-Step Quality Verification Process
Every 1786-RPFRXL shipped from Konmask.com passes through our standardized verification workflow before dispatch:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or verified surplus channels with traceable documentation.
- Step 2 — Physical Inspection: Our technicians inspect labels, firmware revision markings, connector integrity, and housing for any signs of counterfeiting or damage.
- Step 3 — Functional Bench Test: Where applicable, modules are powered up and tested for basic communication and LED status response.
- Step 4 — Packaging & Documentation: Units are repackaged with anti-static protection, and all available documentation (datasheet, test record) is included.
Key Features & Benefits
- Extended fiber span capability — ideal for large plant layouts where standard repeaters fall short
- Ring topology support provides redundant path for high-availability ControlNet networks
- Immune to electromagnetic interference (EMI) — fiber media eliminates ground loop issues
- Plug-and-play integration with existing 1786 ControlNet infrastructure
- Compact DIN-rail or panel-mount form factor minimizes cabinet space
- Genuine Rockwell Automation hardware — no third-party clones or refurbished-without-disclosure units
Typical Applications
- Automotive assembly line ControlNet backbone extensions
- Oil & gas plant-wide process control networks
- Water/wastewater treatment facility SCADA networks
- Power generation and utilities distributed control systems
- Large-scale manufacturing with geographically dispersed I/O drops
- Mining and heavy industry environments with high EMI exposure
Compatible System Components
- ControlNet Cables: 1786-RG6, 1786-BNC series
- ControlNet Taps: 1786-TPR, 1786-TPS
- ControlNet Media: 1786-RPCD, 1786-RPFRL (standard fiber repeater)
- ControlLogix Controllers: 1756-CN2, 1756-CN2R ControlNet bridge modules
- PLC-5 & SLC 500: 1785-KFC15, 1747-KFC15 ControlNet scanner cards
- Network Configuration: RSNetWorx for ControlNet (v4.0+)
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global procurement network to source hard-to-find and obsolete Allen-Bradley components. We ship worldwide with the following capabilities:
- Domestic (China): SF Express / JD Logistics — 1–3 business days
- Asia-Pacific: DHL / FedEx — 3–5 business days
- Europe & Americas: DHL Express / UPS — 5–7 business days
- Export Documentation: Commercial invoice, packing list, and certificate of origin available on request
- Customs Support: HS Code 8537.10 — we assist with customs declarations for smooth clearance
Certifications & Compliance Statement
The Allen-Bradley 1786-RPFRXL carries the following certifications as issued by Rockwell Automation:
- CE Marking (EU Low Voltage Directive & EMC Directive)
- UL Listed / cUL (North American safety standards)
- RoHS Compliant
- ODVA ControlNet Conformance Tested
Konmask.com does not alter, re-label, or modify any hardware. All units are sold as-is in their original manufacturer configuration. Compliance documentation is available upon request for regulated industries.
How to Order
- Step 1: Confirm part number 1786-RPFRXL matches your system requirement (check firmware revision if applicable).
- Step 2: Add to cart or contact us directly for volume pricing and lead time confirmation.
- Step 3: Provide your shipping address and preferred freight method at checkout.
- Step 4: Receive order confirmation with tracking number within 1 business day of payment.
For urgent requirements, B2B purchase orders, or custom sourcing requests, contact us directly:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Authenticity & Trust FAQ
Q: Are these units genuine Allen-Bradley / Rockwell Automation products?
A: Yes. All units are sourced from verified channels. We do not sell counterfeit, clone, or unauthorized replica products.
Q: Do you provide a warranty?
A: We offer a 90-day functional warranty on all tested units. DOA (Dead on Arrival) claims are accepted within 7 days of receipt.
Q: Can you provide traceability documentation?
A: Yes, upon request we can provide procurement records and inspection reports for B2B and regulated-industry customers.
Q: What if the part is discontinued or hard to find?
A: The 1786-RPFRXL is a legacy/mature product. Konmask.com specializes in sourcing discontinued Rockwell Automation components — contact us with your full BOM for a comprehensive quote.
Q: Do you accept returns?
A: Yes. Returns are accepted within 30 days for unused, uninstalled units in original condition. Please contact support@konmask.com to initiate a return.
