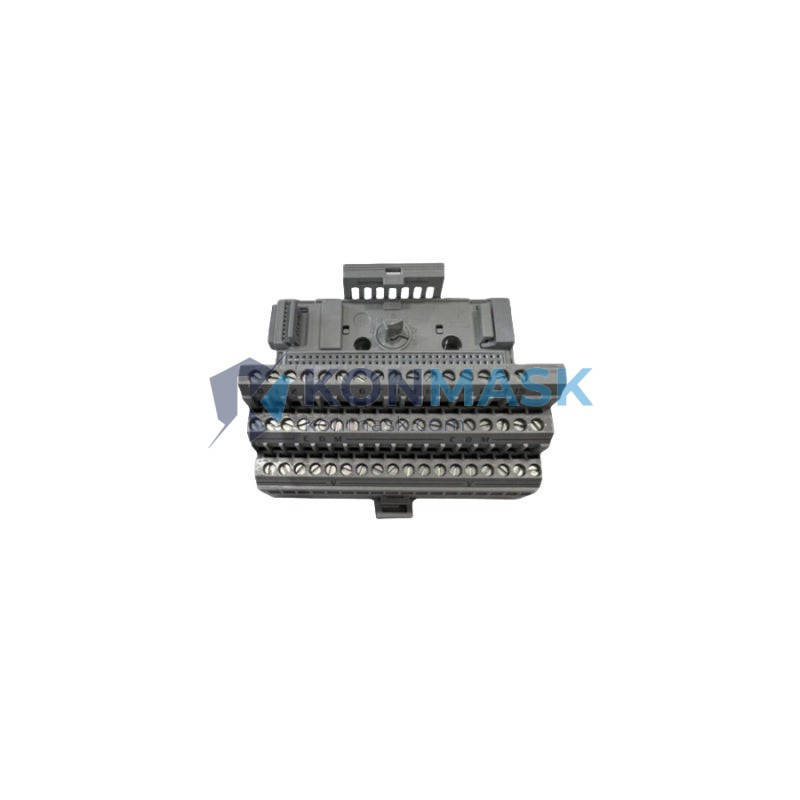

Allen-Bradley 1794-TB3/A – FLEX I/O Terminal Base Unit | Rockwell Automation FLEX I/O Platform
工程背景:在现代分布式控制架构中,I/O 端子基座单元是现场信号与控制系统之间的关键物理接口。Allen-Bradley 1794-TB3/A 专为 Rockwell Automation FLEX I/O 系列设计,提供稳定、可靠的 3 线制端子连接方案,广泛应用于离散制造、过程控制及基础设施自动化领域。
产品定位:1794-TB3/A 是 FLEX I/O 模块化 I/O 系统的标准端子基座,支持快速模块插拔与现场接线,适合需要高密度 I/O 点位、紧凑安装空间及高可靠性的工业控制柜应用场景。采购工程师可将其作为 1794 系列 I/O 模块的标准配套底座进行选型。
Complete Technical Specifications
- Part Number: 1794-TB3/A
- Catalog Number: AB1794-TB3/A
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: FLEX I/O (1794 Series)
- Module Type: Terminal Base Unit (3-Wire)
- Termination Style: 3-wire (Signal + Power + Common)
- Operating Voltage: 24V DC (nominal)
- Backplane Communication: FLEX I/O proprietary backplane bus
- Compatible Modules: All 1794 Series I/O modules (digital, analog, specialty)
- Mounting: DIN rail (EN 50022, 35mm)
- Operating Temperature: 0°C to +55°C (32°F to 131°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Enclosure Rating: Open type (IP20 equivalent)
- Agency Certifications: UL, CE, CSA
- Weight: Approx. 100 g
- Country of Origin: USA
Proven Application Environments
- Discrete Manufacturing: Automotive assembly lines, packaging machinery, conveyor systems requiring distributed I/O nodes
- Process Control: Chemical plants, water treatment facilities, oil & gas upstream/midstream with remote I/O drops
- Machine OEM: Standalone machine builders integrating FLEX I/O for compact panel design
- Infrastructure Automation: Building management systems, HVAC control panels, power distribution monitoring
- Food & Beverage: Washdown-adjacent control panels where modular I/O replacement minimizes downtime
- Semiconductor & Electronics: Precision process equipment requiring stable, low-noise signal termination
Engineering Advantages
- Hot-swap Capable: I/O modules can be removed and replaced without powering down the base, minimizing production interruption
- 3-Wire Termination: Simplifies field wiring for sensors and actuators with dedicated signal, power, and common terminals per point
- Modular Scalability: Daisy-chain multiple 1794-TB3/A bases to expand I/O count without additional adapters
- Compact Footprint: DIN rail mounting enables high-density I/O in space-constrained enclosures
- Universal Compatibility: Accepts the full range of 1794 Series digital and analog I/O modules
- Reduced Wiring Errors: Clearly labeled terminal blocks with color-coded zones reduce commissioning errors
System Architecture & Signal Flow
The 1794-TB3/A functions as the physical and electrical foundation of a FLEX I/O node. Field wiring terminates at the base unit’s screw terminals, while the I/O module plugs into the top of the base and communicates via the FLEX I/O backplane bus. The adapter module (e.g., 1794-AENT, 1794-ADN) at the left end of the node manages network communication (EtherNet/IP, DeviceNet, etc.) and power distribution across all bases in the node. Signal flow: Field Device → TB3/A Terminal → I/O Module → Backplane → Adapter → PLC/Controller.
Sourcing & Quality Verification
- Source: Konmask.com sources 1794-TB3/A units from authorized distributors and verified surplus channels with full traceability documentation
- Inspection: Each unit undergoes visual inspection, label verification, and functional continuity check prior to shipment
- Authenticity: Rockwell Automation holographic labels and date codes verified; counterfeit units rejected at intake
- Condition Options: New (factory sealed), Refurbished (tested to OEM spec), and Surplus (inspected, with warranty)
- Documentation: Certificate of conformance and inspection report available upon request
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email [email protected] with quantity and required delivery date
- Step 2 – Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options
- Step 3 – Order Confirmation: Approve the quote; payment via T/T, PayPal, or credit card (B2B net terms available for qualified accounts)
- Step 4 – Inspection & Dispatch: Units inspected, packed, and dispatched within 1–3 business days; tracking number provided
- Step 5 – After-Sales: 12-month warranty on all units; technical support available via email or phone
Technical FAQ
Q: Is the 1794-TB3/A compatible with all 1794 Series I/O modules?
A: Yes. The TB3/A base accepts all standard 1794 Series digital and analog I/O modules. Verify module-specific power requirements against your adapter’s power budget.
Q: What is the difference between 1794-TB3 and 1794-TB3/A?
A: The /A revision incorporates minor mechanical and labeling improvements. Both are functionally interchangeable in most applications; consult the Rockwell Automation release notes for revision-specific changes.
Q: Can I replace an I/O module without shutting down the system?
A: Yes, FLEX I/O supports hot-swap of I/O modules at the base unit level. The adapter and other bases in the node remain operational during module replacement.
Q: What network adapters are compatible with this base?
A: The 1794-TB3/A is compatible with all 1794 Series adapters including 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-APB (PROFIBUS), and 1794-ACN15 (ControlNet).
Q: What is the maximum number of bases per node?
A: Up to 8 I/O modules (bases) per adapter node, subject to the adapter’s power budget and backplane current limits.
Q: Do you provide Rockwell Automation documentation?
A: Yes. We can provide links to the official 1794-TB3/A installation instructions (Pub. 1794-IN006) and the FLEX I/O system user manual upon request.
