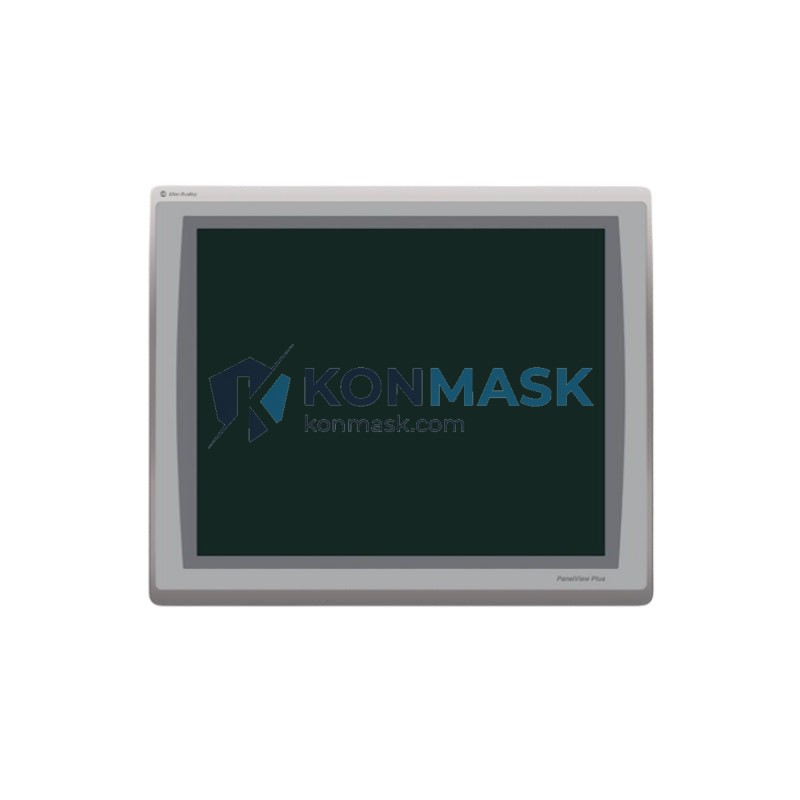

Industrial HMI Solution — Allen-Bradley 2711P-T19C22A9P | PanelView Plus 7 Series
Where This Product Is Used
The Allen-Bradley 2711P-T19C22A9P PanelView Plus 7 operator terminal is deployed across demanding industrial environments where large-format, high-resolution visualization and real-time machine control are critical. Typical application sites include:
- Automotive Assembly Lines — Operator interface for robotic welding cells, conveyor sequencing, and torque monitoring stations.
- Food & Beverage Processing — Hygienic-area HMI for batch recipe management, CIP cycle control, and line speed adjustment.
- Water & Wastewater Treatment — SCADA front-end terminal for pump station monitoring, dosing control, and alarm management.
- Oil & Gas Upstream/Midstream — Panel-mounted interface for compressor skid control, separator monitoring, and ESD system visualization.
- Pharmaceutical Manufacturing — 21 CFR Part 11-compatible HMI for batch record display, clean-room process control, and audit trail review.
- Power Generation & Utilities — Substation and turbine control room operator workstation for real-time status and alarm acknowledgment.
- Material Handling & Logistics — Warehouse sortation system interface, AGV dispatch panel, and palletizer control station.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number | 2711P-T19C22A9P |
| Series | PanelView Plus 7 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 19 inch (widescreen) |
| Display Type | Color TFT LCD, Touch Screen |
| Resolution | 1280 × 1024 (SXGA) |
| Touch Technology | Resistive analog touch |
| Operating System | Windows Embedded Standard 7 (WES7) |
| Communication Ports | Dual Ethernet (EtherNet/IP), USB 2.0 × 2, RS-232 |
| Input Voltage | 24V DC |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front panel) |
| Memory | 1 GB RAM / 4 GB Flash |
| Software | FactoryTalk View ME / SE compatible |
| Catalog Number | 2711P-T19C22A9P |
Why Engineers Specify This Model
- 19″ Large-Format Display — Reduces operator error in complex multi-loop processes by providing ample screen real estate for trend displays, alarm lists, and P&ID mimics simultaneously.
- Dual EtherNet/IP Ports — Supports Device Level Ring (DLR) topology for network redundancy without additional switches, critical for high-availability production lines.
- FactoryTalk View ME Integration — Native integration with Rockwell’s FactoryTalk ecosystem enables seamless tag browsing, alarm management, and historian connectivity.
- NEMA 4X / IP65 Front Panel — Suitable for washdown environments and dusty industrial floors without additional enclosure engineering.
- Windows Embedded Standard 7 — Familiar OS platform supports third-party software deployment, VNC remote access, and custom application hosting.
- Long Product Lifecycle — PanelView Plus 7 platform is actively supported by Rockwell Automation with firmware updates and spare parts availability.
Complete System Bill of Materials
For a fully operational PanelView Plus 7 workstation, engineers typically specify the following complementary components:
- 2711P-T19C22A9P — This unit (19″ touch terminal)
- 2711P-RN15S — EtherNet/IP communication module (if required for legacy installations)
- 2711P-T19C22A9P-B — Replacement backlight assembly
- 1606-XLP95E — Allen-Bradley 24V DC power supply (95W)
- 1585J-M8CBJM-2 — EtherNet/IP patch cable (2m, M12 to RJ45)
- 2711P-T19C22A9P-MK — Panel cutout mounting kit and gasket
- 9701-VWSTENE — FactoryTalk View ME software license
Compliance & Industry Standards
- UL Listed (UL 508)
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS Compliant
- NEMA 4, 4X, 12, 13 enclosure ratings
- IP65 (front panel ingress protection)
- cULus Listed
- EtherNet/IP conformance tested (ODVA)
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 2711P-T19C22A9P unit is:
- Sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Inspected for physical integrity, label authenticity, and firmware version prior to dispatch.
- Tested for power-on functionality where applicable.
- Shipped in anti-static packaging with original accessories where available.
- Backed by our 90-day quality guarantee — if the unit fails to perform as specified, we replace or refund.
How to Source This Part
Ready to order the 2711P-T19C22A9P? Here’s how to proceed:
- In-Stock Orders — Add to cart and check out directly. Most orders ship within 1–3 business days from our warehouse.
- Bulk / Project Quotes — Contact our team at support@konmask.com for volume pricing and project BOM support.
- Urgent Requirements — Call or WhatsApp +0086 19859288691 for expedited sourcing and same-day quotation.
- Custom Configurations — We can assist with pre-loaded FactoryTalk ME applications and custom panel integration services.
Application-Specific FAQ
Q: Is the 2711P-T19C22A9P compatible with ControlLogix and CompactLogix PLCs?
A: Yes. Via EtherNet/IP, it communicates natively with all ControlLogix (1756), CompactLogix (1769), and GuardLogix controllers using FactoryTalk View ME tag-based addressing.
Q: Can this terminal run FactoryTalk View SE (Site Edition)?
A: The 2711P-T19C22A9P is primarily designed for FactoryTalk View ME (Machine Edition). For SE client functionality, a separate SE client license and network configuration are required.
Q: What is the difference between 2711P-T19C22A9P and 2711P-T19C22D9P?
A: The suffix “A9P” denotes AC power input variant while “D9P” denotes DC input. Verify your panel power supply before ordering.
Q: Is remote access supported?
A: Yes. The WES7 operating system supports VNC server and Remote Desktop Protocol (RDP) for remote monitoring and diagnostics.
Q: What warranty does Konmask provide?
A: We offer a 90-day functional warranty on all units. Extended warranty options are available — contact us for details.
