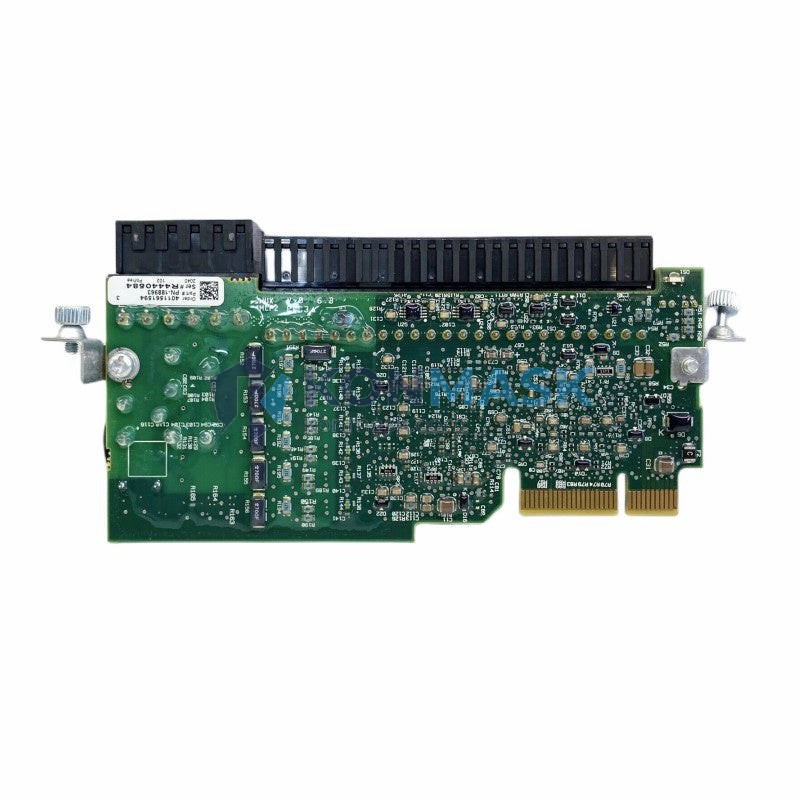

Allen-Bradley 20-750-S — Safe Torque Off (STO) Module | PowerFlex 750 Series
Engineering Background
The 20-750-S is a dedicated safety option module engineered by Rockwell Automation for the PowerFlex 750 Series AC drive platform. It implements the Safe Torque Off (STO) function — IEC 61800-5-2 Category 0 stop — by removing the gate-drive signals to the drive’s output power devices without removing AC power from the drive. This architecture eliminates the need for a main contactor in many machine safety circuits, reducing component count, panel space, and maintenance overhead.
Product Positioning
Designed for OEMs and system integrators who must achieve SIL 2 (IEC 62061) or Performance Level d (ISO 13849-1) on servo and variable-speed drive axes. The 20-750-S slots directly into the PowerFlex 750 option bay, making it the factory-preferred path to functional safety compliance on this drive family without external safety relays or wiring modifications to the drive itself.
Complete Technical Specifications
| Part Number | 20-750-S |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Compatible Platform | PowerFlex 750 Series (755, 755T, 753) |
| Safety Function | Safe Torque Off (STO) — IEC 61800-5-2 |
| Safety Integrity Level | SIL 2 (IEC 62061) |
| Performance Level | PLd, Category 3 (ISO 13849-1) |
| Stop Category | Category 0 (uncontrolled stop) |
| STO Input Voltage | 24 V DC (±10%) |
| STO Input Current | ≤ 50 mA per channel |
| Number of STO Channels | 2 (dual-channel, redundant) |
| Response Time (STO activation) | ≤ 10 ms |
| Feedback / Diagnostic Output | STO status feedback via drive parameter |
| Module Form Factor | Option bay plug-in (no external wiring to drive PCB) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Weight | 250 g (approx.) |
| Certifications | CE, UL, cUL, TÜV |
| Applicable Standards | IEC 61800-5-2, IEC 62061, ISO 13849-1, EN 60204-1 |
Proven Application Environments
- Packaging machinery — guard-door interlocking on form-fill-seal and cartoning lines where rapid STO without full drive power-down is required
- Conveyor systems — zone-based safety stop on accumulation and sortation conveyors integrated with safety PLCs (GuardLogix, SmartGuard)
- Robotic work cells — collaborative robot perimeter guarding requiring PLd axis-level STO on auxiliary servo axes
- Crane and hoist applications — emergency stop circuits where contactor-free STO reduces arc wear and maintenance intervals
- Pump and fan drives — HVAC and process plant installations requiring IEC 62061 SIL 2 compliance for energy-isolation procedures
- Machine tool spindles — spindle-lock safety interlock during tool change cycles on CNC machining centers
Engineering Advantages
- Contactor elimination — STO removes gate-drive signals internally; AC bus remains energized, enabling faster restart after safety event clearance
- Dual-channel redundancy — two independent STO input channels satisfy Category 3 / PLd architecture requirements without external safety relay modules
- Native drive integration — module communicates directly with PowerFlex 750 firmware; STO status, fault codes, and diagnostics are accessible via drive parameters and Studio 5000 / RSLogix 5000 tags
- Reduced panel footprint — eliminates external safety relay, associated wiring, and DIN-rail space; simplifies panel layout and UL 508A documentation
- Certified PFH values — published Probability of Failure per Hour (PFH) data available in Rockwell Publication 750-UM002 for safety calculations
- Firmware-transparent operation — no drive firmware modification required; module is recognized automatically upon installation
System Architecture & Signal Flow
The 20-750-S installs into the PowerFlex 750 option bay (Port 4 or Port 5 depending on drive frame). On STO activation (24 V DC removed from either or both input channels), the module interrupts the internal gate-drive enable signal to the IGBT output stage. The motor coasts to stop (Category 0). The drive’s DC bus, control power, and communication links remain active throughout, allowing the safety PLC to monitor drive status, log the safety event, and initiate a controlled restart sequence once the safety condition is cleared and the STO inputs are re-energized.
Typical wiring topology: Safety PLC safety output → 20-750-S STO_A and STO_B terminals → module internal logic → IGBT gate-drive inhibit. A feedback signal (STO_FB) is wired back to the safety PLC input for cross-monitoring and diagnostic coverage.
Sourcing & Quality Verification
- All units sourced through verified industrial automation distributors and authorized channel partners
- Each module inspected for physical integrity, label authenticity, and firmware revision prior to dispatch
- Original Rockwell Automation packaging and documentation supplied where available
- Traceability records maintained; lot and date codes available on request
- Counterfeit-risk mitigation: units cross-referenced against Rockwell Automation part number database
Procurement Process
- Confirm compatibility — verify your PowerFlex 750 drive frame size and existing option bay occupancy (refer to drive nameplate or Studio 5000 project)
- Place order — add to cart or contact support@konmask.com for volume pricing and lead-time confirmation
- Receive & inspect — verify part number label, firmware sticker, and packaging seal on arrival
- Install & commission — follow Rockwell Publication 750-IN009 (20-750-S Installation Instructions) and 750-UM002 (PowerFlex 750 Series Option Module User Manual)
- Safety validation — perform functional safety validation per IEC 61800-5-2 Annex D and document PFH calculations for machinery CE marking
Technical FAQ
Q: Is the 20-750-S compatible with PowerFlex 753 drives?
A: Yes. The 20-750-S is compatible with PowerFlex 753, 755, and 755T drives. Verify available option bay slots on your specific drive frame.
Q: Can STO be used as a regular operational stop?
A: No. STO is a safety function for emergency/guard-door stop scenarios. For normal operational stops, use the drive’s standard deceleration ramp (Category 1 or 2 stop). Frequent STO activation for non-safety purposes is not recommended and may affect PFH calculations.
Q: Does the 20-750-S support Safe Stop 1 (SS1)?
A: The module itself implements STO (Category 0). SS1 (Category 1 — controlled deceleration followed by STO) requires a safety PLC (e.g., GuardLogix) to manage the deceleration sequence before asserting STO via the 20-750-S.
Q: What is the maximum cable length for STO input wiring?
A: Rockwell Automation recommends keeping STO input wiring ≤ 30 m and using shielded cable to minimize noise susceptibility. Refer to Publication 750-IN009 for detailed wiring guidelines.
Q: Is a safety relay required when using the 20-750-S?
A: Not necessarily. The dual-channel architecture of the 20-750-S satisfies Category 3 / PLd without an external safety relay when wired directly to a compatible safety PLC output. Consult your safety engineer for your specific risk assessment.
