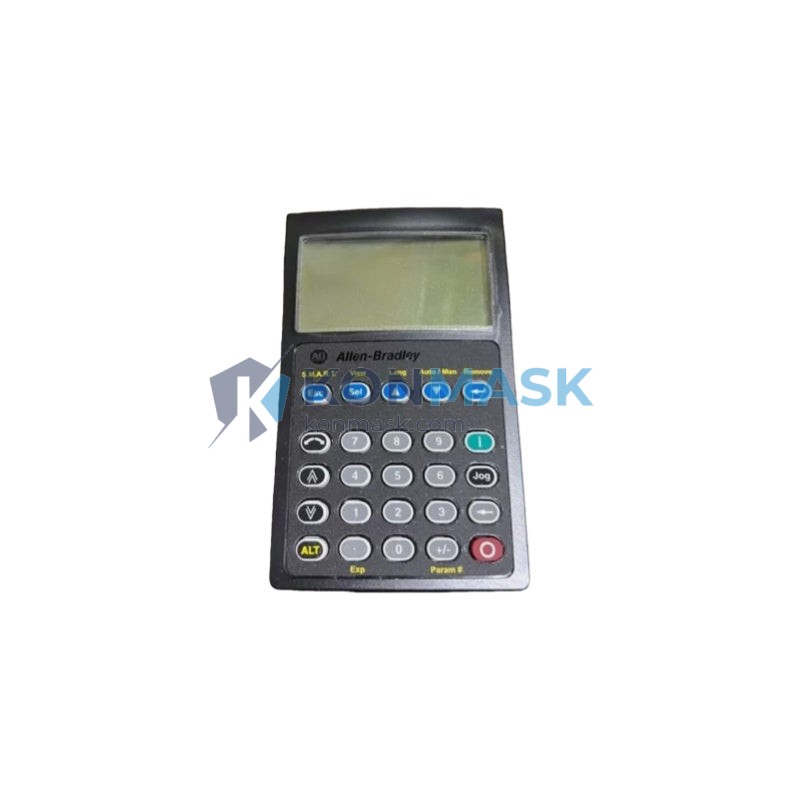

Allen-Bradley 20-HIM-A3 Human Interface Module – PowerFlex Human Interface Module (HIM)

Imagine a critical production line halted because an operator cannot access drive parameters, monitor fault codes, or initiate a controlled stop — all because the drive’s interface is buried inside a locked electrical cabinet. Without a reliable Human Interface Module, your PowerFlex drive becomes a black box: inaccessible, unmonitorable, and impossible to commission efficiently. Downtime accumulates, troubleshooting drags on, and production losses mount by the minute. The Allen-Bradley 20-HIM-A3 eliminates this vulnerability entirely, placing full drive control and diagnostics directly in the operator’s hands.

The 20-HIM-A3 is Allen-Bradley’s full-featured remote-mount Human Interface Module designed specifically for the PowerFlex family of AC drives — one of the most widely deployed variable frequency drive platforms in global industrial automation. Within the PowerFlex HIM lineup, the 20-HIM-A3 occupies the premium tier, offering a complete alphanumeric display, full numeric keypad, and remote-mount capability via a standard CAT5 cable up to 10 meters. It is the preferred interface solution for OEMs, system integrators, and end-users operating PowerFlex 4, 40, 400, 70, 700, 750, and related series drives across manufacturing, water/wastewater, HVAC, and process industries worldwide.

Technical Specifications

Part Number: 20-HIM-A3
Manufacturer: Allen-Bradley (Rockwell Automation)
Series: PowerFlex Human Interface Module (HIM)
Display: 4-line × 20-character alphanumeric LCD
Keypad: Full numeric keypad with navigation and function keys
Mounting: Remote-mount (panel door or remote location)
Cable Interface: RJ45 / CAT5, up to 10 m (32.8 ft)
Compatible Drives: PowerFlex 4, 40, 400, 70, 700, 700H, 700S, 750 Series
Functions: Parameter programming, fault diagnostics, drive start/stop/speed control
Copy/Paste: Parameter upload/download between drives
Weight: 700 g (approx.)
Standards: CE, UL listed

Key Features & Benefits

Remote Accessibility: Mount the HIM on a panel door or remote enclosure up to 10 m from the drive — no need to open the main cabinet for routine operation or commissioning.
Full Alphanumeric Display: 4-line × 20-character LCD provides clear parameter names, values, and fault messages in plain text — eliminating guesswork during troubleshooting.
Complete Keypad Control: Numeric keypad enables direct parameter entry, reducing commissioning time versus scroll-only interfaces.
Parameter Copy Function: Upload drive parameters to the HIM memory and download to replacement drives — critical for fast swap-outs in production environments.
Real-Time Fault Diagnostics: Displays active faults and fault history with descriptive text, enabling faster root-cause analysis without a laptop or software.
Broad Drive Compatibility: Single HIM model supports multiple PowerFlex drive families, simplifying spare parts inventory management.
Plug-and-Play Installation: Standard RJ45 connection requires no special tools or configuration — operational within minutes.

Industry & Equipment Applications

Manufacturing & Assembly: Conveyor systems, packaging lines, material handling equipment
Water & Wastewater: Pump stations, aeration blowers, filtration systems
HVAC & Building Automation: Air handling units, cooling towers, chiller pump drives
Oil & Gas: Compressor drives, pipeline pump control panels
Food & Beverage: Mixer drives, bottling line conveyors, refrigeration compressors
Pulp & Paper / Metals: Winder drives, rolling mill auxiliaries
Marine & Offshore: Deck machinery, ballast pump drives

System Integration & Compatible Parts

The 20-HIM-A3 integrates seamlessly within the Allen-Bradley PowerFlex ecosystem. Commonly paired components include:

PowerFlex 40 Drives: 22B-D012N104, 22B-D030N104 series
PowerFlex 70 Drives: 20A-D010A3AYNANC0 and related catalog numbers
PowerFlex 700 Drives: 20BD series
Remote HIM Mounting Kit: 20-HIM-H10 (10 m CAT5 cable kit)
Blank Cover Plate: 20-HIM-B1 (when HIM is removed from drive)
DriveExplorer / Studio 5000: PC-based parameter management software for advanced configuration

Our Quality Assurance Process

At Konmask.com, every Allen-Bradley 20-HIM-A3 unit is subject to a rigorous multi-stage quality verification process before shipment:

Authenticity Verification: Cross-referenced against Rockwell Automation authorized supply chain documentation
Visual Inspection: Housing integrity, connector condition, label legibility, and keypad functionality checked
Functional Test: Display, keypad response, and communication port verified on compatible PowerFlex drive
Packaging Inspection: Original or equivalent ESD-safe packaging confirmed prior to dispatch
Documentation: Traceability records maintained for each unit shipped

How to Order

Submit your inquiry via the Contact Us form or email support@konmask.com
Provide your required quantity, delivery timeline, and destination country
Receive a formal quotation within 24 business hours
Confirm order and complete payment via agreed terms (T/T, L/C, or other)
Shipment arranged via DHL, FedEx, UPS, or sea freight — with full tracking provided

Why Choose Konmask.com?

✅ Specialized in Industrial Automation Components — PLC modules, DCS parts, drives, and HMI accessories from leading global brands
✅ Global B2B Supply — Serving system integrators, OEMs, and MRO buyers in 50+ countries
✅ Fast Quotation Response — Formal quotes within 24 hours for standard inquiries
✅ Flexible Shipping Options — Express courier and sea freight to all major destinations
✅ Dedicated Technical Support — Our team includes experienced automation engineers who can assist with compatibility and application questions
✅ Competitive Pricing — Direct sourcing relationships enable cost-effective pricing for both small and large orders

Frequently Asked Questions

Q: What drives is the Allen-Bradley 20-HIM-A3 compatible with?
A: The 20-HIM-A3 is compatible with the PowerFlex 4, 40, 400, 70, 700, 700H, 700S, and 750 series AC drives. Always verify compatibility with your specific drive catalog number before ordering.

Q: What is the maximum cable length for remote mounting the 20-HIM-A3?
A: The 20-HIM-A3 supports remote mounting via a standard CAT5 RJ45 cable up to 10 meters (32.8 feet) from the drive.

Q: Can the 20-HIM-A3 copy parameters between drives?
A: Yes. The 20-HIM-A3 supports parameter upload (from drive to HIM memory) and download (from HIM memory to drive), enabling fast parameter transfer during drive replacement or commissioning of multiple identical drives.

Q: Is the 20-HIM-A3 the same as the 20-HIM-A6?
A: No. The 20-HIM-A3 features a full numeric keypad and 4-line alphanumeric display with remote-mount capability. The 20-HIM-A6 is a different variant — please confirm the exact part number required for your application.

Q: Do you provide a warranty on the 20-HIM-A3?
A: Yes. All units supplied by Konmask.com are covered by our standard warranty policy. Please contact support@konmask.com for specific warranty terms applicable to your order.

Q: What is the lead time for the Allen-Bradley 20-HIM-A3?
A: Lead time depends on current stock availability and your destination. Please submit an inquiry for a real-time availability and delivery estimate.

{
