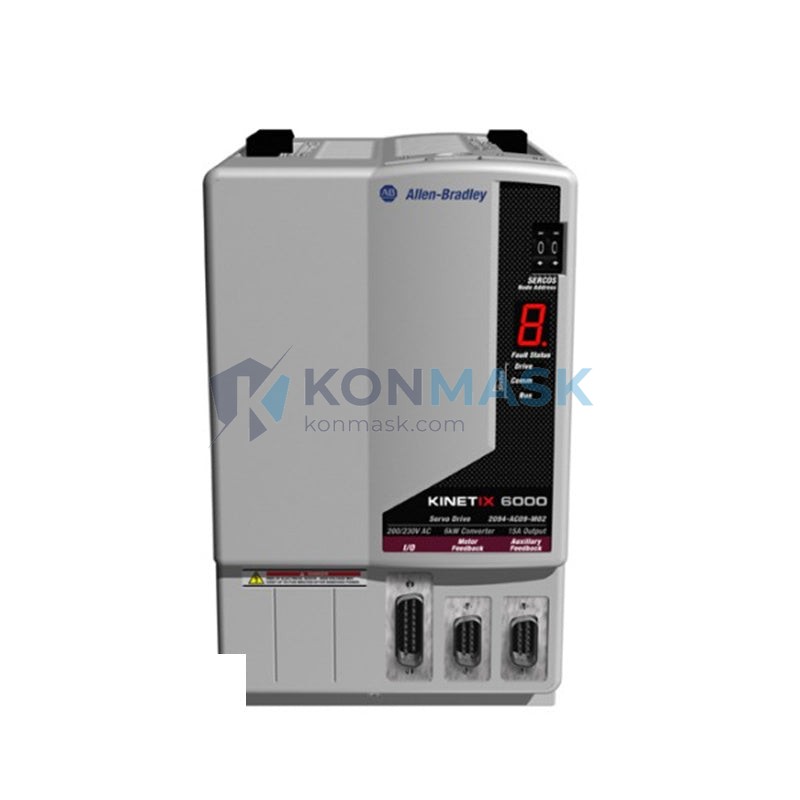

Allen-Bradley 2094-AC09-M02 Integrated Axis Module – Kinetix 6000 Multi-Axis Servo Drive System
When a servo axis module fails on a high-speed packaging line, an automotive transfer press, or a precision CNC machining center, the entire production cell stops. Every minute of unplanned downtime translates directly into scrapped product, missed delivery windows, and escalating labor costs. The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is the precision power conversion and control heart of the Kinetix 6000 drive system — without it, coordinated multi-axis motion simply cannot occur. Its absence is not a minor inconvenience; it is a full production halt.
Within the Kinetix 6000 family, the 2094-AC09-M02 occupies a critical mid-range position, delivering 9 Arms continuous output current in a shared-bus architecture that maximizes power density while minimizing cabinet footprint. Rockwell Automation’s Kinetix 6000 platform is one of the most widely deployed multi-axis servo systems in global discrete manufacturing, trusted by OEMs and end-users across automotive, food & beverage, semiconductor, and material handling industries. The 2094-AC09-M02 is fully integrated with the Logix control ecosystem via SERCOS interface, making it a cornerstone component for any facility running Studio 5000 / RSLogix 5000 motion control programs.
Technical Specifications
- Part Number: 2094-AC09-M02
- Series: Kinetix 6000 Multi-Axis Servo Drive
- Module Type: Integrated Axis Module (IAM) — combines converter and inverter
- Continuous Output Current: 9 Arms
- Communication Interface: SERCOS (fiber optic ring)
- Control Platform: Compatible with ControlLogix / CompactLogix via 1756-M08SE / 1756-M16SE SERCOS interface modules
- Input Voltage: 195–264 VAC, 3-phase
- Bus Architecture: Shared DC bus (Kinetix 6000 power rail)
- Feedback Support: Hiperface, EnDat, Sine/Cosine, incremental encoder
- Weight: Approx. 2.5 kg
- Manufacturer: Rockwell Automation / Allen-Bradley
Note: All specifications are sourced from Rockwell Automation published documentation. Konmask.com does not modify or fabricate technical parameters.
Key Features & Benefits
- Integrated Converter + Inverter: The IAM design consolidates AC-to-DC conversion and DC-to-AC inversion in a single module, reducing wiring complexity and panel space versus standalone drive topologies.
- Shared DC Bus Efficiency: Regenerative energy from decelerating axes is shared across the bus to accelerating axes, reducing net energy consumption and heat dissipation in the control cabinet.
- SERCOS Fiber Optic Communication: Deterministic, noise-immune motion data transmission at up to 4 Mbps ensures precise synchronization across all axes in the ring — critical for coordinated cam and gearing applications.
- Logix-Native Motion Integration: Full support for Rockwell’s Motion Instruction Set (MAS, MAM, MAJ, MAPC, etc.) within Studio 5000, enabling seamless programming without third-party motion controllers.
- Wide Feedback Compatibility: Supports multiple encoder protocols, allowing integration with a broad range of Allen-Bradley MPL, MPM, and third-party servo motors.
- Robust Fault Diagnostics: Onboard fault codes and integration with RSLogix 5000 fault logging accelerate troubleshooting and reduce MTTR (Mean Time To Repair).
Industry & Equipment Applications
- Automotive Manufacturing: Transfer lines, robotic welding cells, press-feed systems requiring synchronized multi-axis motion
- Packaging Machinery: High-speed form-fill-seal machines, cartoners, case packers with electronic line shafting
- Food & Beverage: Filling, capping, and labeling equipment demanding hygienic, precise positioning
- Semiconductor & Electronics: Pick-and-place, wafer handling, and PCB assembly requiring sub-micron repeatability
- Material Handling: Automated storage and retrieval systems (AS/RS), conveyor indexing, palletizing robots
- Printing & Converting: Web tension control, register mark tracking, and slitter-rewinder applications
System Integration & Compatible Parts
The 2094-AC09-M02 is designed to operate within the Kinetix 6000 power rail ecosystem. Typical system configurations include:
- Power Rail: 2094-PRF (Kinetix 6000 power rail, various slot configurations)
- Axis Expansion Modules (AM): 2094-AM02, 2094-AM03, 2094-AM05 (additional inverter axes sharing the IAM converter)
- SERCOS Interface: 1756-M08SE, 1756-M16SE (ControlLogix SERCOS cards)
- Servo Motors: Allen-Bradley MPL-B series, MPM-B series, and compatible third-party motors with supported feedback
- Line Interface Module (LIM): 2094-AL09 (for AC line filtering and soft-start)
- Shunt Module: 2094-ASB2 (for regenerative energy management in high-inertia applications)
When sourcing replacement or expansion components, always verify firmware revision compatibility between the IAM and the ControlLogix SERCOS interface module to avoid communication faults.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 2094-AC09-M02 unit offered undergoes a structured verification process before shipment:
- Source Verification: Units are sourced from authorized distributors, certified surplus dealers, or directly from decommissioned OEM equipment with documented provenance.
- Visual & Physical Inspection: Enclosure integrity, connector condition, label legibility, and firmware label verification are checked against Rockwell Automation reference standards.
- Functional Testing (where applicable): Power-on and communication handshake tests are performed on available test benches to confirm module responsiveness prior to dispatch.
- Secure Packaging: Anti-static packaging with foam cushioning and moisture barrier bags protect the module during international transit.
- Documentation: Each shipment includes a packing list with part number, serial number (if available), and inspection checklist.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity, delivery timeline, and destination country.
- Receive a Quotation: Our technical sales team will respond within 1 business day with pricing, lead time, and available stock confirmation.
- Order Confirmation: Upon agreement, a proforma invoice is issued. Payment terms are discussed based on order value and customer history.
- Shipment & Tracking: Orders are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list) is provided for customs clearance.
- After-Sales Support: Our engineering team is available post-delivery to assist with installation questions or compatibility verification.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drive, and motion control components — not a generalist electronics marketplace.
- Global B2B Export Experience: We serve maintenance engineers, procurement managers, and OEM integrators across Europe, Southeast Asia, the Middle East, and the Americas.
- Technical Pre-Sales Support: Our team can assist with cross-referencing, compatibility checks, and system configuration advice before you commit to a purchase.
- Competitive Lead Times: Extensive supplier network enables faster sourcing of obsolete or long-lead Rockwell Automation components.
- Transparent Communication: No hidden fees. Clear quotations, honest lead times, and proactive shipment updates.
Frequently Asked Questions
Q: Is the 2094-AC09-M02 still in production by Rockwell Automation?
A: The Kinetix 6000 series has been superseded by newer platforms such as Kinetix 5700. However, the 2094-AC09-M02 remains widely available as a surplus and refurbished component due to the large installed base. Konmask.com specializes in sourcing these legacy modules for ongoing maintenance needs.
Q: Can the 2094-AC09-M02 be used as a standalone drive without a Kinetix 6000 power rail?
A: No. The 2094-AC09-M02 is designed exclusively for use with the Kinetix 6000 power rail (2094-PRF series). It cannot operate as a standalone drive and requires the shared DC bus infrastructure of the rail system.
Q: What is the difference between the IAM (2094-AC09-M02) and an AM (Axis Module) in the Kinetix 6000 system?
A: The IAM (Integrated Axis Module) contains both the AC-to-DC converter section and one inverter axis. The AM (Axis Module) contains only an inverter and relies on the IAM’s converter for DC bus power. Each Kinetix 6000 power rail requires exactly one IAM, with additional AMs added for each extra servo axis.
Q: What servo motors are compatible with the 2094-AC09-M02?
A: The module supports Allen-Bradley MPL-B, MPM-B, and MPS-B series motors with Hiperface, EnDat, or Sine/Cosine feedback. Compatibility with third-party motors depends on feedback type and motor electrical parameters — contact our technical team for a compatibility assessment.
Q: Do you provide a warranty on surplus 2094-AC09-M02 units?
A: Warranty terms vary by unit condition and sourcing. Please contact us at support@konmask.com for specific warranty information applicable to your order.
Q: Can you assist with export documentation for international shipments?
A: Yes. We provide complete export documentation including commercial invoice, packing list, and certificate of origin where required. We have experience shipping to over 30 countries.
