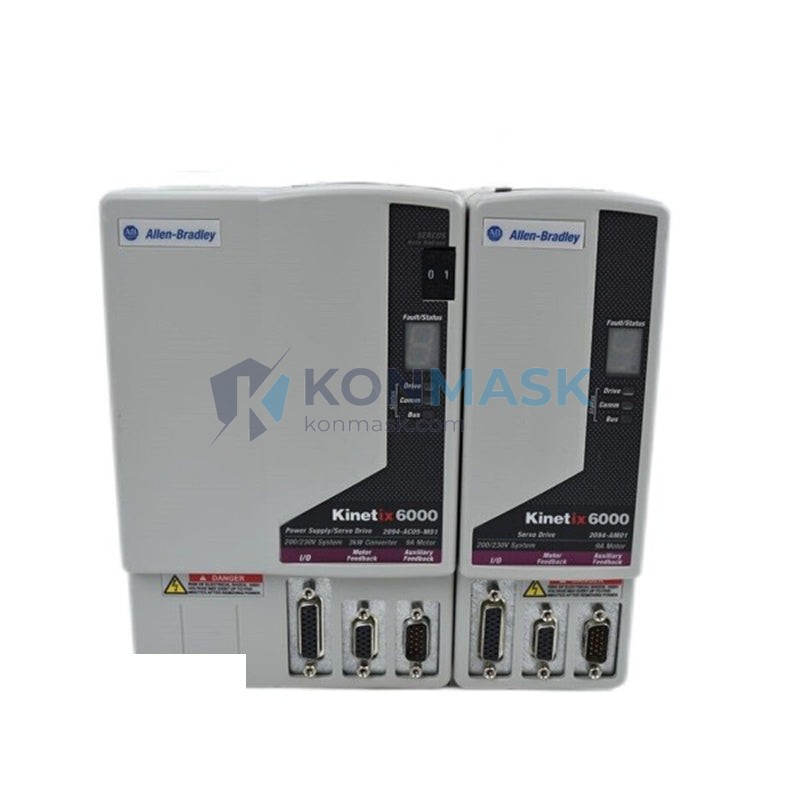

Allen-Bradley 2094-AM01 Axis Module | Kinetix 6000 Multi-Axis Servo Drive Platform
Engineering Background
The Allen-Bradley 2094-AM01 is a dedicated axis module designed for the Kinetix 6000 Multi-Axis Servo Drive system — Rockwell Automation’s flagship integrated motion control platform for high-performance industrial automation. The Kinetix 6000 architecture separates the shared AC/DC power conversion from individual axis control, enabling scalable, synchronized multi-axis motion within a single integrated bus structure.
Product Positioning
The 2094-AM01 serves as the per-axis intelligent drive module within a Kinetix 6000 drive system. It interfaces directly with the Integrated Axis Module (IAM) shared DC bus, accepting conditioned DC power and delivering precision current-controlled output to servo motors. Designed for demanding OEM machine builders and system integrators requiring deterministic motion performance, compact panel footprint, and seamless integration with Logix-based controllers via SERCOS or analog command interfaces.
Complete Technical Specifications
| Catalog Number | 2094-AM01 |
| Series | Kinetix 6000 Multi-Axis Servo Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | Axis Module (AM) — Slave axis, shared DC bus |
| Continuous Output Current | 1.5 A rms (nominal axis rating) |
| Peak Output Current | 4.5 A rms |
| DC Bus Input Voltage | Derived from IAM shared bus (nominally 325 VDC or 650 VDC depending on IAM) |
| Control Interface | SERCOS fiber-optic ring / Analog ±10 VDC (IAM-dependent) |
| Feedback Supported | Incremental encoder, absolute encoder (Stegmann Hiperface), resolver |
| Motor Compatibility | MPL, MPM, MPS, TL-Series Allen-Bradley servo motors |
| Switching Frequency | 4 kHz / 8 kHz selectable |
| Ambient Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating | IP20 (panel-mount, open type) |
| Mounting | Shared bus rail, adjacent to IAM or other AM modules |
| Approvals / Certifications | UL, CE, cUL |
| Weight | Approx. 1.5 kg |
| Firmware | Compatible with RSLogix 5000 / Studio 5000 Logix Designer |
Proven Application Environments
- Packaging machinery — high-speed pick-and-place, form-fill-seal lines requiring tight multi-axis synchronization
- Converting & printing — web tension control, register control with sub-millisecond response
- Assembly automation — robotic end-of-arm tooling, gantry systems, and Cartesian motion platforms
- Material handling — conveyor indexing, palletizing, and sortation systems
- Semiconductor & electronics manufacturing — precision positioning stages requiring micron-level repeatability
- Food & beverage — washdown-adjacent panel installations with IP20 drive modules in sealed enclosures
Engineering Advantages
- Shared DC bus architecture — regenerative energy from decelerating axes is redistributed to accelerating axes, reducing net energy consumption and eliminating the need for individual braking resistors in most applications
- Compact modular footprint — AM modules bolt directly onto the shared bus rail, minimizing panel real estate versus standalone drive configurations
- Deterministic SERCOS communication — fiber-optic ring topology eliminates EMI susceptibility and guarantees isochronous update rates for coordinated motion
- Unified commissioning environment — fully integrated into Studio 5000 / RSLogix 5000 with auto-configuration of drive parameters via electronic data sheets (EDS/AOP)
- Scalable axis count — a single IAM can support multiple AM modules on one shared bus, simplifying wiring and reducing cabinet complexity
- Integrated safety-ready — compatible with Safe Torque Off (STO) and Safe Stop functions when paired with appropriate safety-rated IAM and safety PLCs
System Architecture & Signal Flow
In a Kinetix 6000 system, the Integrated Axis Module (IAM) performs AC-to-DC rectification and provides the shared DC bus rail. The 2094-AM01 Axis Module taps directly from this bus rail, receiving conditioned DC power without requiring its own AC input wiring. The AM module’s internal inverter converts DC bus voltage to a variable-frequency, variable-voltage three-phase output to drive the servo motor.
Command signals are received via the SERCOS fiber ring from the ControlLogix or CompactLogix motion controller. Feedback signals from the motor encoder or resolver are returned to the AM module’s feedback port, closing the position/velocity/torque control loop locally within the drive at update rates as fast as 250 µs.
Typical wiring path: AC Mains → IAM (rectifier) → Shared DC Bus Rail → 2094-AM01 AM → Servo Motor (U/V/W + Feedback)
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with documented chain of custody
- Each module undergoes visual inspection, label verification (catalog number, series, date code), and connector integrity check prior to listing
- Firmware version and hardware revision documented where accessible
- OEM original packaging preserved where available; repackaged units clearly identified
- Counterfeit-risk mitigation: catalog number cross-referenced against Rockwell Automation product lifecycle database; end-of-life and discontinued status confirmed
- Condition clearly stated: New / Surplus New / Refurbished — contact us to confirm current stock condition
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number via the product page or email support@konmask.com
- Step 2 — Quote: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Step 3 — Order Confirmation: Purchase order or online checkout accepted; T/T wire transfer, PayPal, and credit card supported
- Step 4 — Inspection & Dispatch: Unit inspected, photographed, and securely packaged; tracking number issued within 24–48 hours of payment clearance
- Step 5 — After-Sales Support: Technical assistance available post-delivery for commissioning questions; warranty claims handled directly
Technical FAQ
Q: Can the 2094-AM01 operate as a standalone drive without an IAM?
A: No. The AM module requires a shared DC bus supplied by a compatible Kinetix 6000 IAM. It has no internal AC rectifier.
Q: How many 2094-AM01 modules can share one IAM bus?
A: The number of AM modules per IAM is limited by the IAM’s continuous and peak current rating. Refer to Rockwell publication 2094-UM001 for bus sizing calculations.
Q: Is the 2094-AM01 compatible with iTRAK or Kinetix 5700?
A: No. The 2094-AM01 is specific to the Kinetix 6000 (2094 series) platform. It is not interchangeable with Kinetix 5500, 5700, or 6500 hardware.
Q: What feedback types are supported?
A: Incremental TTL encoder, Stegmann Hiperface absolute encoder, and resolver. Refer to the motor-drive compatibility matrix in publication GMC-RM001.
Q: Is this product still in active production?
A: The Kinetix 6000 platform has reached end-of-life status with Rockwell Automation. Konmask.com specializes in sourcing surplus and refurbished units to support legacy machine maintenance and spare parts programs.
Q: What is the warranty?
A: Contact us for current warranty terms applicable to the specific unit condition (new surplus vs. refurbished). We stand behind every unit we ship.
