Precision Motion Control Solution – Allen-Bradley 2098-DSD-030X | Ultra3000 Series
Where This Product Is Used

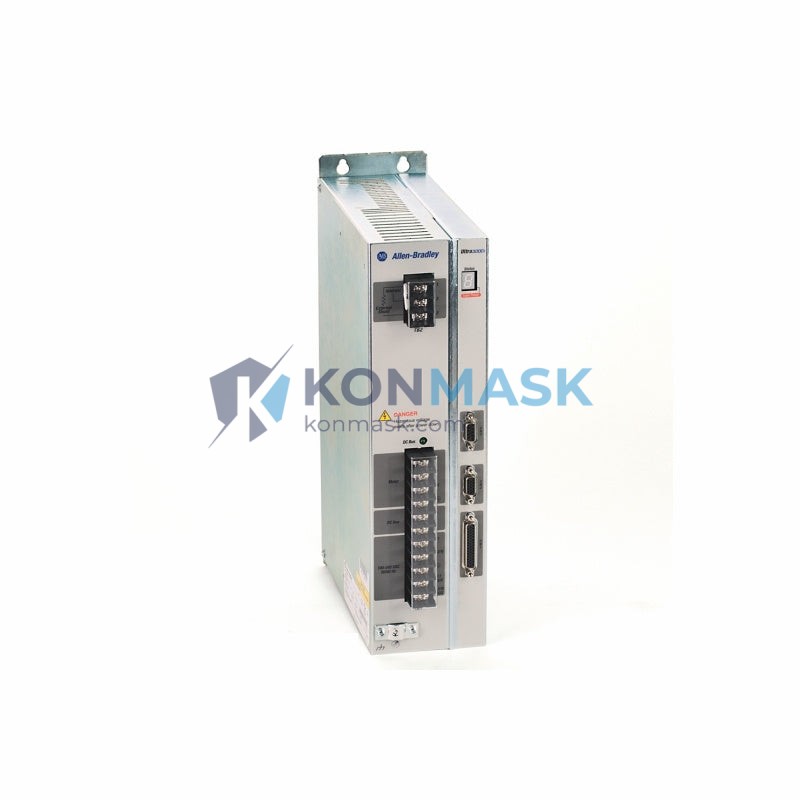

The Allen-Bradley 2098-DSD-030X Ultra3000 Digital Servo Drive is engineered for precision motion control across demanding industrial environments. Engineers and system integrators specify this drive in the following application sectors:
- CNC Machining Centers – Delivers tight velocity and position loop control for multi-axis milling, turning, and grinding operations requiring sub-millisecond response.
- Packaging Machinery – Synchronizes servo axes on form-fill-seal, cartoning, and labeling lines where throughput and repeatability are critical.
- Robotic Work Cells – Provides the dynamic torque response needed for articulated arm robots and SCARA systems in automotive and electronics assembly.
- Semiconductor & Electronics Manufacturing – Supports ultra-precise pick-and-place and wafer-handling stages where micron-level positioning is mandatory.
- Printing & Converting Equipment – Maintains web tension and registration accuracy on high-speed press and slitter lines.
- Material Handling & Conveyors – Controls indexing tables, gantry systems, and automated storage/retrieval (AS/RS) axes.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 2098-DSD-030X |
| Series | Ultra3000 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Drive Type | Digital Servo Drive (DSP-based) |
| Continuous Output Current | 3 A RMS |
| Peak Output Current | 9 A RMS (3× continuous) |
| Input Voltage | 230 VAC, Single-Phase / Three-Phase |
| Input Frequency | 47–63 Hz |
| Feedback Interface | Incremental Encoder, Absolute Encoder (SinCos / Hiperface) |
| Communication | RS-232 / RS-485; optional DeviceNet / SERCOS |
| Control Modes | Position, Velocity, Torque |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C |
| Protection Rating | IP20 (panel-mount) |
| Certifications | UL, CE, cUL, RoHS |
Why Engineers Specify This Model
- Proven Ultra3000 Platform – Decades of field deployment across thousands of OEM machine designs; extensive spare-parts ecosystem.
- High Bandwidth Servo Loop – DSP-based current, velocity, and position loops enable fast settling times and minimal following error on dynamic profiles.
- Flexible Feedback Compatibility – Accepts incremental and absolute encoder types, reducing motor selection constraints during system design.
- Compact 3 A Frame – Right-sized for small-to-medium servo motors (typically 100 W–750 W), minimizing panel footprint and cost.
- Seamless Rockwell Ecosystem Integration – Pairs natively with Allen-Bradley MPL, MPM, and TL-Series servo motors; configurable via UltraWare software.
- Robust Fault Diagnostics – Onboard LED status indicators and fault codes accelerate troubleshooting and reduce unplanned downtime.
Complete System Bill of Materials
For a fully operational Ultra3000 servo axis alongside the 2098-DSD-030X:
- Servo Motor – Allen-Bradley MPL-A1510V-HJ22AA or equivalent TL/MPM-Series motor rated ≤750 W, 230 VAC
- Feedback Cable – 2090-XXNFMF-Sxx (motor-to-drive encoder cable, shielded)
- Power Cable – 2090-XXNPMF-16Sxx (motor power cable, shielded)
- 24 VDC Control Power Supply – 1606-XLP or equivalent DIN-rail PSU
- Line Filter (EMC) – 2098-UWFILTER-D or equivalent per CE installation requirements
- Programming Cable – 2098-USBCBL-PM10 (USB-to-serial for UltraWare)
- Controller / PLC – Allen-Bradley ControlLogix / CompactLogix with SERCOS or analog command output
Compliance & Industry Standards
- UL 508C – Power Conversion Equipment (North America)
- CE / LVD 2014/35/EU – European market conformity
- EMC Directive 2014/30/EU – Electromagnetic compatibility (with recommended line filter)
- cUL – Canadian market certification
- RoHS Compliant – Restriction of Hazardous Substances
- ISO 13849 / IEC 62061 – Functional safety (consult Rockwell safety documentation for SIL/PLd configurations)
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley 2098-DSD-030X unit undergoes a structured quality process before shipment:
- Visual Inspection – Enclosure, connectors, and label integrity verified against OEM specifications.
- Functional Power-On Test – Drive energized and fault-free operation confirmed prior to packaging.
- Authenticity Verification – Units sourced from authorized distributors or verified surplus channels; counterfeit screening applied.
- Secure Packaging – ESD-safe anti-static bags, foam cushioning, and double-wall cartons protect against transit damage.
- Documentation – Datasheet, test record, and warranty card included with every shipment.
How to Source This Part
- Add to Cart – Click Add to Cart and proceed to checkout for immediate online purchase.
- Request a Quote – For volume orders (5+ units), email support@konmask.com for a competitive quote within 24 hours.
- Lead Time – In-stock units ship within 1–3 business days; expedited options available on request.
- Export & Cross-Border – International orders supported with proper export documentation (EAR99 classification).
- Payment – T/T bank transfer, credit card, and PayPal accepted.
Application-Specific FAQ
Q: Is the 2098-DSD-030X compatible with third-party servo motors?
A: Yes, with limitations. The drive accepts standard incremental encoder feedback (5 V differential, A/B/Z). Third-party motors require manual parameter entry via UltraWare.
Q: Can this drive operate on single-phase 230 VAC input?
A: Yes. The 2098-DSD-030X accepts both single-phase and three-phase 230 VAC input.
Q: What is the difference between 2098-DSD-030X and 2098-DSD-030?
A: The “X” suffix denotes the international version with CE marking and broader input voltage tolerance. The base 2098-DSD-030 is the North America-only variant. Performance specifications are identical.
Q: Which version of UltraWare software is required?
A: UltraWare version 7.xx or later is recommended, available from Rockwell Automation’s support portal.
Q: Is a regen resistor required?
A: For applications with frequent deceleration or high-inertia loads, an external regenerative resistor (e.g., 2098-UWREG-xx) is recommended to prevent DC bus overvoltage faults.
Q: What warranty does Konmask.com provide?
A: All units carry a 12-month warranty against manufacturing defects. Claims processed within 5 business days of receipt.
