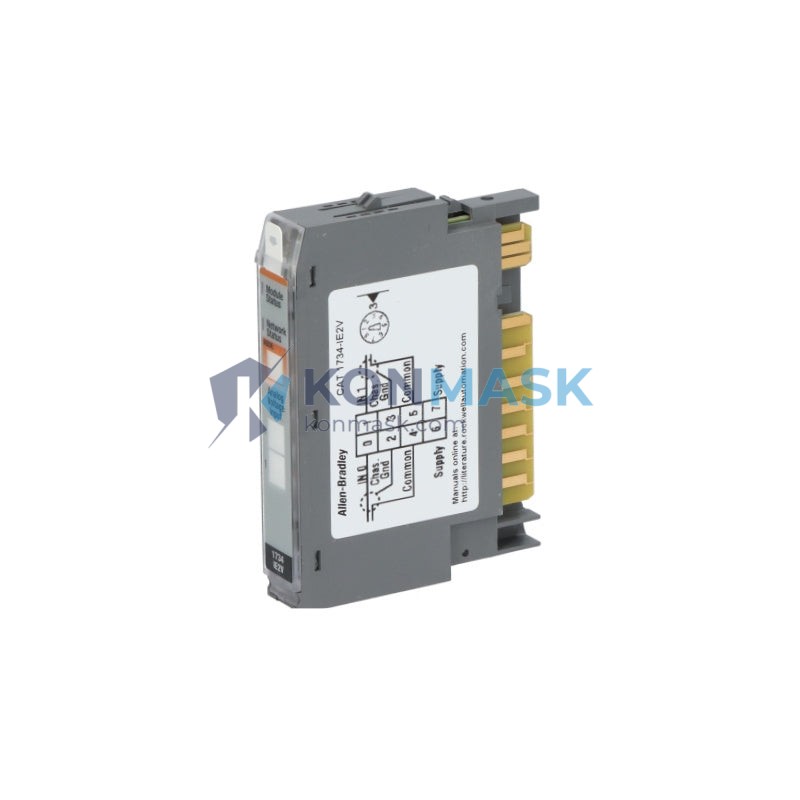

Allen-Bradley 1734-IE2V – 2-Point Analog Voltage Input Module | POINT I/O Platform
Engineering Background: The 1734-IE2V is part of Rockwell Automation’s POINT I/O modular I/O system, designed for distributed control architectures where space efficiency and signal accuracy are critical. It integrates seamlessly into ControlLogix, CompactLogix, and SoftLogix control systems via the POINT I/O adapter backplane.
Product Positioning: Targeted at process control, machine automation, and panel-space-constrained applications, the 1734-IE2V delivers high-resolution analog voltage acquisition in a compact single-slot form factor. It is the preferred choice for procurement engineers specifying distributed I/O in Rockwell-based control architectures.
Complete Technical Specifications
- Part Number: 1734-IE2V
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series / Platform: POINT I/O
- Module Type: Analog Input
- Number of Input Channels: 2
- Input Signal Type: Voltage (±10V DC, 0–10V DC, 0–5V DC, 1–5V DC)
- Resolution: 16-bit (including sign bit)
- Input Impedance: ≥ 1 MΩ
- Conversion Rate: Selectable per channel
- Isolation: 250V AC continuous channel-to-backplane
- Operating Temperature: 0 °C to +55 °C (32 °F to 131 °F)
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Power Consumption: 75 mA @ 5V DC (from backplane)
- Backplane Current: 75 mA (5V DC)
- Dimensions (H × W × D): 94 × 12 × 71.5 mm
- Weight: Approx. 100 g
- Certifications: UL, CE, CSA, RCM
- Enclosure Rating: Open-style (IP20)
- Communication: Via POINT I/O adapter (DeviceNet, EtherNet/IP, ControlNet, PROFIBUS)
- HS Code: 8537.10
Proven Application Environments
- Process control panels with distributed I/O racks
- Machine automation requiring high-resolution analog feedback (servo drives, pressure transducers, flow meters)
- Oil & gas, water treatment, and chemical processing plants
- Automotive assembly lines with ControlLogix/CompactLogix PLCs
- HVAC and building management systems using Rockwell platforms
- Panel-space-constrained OEM machine builds
Engineering Advantages
- Ultra-compact form factor: Single-slot 12 mm wide module minimizes panel footprint in dense I/O configurations.
- High-resolution 16-bit ADC: Delivers ±0.1% full-scale accuracy for precision process measurement.
- Channel-to-backplane isolation: 250V AC continuous isolation protects controller from field-side transients.
- Hot-swap capable: Supports removal and insertion under power (RIUP) for zero-downtime maintenance.
- Flexible input ranging: Software-configurable input ranges eliminate the need for external signal conditioners.
- Native Logix integration: Full tag-based programming support in Studio 5000 Logix Designer with Add-On Profiles (AOPs).
System Architecture & Signal Flow
The 1734-IE2V mounts directly onto a POINT I/O base unit (1734-TB or 1734-TBS) and communicates via the POINT I/O backplane to the network adapter (e.g., 1734-AENT for EtherNet/IP). Field voltage signals enter through the removable terminal block, pass through the 16-bit ADC, and are transmitted as integer or real-format tags to the Logix controller over the selected network. The module supports both unicast and multicast connections in EtherNet/IP configurations.
Typical wiring: Channel 0 IN+ → Terminal 0 | Channel 0 IN− → Terminal 1 | Channel 1 IN+ → Terminal 2 | Channel 1 IN− → Terminal 3 | Shield/GND → Terminal 4.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM surplus channels.
- Each module undergoes visual inspection, label verification (date code, series letter), and functional power-on check prior to shipment.
- Firmware version and series letter confirmed against Rockwell Automation product compatibility matrix.
- Original packaging preserved where available; anti-static packaging used for all shipments.
- Certificate of conformance (CoC) available upon request for regulated industries.
Procurement Process
- Step 1: Confirm part number 1734-IE2V and required quantity with your project BOM.
- Step 2: Contact Konmask.com via email or phone for real-time stock confirmation and lead time.
- Step 3: Receive formal quotation with unit price, shipping terms (EXW/FOB/DDP), and payment options.
- Step 4: Place order — payment via T/T, PayPal, or credit card accepted.
- Step 5: Shipment within 1–3 business days; tracking number provided. DHL / FedEx / UPS international express available.
- Step 6: Post-delivery technical support available for integration and commissioning questions.
Technical FAQ
Q: Is the 1734-IE2V compatible with CompactLogix controllers?
A: Yes. Via a POINT I/O EtherNet/IP adapter (1734-AENT/AENTR), the module integrates with any Logix-based controller including CompactLogix L1–L4x series.
Q: Can I mix 1734-IE2V with current input modules on the same adapter?
A: Yes. POINT I/O supports mixed module types on a single adapter up to the adapter’s power budget.
Q: What is the difference between 1734-IE2V and 1734-IE2C?
A: The 1734-IE2V accepts voltage inputs (±10V, 0–10V, 0–5V, 1–5V); the 1734-IE2C accepts current inputs (0–20 mA, 4–20 mA). Both share the same form factor and backplane interface.
Q: Does the module support HART protocol?
A: No. For HART-enabled analog input, refer to the 1734-IE2CHOE or 1734-IE8C series.
Q: What series letter should I specify?
A: Series B is the current production revision. Please confirm series compatibility with your existing I/O configuration before ordering.
