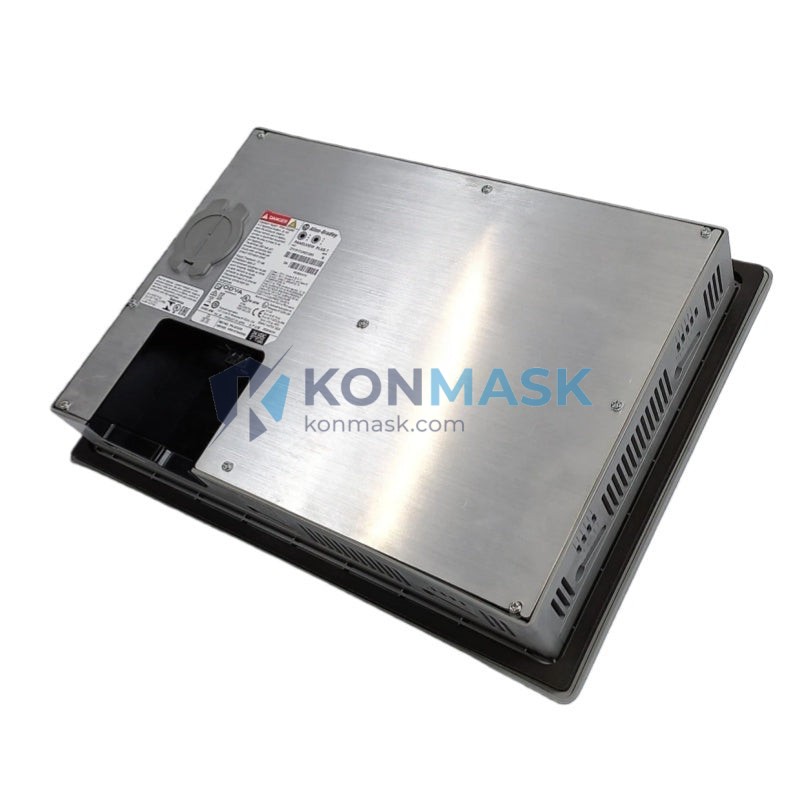

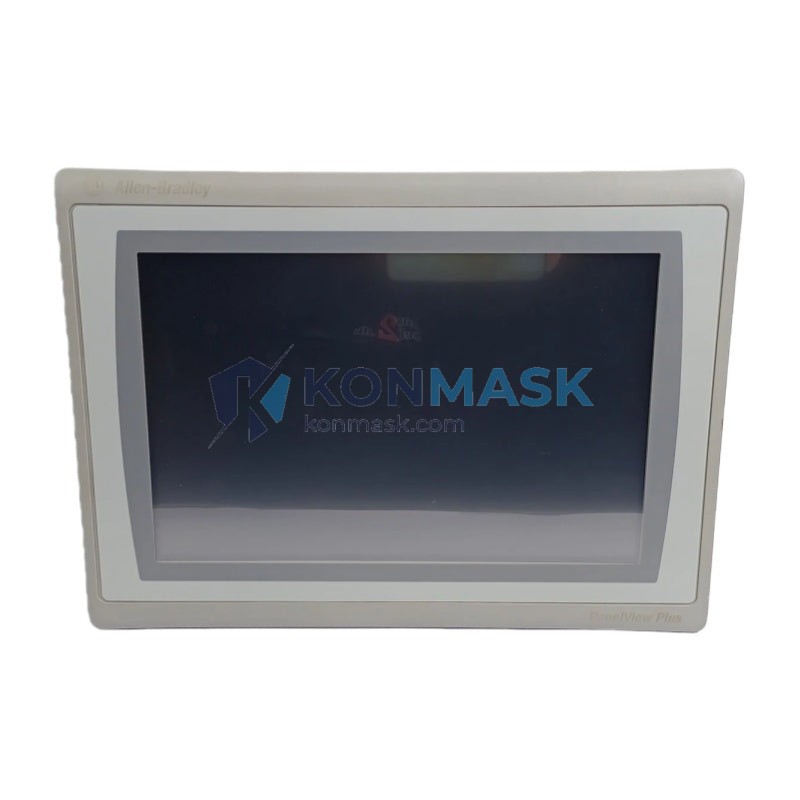

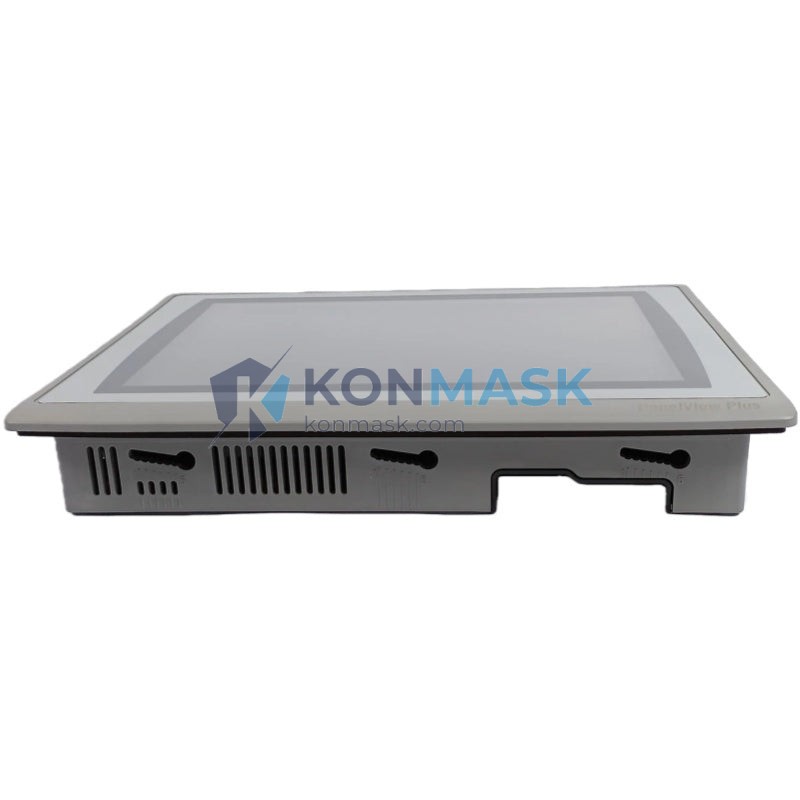

Allen-Bradley 2711P-T12W21D8S – 12.1″ SVGA Touch Screen HMI | PanelView Plus 7 Standard Platform
Engineering Background: The PanelView Plus 7 Standard series represents Rockwell Automation’s flagship operator interface platform, engineered for demanding industrial environments where reliability, scalability, and seamless ControlLogix/CompactLogix integration are non-negotiable. The 2711P-T12W21D8S is the 12.1-inch SVGA widescreen variant — the preferred choice for process visualization panels, machine control stations, and SCADA front-ends requiring high-resolution display real estate.
Product Positioning: Designed for procurement engineers sourcing certified HMI hardware for new installations, system expansions, or like-for-like replacements. Konmask.com supplies both new factory-sealed and verified surplus units, each inspected against Rockwell Automation’s published specifications before dispatch.
Complete Technical Specifications
- Part Number: 2711P-T12W21D8S
- Series: PanelView Plus 7 Standard
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Size: 12.1 inch SVGA Widescreen TFT LCD
- Resolution: 800 × 600 pixels (SVGA)
- Touch Technology: Analog Resistive Touch Screen
- Processor: 1 GHz ARM Cortex-A8
- RAM: 512 MB DDR3
- Storage: 512 MB internal flash + SD card slot
- Operating System: Windows Embedded Compact 7
- Communication Ports: 2× USB 2.0 Host, 1× USB 2.0 Device, 2× Ethernet 10/100 Mbps (RJ-45), 1× RS-232/422/485 Serial (DB-9)
- Network Protocols: EtherNet/IP, DH-485, DF1
- Power Supply: 24 VDC (18–32 VDC range), Class 2
- Power Consumption: 30 W typical
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing
- Enclosure Rating: NEMA 4/4X, 12, 13 (front face); IP65 (front face)
- Vibration: IEC 68-2-6, 5–150 Hz, 1 G
- Shock: IEC 68-2-27, 15 G, 11 ms
- Certifications: UL Listed, CE Marked, cUL, RCM
- Panel Cutout: 330.2 mm × 254.0 mm (W × H)
- Overall Dimensions: 355.6 mm × 279.4 mm × 63.5 mm (W × H × D)
- Weight: 1.95 kg (approx.)
- Software: FactoryTalk View ME (Studio 5000 compatible)
- Catalog Number Suffix Breakdown: T=Touch, 12=12.1″, W=Widescreen, 2=2nd Gen, 1=1 GHz CPU, D=Dual Ethernet, 8=Windows Embedded Compact 7, S=Standard
Proven Application Environments
- Automotive assembly line operator stations with multi-axis motion visualization
- Food & beverage processing lines requiring IP65 wash-down rated enclosures
- Water/wastewater SCADA local HMI nodes integrated with ControlLogix PACs
- Oil & gas upstream/midstream skid-mounted control panels
- Pharmaceutical batch process monitoring with 21 CFR Part 11 audit trail support
- Power generation and distribution switchgear visualization panels
- Mining and minerals processing conveyor and crusher control stations
Engineering Advantages
- Dual Ethernet Ports: Enables Device Level Ring (DLR) topology for fault-tolerant network redundancy without additional switches
- FactoryTalk View ME Native: Zero-configuration integration with Studio 5000 Logix Designer; tag browsing directly from the HMI
- Wide Input Voltage Range (18–32 VDC): Tolerates industrial power supply fluctuations without additional conditioning
- NEMA 4X / IP65 Front Face: Suitable for wash-down and outdoor-rated enclosures without additional sealing
- SD Card Expandability: Runtime application backup, data logging, and firmware updates via removable media
- USB Host Ports: Supports barcode scanners, keyboards, and USB drives for operator data entry and diagnostics
- Backward Compatible: Supports migration from PanelView Plus 6 applications with minimal rework in FactoryTalk View Studio
System Architecture & Signal Flow
The 2711P-T12W21D8S operates as an EtherNet/IP Class 1 and Class 3 messaging node. In a typical ControlLogix architecture:
- Layer 1 – Field Devices: Sensors, drives, and I/O modules communicate via DeviceNet or EtherNet/IP to the PAC backplane
- Layer 2 – Controller (PAC): ControlLogix or CompactLogix executes ladder/FBD logic; tag database resides here
- Layer 3 – HMI (2711P-T12W21D8S): Polls controller tags via EtherNet/IP CIP messaging; renders faceplates, trends, and alarms in FactoryTalk View ME runtime
- Layer 4 – Supervisory (optional): FactoryTalk View SE or SCADA system connects via the second Ethernet port for historian and remote monitoring
DLR ring topology can be implemented using both Ethernet ports to eliminate single-point-of-failure on the network segment.
Sourcing & Quality Verification
- Source Traceability: Units sourced from authorized distributors, OEM decommissions, and verified surplus channels with documented chain of custody
- Incoming Inspection: Each unit undergoes power-on functional test, display uniformity check, touch calibration verification, and port continuity test
- Firmware Verification: Firmware version confirmed and documented; downgrade/upgrade available on request
- Packaging: Anti-static bag + foam-lined export carton; original Rockwell packaging preserved where available
- Warranty: 12-month Konmask operational warranty; DOA replacement within 7 business days
- Counterfeit Prevention: Serial number verified against Rockwell Automation’s published date code and manufacturing location conventions
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required delivery date, and destination country
- Receive Quote: Pricing, lead time, and stock confirmation within 24 business hours
- Order Confirmation: Pro-forma invoice issued; payment via T/T, PayPal, or credit card
- Quality Inspection Report: Issued with every shipment upon request
- Shipping: DHL / FedEx / UPS express; EXW Xiamen or CIF destination available; HS Code 8537.10 for customs clearance
- After-Sales: Technical support via email and WhatsApp; replacement RMA process within warranty period
Technical FAQ
Q: Is the 2711P-T12W21D8S compatible with CompactLogix controllers?
A: Yes. It communicates natively via EtherNet/IP with all ControlLogix and CompactLogix families. RSLinx Classic or FactoryTalk Linx is required on the development PC.
Q: What FactoryTalk View ME version is required?
A: FactoryTalk View ME v8.0 or later is recommended. The terminal ships with the ME runtime pre-installed; Studio software is licensed separately from Rockwell Automation.
Q: Can this unit replace a PanelView Plus 6 (2711P-T12C4D8) directly?
A: Mechanically yes — panel cutout dimensions are identical. Application migration requires re-compilation in FactoryTalk View Studio ME v8+; most graphic objects and tag references migrate automatically.
Q: Does Konmask supply the FactoryTalk View ME software license?
A: The runtime license is embedded in the terminal hardware. Development/Studio licenses must be purchased through Rockwell Automation’s official channel. Konmask can advise on license part numbers.
Q: What is the typical lead time for surplus stock?
A: In-stock units ship within 2–3 business days. Out-of-stock sourcing typically requires 7–15 business days depending on global availability.
Q: Is export to my country restricted?
A: Allen-Bradley HMI terminals are subject to EAR (Export Administration Regulations). Konmask conducts end-use screening for all international orders. Contact us with your destination country for compliance confirmation.
