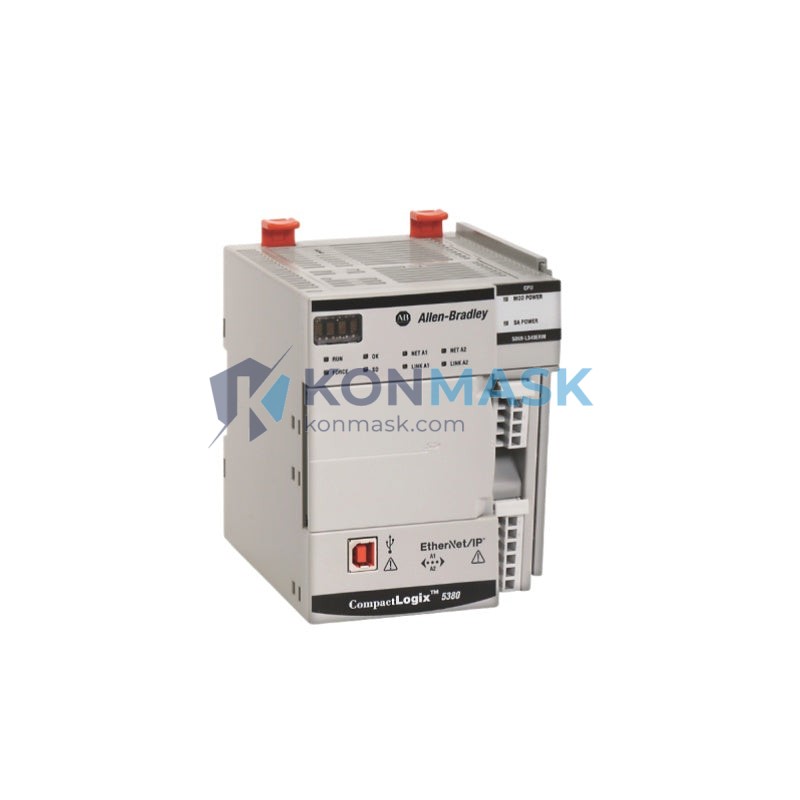

Machine & Process Automation Solution – Allen-Bradley 5069-L306ERM | CompactLogix 5380
Where This Product Is Used
The Allen-Bradley 5069-L306ERM is a high-performance CompactLogix 5380 series programmable logic controller engineered for demanding industrial environments. Engineers specify this controller across a wide range of application scenarios:
- Discrete Manufacturing: Automotive assembly lines, packaging machinery, and conveyor systems requiring deterministic I/O response and high-speed sequencing.
- Motion Control: Multi-axis servo coordination via integrated EtherNet/IP motion bus, supporting CIP Motion for synchronized pick-and-place, CNC-style contouring, and robotic cell integration.
- Process Control: Batch processing, mixing, and blending applications in food & beverage, chemical, and pharmaceutical plants where PID loops and analog I/O density matter.
- OEM Machine Building: Compact footprint with 600 KB user memory enables feature-rich machine programs without requiring a larger chassis-based controller.
- Safety-Integrated Systems: Works alongside GuardLogix safety controllers on the same EtherNet/IP network for integrated safety architectures.
- Water/Wastewater Infrastructure: Remote pump stations and SCADA-connected lift stations leveraging dual EtherNet/IP ports for Device Level Ring (DLR) topology.
Technical Specifications
| Part Number | 5069-L306ERM |
| Series | CompactLogix 5380 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| User Memory | 600 KB |
| Communication Ports | 2 × EtherNet/IP (dual-port, DLR capable) |
| Motion Axes | Up to 16 CIP Motion axes |
| I/O Modules Supported | 5069 Compact I/O (local); 1756, 1769, 1734 (remote via EtherNet/IP) |
| Programming Software | Studio 5000 Logix Designer v30+ |
| Languages Supported | Ladder Diagram, Function Block, Structured Text, Sequential Function Chart |
| Power Supply | 24 VDC (via 5069-PA4 or 5069-PB4) |
| Operating Temperature | 0 °C to 60 °C |
| Enclosure Rating | Open type (IP20) |
| Weight | 770 g (approx.) |
| Certifications | UL, CE, RCM, KC |
Why Engineers Specify This Model
- 600 KB Memory Sweet Spot: Sufficient for complex multi-task programs with Add-On Instructions (AOIs), UDTs, and HMI tag databases — without stepping up to a ControlLogix chassis.
- Dual EtherNet/IP Ports: Native DLR support eliminates the need for an external managed switch in ring topologies, reducing BOM cost and cabinet space.
- Integrated Motion: CIP Motion over EtherNet/IP removes dedicated motion networks (SERCOS, analog ±10 V), simplifying wiring and commissioning.
- Scalable I/O Architecture: Mix local 5069 Compact I/O with remote 1734 POINT I/O or 1756 ControlLogix I/O on the same network for flexible system design.
- Studio 5000 Ecosystem: Full integration with FactoryTalk View, FactoryTalk Historian, and Plex MES for seamless data flow from sensor to ERP.
Complete System Bill of Materials
A typical 5069-L306ERM control panel includes the following components:
- 5069-L306ERM — CompactLogix 5380 Controller (this unit)
- 5069-PA4 or 5069-PB4 — 24 VDC Power Supply
- 5069-IB16 — 16-Point 24 VDC Digital Input Module
- 5069-OB16 — 16-Point 24 VDC Digital Output Module
- 5069-IF8 — 8-Channel Analog Input Module
- 5069-OF4 — 4-Channel Analog Output Module
- 1585J-M8CBJM-2 — EtherNet/IP Patch Cable (2 m)
- 2711P-T10C21D8S — PanelView Plus 7 HMI Terminal (optional)
- PowerFlex 527 or 755 — AC Drive for CIP Motion axes (optional)
Compliance & Industry Standards
- UL Listed (UL 508, UL 61010-2-201)
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RCM (Australia/New Zealand)
- KC Mark (South Korea)
- RoHS Compliant
- ODVA EtherNet/IP Conformance Tested
Quality Assurance & Sourcing
Every 5069-L306ERM unit supplied by Konmask.com undergoes the following verification process before shipment:
- Visual inspection for label authenticity, firmware revision sticker, and Rockwell Automation holographic seal.
- Functional power-on test confirming LED status indicators and EtherNet/IP port link activity.
- Packaging integrity check — original Rockwell anti-static bag and foam insert.
- Serial number traceability maintained for warranty and counterfeit-prevention purposes.
We source from authorized distributors and verified surplus channels. All units are tested genuine and carry a 90-day replacement warranty.
How to Source This Part
- Click Add to Cart and proceed to checkout for immediate online purchase.
- Need a formal quotation? Email support@konmask.com with your PO number and required delivery date.
- Bulk orders (>5 units) qualify for volume pricing — contact us for a tiered quote.
- Expedited shipping (DHL Express, FedEx IP) available for urgent plant shutdowns.
- Export documentation (CO, packing list, commercial invoice) provided for international orders.
Application-Specific FAQ
Q: Can the 5069-L306ERM control servo drives without a separate motion controller?
A: Yes. It supports up to 16 CIP Motion axes natively over EtherNet/IP, eliminating the need for a dedicated motion controller or SERCOS interface card.
Q: Is this controller compatible with existing 1769 CompactLogix programs?
A: Programs written for 1769-L3x controllers can be migrated using the Studio 5000 Migration Tool, though I/O module mappings must be remapped to 5069 Compact I/O equivalents.
Q: What is the maximum number of I/O modules supported locally?
A: The 5069 local bus supports up to 31 I/O modules per controller.
Q: Does it support redundancy?
A: The 5069-L306ERM does not support controller redundancy. For redundant applications, consider the ControlLogix 1756-L8x series with 1756-RM2 redundancy module.
Q: What Studio 5000 version is required?
A: Studio 5000 Logix Designer version 30.00 or later is required for full feature support.
