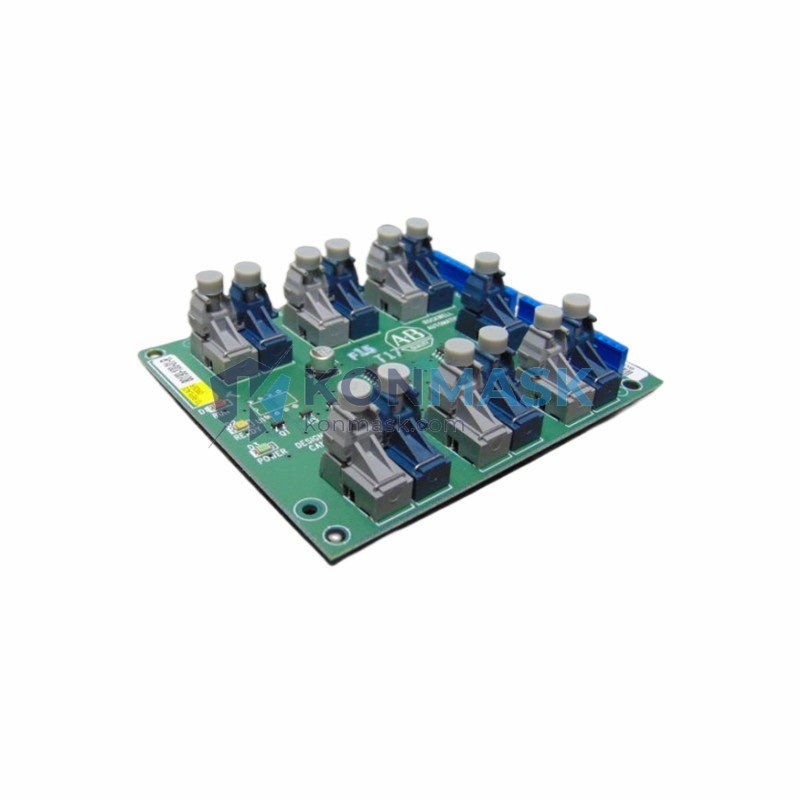

Allen-Bradley 80190-100-01-R Fiber Optic Communication Board – 1336 PLUS AC Drive Series
When a fiber optic communication board fails inside a running AC drive system, the consequences cascade fast: the drive loses its high-speed serial link, the controller can no longer issue real-time speed or torque commands, and the entire production line halts. In process-critical environments — paper mills, steel rolling lines, water treatment facilities, and automated assembly plants — an unplanned drive stoppage can cost thousands of dollars per hour. The Allen-Bradley 80190-100-01-R is the exact replacement board that restores that communication link and gets the line running again.
The 80190-100-01-R is a factory-original fiber optic interface board designed for the Allen-Bradley 1336 PLUS family of AC variable-frequency drives. Within the 1336 PLUS series, this board provides the dedicated fiber optic channel that enables noise-immune, high-speed data exchange between the drive and the host controller or remote I/O network. As part of Rockwell Automation’s globally deployed 1336 PLUS platform — one of the most widely installed AC drive families in industrial history — this component remains in active demand across maintenance, repair, and overhaul (MRO) operations worldwide.
Technical Specifications
- Part Number: 80190-100-01-R
- Manufacturer: Allen-Bradley / Rockwell Automation
- Product Family: 1336 PLUS AC Drive Series
- Board Type: Fiber Optic Communication Interface Board
- Communication Medium: Fiber optic (plastic or glass fiber compatible per drive configuration)
- Form Factor: Plug-in option board for 1336 PLUS drive chassis
- Condition Available: New surplus / Refurbished / Used tested
Note: All specifications are based on published Allen-Bradley documentation. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Noise-Immune Communication: Fiber optic transmission eliminates electromagnetic interference (EMI) common in high-power drive environments, ensuring reliable data integrity.
- Direct OEM Replacement: Factory-designed for the 1336 PLUS chassis — no modifications, no adapters, no compatibility guesswork.
- High-Speed Serial Link: Maintains the real-time command and feedback loop between the drive and the supervisory controller.
- Proven Field Reliability: The 1336 PLUS platform has decades of global deployment; this board is a well-documented, widely understood component in the MRO supply chain.
- Rapid Restoration: Plug-in board design allows qualified technicians to swap the board quickly, minimizing downtime during emergency maintenance.
- Long-Term Availability: Konmask.com maintains stock of legacy Allen-Bradley boards to support facilities that cannot migrate to newer drive platforms.
Industry & Equipment Applications
- Pulp & Paper: Winder drives, refiner drives, and coater line drives using 1336 PLUS with fiber optic remote I/O.
- Steel & Metals: Rolling mill main drives and coiler/uncoiler systems requiring high-noise-immunity communication.
- Water & Wastewater: Pump station VFD systems integrated into PLC-controlled SCADA networks via fiber optic links.
- Automotive Assembly: Conveyor and transfer line drives communicating over fiber optic DeviceNet or remote I/O backbones.
- Mining & Minerals: Crusher, conveyor, and hoist drives in electrically noisy underground or surface environments.
- General Manufacturing: Any 1336 PLUS installation where the fiber optic option board is specified for the communication architecture.
System Integration & Compatible Parts
The 80190-100-01-R is designed to integrate within the Allen-Bradley 1336 PLUS drive family. When sourcing this board, consider verifying compatibility with your specific 1336 PLUS catalog number and firmware revision. Related components commonly sourced alongside this board include:
- 1336 PLUS main control boards
- 1336 PLUS power interface boards
- Allen-Bradley 1336 PLUS option boards (I/O, encoder, communication)
- Fiber optic cables and connectors compatible with the 1336 PLUS fiber port specifications
- Allen-Bradley 1747 SLC 500 or 1756 ControlLogix controllers (common host systems)
Contact Konmask.com with your full drive catalog number and application details for compatibility confirmation before ordering.
Our Quality Assurance Process
- Visual Inspection: Every board is inspected for physical damage, burnt components, corrosion, and connector integrity upon receipt.
- Functional Verification: Where applicable, boards are bench-tested or verified against known-good reference units before shipment.
- Authenticity Check: We source from traceable supply chains and verify manufacturer markings, date codes, and part number labels.
- Secure Packaging: Anti-static packaging with foam cushioning protects boards during international transit.
- Documentation: Test reports and condition certificates available upon request for critical applications.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your part number and required quantity.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods. Proforma invoice provided.
- Shipment: Parts are shipped via DHL, FedEx, or UPS with full tracking. Export documentation provided for international orders.
- After-Sales Support: Our technical team is available to assist with installation questions and compatibility verification.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and drive components — not a general electronics marketplace.
- Global MRO Supply: We serve maintenance teams and system integrators across Asia, Europe, the Americas, and the Middle East.
- Legacy Part Expertise: We stock and source discontinued and hard-to-find Allen-Bradley, Siemens, ABB, Schneider, and Mitsubishi parts.
- Fast Response: Inquiries answered within 24 hours. Emergency sourcing support available.
- Transparent Condition Grading: We clearly state whether parts are new surplus, refurbished, or used-tested — no ambiguity.
- Export-Ready: Full export documentation, commercial invoices, and packing lists for customs clearance.
Frequently Asked Questions
Q: Is the 80190-100-01-R compatible with all 1336 PLUS drive variants?
A: The 80190-100-01-R is designed for the 1336 PLUS series, but compatibility can vary by specific catalog number and firmware version. Please provide your full drive catalog number when inquiring so we can confirm fitment.
Q: Do you supply new or used boards?
A: We supply new surplus, professionally refurbished, and used-tested boards depending on availability. Condition is clearly stated in your quotation. All boards pass our quality inspection process before shipment.
Q: What is the lead time for this part?
A: Lead time depends on current stock status. In-stock parts typically ship within 1–3 business days. For out-of-stock items, sourcing lead time is typically 1–3 weeks. Contact us for real-time availability.
Q: Can you provide a warranty?
A: Yes. We offer a standard 90-day warranty against defects in material and workmanship for all tested and refurbished boards. Warranty terms are detailed in the quotation.
Q: Do you accept returns?
A: Returns are accepted within 30 days for unused, uninstalled parts in original condition. Please contact support@konmask.com to initiate a return authorization.
Q: Can you help identify the correct replacement if I’m unsure of my part number?
A: Absolutely. Send us your drive nameplate data, existing board photos, and application description. Our engineering team will identify the correct replacement part.
