Semiconductor CVD/PVD Video Interconnect Solution – Applied Materials 0100-70034 CDN396R | SST-EDN-1 Platform

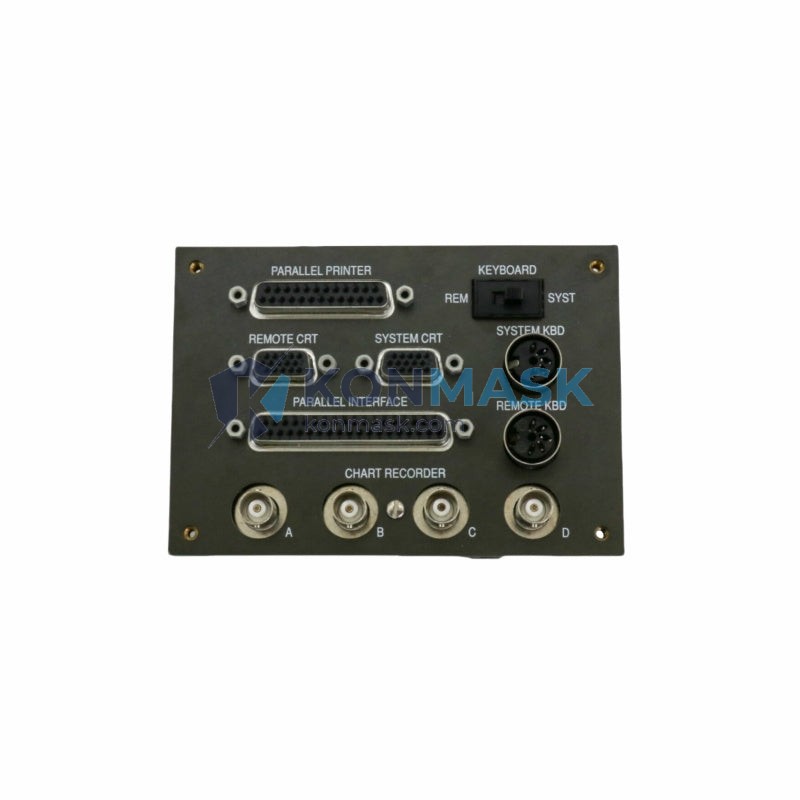

The Applied Materials 0100-70034 (CDN396R / AS01396-6-15) is a precision PCB EP VGA Interconnect board engineered for video signal routing and endpoint detection within Applied Materials’ chemical vapor deposition (CVD) and physical vapor deposition (PVD) process equipment. Cross-reference part numbers include 0190-43360, 0190-29030, and SST-EDN-1, confirming broad platform compatibility across multiple tool generations.
Procurement engineers sourcing replacement or spare interconnect boards for Applied Materials platforms will find this part essential for maintaining uninterrupted wafer processing uptime.
Where This Product Is Used
- Applied Materials Centura CVD/PVD Systems — primary video signal interconnect between endpoint detection modules and process controllers
- Applied Materials Producer CVD Platforms — VGA signal routing for chamber monitoring and diagnostics displays
- SST (Sputtering Systems Technology) EDN-1 Tool Platforms — direct drop-in interconnect replacement
- Semiconductor Fab Maintenance & Refurbishment — used by OEM service teams and independent MRO suppliers for tool restoration
- Equipment Resellers & Refurbishers — stocked as a high-demand spare for pre-owned tool reconditioning
Technical Specifications
- Part Number: 0100-70034
- Revision: CDN396R
- Cross-Reference / Alternate P/N: AS01396-6-15 | 0190-43360 | 0190-29030 | SST-EDN-1
- Assembly Type: PCB — Endpoint Detection VGA Interconnect
- Signal Type: VGA (Video Graphics Array) analog video signal
- Platform Compatibility: Applied Materials Centura, Producer, and SST-EDN-1 series
- Form Factor: OEM-spec PCB assembly, direct replacement
- Weight: ~20 g (bare board)
- Condition Available: Refurbished / Used Tested / New Surplus
- Export Classification: EAR99 (verify with your compliance team)
Why Engineers Specify This Model
- Multi-P/N Consolidation: A single board resolves four cross-reference part numbers (0190-43360, 0190-29030, AS01396-6-15, SST-EDN-1), simplifying BOM management
- Critical Uptime Path: VGA interconnect failure causes endpoint detection loss, halting wafer processing — fast sourcing of this board directly reduces unplanned downtime
- OEM-Equivalent Quality: Sourced from verified Applied Materials supply chains or tested refurbished units with full functional validation
- Broad Platform Coverage: Compatible across Centura and Producer tool families, reducing the number of unique spares required in fab inventory
- Immediate Availability: Stocked for rapid dispatch to minimize mean time to repair (MTTR)
Complete System Bill of Materials
This interconnect board is typically used alongside the following Applied Materials components:
- Applied Materials Endpoint Detection Module (EDM) — platform-specific P/N
- Applied Materials Process Controller PCB — Centura/Producer series
- VGA Display Interface Cable Assembly — OEM-spec
- Chamber Monitoring Camera Module — SST-EDN-1 compatible
- Applied Materials Power Distribution Board — tool-generation specific
Contact our engineering team for a complete BOM cross-reference for your specific tool serial number.
Compliance & Industry Standards
- RoHS: Verify revision-specific compliance with Applied Materials documentation
- SEMI Standards: Designed for use in SEMI-compliant semiconductor process equipment
- ESD Handling: ESD-sensitive assembly — handle per ANSI/ESD S20.20 protocols
- Export Control: Subject to EAR regulations; end-user verification required for controlled destinations
Quality Assurance & Sourcing
At Konmask.com, every PCB assembly undergoes a structured quality verification process before shipment:
- Visual inspection for physical damage, burnt components, and connector integrity
- Functional test where applicable (power-on, signal continuity)
- Part number and revision label verification against customer PO
- ESD-safe packaging with anti-static bag and foam cushioning
- Traceability documentation provided upon request
We source from decommissioned Applied Materials tools, certified refurbishers, and authorized surplus channels — never from unverified grey-market sources.
How to Source This Part
- Submit an RFQ — email [email protected] with your tool model, serial number, and required quantity
- Receive a Quote — typically within 24 business hours, including lead time and condition options
- Confirm & Pay — secure payment via T/T bank transfer or approved credit terms for qualified accounts
- Ship & Track — DHL / FedEx express worldwide; tracking provided same day as dispatch
- Warranty & Support — 90-day warranty on tested units; technical support available post-installation
Application-Specific FAQ
Q: Is 0100-70034 CDN396R compatible with both Centura and Producer platforms?
A: Yes. The CDN396R revision is confirmed compatible with both Centura CVD/PVD and Producer CVD tool families. Always verify against your tool’s BOM before installation.
Q: What is the difference between P/N 0190-43360 and 0190-29030?
A: Both are alternate Applied Materials part numbers that cross-reference to the same 0100-70034 interconnect board assembly. The difference reflects internal Applied Materials revision tracking — functionally equivalent for field replacement.
Q: Can this board be repaired if damaged?
A: Component-level repair is possible for experienced PCB technicians. However, for critical process equipment, replacement with a tested unit is strongly recommended to ensure process integrity.
Q: Do you offer exchange / core return programs?
A: Yes. Contact us to discuss exchange pricing if you have a defective core unit to return.
Q: What lead time should I expect?
A: In-stock units ship within 1–3 business days. Out-of-stock sourcing typically requires 2–4 weeks depending on market availability.
