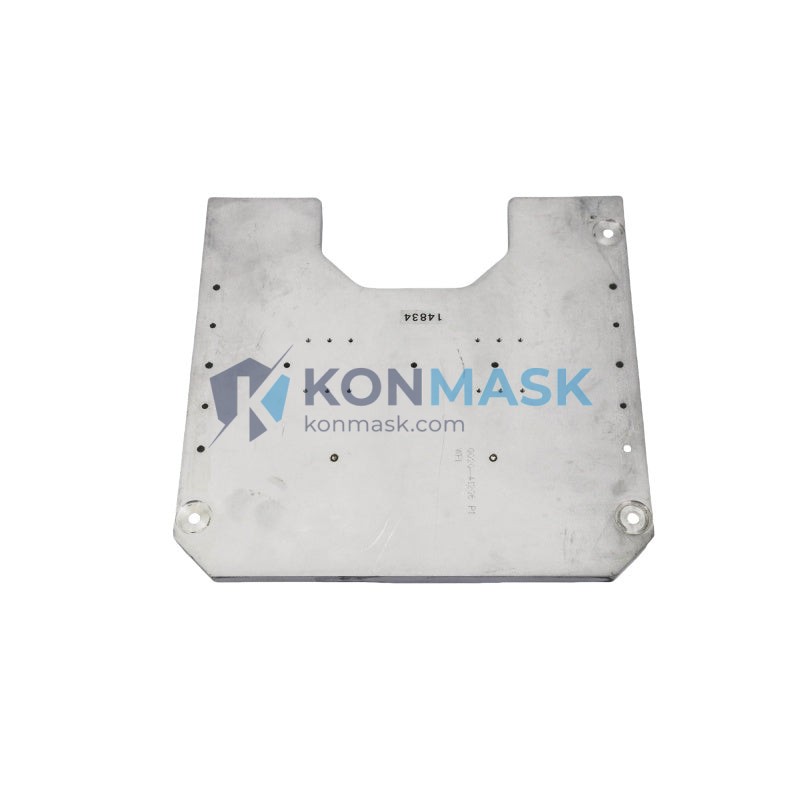

Applied Materials 0020-41206 Top Plate – Chamber Structural Component | Applied Materials CVD/PVD Platform
Engineering Background: The Top Plate is a precision-machined structural component used in Applied Materials chemical vapor deposition (CVD) and physical vapor deposition (PVD) process chambers. It forms the upper sealing and structural interface of the reaction chamber, maintaining vacuum integrity and thermal stability during wafer processing cycles.
Product Positioning: Sourced and verified for compatibility with Applied Materials process equipment platforms, this Top Plate is a critical replacement part for semiconductor fabs and equipment maintenance teams requiring OEM-equivalent performance. Konmask.com supplies this component to process engineers, equipment managers, and MRO procurement teams globally.
Complete Technical Specifications
- Part Number (Primary): 0020-41206
- Cross-Reference P/N: 0190-A2461
- PRD Code: PRD-00630000-03
- Internal Reference: 372-NM0005-2828
- Component Type: Top Plate (Chamber Structural Assembly)
- OEM Brand: Applied Materials (AMAT)
- Material: Precision-machined aluminum alloy / anodized surface (OEM specification)
- Weight: ~20 g (as listed; confirm with datasheet for assembly weight)
- Condition: New / Refurbished OEM (specify at order)
- Compatibility: Applied Materials CVD / PVD process chamber platforms
- Country of Origin: USA (OEM) / Verified supply chain
Proven Application Environments
- 300mm and 200mm wafer fab process chambers
- CVD (Chemical Vapor Deposition) tool maintenance and overhaul
- PVD (Physical Vapor Deposition) chamber rebuild programs
- Semiconductor equipment MRO (Maintenance, Repair & Operations) programs
- OEM-equivalent spare parts inventory for fab equipment teams
- Third-party equipment service providers (ESPs) supporting AMAT tools
Engineering Advantages
- OEM-Equivalent Precision: Machined to Applied Materials dimensional tolerances for drop-in replacement without re-qualification downtime
- Vacuum Integrity: Designed to maintain chamber vacuum seal performance across thermal cycling
- Multi-P/N Traceability: Cross-referenced across four part numbers (0020-41206 / 0190-A2461 / PRD-00630000-03 / 372-NM0005-2828) for procurement flexibility
- Reduced Lead Time: In-stock availability reduces critical tool downtime vs. OEM direct procurement
- Global Logistics: Ships worldwide with full export documentation support
System Architecture & Signal Flow
The Top Plate interfaces with the chamber body upper flange, providing the primary structural closure for the process environment. It integrates with gas inlet manifolds, lift pin mechanisms, and upper electrode assemblies depending on chamber configuration. Proper installation ensures:
- Uniform gas distribution across the wafer surface
- Stable thermal profile at the chamber ceiling
- Reliable vacuum seal at the chamber upper interface
- Alignment reference for upper electrode or showerhead assemblies
Sourcing & Quality Verification
- All parts are inspected prior to shipment for dimensional conformance and surface condition
- Traceability documentation available upon request (COC, inspection reports)
- Parts sourced from verified OEM surplus, authorized distributors, or certified refurbishers
- Packaging: ESD-safe, anti-static foam, double-boxed for international freight
- Photos of actual stock available on request before order confirmation
Procurement Process
- Submit RFQ via support@konmask.com or WhatsApp +0086 19859288691
- Receive stock confirmation, condition report, and lead time within 24 hours
- Review proforma invoice and approve payment terms
- Part ships with full documentation: packing list, COC, commercial invoice
- Track shipment via provided AWB; customs clearance support available
Technical FAQ
Q: Is this part compatible with my specific AMAT chamber model?
A: Please provide your chamber model and tool serial number. Our engineering team will confirm compatibility before shipment.
Q: Can you supply both new OEM and refurbished options?
A: Yes. We offer new surplus OEM stock and certified refurbished units. Pricing and lead time differ — contact us for a quote on both options.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 2–4 weeks depending on sourcing channel.
Q: Do you provide a warranty?
A: Yes. New OEM surplus parts carry a 90-day functional warranty. Refurbished parts carry a 30-day warranty. Terms available in writing upon request.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, COO, and HS code classification. EAR99 classification applies to most standard spare parts.
