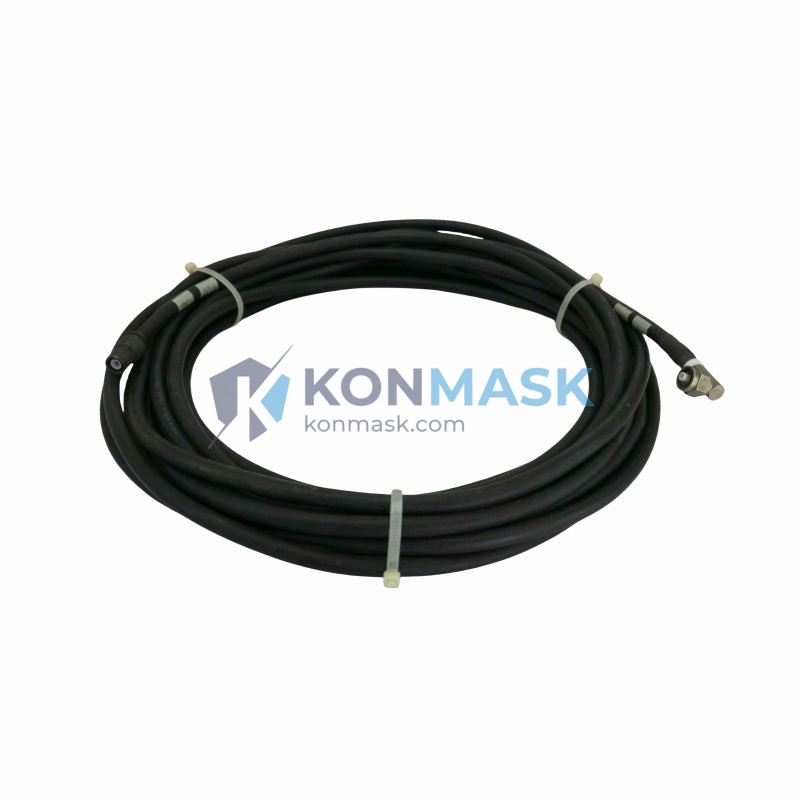

Applied Materials 0150-76456 – High-Integrity Signal & Power Cable Assembly | Centura / Producer Platform
Applied Materials part number 0150-76456 (cross-references: H-9715, T-160AC-1(1.6), DAP-0168) is a precision-engineered cable assembly designed for internal interconnect duties inside Applied Materials CVD, PVD, and etch process modules. This harness carries both signal and low-voltage power between subsystem PCBs, motion controllers, and sensor arrays in cleanroom-grade semiconductor capital equipment.
Konmask.com stocks and sources this assembly for fabs, OEM integrators, and MRO teams that require drop-in replacement parts with full traceability and rapid lead times.
Complete Technical Specifications
- Applied Materials P/N: 0150-76456
- Cross-Reference P/N: H-9715 | T-160AC-1(1.6) | DAP-0168
- Assembly Type: Multi-conductor cable harness
- Nominal Conductor Cross-Section: 1.6 mm² (per T-160AC-1(1.6) designation)
- Connector Standard: DAP-0168 series (Applied Materials proprietary keyed connector)
- Insulation Rating: Cleanroom-compatible, low-outgassing per SEMI F47 guidelines
- Operating Temperature: 0 °C to +85 °C (standard electronics environment)
- Shielding: Braided EMI shield with drain wire termination
- Weight: ~20 g (bare assembly)
- Compliance: RoHS-compatible materials
Proven Application Environments
- Applied Materials Centura Platform – CVD tungsten, oxide, and nitride process chambers; internal PCB-to-sensor harness routing
- Applied Materials Producer Platform – SACVD / PECVD modules; motion controller signal distribution
- Applied Materials Endura Platform – PVD metal deposition; robot arm encoder and limit-switch wiring
- Applied Materials DPS Etch Systems – RF match network auxiliary signal lines
- OEM Integration – Third-party tool builders using Applied Materials subsystems requiring DAP-0168 connector compatibility
Engineering Advantages
- OEM-Identical Geometry: Matches original routing path and strain-relief points; no field modification required
- EMI-Shielded Construction: Braided shield suppresses noise on sensitive analog sensor lines in high-RF environments
- Low-Outgassing Materials: Insulation and jacket compounds selected for vacuum-adjacent and cleanroom deployment
- Keyed DAP-0168 Connectors: Polarized housing prevents mis-mating during PM cycles, reducing human-error downtime
- 1.6 mm² Conductor Rating: Adequate current capacity for combined signal + auxiliary power duties without thermal derating
System Architecture & Signal Flow
Within a Centura or Producer process module, the 0150-76456 harness typically originates at a subsystem controller PCB (e.g., chamber I/O board or motion controller card) and terminates at one or more sensor or actuator nodes — including thermocouple amplifiers, pressure transducer signal conditioners, or stepper-motor driver boards. The DAP-0168 keyed connectors lock into board-mounted receptacles, while the braided shield is grounded at the controller end to form a single-point ground topology that minimizes ground loops in the RF-rich process environment.
Sourcing & Quality Verification
- All units sourced from authorized distribution channels or directly from Applied Materials surplus inventory
- Each assembly inspected for connector integrity, conductor continuity, and shield termination before shipment
- Lot traceability documentation available upon request for ISO 9001 / IATF audit compliance
- Packaging: ESD-safe poly bag with desiccant; outer carton labeled with P/N, cross-references, and Konmask order reference
Procurement Process
- Submit RFQ via support@konmask.com or the on-page inquiry form with your tool serial number and required quantity
- Receive lead-time confirmation and formal quotation within 1 business day
- Approve PO; Konmask issues proforma invoice with full part traceability details
- Shipment via DHL / FedEx with tracking; export documentation included for cross-border orders
- Post-delivery technical support available for installation verification
Technical FAQ
Q: Is 0150-76456 compatible with both Centura and Producer platforms?
A: Yes. The DAP-0168 connector and 1.6 mm² conductor spec are shared across multiple Applied Materials platforms. Confirm your chamber I/O board revision before installation.
Q: Can this cable be used in a vacuum chamber interior?
A: The assembly is designed for the electronics bay and inter-module routing, not direct vacuum exposure. For in-chamber wiring, consult Applied Materials service documentation for approved vacuum-rated harnesses.
Q: What is the typical lead time?
A: Ex-stock orders ship within 2–5 business days. Non-stock sourcing typically requires 2–4 weeks depending on availability.
Q: Do you provide a certificate of conformance?
A: Yes. A CoC with part number, quantity, inspection date, and inspector signature is available for all orders upon request.
Q: What cross-reference numbers are accepted on your PO?
A: We accept 0150-76456, H-9715, T-160AC-1(1.6), and DAP-0168 as equivalent references for this assembly.
