Genuine Applied Materials 0190-75073 Ball Screw Assembly | PM30 Process Module – Verified Source

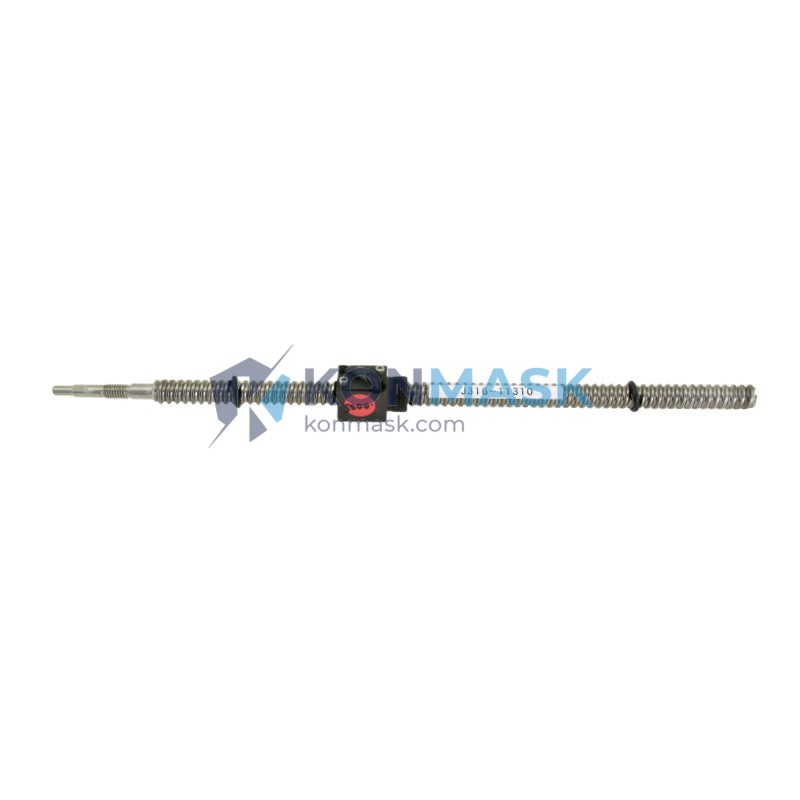

Sourced directly through verified supply channels, this Applied Materials Ball Screw Assembly (P/N: 0190-75073 / 810-495659-303) is a precision-critical component for the PM30 Process Module. At Konmask.com, every part undergoes a documented 4-step verification process before shipment — giving semiconductor equipment engineers and procurement teams the confidence they need.
Technical Specifications
- Manufacturer: Applied Materials (AMAT)
- Primary Part Number: 0190-75073
- Cross Reference P/N: 810-495659-303
- Module Compatibility: PM30 (Process Module 30)
- Component Type: Ball Screw Assembly
- Application: Precision linear motion / wafer handling actuation
- Weight: 800 g (approx.)
- Condition: New / Refurbished (specify at inquiry)
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are traced to authorized distributors or OEM-certified supply chains. No grey-market or counterfeit sources accepted.
- Step 2 — Physical Inspection: Each assembly is inspected for dimensional integrity, thread condition, bearing play, and surface finish against OEM specifications.
- Step 3 — Functional Verification: Where applicable, units undergo torque and backlash testing to confirm operational readiness.
- Step 4 — Documentation Review: Traceability records, lot codes, and certificates of conformance are reviewed and archived before dispatch.
Key Features & Benefits
- ✅ OEM part number verified — no substitution risk
- ✅ Precision-ground ball screw for repeatable, low-friction linear motion
- ✅ Critical for maintaining wafer positioning accuracy in PM30 chambers
- ✅ Reduces unplanned downtime with a ready-to-install replacement
- ✅ Backed by Konmask’s sourcing transparency and post-sale support
Typical Applications
- Applied Materials CVD / PVD / Etch process module maintenance
- PM30 chamber actuator replacement during scheduled PM cycles
- Wafer lift and transfer mechanism repair
- Semiconductor fab equipment refurbishment programs
Compatible System Components
- Applied Materials Centura / Endura platform PM30 modules
- Associated actuator motors and drive controllers
- Linear guide rails and bearing blocks within the PM30 assembly
- Wafer handling end-effectors and lift pin mechanisms
Global Sourcing & Shipping Capabilities
Konmask.com ships to semiconductor fabs, equipment integrators, and MRO procurement teams worldwide. Standard lead time is 3–7 business days for in-stock units. Express and freight options available. Export documentation (commercial invoice, packing list, COO) provided for all international shipments. Contact us for DDP/DAP terms.
Certifications & Compliance Statement
All Applied Materials components supplied by Konmask.com are handled in compliance with applicable export control regulations (EAR/ITAR awareness). We do not supply restricted end-users. RoHS compliance status available upon request. Traceability documentation provided with every order.
How to Order
- Online: Add to cart and complete checkout — we’ll confirm stock and lead time within 1 business day.
- Email RFQ: Send your BOM or part list to [email protected]
- Phone/WhatsApp: +0086 19859288691
- Bulk / Contract Orders: Request a formal quotation for volume pricing and blanket PO arrangements.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Applied Materials part?
A: We provide full traceability documentation including supplier records and part markings. If authenticity cannot be confirmed, we will not ship the unit.
Q: Can I return the part if it doesn’t fit?
A: Yes. We offer a 30-day return window for unused, uninstalled parts in original packaging. Contact [email protected] to initiate.
Q: Do you offer warranty?
A: New units carry a 90-day functional warranty. Refurbished units carry a 30-day warranty. Extended warranty available on request.
Q: What if I need a different P/N from the same platform?
A: We maintain an extensive Applied Materials parts inventory. Submit your full BOM to [email protected] for a consolidated quote.
