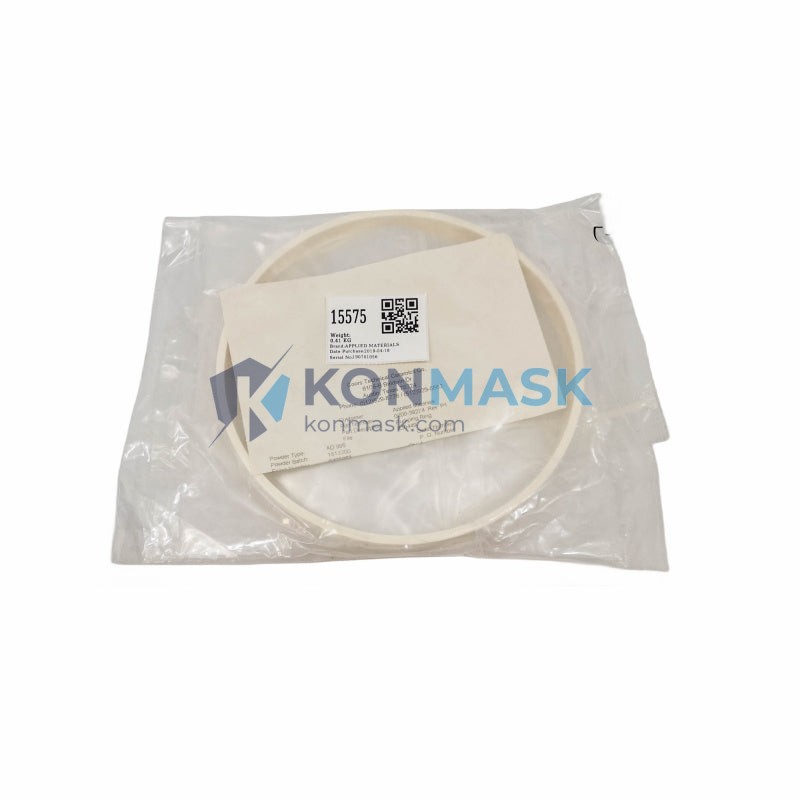

Applied Materials 0200-39274 Pumping Ring – Critical Vacuum Sealing Component for Semiconductor Process Chambers
When a pumping ring fails inside a semiconductor process chamber, the consequences are immediate and costly: vacuum integrity collapses, process uniformity degrades, and the entire production line faces unplanned downtime. In high-throughput CVD and etch environments where wafer yield is measured in fractions of a percent, even a single compromised seal can translate to tens of thousands of dollars in scrapped wafers and lost capacity. The Applied Materials 0200-39274 Pumping Ring exists precisely to prevent this scenario — engineered to maintain consistent conductance and pressure uniformity across the chamber’s pumping annulus under the most demanding plasma and thermal cycling conditions.
Within Applied Materials’ extensive portfolio of chamber hardware, the 0200-39274 Pumping Ring occupies a foundational role in the gas distribution and vacuum management subsystem. Cross-referenced under part numbers 1240316, FF-20BT1, and 0010-07586, this component is qualified for use across multiple Applied Materials platform generations. Applied Materials remains the world’s largest supplier of semiconductor equipment, and their chamber consumables — including this pumping ring — are specified by leading fabs across Asia, North America, and Europe as the benchmark for process repeatability and uptime reliability.
Technical Specifications
- OEM Part Number: 0200-39274
- Cross-Reference Numbers: 1240316 | FF-20BT1 | 0010-07586
- Component Type: Pumping Ring (Vacuum Chamber Hardware)
- OEM Brand: Applied Materials (AMAT)
- Application: Semiconductor CVD / Etch / PVD Process Chambers
- Function: Maintains uniform pumping conductance and vacuum integrity around the chamber perimeter
- Weight: 2,600 g (approx.)
- Condition: New / Refurbished (specify at inquiry)
Key Features & Benefits
- OEM-Specification Geometry: Machined to Applied Materials’ original dimensional tolerances, ensuring drop-in fit without chamber re-qualification.
- Multi-Part-Number Coverage: A single SKU covers four cross-reference numbers (0200-39274 / 1240316 / FF-20BT1 / 0010-07586), simplifying procurement and reducing BOM complexity.
- Vacuum Integrity: Designed to sustain the differential pressure gradients required for stable process gas distribution and efficient exhaust pumping.
- Thermal & Plasma Resistance: Material selection and surface finish are optimized for repeated thermal cycling and exposure to reactive process chemistries.
- Reduced Downtime Risk: Stocking this component as a critical spare eliminates lead-time exposure during unplanned chamber maintenance events.
Industry & Equipment Applications
- 300 mm and 200 mm wafer fabrication facilities
- Chemical Vapor Deposition (CVD) chambers — dielectric and metal film deposition
- Plasma Etch chambers — oxide, nitride, and metal etch processes
- Physical Vapor Deposition (PVD) / Sputtering systems
- Advanced packaging and MEMS process lines
- Flat panel display (FPD) manufacturing equipment
System Integration & Compatible Parts
The 0200-39274 Pumping Ring is typically serviced alongside related chamber hardware. When planning a preventive maintenance cycle, consider sourcing the following complementary components:
- Chamber liner and shield assemblies
- O-ring and seal kits for the pumping annulus
- Electrostatic chuck (ESC) and focus ring assemblies
- Gas distribution plates and showerhead assemblies
- Lift pin assemblies and edge ring components
Contact Konmask.com with your full BOM list for consolidated sourcing and volume pricing.
Our Quality Assurance Process
- Source Verification: All Applied Materials parts are sourced from authorized channels, certified refurbishers, or verified OEM-surplus inventories.
- Dimensional Inspection: Critical mating surfaces and bore dimensions are checked against OEM drawings prior to shipment.
- Traceability Documentation: Each shipment is accompanied by available traceability records including lot numbers and inspection reports.
- Secure Packaging: Components are packaged in anti-static, cleanroom-compatible materials to prevent contamination and transit damage.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page.
- Provide your required quantity, preferred condition (new or refurbished), and target delivery timeline.
- Our technical team will confirm availability, lead time, and pricing within 1 business day.
- Upon agreement, we issue a proforma invoice and arrange shipment with full tracking.
📧 [email protected] | 📞 +0086 19859288691
Why Choose Konmask.com?
- Semiconductor Hardware Specialists: We focus exclusively on industrial automation and semiconductor equipment components — not a generalist marketplace.
- Global Sourcing Network: Access to OEM-surplus, refurbished, and new inventory across Asia, North America, and Europe.
- Fast Response: RFQ responses within 24 hours; expedited sourcing available for critical downtime situations.
- Export Compliance: Experienced in international shipping documentation, export licensing, and customs clearance for semiconductor parts.
- Technical Support: Our team includes engineers with hands-on experience in Applied Materials equipment — we speak your language.
Frequently Asked Questions
Q: What equipment platforms is the Applied Materials 0200-39274 Pumping Ring compatible with?
A: This part is qualified for Applied Materials CVD, etch, and PVD chamber platforms. Please provide your specific tool model when submitting an RFQ so we can confirm compatibility.
Q: Are cross-reference numbers 1240316, FF-20BT1, and 0010-07586 all the same part?
A: Yes. These are alternate part numbers used across different Applied Materials documentation revisions and regional procurement systems. All refer to the same pumping ring assembly.
Q: Do you supply new or refurbished units?
A: We can supply both. Please specify your preference in your inquiry. Refurbished units undergo dimensional inspection and cleaning; new units are OEM-surplus or factory-new where available.
Q: What is the typical lead time?
A: Lead time depends on current stock levels. In-stock items ship within 3–5 business days. Out-of-stock items are typically sourced within 2–4 weeks. Emergency sourcing is available — contact us directly.
Q: Can you provide a certificate of conformance or inspection report?
A: Yes, available traceability and inspection documentation is provided with each shipment upon request.
Q: Do you accept international orders?
A: Absolutely. Konmask.com ships globally. We handle export documentation and can arrange DDP, DAP, or EXW terms depending on your requirements.
