Applied Materials HEA-0200-76057 Ring | Replacement, Equivalent & Selection Guide

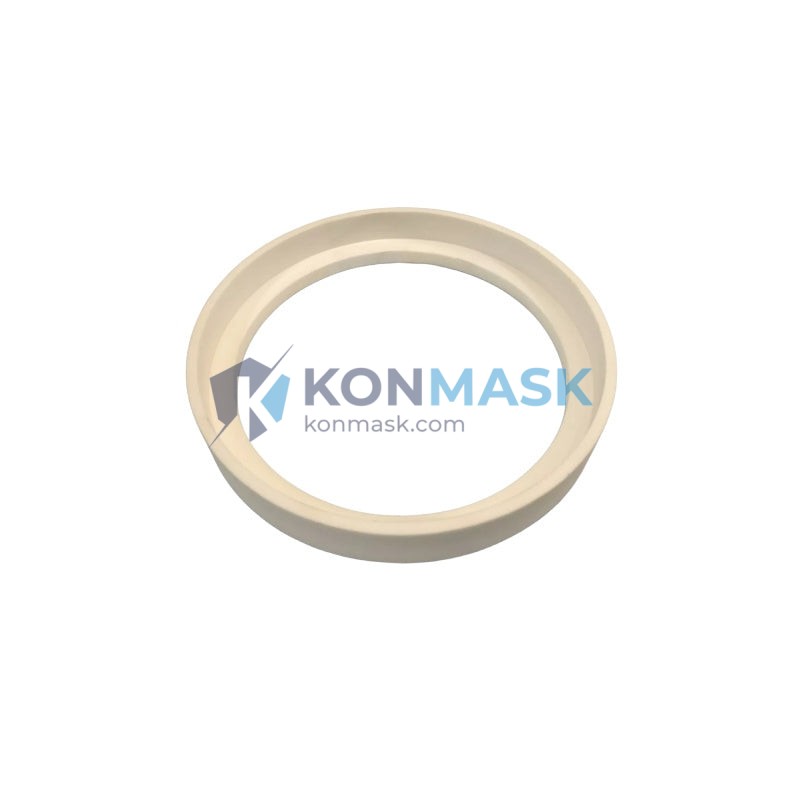

The Applied Materials HEA-0200-76057 is a precision process ring used in Applied Materials semiconductor deposition and etch platforms. Cross-referenced under part numbers CAT-530-21G7/VA-214, DV525201, and AQ8965, this ring is a critical consumable process kit component that maintains chamber geometry, gas flow uniformity, and plasma confinement integrity. Konmask.com supplies this part as a verified OEM-equivalent for global semiconductor fabs and MRO procurement teams.
Technical Specifications
- Part Number: HEA-0200-76057
- Cross Reference: CAT-530-21G7/VA-214 | DV525201 | AQ8965
- Platform: Applied Materials B101 Series
- Component Type: Process Ring / Chamber Ring
- Material: High-purity ceramic / quartz / anodized aluminum (application-dependent)
- Weight: 360 g
- Country of Origin: United States
- Condition: New / Refurbished (specify at inquiry)
- Compliance: OEM-equivalent specification
Compatible Replacement & Equivalent Models
The HEA-0200-76057 is interchangeable with or directly replaces the following Applied Materials part numbers:
- CAT-530-21G7/VA-214 — Catalog variant designation for the same ring geometry
- DV525201 — Drawing/vendor reference number used in legacy BOM documentation
- AQ8965 — Alternative quality/sourcing reference used in procurement systems
- B101 Series Ring — Platform-level designation for chamber ring assemblies
Always verify chamber model and process recipe compatibility before substitution. Contact our engineering team for cross-reference confirmation.
Why Choose the Original HEA-0200-76057
- Maintains OEM-specified chamber geometry for repeatable process results
- Ensures plasma confinement and gas flow uniformity per Applied Materials design intent
- Reduces risk of process drift caused by dimensional non-conformance
- Traceable part number for audit and compliance documentation
- Preferred for critical layers and high-yield process steps
Typical Applications
- CVD (Chemical Vapor Deposition) chamber process kit maintenance
- Etch chamber ring replacement during scheduled PM cycles
- Semiconductor wafer fab equipment MRO (Maintenance, Repair & Operations)
- 300mm and 200mm wafer process platforms
- Logic, memory, and advanced packaging fabs using Applied Materials equipment
System Compatibility
- Platform: Applied Materials B101 Series
- Equipment Family: Applied Materials CVD / Etch systems (verify with chamber model)
- Wafer Size: Confirm with chamber configuration (200mm / 300mm)
- Integration: Drop-in replacement — no modification required when part numbers match
Note: Always confirm compatibility with your specific chamber model and process recipe. Konmask engineers can assist with cross-reference validation.
Selection Guide
Use the following criteria to confirm the correct ring selection for your application:
- Step 1 — Identify your chamber model: Confirm Applied Materials platform (B101 or equivalent series)
- Step 2 — Match the part number: Verify HEA-0200-76057 or cross-reference (CAT-530-21G7, DV525201, AQ8965) against your BOM or PM kit list
- Step 3 — Confirm material grade: Specify ceramic, quartz, or aluminum variant if multiple material options exist for your process
- Step 4 — Specify condition: New OEM, refurbished, or reclaim — Konmask can supply all grades
- Step 5 — Request a quote: Contact [email protected] with your chamber model and required quantity
Quality Assurance & Sourcing
- Parts sourced from authorized distributors and verified surplus channels
- Dimensional inspection performed prior to shipment
- Traceability documentation available upon request
- Packaging: ESD-safe, cleanroom-compatible where applicable
- Export compliance: ECCN classification reviewed for international orders
How to Order
- Email: [email protected] — include part number, quantity, and destination
- Phone/WhatsApp: +0086 19859288691
- Online: Add to cart and complete checkout; our team will confirm lead time within 24 hours
- Lead Time: In-stock items ship within 3–5 business days; special orders 2–4 weeks
- Payment: T/T, PayPal, credit card accepted
Replacement & Compatibility FAQ
Q: Is HEA-0200-76057 a direct drop-in replacement for DV525201?
A: Yes, DV525201 is a vendor/drawing reference for the same ring. Confirm with your chamber PM documentation before installation.
Q: Can I use AQ8965 interchangeably with HEA-0200-76057?
A: AQ8965 is a cross-reference designation. Dimensional and material equivalence should be verified against your specific chamber model.
Q: Do you supply refurbished rings?
A: Yes. Konmask offers new, refurbished, and reclaim grades. Specify your requirement at inquiry for pricing and lead time.
Q: What documentation is provided?
A: Certificate of conformance, packing list, and traceability records are available. Contact us for specific documentation requirements.
Q: Do you ship internationally?
A: Yes. We ship globally with DHL, FedEx, and UPS. Export documentation and customs support included.
