ASML 4022.471.75262 / 01-W3428F06P – PCB Assembly for Lithography Systems | ASML Platform
Engineering Background: ASML is the world’s leading supplier of photolithography equipment for the semiconductor industry, producing the EUV and DUV systems that manufacture virtually every advanced chip on the market. Maintaining uptime on ASML platforms is mission-critical — unplanned downtime can cost fabs tens of thousands of dollars per hour.

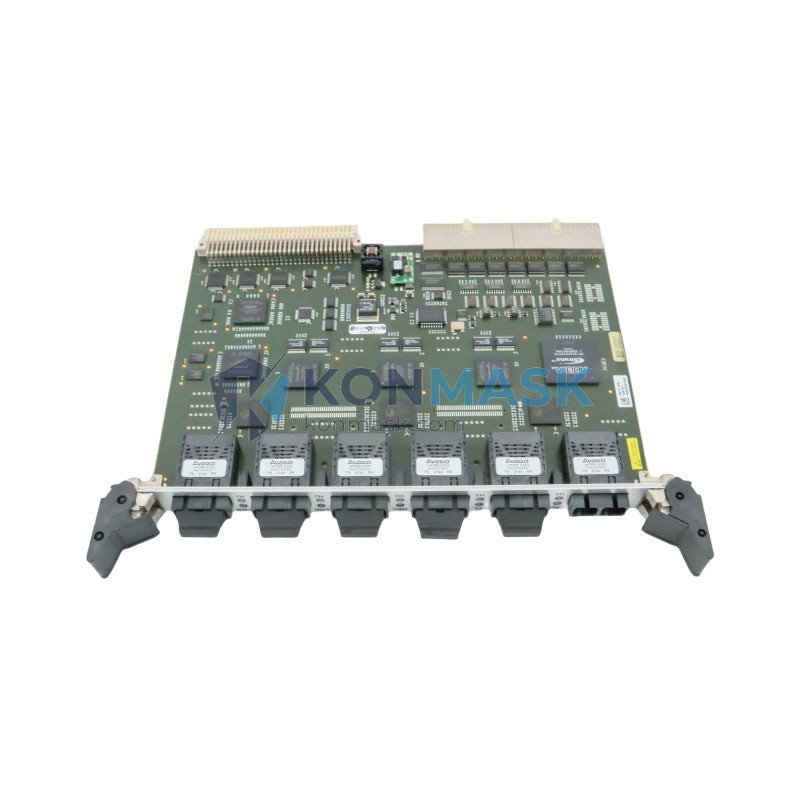

Product Positioning: The ASML 4022.471.75262 (Ref: 01-W3428F06P / 4022.437.2901, P/N 307612) is a factory-specification PCB Assembly designed as a direct replacement or spare component for ASML lithography systems. Konmask.com sources this assembly through verified industrial channels to support fab maintenance engineers and procurement teams requiring fast, reliable access to genuine ASML-compatible hardware.
Complete Technical Specifications
- Manufacturer: ASML
- Primary Part Number: 4022.471.75262
- Reference / Board Number: 01-W3428F06P
- Assembly Number: 4022.437.2901
- Catalog / Item Number: 307612
- Component Type: PCB Assembly (Printed Circuit Board Assembly)
- Weight: 2,600 g (2.6 kg)
- Condition: Available in tested-used and refurbished grades (specify at inquiry)
- Compatibility: ASML lithography platform (confirm compatibility with your system serial number prior to order)
- Country of Origin: Netherlands (ASML OEM)
- HS Code: 8542.90 (Parts of electronic integrated circuits / semiconductor equipment)
Proven Application Environments
- Semiconductor wafer fabrication fabs (300mm and 200mm lines)
- ASML DUV / ArF / KrF lithography scanner maintenance
- Fab equipment MRO (Maintenance, Repair & Overhaul) programs
- OEM-qualified spare parts inventory for equipment service providers
- University and R&D cleanroom facilities operating ASML platforms
Engineering Advantages
- OEM Part Number Traceability: Full cross-reference across all three ASML part numbers (4022.471.75262 / 01-W3428F06P / 4022.437.2901) ensures unambiguous identification and procurement accuracy.
- Functional Testing Available: Units can be supplied with functional test reports upon request — critical for high-stakes fab environments.
- Fast Sourcing: Konmask maintains active sourcing pipelines for ASML spare parts, reducing lead times compared to standard OEM channels.
- Specification Integrity: No counterfeit risk — all units are sourced from decommissioned or surplus ASML-certified equipment pools.
- Engineering Support: Pre-sales technical consultation available to confirm fit, form, and function for your specific ASML system configuration.
System Architecture & Signal Flow
The 4022.471.75262 PCB Assembly functions as an electronic control or signal-processing board within the ASML lithography system architecture. PCB assemblies in ASML platforms typically interface with the system’s motion control, illumination, alignment, or wafer-stage subsystems via proprietary ASML backplane connectors and communication buses. The board assembly (01-W3428F06P) is a populated, tested unit — not a bare board — and is designed for direct swap-in replacement during scheduled maintenance or corrective repair events.
Note: Exact signal flow and subsystem assignment should be confirmed against your ASML system’s field service documentation (FSD) or by contacting Konmask technical support.
Sourcing & Quality Verification
- All ASML spare parts at Konmask.com are sourced from traceable industrial supply chains.
- Units undergo visual inspection and, where applicable, functional bench testing prior to dispatch.
- Serialization and revision markings are preserved and documented.
- Packaging: ESD-safe anti-static bags with foam cushioning; outer carton rated for international air freight.
- Certificate of conformance (CoC) available upon request for regulated procurement environments.
Procurement Process
- Confirm Compatibility: Provide your ASML system model and serial number to our engineering team for fit verification.
- Request Quote: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline.
- Order & Payment: We accept T/T (wire transfer), PayPal, and major credit cards. Pro-forma invoice issued within 24 hours.
- Inspection & Dispatch: Units are inspected, documented, and dispatched within 3–7 business days. Express air freight available.
- After-Sales Support: 30-day return window for DOA (Dead on Arrival) units with documented test evidence.
Technical FAQ
Q: Is this a new OEM part or a refurbished unit?
A: We supply both grades depending on availability. Please specify your requirement at the time of inquiry. All units are clearly graded and documented.
Q: Can you confirm this part fits my specific ASML scanner model?
A: Yes — provide your system model and serial number and our engineers will cross-reference against ASML’s part compatibility matrix before you commit to purchase.
Q: What is the lead time?
A: In-stock units ship within 3–7 business days. For sourced units, lead time is typically 2–4 weeks. Contact us for current stock status.
Q: Do you provide a warranty?
A: Yes. All units carry a 30-day DOA warranty. Extended warranty options are available for volume orders.
Q: Can I get a test report or CoC?
A: Yes. Functional test reports and certificates of conformance are available upon request for qualified buyers.
