Hydraulic Proportional Control Solution – ATOS E-ME-AC-01F | E-ME Series

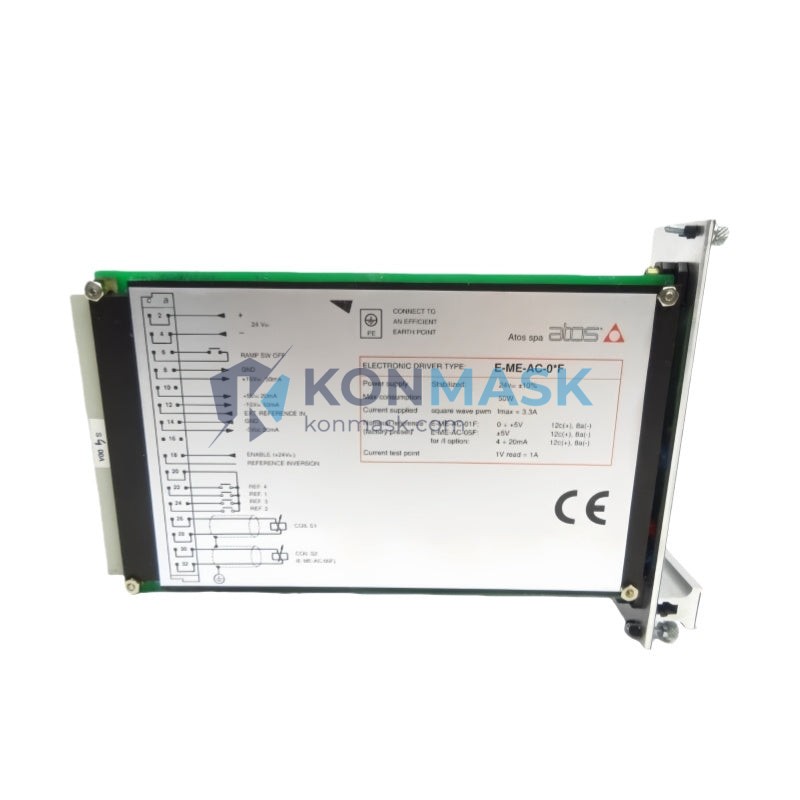

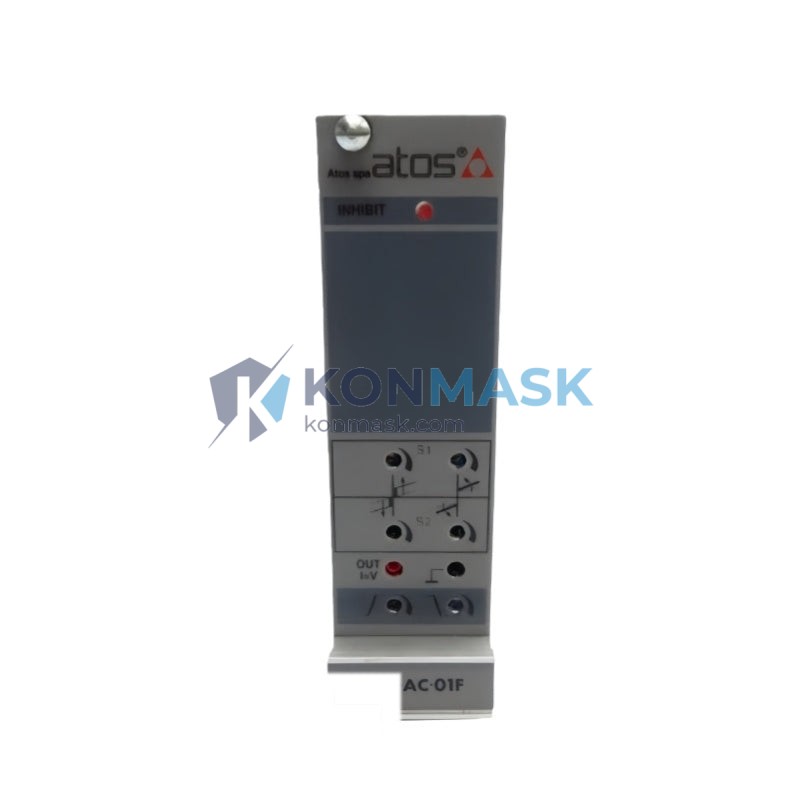

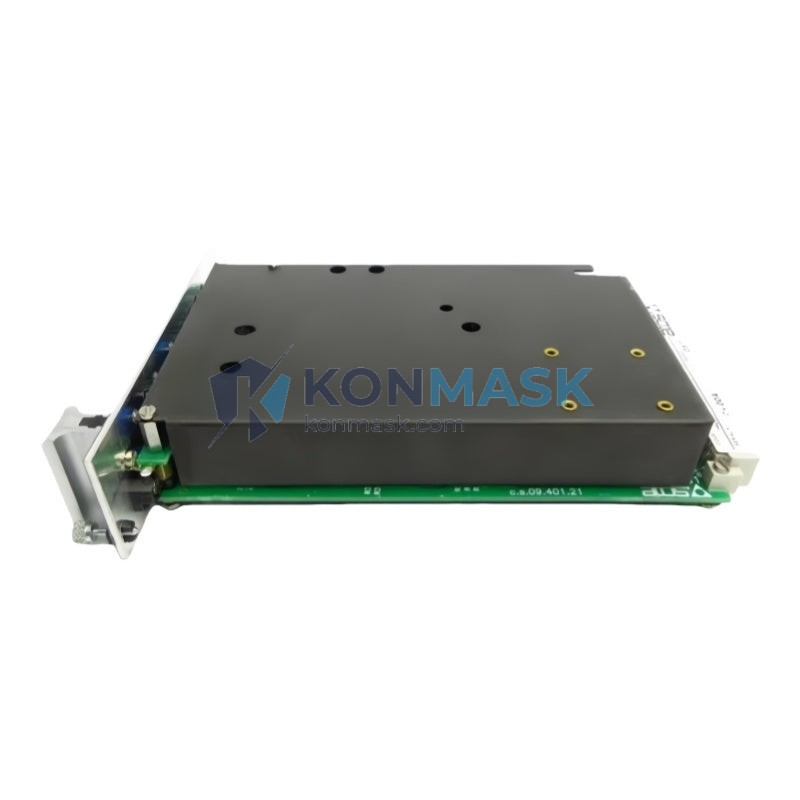

The ATOS E-ME-AC-01F is a dedicated electrical amplifier card engineered to drive ATOS proportional hydraulic valves with precision analog control. Designed for demanding industrial environments, this module converts a standard command signal into a precisely regulated valve coil current, enabling smooth, repeatable, and energy-efficient hydraulic actuation across a wide range of machine applications.
Where This Product Is Used
The E-ME-AC-01F is specified by hydraulic system engineers and OEM machine builders in the following industries and applications:
- Injection Molding Machines – Precise pressure and flow ramp control during mold clamping and injection phases
- Metal Forming & Press Brakes – Synchronized multi-axis proportional control for bending force and ram speed
- Die Casting Equipment – High-response valve driving for shot sleeve velocity profiling
- Industrial Presses & Forging – Closed-loop force control with smooth deceleration ramps
- Mobile Hydraulics & Construction Machinery – Joystick-to-valve signal conditioning for excavators and cranes
- Test Rigs & Simulation Benches – Accurate signal generation for fatigue and endurance testing systems
- Plastic Extrusion Lines – Stable back-pressure regulation via proportional relief valve control
Technical Specifications
| Part Number | E-ME-AC-01F |
| Brand | ATOS (Italy) |
| Series | E-ME – Modular Electrical Amplifier Series |
| Function | Electrical amplifier for proportional hydraulic valves |
| Command Signal Input | ±10 V DC analog / 4–20 mA (model dependent) |
| Output | Regulated PWM current to proportional valve solenoid |
| Supply Voltage | 24 V DC (±10%) |
| Dither Frequency | Adjustable (typical 50–200 Hz) |
| Ramp Function | Independent ramp-up / ramp-down adjustment |
| Enable Input | Digital enable/disable signal |
| Mounting | DIN rail or panel mount (card format) |
| Weight | 540 g |
| Compatibility | ATOS proportional directional, pressure, and flow control valves |
| Standards | CE marked; designed to EN 61000 EMC requirements |
Why Engineers Specify This Model
- Plug-and-play compatibility with the full ATOS proportional valve range — no custom wiring harness required
- Adjustable dither eliminates valve hysteresis and stick-slip for smoother, more repeatable positioning
- Independent ramp control protects machinery from pressure spikes and hydraulic shock during direction changes
- Compact card format integrates directly into standard electrical control cabinets without additional enclosures
- Robust EMC design ensures stable operation in electrically noisy industrial environments
- Enable input allows safe integration with PLC safety circuits and E-stop logic
Complete System Bill of Materials
For a complete proportional hydraulic control loop using the E-ME-AC-01F, engineers typically specify:
- ATOS E-ME-AC-01F – Electrical amplifier (this unit)
- ATOS proportional directional valve (e.g., DLHZO, DPZO series)
- 24 VDC regulated power supply (min. 3 A recommended)
- PLC analog output module (±10 V or 4–20 mA)
- Hydraulic power unit with appropriate filtration (ISO 4406 cleanliness ≤ 18/16/13)
- Pressure transducer (for closed-loop pressure control applications)
- Linear position transducer / LVDT (for closed-loop position control)
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive and Low Voltage Directive
- EMC – Designed to EN 61000-4 series immunity and EN 55011 emission standards
- RoHS – Manufactured in compliance with RoHS 2 (2011/65/EU)
- ISO 4413 – Compatible with hydraulic system safety design requirements
Quality Assurance & Sourcing
Konmask.com sources ATOS E-ME-AC-01F amplifier cards through verified industrial distribution channels. Every unit undergoes incoming inspection including:
- Visual and label verification against ATOS factory markings
- Functional power-on test at 24 VDC
- Packaging integrity check prior to dispatch
Units are shipped in original or equivalent ESD-safe packaging with full traceability documentation available on request.
How to Source This Part
- In-stock orders: Add to cart and check out — ships within 1–3 business days
- Bulk / project orders: Contact us for volume pricing and lead-time confirmation
- Urgent requirements: Email [email protected] or call +0086 19859288691 for expedited sourcing
- Cross-reference / substitution: Our engineers can advise on compatible ATOS amplifier alternatives if this model is on extended lead time
Application-Specific FAQ
Q: Which ATOS proportional valves is the E-ME-AC-01F compatible with?
A: The E-ME-AC-01F is designed for ATOS proportional directional control valves and proportional pressure/flow valves that require an external amplifier card. Always verify coil resistance and current rating against the amplifier output specification before installation.
Q: Can this amplifier be controlled by a standard PLC analog output?
A: Yes. The unit accepts a ±10 V DC command signal, which is standard on most Siemens, Allen-Bradley, Mitsubishi, and Omron PLC analog output modules.
Q: Is the dither frequency factory-set or field-adjustable?
A: The dither frequency and amplitude are field-adjustable via onboard potentiometers, allowing optimization for the specific valve and hydraulic fluid viscosity in your application.
Q: What happens if the enable signal is removed?
A: The amplifier output current drops to zero, de-energizing the valve solenoid and returning the valve to its spring-centered or fail-safe position — compatible with standard PLC E-stop and safety relay circuits.
Q: Do you provide technical support for commissioning?
A: Yes. Konmask.com provides pre-sales application support and commissioning guidance. Contact our team with your system schematic for tailored advice.
