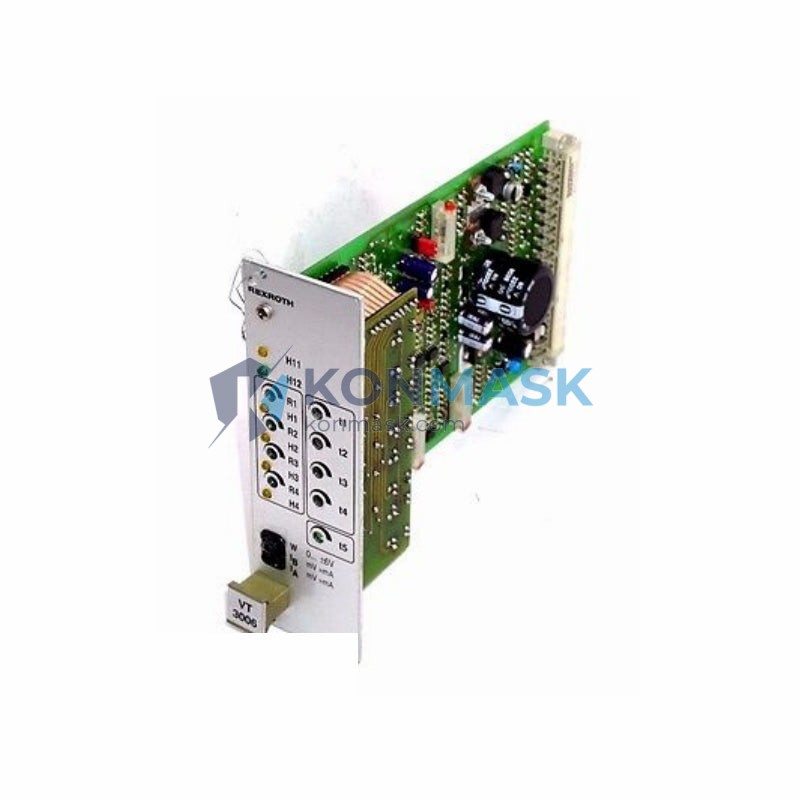

Bosch Rexroth VT3006-36 Amplifier Card | Replacement, Equivalent & Selection Guide
The Bosch Rexroth VT3006-36 is a plug-in amplifier card designed for controlling proportional directional and pressure/flow control valves in industrial hydraulic systems. As an authorized sourcing partner, Konmask.com supplies genuine VT3006-36 units and verified compatible equivalents to minimize downtime and reduce procurement costs.
Technical Specifications
- Part Number: VT3006-36
- Manufacturer: Bosch Rexroth
- Series: VT3006 (Plug-in Amplifier Card Series)
- Function: Proportional valve amplifier / control card
- Supply Voltage: 24 V DC (±15%)
- Output Current: Up to 2.5 A (solenoid drive)
- Enable Input: Digital enable signal compatible
- Command Input: ±10 V / 4–20 mA (configurable)
- Ramp Function: Adjustable ramp-up / ramp-down
- Dither Frequency: Adjustable
- Form Factor: Eurocard plug-in module
- Operating Temperature: 0 °C to +50 °C
- Weight: approx. 1,600 g (packaged)
- Compliance: CE marked, RoHS compatible
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the VT3006-36. Always verify electrical and mechanical compatibility before substitution:
- Bosch Rexroth VT3006-1X – Newer generation drop-in upgrade; enhanced diagnostics
- Bosch Rexroth VT-VSPA1-1-1X/V0/0 – Single-axis proportional amplifier, similar output spec
- Bosch Rexroth VT5003 – Rack-mount amplifier for multi-axis applications
- Moog T161-xxx Series – Third-party equivalent; requires wiring adaptation
- Parker Hannifin PCD00A – Functional equivalent for proportional valve control; verify connector pinout
Note: Konmask.com recommends using genuine Bosch Rexroth parts for safety-critical applications. Contact our engineers for a compatibility assessment before substitution.
Why Choose the Original VT3006-36
- Factory-calibrated for Bosch Rexroth proportional valves — zero re-tuning required
- Guaranteed electrical compatibility with existing Rexroth rack systems
- Full OEM documentation and parameter sheets available
- Traceable serial number and manufacturing batch for quality audits
- Backed by Bosch Rexroth global service network
Typical Applications
- Injection molding machine hydraulic control
- Metal forming press proportional valve drives
- Industrial robot hydraulic axis control
- Steel mill rolling mill pressure/flow regulation
- Marine and offshore hydraulic power units
- Mobile machinery with closed-loop hydraulic control
System Compatibility
The VT3006-36 is designed to integrate with Bosch Rexroth rack systems and is compatible with the following valve families:
- Bosch Rexroth 4WRPH / 4WRPEH proportional directional valves
- Bosch Rexroth DBEM / DREM proportional pressure/flow valves
- Bosch Rexroth RE series proportional valves (verify series datasheet)
- Third-party proportional valves with 24 V DC solenoid coils (adaptation may be required)
Selection Guide
Use the checklist below to confirm the VT3006-36 is the right choice for your application:
- ✅ Supply voltage: 24 V DC available at installation point
- ✅ Command signal: ±10 V or 4–20 mA from your PLC/controller
- ✅ Valve solenoid current: ≤ 2.5 A per channel
- ✅ Rack slot: Standard Eurocard rack with correct backplane connector
- ✅ Single-axis control (for multi-axis, consider VT5003 or VT-HACD series)
If your application requires fieldbus integration (PROFIBUS, EtherCAT), consider the Bosch Rexroth VT-HNC100 or VT-HACD series instead.
Quality Assurance & Sourcing
- Source: Authorized distributor channels and verified surplus stock
- Inspection: Each unit undergoes visual inspection and functional verification before shipment
- Packaging: Anti-static ESD packaging with original or equivalent protective foam
- Warranty: 12-month warranty against manufacturing defects
- Traceability: Serial number and batch records provided on request
How to Order
- Add the VT3006-36 to your cart and proceed to checkout, or
- Contact us directly for bulk orders, urgent requirements, or technical consultation:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Lead time: typically 3–7 business days for in-stock units; 2–4 weeks for sourced orders. Express shipping available.
Replacement & Compatibility FAQ
Q: Can the VT3006-36 replace a VT3006-1X directly?
A: The VT3006-1X is the successor model with enhanced features. In most cases the VT3006-36 can replace a VT3006-1X in legacy systems, but verify the rack backplane connector and parameter settings first.
Q: Is the VT3006-36 compatible with non-Rexroth proportional valves?
A: Yes, provided the solenoid coil voltage and current ratings match. A wiring adapter may be required. Contact our engineers for a free compatibility check.
Q: Do you supply refurbished units?
A: We supply both new and professionally refurbished units. Refurbished units are clearly labeled and carry a 6-month warranty.
Q: Can you help identify the correct replacement if my part number is worn off?
A: Yes. Send us photos of the card and your system documentation to support@konmask.com and our engineers will identify the correct model.
Q: What is the typical lead time for urgent orders?
A: In-stock units ship within 1–2 business days. Contact us for express options.
