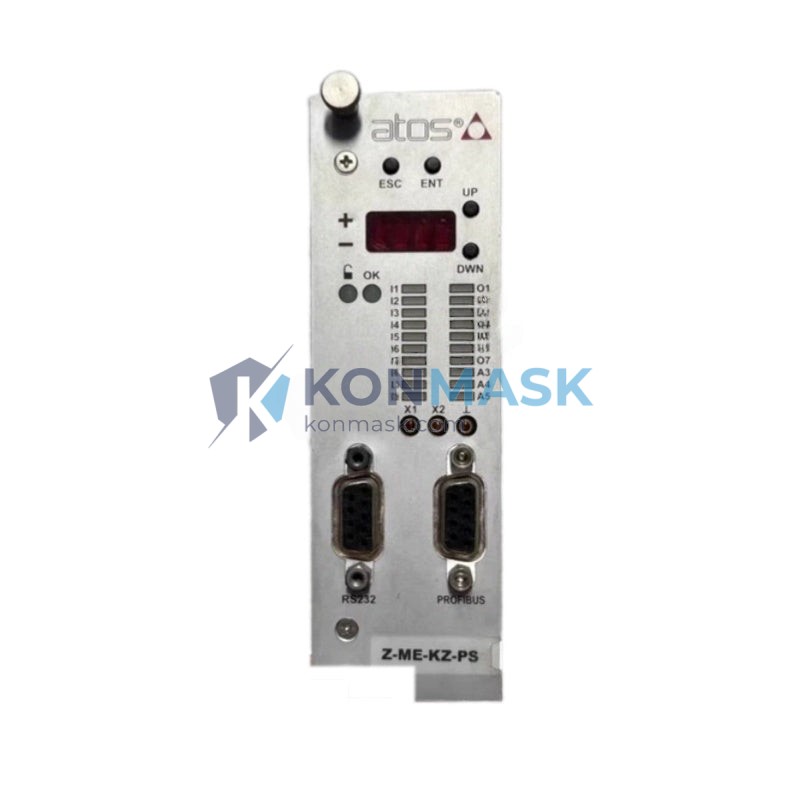

Electrohydraulic Axis Position Control Solution — Atos Z-ME-KZ-PS | Z-ME Series
The Atos Z-ME-KZ-PS is a dedicated digital position controller card engineered for closed-loop electrohydraulic axis control. Designed for demanding industrial environments, it interfaces directly with proportional valves and linear/rotary position transducers to deliver precise, repeatable positioning across a wide range of hydraulic actuator applications.
Where This Product Is Used
Engineers and system integrators specify the Z-ME-KZ-PS in applications where hydraulic actuator position must be controlled with high accuracy and dynamic response:
- Injection Molding Machines — Precise clamp and injection axis positioning for repeatable shot-to-shot quality
- Metal Forming Presses — Hydraulic press ram position control for bending, stamping, and deep-drawing operations
- Steel Mill Rolling Equipment — Roll gap control and strip thickness regulation in hot and cold rolling lines
- Die Casting Machines — Shot sleeve and intensifier position control for consistent casting density
- Marine & Offshore Hydraulics — Deck crane boom and winch position control in harsh environments
- Test Rigs & Fatigue Machines — Servo-hydraulic actuator control for material and component testing
- Forestry & Mobile Machinery — Boom and blade positioning on excavators and forestry harvesters
Technical Specifications
| Part Number | Z-ME-KZ-PS |
| Manufacturer | Atos S.p.A. (Italy) |
| Series | Z-ME (Digital Axis Controller Cards) |
| Function | Closed-loop digital position controller for electrohydraulic axes |
| Command Input | ±10 V DC analog reference signal |
| Feedback Input | Compatible with linear potentiometers, LVDTs, and SSI encoders |
| Output | ±10 V DC to proportional valve driver or servo amplifier |
| Control Algorithm | PID with ramp generator and enable logic |
| Mounting | DIN rail (EN 60715 TS35) |
| Supply Voltage | 24 V DC ±10% |
| Operating Temperature | 0 °C to +50 °C |
| Weight | approx. 250 g |
| Protection Class | IP20 (panel/cabinet installation) |
Why Engineers Specify This Model
- Dedicated axis function — Single-card solution eliminates the need for a full PLC motion module for simple hydraulic axes
- Plug-and-play with Atos proportional valves — Pre-tuned gain structure reduces commissioning time significantly
- Analog command compatibility — ±10 V interface integrates with virtually any PLC analog output module (Siemens, Allen-Bradley, Mitsubishi, Omron)
- Onboard ramp generator — Smooth acceleration/deceleration profiles protect actuators and reduce hydraulic shock
- Compact DIN rail form factor — Fits standard control cabinets without custom mounting hardware
- Proven Atos reliability — Atos electrohydraulic control electronics are specified in over 50 countries across heavy industry
Complete System Bill of Materials
A typical electrohydraulic position control axis using the Z-ME-KZ-PS includes:
- Atos Z-ME-KZ-PS — Digital position controller card (this item)
- Atos proportional directional valve (e.g., DLHZO or DPZO series) with integrated LVDT spool feedback
- Atos proportional valve driver card (e.g., Z-ME-A or E-ME-A series) — if not integrated
- Linear position transducer (potentiometer or LVDT) mounted on hydraulic cylinder
- 24 V DC DIN rail power supply (min. 2 A)
- PLC analog output module (±10 V) for setpoint command
- Shielded signal cables for feedback and command wiring
Compliance & Industry Standards
- CE Marked — Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- Designed and manufactured in accordance with ISO 9001:2015 quality management system
- DIN rail mounting per EN 60715 TS35
- RoHS compliant (Restriction of Hazardous Substances)
- Compatible with ATEX zone installations when installed in certified enclosures (consult Atos for zone classification)
Quality Assurance & Sourcing
Konmask.com sources the Atos Z-ME-KZ-PS through verified industrial automation supply channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and connector condition
- Verification of part number and revision markings against Atos documentation
- Functional power-on check where applicable
- Anti-static packaging with humidity indicator card for long-distance shipping
We maintain traceability records for all units. Certificates of conformity available on request.
How to Source This Part
The Z-ME-KZ-PS may be listed as obsolete or discontinued by some distributors. Konmask.com specializes in sourcing legacy and current-production Atos electrohydraulic components for MRO (Maintenance, Repair & Overhaul) and OEM replacement applications.
- In-stock units — Ready to ship within 1–3 business days
- Bulk / project orders — Contact us for volume pricing and lead time
- Cross-reference assistance — We can help identify compatible replacement models if this unit is unavailable
- Datasheet & wiring diagram — Available upon request via email
To place an order or request a quote: [email protected] | +0086 19859288691
Application-Specific FAQ
Q: Can the Z-ME-KZ-PS control a servo valve instead of a proportional valve?
A: Yes, provided the servo valve driver accepts a ±10 V command signal. The Z-ME-KZ-PS outputs a standard ±10 V analog signal compatible with most servo valve amplifiers. Verify the current capacity of your valve driver separately.
Q: What position transducer types are compatible?
A: The Z-ME-KZ-PS is designed for use with resistive linear potentiometers and LVDT-type transducers. SSI encoder compatibility depends on the firmware revision — contact us to confirm your specific transducer model.
Q: Can I use this card with a Siemens S7-1200 or S7-1500 PLC?
A: Yes. The ±10 V analog output from a Siemens SM 1232 or equivalent AQ module connects directly to the Z-ME-KZ-PS command input. No special interface module is required.
Q: Is this card still in production?
A: The Z-ME-KZ-PS is a legacy Atos product. Konmask.com maintains stock for MRO replacement. For new machine designs, Atos recommends the current Z-ME or E-ME digital axis card series — we can advise on migration.
Q: What is the warranty on this product?
A: Konmask.com offers a 90-day functional warranty on all electrohydraulic control electronics. Extended warranty and exchange programs are available — contact us for details.
