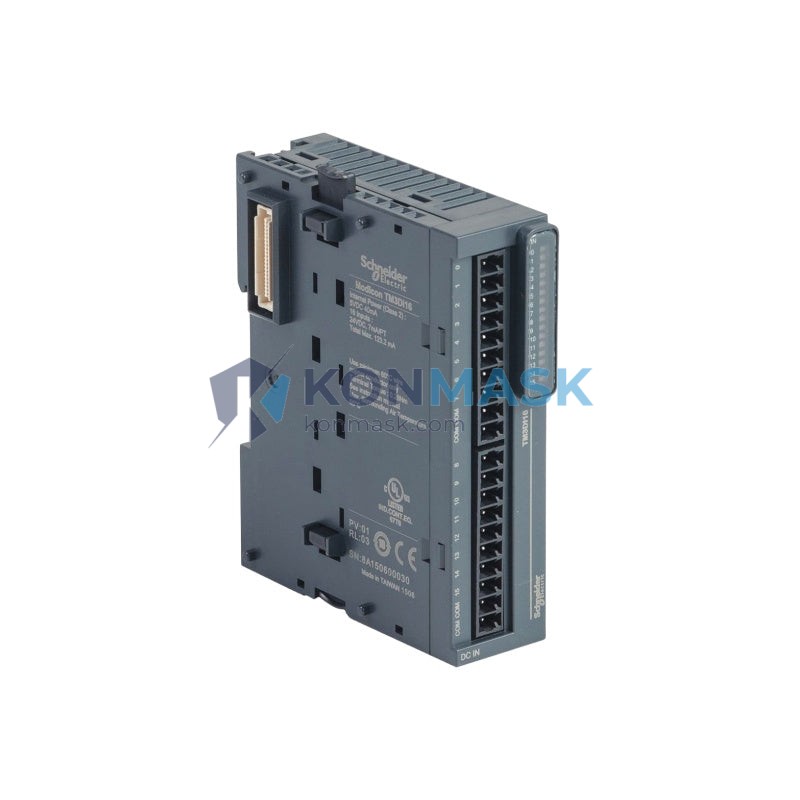

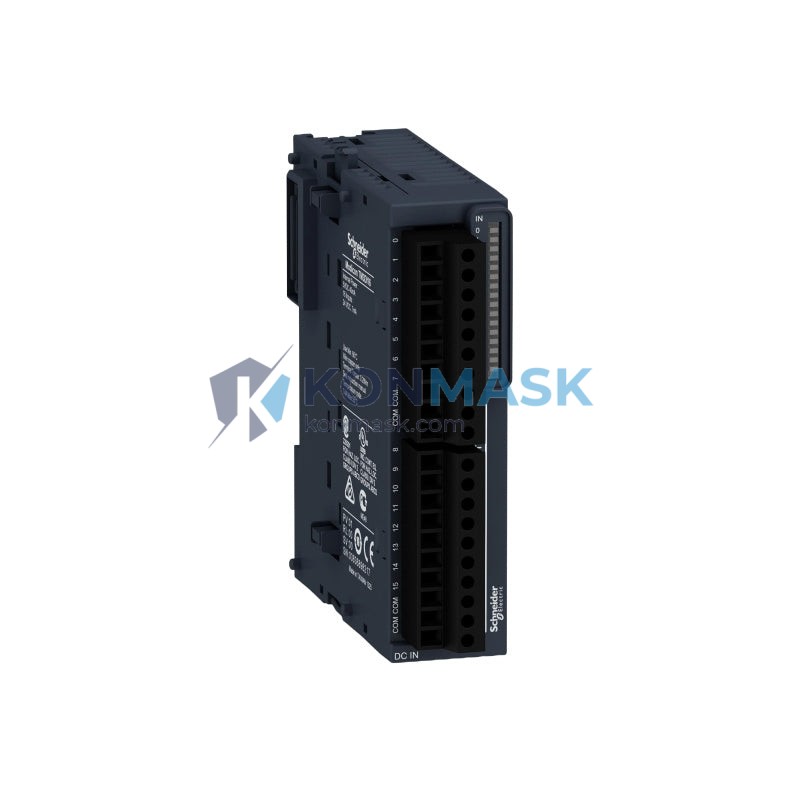

Schneider Electric TM3DI16 16-Point Digital Input Module – Modicon TM3 Series
When a critical production line loses its digital input module, the consequences are immediate and severe: PLCs go blind to field signals, safety interlocks fail to respond, and entire automated processes grind to a halt. Unplanned downtime in industrial environments can cost thousands of dollars per hour — and sourcing a replacement fast is not optional, it is mission-critical. The Schneider Electric TM3DI16 is the exact component that stands between your operation running at full capacity and an unscheduled shutdown.
The TM3DI16 is a 16-point 24 VDC digital input expansion module purpose-built for the Modicon TM3 platform, compatible with Modicon M238, M241, M251, and M262 logic controllers. As part of Schneider Electric’s globally deployed TM3 expansion ecosystem — one of the most widely adopted PLC I/O families in industrial automation — the TM3DI16 delivers reliable, high-density discrete signal acquisition for demanding factory-floor environments worldwide.
Technical Specifications
- Part Number: TM3DI16
- Manufacturer: Schneider Electric
- Series: Modicon TM3 Expansion I/O
- Number of Digital Inputs: 16 points
- Input Voltage: 24 VDC
- Input Type: Sink/Source (IEC Type 1 & Type 3)
- Compatible Controllers: Modicon M238, M241, M251, M262
- Connection Type: TM3 bus (direct side-mount expansion)
- Isolation: Optocoupler isolation between field and logic
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Degree of Protection: IP20
- Mounting: DIN rail (35 mm)
- Certifications: CE, UL, cUL, RCM
Key Features & Benefits
- High-Density Input Capacity: 16 discrete input channels in a compact module footprint, maximizing panel space efficiency.
- Plug-and-Play TM3 Bus Integration: Side-mount directly onto any compatible Modicon logic controller or TM3 bus coupler — no additional wiring harness required.
- Dual Sink/Source Compatibility: Supports both NPN and PNP field devices, providing maximum flexibility for global sensor standards.
- Optocoupler Isolation: Protects the PLC logic from field-side voltage transients and electrical noise common in industrial environments.
- Wide Operating Temperature Range: Rated for 0–55 °C continuous operation, suitable for harsh factory and process environments.
- Global Certifications: CE, UL, cUL, and RCM marks ensure compliance across North American, European, and Asia-Pacific markets.
- EcoStruxure-Ready: Fully compatible with Schneider Electric’s EcoStruxure Machine architecture for IIoT-enabled smart manufacturing.
Industry & Equipment Applications
- Discrete Manufacturing: Conveyor control, assembly line sequencing, part-presence detection
- Packaging Machinery: Sensor feedback for filling, sealing, and labeling stations
- Material Handling: Pallet transfer systems, AGV signal acquisition, sorter control
- Building Automation: HVAC control panels, access control integration, fire alarm interfacing
- Water & Wastewater: Pump status monitoring, valve position feedback, level switch inputs
- Food & Beverage: Hygienic line control with proximity and photoelectric sensor inputs
- OEM Machine Builders: Standard I/O expansion for custom machine control architectures
System Integration & Compatible Parts
The TM3DI16 is designed to work seamlessly within the Modicon TM3 ecosystem. Commonly paired components include:
- Logic Controllers: TM241CE24R, TM241CE24T, TM251MESE, TM262M15MESS8T
- Digital Output Modules: TM3DQ16R, TM3DQ16T, TM3DQ8R
- Mixed I/O Modules: TM3DM8R, TM3DM16R
- Analog Modules: TM3AI4, TM3AQ2, TM3AM6
- Bus Couplers: TM3BCEIP (EtherNet/IP), TM3BCSL (CANopen), TM3BCCO (CANopen)
- Power Supply: TM3XTRA1 (TM3 bus extension cable)
Contact our technical team to verify compatibility with your specific controller firmware version and I/O bus configuration.
Our Quality Assurance Process
- Authentic Sourcing: All TM3DI16 units are sourced from authorized Schneider Electric distribution channels or verified surplus inventories with full traceability.
- Pre-Shipment Inspection: Each module undergoes visual inspection for physical integrity, label verification, and packaging condition checks before dispatch.
- Documentation Provided: Original manufacturer labels, batch/lot codes, and available test records are included with every shipment.
- Secure Packaging: Anti-static ESD packaging with shock-absorbing materials ensures safe transit for sensitive electronic components.
- Warranty Support: We stand behind every part we ship. Contact us immediately if you receive a unit that does not meet your expectations.
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
- Export documentation (commercial invoice, packing list, COO) provided upon request.
For urgent requirements or large-volume orders, please contact us directly at [email protected] or call +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, HMI, and industrial control components — not general electronics.
- Global B2B Supply: Serving engineering firms, system integrators, and OEM manufacturers across Asia, Europe, the Americas, and the Middle East.
- Fast Inquiry Response: Dedicated technical sales team responds to RFQs within 24 hours on business days.
- Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing on both single units and bulk orders.
- Export-Ready Documentation: Full export paperwork support for cross-border procurement compliance.
- Long-Term Partnership: We build lasting relationships with procurement teams and maintenance engineers who need a reliable parts source.
Frequently Asked Questions
Q: Is the TM3DI16 compatible with the Modicon M238 controller?
A: Yes. The TM3DI16 is fully compatible with the Modicon M238, M241, M251, and M262 logic controllers via the TM3 expansion bus.
Q: What is the maximum number of TM3 expansion modules I can connect?
A: The maximum number of TM3 modules per controller depends on the specific logic controller model and its I/O bus capacity. Refer to the controller’s hardware guide or contact our technical team for your specific configuration.
Q: Does the TM3DI16 support both NPN and PNP sensors?
A: Yes. The module supports both sink (NPN) and source (PNP) input wiring, making it compatible with the majority of industrial proximity and photoelectric sensors.
Q: Can you provide a datasheet or technical documentation?
A: Yes. Please contact us at [email protected] and we will provide the official Schneider Electric TM3DI16 datasheet and installation guide.
Q: Do you ship internationally?
A: Yes. We ship globally and can provide full export documentation including commercial invoice, packing list, and certificate of origin as required.
Q: What is your lead time for the TM3DI16?
A: Lead time varies by stock availability. Please submit an inquiry for a real-time availability check and confirmed delivery timeline.
