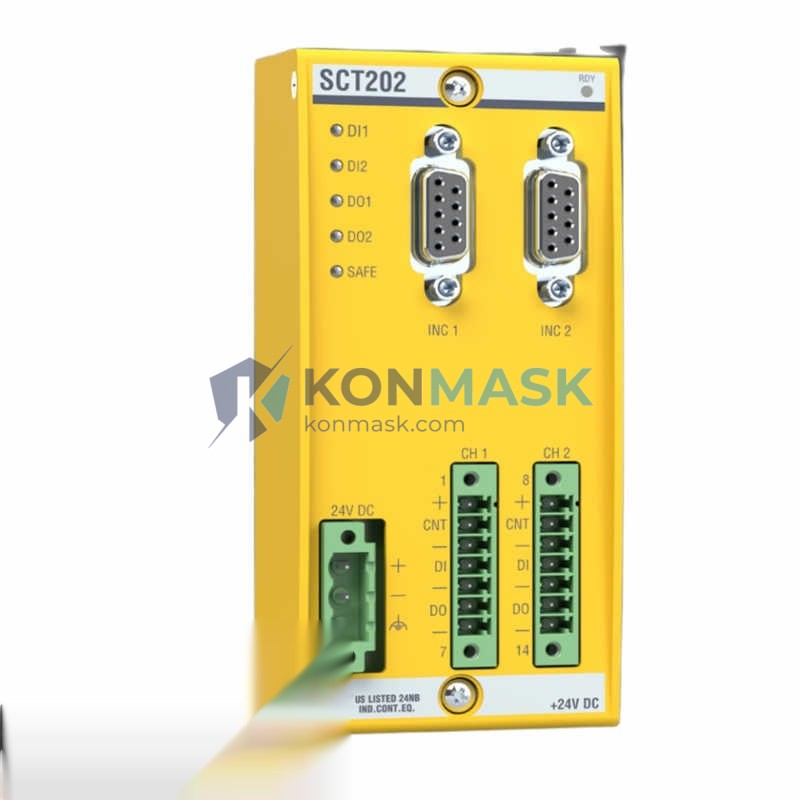

BACHMANN SCT202 – Safety Counter Module | Bachmann M1 Platform
Engineering Background
The BACHMANN SCT202 is a dedicated safety counter input module designed for integration within the Bachmann M1 automation platform. It addresses the demanding requirements of safety-critical counting applications in industrial machinery, wind turbines, and process automation — where encoder feedback, speed monitoring, and position verification must meet IEC 61508 / EN ISO 13849 safety integrity standards.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant engineers who require certified safe counter I/O within a unified Bachmann M1 rack architecture. The SCT202 eliminates the need for external safety relays or standalone safe speed monitors by embedding SIL-rated counter logic directly into the controller backplane.
Complete Technical Specifications
- Manufacturer: BACHMANN Electronic GmbH
- Part Number / Model: SCT202
- Module Type: Safety Counter Input Module
- Platform Compatibility: Bachmann M1 Automation System
- Counter Channels: 2 independent safety counter channels
- Input Signal Types: HTL / TTL incremental encoders, proximity switches (PNP/NPN)
- Max. Input Frequency: Up to 500 kHz per channel (signal-dependent)
- Safety Integrity Level: SIL 2 (IEC 61508) / PLd Cat. 3 (EN ISO 13849-1)
- Supply Voltage: 24 V DC (via M1 backplane)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Protection Class: IP20 (module housing)
- Dimensions (W × H × D): Standard M1 single-slot form factor
- Weight: Approx. 100 g
- Certifications: CE, UL, TÜV (safety-rated)
- Communication: Integrated via Bachmann M1 backplane bus
- Programming Environment: Bachmann SolutionCenter (IEC 61131-3)
Proven Application Environments
- Wind Energy: Rotor speed monitoring and overspeed protection in wind turbine nacelle controllers
- Industrial Machinery: Safe position and speed feedback for servo-driven axes requiring SIL 2 / PLd compliance
- Hydraulic Press & Forming: Stroke counting with safety-rated position verification
- Conveyor & Material Handling: Speed monitoring and jam detection with certified safe outputs
- Test Benches: High-frequency encoder acquisition in safety-instrumented test systems
- Process Automation: Flow pulse counting in SIL-rated process safety loops
Engineering Advantages
- Native Safety Integration: SIL 2 / PLd counter logic embedded in the M1 backplane — no external safety relay required
- Dual-Channel Architecture: Two independent counter channels support redundant encoder configurations for higher safety integrity
- High-Speed Acquisition: Up to 500 kHz input frequency supports high-resolution encoders and fast-moving machinery
- Unified Engineering: Programmed and diagnosed within Bachmann SolutionCenter alongside standard M1 I/O — single tool, single project
- Compact Form Factor: Single M1 slot occupancy minimizes rack space in safety-critical cabinet designs
- Certified Compliance: TÜV-assessed safety parameters reduce customer validation effort and accelerate machine CE marking
System Architecture & Signal Flow
The SCT202 mounts directly into any available slot of a Bachmann M1 rack. Encoder or proximity switch signals are wired to the module’s front connector. The module performs internal cross-channel comparison and diagnostic routines at the hardware level, reporting safe counter values and diagnostic status to the M1 CPU via the high-speed backplane bus. The application program accesses counter values and safety status through standard IEC 61131-3 function blocks provided in the Bachmann safety library. Safe state outputs (e.g., overspeed trip) can be mapped to safe digital outputs on companion M1 safety output modules.
Sourcing & Quality Verification
- All BACHMANN SCT202 units supplied by Konmask.com are sourced through verified industrial distribution channels.
- Each unit undergoes incoming inspection including label verification, firmware version check, and physical condition assessment prior to dispatch.
- Original manufacturer packaging and documentation are preserved where available.
- Traceability records (lot/serial) are maintained for B2B procurement compliance.
- Counterfeit-risk mitigation: Konmask.com does not source from grey-market or unverified secondary channels.
Procurement Process
- Step 1 — Inquiry: Submit your BOM or part number via email to support@konmask.com or via the product page enquiry form.
- Step 2 — Quotation: Receive a formal quotation with lead time, unit price, and shipping options within 1 business day.
- Step 3 — Order Confirmation: Place order via the Konmask.com storefront or via purchase order (B2B accounts).
- Step 4 — Dispatch: Orders are dispatched via DHL Express / FedEx International with full tracking and commercial invoice.
- Step 5 — After-Sales: Technical support and warranty claims handled directly by Konmask.com engineering team.
Technical FAQ
- Q: Is the SCT202 compatible with all Bachmann M1 CPU generations?
- A: The SCT202 is compatible with current-generation Bachmann M1 CPUs (MPC240, MPC265, MPC270 series and above). Compatibility with legacy CPUs should be verified against the Bachmann firmware release notes.
- Q: Can the SCT202 accept single-ended (non-differential) encoder signals?
- A: The module supports both HTL (single-ended) and TTL (differential) encoder inputs. Wiring configuration must match the encoder output type; refer to the SCT202 hardware manual for terminal assignments.
- Q: What is the proof-test interval for SIL 2 compliance?
- A: The required proof-test interval is defined in the BACHMANN SCT202 Safety Manual (TÜV-assessed). Typically 1–3 years depending on the target SIL and system architecture. Customers must consult the safety manual for their specific application.
- Q: Does Konmask.com provide the original BACHMANN safety manual and certificates?
- A: Yes. Digital copies of available documentation (datasheet, safety manual, TÜV certificate) are provided upon order confirmation. Physical documentation is included where supplied by the manufacturer.
- Q: What is the lead time for the SCT202?
- A: Standard lead time is 3–7 business days for in-stock units. For out-of-stock items, lead time is quoted individually based on current supply chain status. Contact support@konmask.com for real-time availability.
