CNC & Motion Control Solution — BAUMULLER BUM60-VC-0A-0001 | BUM60 Series
Where This Product Is Used

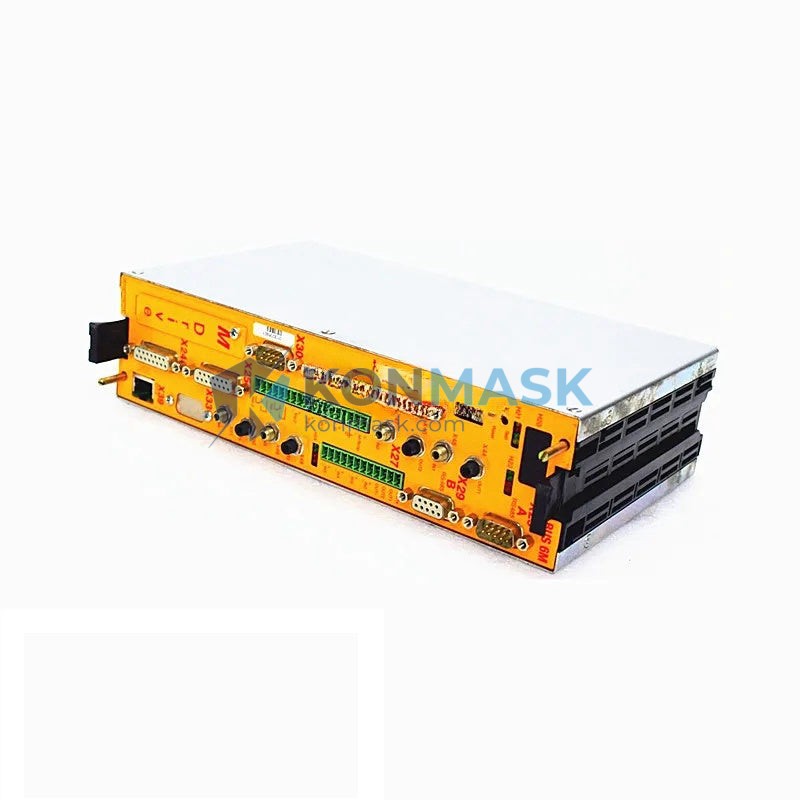

The BAUMULLER BUM60-VC-0A-0001 (part number BUM60-08/16-54-B-000) is a high-performance AC servo drive engineered for demanding industrial motion control environments. Typical deployment scenarios include:
- CNC Machine Tools — Spindle and axis positioning on milling centers, lathes, and grinding machines requiring sub-millisecond torque response.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and labeling lines where precise velocity synchronization is critical.
- Printing & Converting — Web-tension control and register accuracy on offset and flexographic presses.
- Robotics & Handling — Multi-axis articulated robot joints and gantry systems in automotive and electronics assembly.
- Plastics Processing — Injection molding clamping and ejector axes demanding smooth, repeatable force profiles.
- Textile & Winding — Tension-controlled winding/unwinding with dynamic load compensation.
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | BAUMULLER (Baumüller) |
| Part Number | BUM60-VC-0A-0001 |
| Full Model Code | BUM60-08/16-54-B-000 |
| Series | BUM60 |
| Drive Type | AC Servo Drive / Frequency Inverter |
| Input Current (cont.) | 8 A |
| Output Current (peak) | 16 A |
| DC Bus Voltage | 540 V DC |
| Communication Interface | PROFIBUS / CANopen (model-dependent) |
| Cooling | Forced air (internal fan) |
| Protection Class | IP20 |
| Weight | 3.4 kg |
| Country of Origin | Germany |
Specifications are based on manufacturer documentation. Contact us to confirm compatibility with your application.
Why Engineers Specify This Model
- Compact Power Density — 8/16 A continuous/peak rating in a slim BUM60 chassis reduces panel footprint without sacrificing dynamic performance.
- Seamless BAUMULLER Ecosystem Integration — Native compatibility with BAUMULLER b maXX servo motors and ProMaster/ProDrive software toolchain eliminates integration risk.
- Deterministic Fieldbus Response — PROFIBUS DP / CANopen support enables cycle-accurate torque and speed commands in multi-axis coordinated motion.
- Robust DC-Bus Architecture — 540 V DC bus allows energy sharing across drive axes, reducing braking resistor heat dissipation and improving overall system efficiency.
- Proven Field Reliability — BUM60 series drives are deployed globally in thousands of machine installations, with a well-documented spare-parts ecosystem.
Complete System Bill of Materials
For a fully operational servo axis using this drive, engineers typically specify:
- BAUMULLER BUM60-VC-0A-0001 Servo Drive (this unit)
- BAUMULLER b maXX DSC / DST series servo motor (matched to 8/16 A rating)
- BAUMULLER BUF60 / BUF200 supply module or common DC bus feed
- Resolver or EnDat 2.2 encoder feedback cable (shielded, motor-matched length)
- BAUMULLER ProDrive commissioning software license
- 24 V DC control power supply (min. 3 A)
- EMC line filter (class C2 or C3 per installation environment)
Contact support@konmask.com for bundle pricing on complete axis kits.
Compliance & Industry Standards
- CE Marked — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL / cUL Listed (verify label on unit)
- RoHS 2 Compliant
- EN 61800-3 (Adjustable Speed Electrical Power Drive Systems)
- EN 61800-5-1 (Safety requirements)
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured inspection process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- DC bus capacitance and insulation resistance check
- Functional power-on test with load simulation where applicable
- Firmware version verification against BAUMULLER release notes
- Secure anti-static packaging with serial number documentation
Units are sourced from decommissioned OEM lines, authorized distributors, and certified industrial surplus channels. Warranty and return terms are available on request.
How to Source This Part
- Submit a quote request via support@konmask.com or WhatsApp +0086 19859288691.
- Provide your machine model, current firmware version, and required delivery timeline.
- Receive a proforma invoice with lead time and shipping options (DHL Express / FedEx / sea freight).
- Payment via T/T, PayPal, or trade assurance. Export documentation (CO, packing list, commercial invoice) included.
Application-Specific FAQ
Q: Is BUM60-VC-0A-0001 a drop-in replacement for BUM60-08/16-54-B-000?
A: Yes — these are the BAUMULLER internal order code (VC-0A-0001) and the full model string (08/16-54-B-000) for the same physical unit. Always cross-reference both numbers when ordering.
Q: Can this drive operate on a 400 V AC three-phase supply?
A: The BUM60 series is designed for 3-phase 400 V AC input (±10%), rectified to a 540 V DC bus. Confirm your supply voltage before installation.
Q: What encoder types are supported?
A: The BUM60 supports resolver, incremental TTL/HTL, and EnDat 2.2 absolute encoders depending on the feedback card fitted. Verify the feedback option code in your full model string.
Q: Is same-day shipping available?
A: In-stock units can ship within 24–48 hours of payment confirmation. Contact us for urgent requirements.
Q: Do you provide a warranty?
A: Yes — a 90-day tested & functional warranty is standard. Extended warranty options are available for volume orders.
