Multi-Axis Motion Control Solution – Beckhoff AX5203-0000 | AX5000 Series
Where This Product Is Used

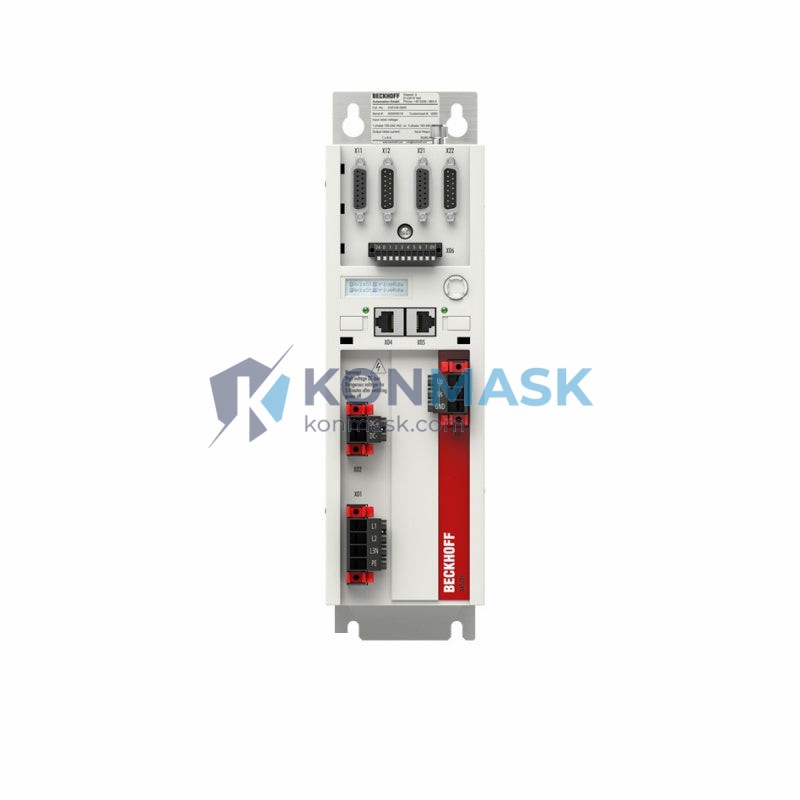

The Beckhoff AX5203-0000 is a 2-channel digital compact servo drive engineered for high-performance, multi-axis motion control applications. Engineers and system integrators specify this drive across a wide range of industrial environments:
- CNC Machining Centers – Simultaneous dual-axis interpolation for X/Y table control, spindle coordination, and tool-changer actuation.
- Robotic Assembly Lines – Compact dual-axis footprint reduces cabinet space in SCARA and Cartesian robot cells.
- Packaging & Labeling Machines – Synchronized servo motion for film feeding, cutting, and label placement at high throughput.
- Semiconductor & Electronics Manufacturing – Precision positioning for pick-and-place, wafer handling, and PCB drilling.
- Printing & Converting Equipment – Register control and tension management across multiple web axes.
- Material Handling & Conveyors – Coordinated belt and transfer axis control in automated warehousing systems.
- Textile Machinery – Multi-axis yarn feed and winding control requiring tight synchronization.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | AX5203-0000 |
| Series | AX5000 Digital Compact Servo Drive |
| Manufacturer | Beckhoff Automation |
| Number of Axes | 2 (Dual-Channel) |
| Drive Type | Digital Compact Servo Drive |
| Fieldbus Interface | EtherCAT (IEC 61158) |
| Feedback Systems Supported | Resolver, EnDat 2.1/2.2, SinCos, Hiperface, BiSS |
| Motor Compatibility | Synchronous & Asynchronous Servo Motors (AM8000, AM3000 series) |
| Supply Voltage | 3 × 200–480 V AC, 50/60 Hz |
| Protection Class | IP20 |
| Mounting | DIN Rail / Panel Mount |
| Communication Protocol | EtherCAT CoE (CANopen over EtherCAT) |
| Safety Function | STO (Safe Torque Off) – IEC 62061 / ISO 13849 |
| Weight | Approx. 400 g |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Dual-Axis in One Housing – The AX5203-0000 drives two independent servo axes from a single compact unit, cutting panel space by up to 40% versus two single-axis drives.
- EtherCAT Performance – Sub-100 µs cycle times enable deterministic, real-time motion synchronization across all axes in a TwinCAT 3 environment.
- Universal Feedback Compatibility – Supports EnDat 2.2, Hiperface, BiSS, SinCos, and resolver — no additional interface cards required for most motor types.
- Integrated Safety (STO) – On-board Safe Torque Off meets SIL 2 / PLd without external safety relays, simplifying CE/UL machine certification.
- Seamless TwinCAT Integration – Native plug-and-play with Beckhoff IPC and EK1100 EtherCAT couplers; auto-configuration via ESI files reduces commissioning time.
- Wide Motor Library – Pre-configured motor data sets for AM8000, AM3000, and third-party motors accelerate startup.
Complete System Bill of Materials
For a complete dual-axis servo system based on the AX5203-0000, engineers typically specify:
- AX5203-0000 – 2-channel digital compact servo drive (this unit)
- AX5000-0000 – Power supply module / DC bus capacitor module
- AM8000 / AM8500 Series – Beckhoff synchronous servo motors (matched pair)
- ZK4500-xxxx – Pre-assembled motor power cables
- ZK4510-xxxx – Feedback cables (EnDat / resolver)
- EK1100 – EtherCAT coupler for I/O integration
- CX2040 / C6015 – Beckhoff Industrial PC running TwinCAT 3 NC/PTP
- AX5021 – AX5000 filter module (EMC compliance)
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment
- IEC 61800-5-1 – Adjustable Speed Electrical Power Drive Systems (Safety)
- IEC 62061 / ISO 13849-1 – Functional Safety (STO: SIL 2 / PLd)
- IEC 61158 – EtherCAT Fieldbus Standard
- RoHS Compliant
Quality Assurance & Sourcing
Konmask.com sources the AX5203-0000 through verified industrial automation supply channels. Every unit undergoes the following before dispatch:
- Visual and mechanical inspection against Beckhoff factory specifications
- Firmware version verification and label authenticity check
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
We supply OEM-new, factory-refurbished, and tested-used grades — clearly labeled on each listing. Lead times and stock levels are confirmed at order placement.
How to Source This Part
- In-Stock Orders: Add to cart and check out — ships within 1–3 business days from our warehouse.
- Bulk / Project Quotes: Contact [email protected] for volume pricing and project BOM support.
- Urgent Requirements: Call or WhatsApp +0086 19859288691 for same-day quotation on critical spares.
- Custom Configurations: We can source AX5203-0000 variants with specific firmware or regional certifications — inquire directly.
Application-Specific FAQ
Q: Can the AX5203-0000 drive two completely independent axes simultaneously?
A: Yes. Each channel operates independently with its own current loop, velocity loop, and position loop. Both axes can run different motion profiles concurrently under TwinCAT NC/PTP.
Q: Is the AX5203-0000 compatible with third-party servo motors?
A: Yes, provided the motor uses a supported feedback system (EnDat, Hiperface, BiSS, SinCos, or resolver). Custom motor data sets can be configured in TwinCAT Drive Manager.
Q: What is the maximum cable length between the AX5203-0000 and the servo motor?
A: Beckhoff recommends a maximum of 50 m for standard motor cables. Longer runs require additional EMC filtering (AX5021) and shielded cable.
Q: Does this drive support regenerative braking?
A: Yes. The AX5000 series supports regenerative energy feedback to the DC bus. A shared DC bus configuration with a ballast resistor module (AX5021) is recommended for high-inertia loads.
Q: What TwinCAT version is required?
A: TwinCAT 3.1 Build 4022 or later is recommended for full AX5000 feature support including Safety over EtherCAT (FSoE).
Q: Can I replace an AX5203-0000 in an existing machine without re-commissioning?
A: In most cases, yes — if the replacement unit has the same firmware version and the TwinCAT project file is available. Konmask can assist with firmware matching on request.
