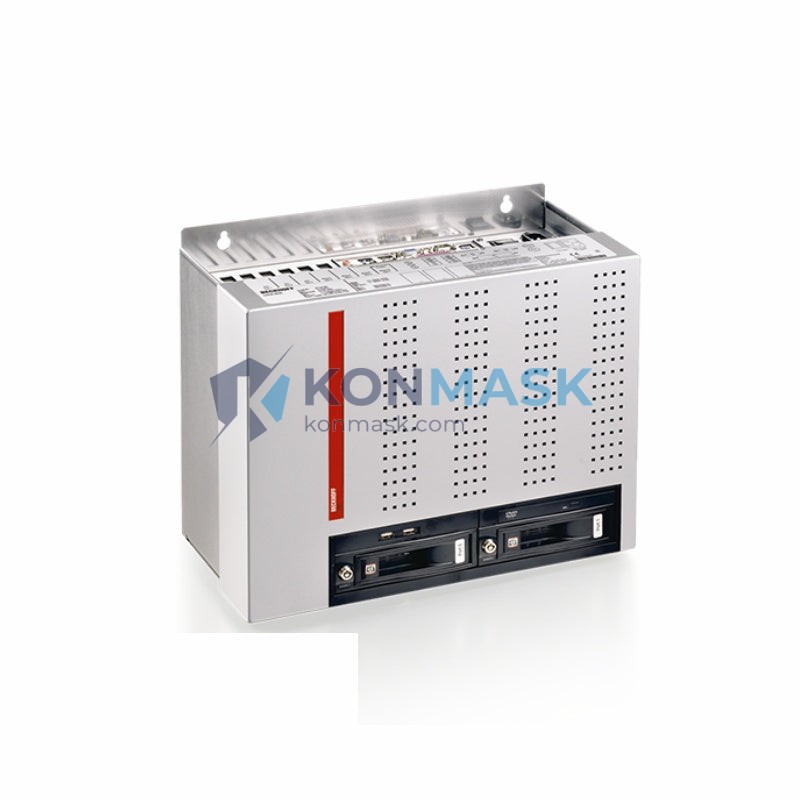

Beckhoff C6640-0010 – High-Performance Control Cabinet Industrial PC | TwinCAT Automation Platform
Engineering Background: The Beckhoff C6640-0010 is a rack-mount control cabinet IPC engineered for demanding industrial automation environments. Built on Beckhoff’s proven PC-based control philosophy, it integrates seamlessly with TwinCAT 3 software PLC/CNC/motion runtimes, enabling engineers to consolidate PLC, HMI, and motion control onto a single hardware platform.
Product Positioning: Designed for system integrators and OEM machine builders who require deterministic real-time performance, long-term availability, and DIN-rail or 19″ rack installation flexibility. The C6640-0010 is the preferred choice for high-axis-count CNC, robotics coordination, and complex multi-protocol fieldbus architectures.
Complete Technical Specifications
- Part Number: C6640-0010
- Form Factor: Control cabinet Industrial PC (19″ rack, 2U)
- Processor: Intel® Core™ i7 (6th Gen, Skylake) multi-core
- RAM: 4 GB DDR4 (expandable)
- Storage: CFast card slot + 2.5″ SATA SSD bay
- Operating System: Windows 10 IoT Enterprise LTSB / TwinCAT 3 runtime
- Display Output: DVI-I + DisplayPort
- Interfaces: 4× USB 3.0, 2× GbE (Intel I210), 1× EtherCAT port
- Fieldbus: EtherCAT master via TwinCAT; optional PROFIBUS, PROFINET, EtherNet/IP via PCIe
- Power Supply: 24 V DC (18–30 V), integrated UPS option
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −20 °C to +60 °C
- Humidity: 5–95 % RH, non-condensing
- Protection Rating: IP20 (cabinet-mounted)
- Dimensions (W×H×D): 483 × 88 × 268 mm
- Weight: approx. 4.5 kg
- Certifications: CE, UL, cULus, RoHS
- MTBF: >100,000 hours (fanless thermal design option)
Proven Application Environments
- Multi-axis CNC machining centers and grinding machines
- Robotic cell controllers (SCARA, 6-axis, delta)
- Packaging and filling line automation
- Semiconductor wafer handling and inspection systems
- Wind turbine pitch and yaw control
- Building automation and energy management (BACnet/IP via TwinCAT)
- Test bench and dynamometer control systems
Engineering Advantages
- Unified Software Platform: TwinCAT 3 runs PLC (IEC 61131-3), CNC, motion, and IoT tasks on one CPU — eliminating inter-controller latency.
- EtherCAT Performance: Sub-100 µs cycle times with jitter <1 µs for precision synchronization across 100+ axes.
- Long-Term Availability: Beckhoff guarantees 10+ year component availability, reducing lifecycle risk for OEM designs.
- Scalable Architecture: PCIe expansion slots allow fieldbus, GPU, or I/O cards without external gateways.
- Fanless Option: Passive cooling variant available for dusty or vibration-intensive environments.
- Remote Diagnostics: TwinCAT ADS protocol enables remote monitoring, parameter backup, and OTA updates.
System Architecture & Signal Flow
The C6640-0010 operates as the central automation node in a TwinCAT-based architecture:
- Field Level: EtherCAT I/O terminals (EL series) connect directly via the onboard EtherCAT port — no additional master card required.
- Control Level: TwinCAT 3 runtime executes deterministic PLC/motion tasks in real-time kernel; HMI runs concurrently in Windows user space.
- Supervisory Level: OPC UA server (built into TwinCAT) exposes process data to SCADA, MES, or cloud platforms via GbE.
- Safety Integration: TwinSAFE logic can be executed on the same IPC via TwinCAT Safety PLC runtime (SIL 2 / PLe).
Sourcing & Quality Verification
At Konmask.com, every Beckhoff C6640-0010 unit undergoes a documented 4-step verification process before dispatch:
- Origin Traceability: Serial number cross-referenced against Beckhoff’s authorized distributor records.
- Physical Inspection: Label integrity, connector condition, firmware version, and packaging seal verification.
- Functional Power-On Test: BIOS POST, TwinCAT runtime boot, and EtherCAT link-up confirmed.
- Documentation Package: CE declaration, calibration certificate (where applicable), and packing list issued with every shipment.
All units are sourced through verified supply channels. Counterfeit-free guarantee backed by our supplier audit program.
Procurement Process
- Submit your RFQ via support@konmask.com with quantity, required delivery date, and destination country.
- Receive a formal quotation with lead time, Incoterms, and HS code within 24 business hours.
- Confirm order — we issue a proforma invoice and arrange export documentation (CO, packing list, commercial invoice).
- Shipment via DHL Express, FedEx, or sea freight with full tracking and insurance.
- Post-delivery technical support available via email and WhatsApp.
Technical FAQ
Q: Is the C6640-0010 compatible with TwinCAT 2?
A: TwinCAT 2 runtime can be installed, but Beckhoff recommends TwinCAT 3 for all new designs. Migration tools are available.
Q: Can I add a PROFINET controller card?
A: Yes. The PCIe slot accepts Beckhoff FC9151 or FC9152 PROFINET cards, managed natively within TwinCAT.
Q: What is the warranty period?
A: Konmask.com provides a 12-month warranty covering manufacturing defects. DOA units are replaced within 5 business days.
Q: Do you provide a Certificate of Origin for customs clearance?
A: Yes, CO and full export documentation are standard with every international shipment.
Q: Is this unit new or refurbished?
A: We supply new, original units. Refurbished stock is clearly labeled separately and never mixed with new inventory.
