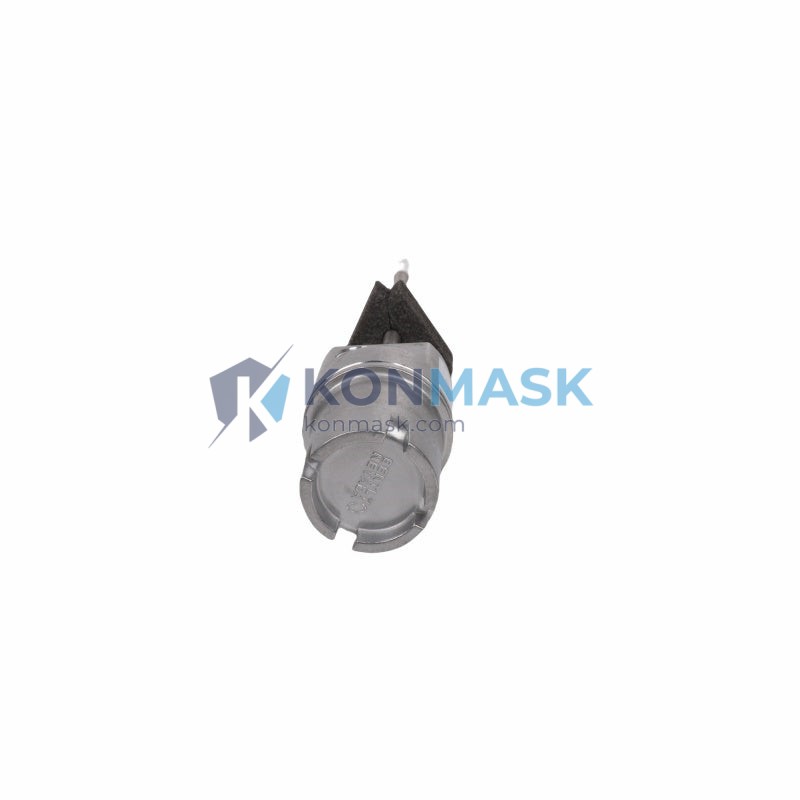

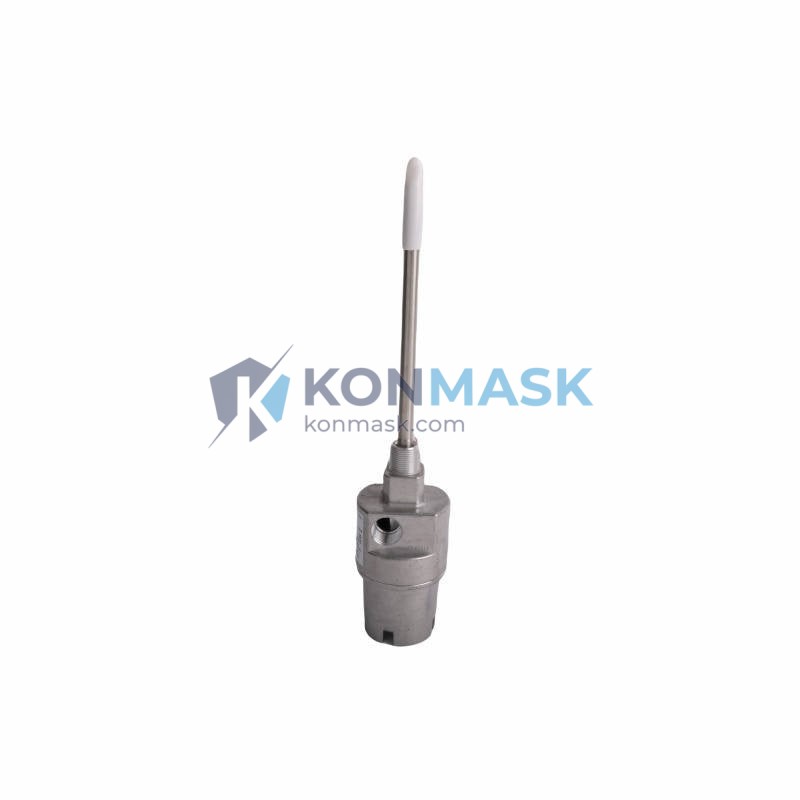

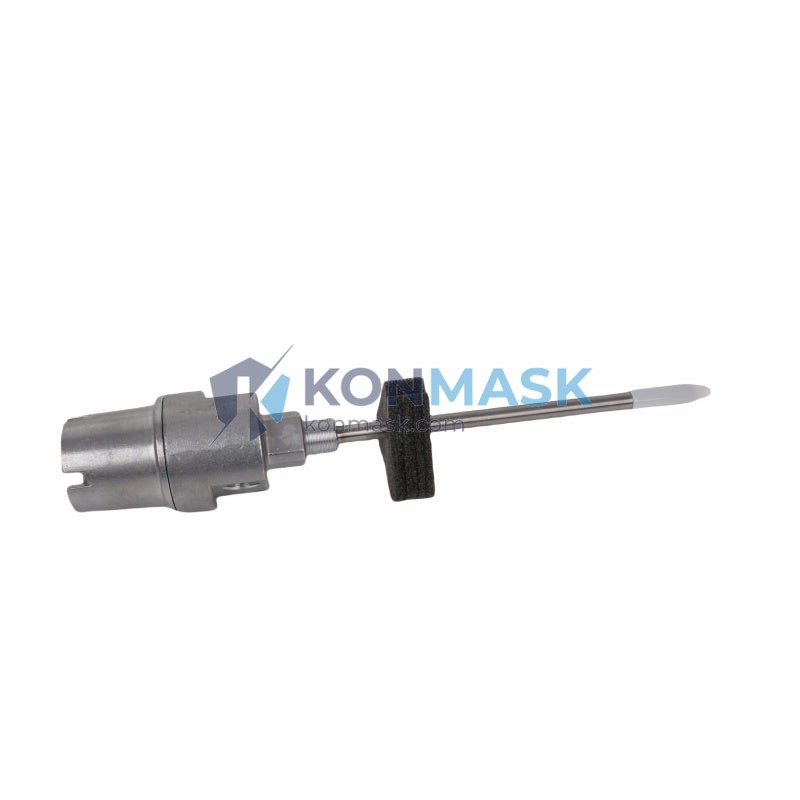

Bently Nevada 21000-16-10-15-105-03-02 Proximity Probe Housing Assembly | Replacement, Equivalent & Selection Guide
When a proximity probe housing fails on a critical rotating machine — a gas turbine, centrifugal compressor, or high-speed pump — the entire vibration monitoring chain goes blind. Without an accurate, calibrated housing assembly, your Bently Nevada 3300 XL Proximitor® sensor cannot deliver reliable shaft position or radial vibration data, leaving your machinery protection system unable to detect dangerous conditions before they escalate to catastrophic failure. The Bently Nevada 21000-16-10-15-105-03-02 Proximity Probe Housing Assembly is the precision-engineered component that keeps your monitoring system fully operational.
Within the 3300 XL Proximity Transducer System, the 21000-16-10-15-105-03-02 occupies the 16 mm tip-diameter tier — the largest standard probe size in the series — delivering the widest linear measurement range and highest signal stability for large-shaft, high-vibration applications. Globally, the 3300 XL platform is the de facto standard for turbomachinery protection in oil & gas, power generation, and petrochemical industries, making genuine OEM replacement parts a critical procurement priority for plant reliability teams worldwide.
Technical Specifications
- Part Number (SKU): 21000-16-10-15-105-03-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Product Type: Proximity Probe Housing Assembly
- Probe Tip Diameter: 16 mm
- Cable Length: 1.5 m (integrated cable configuration)
- Thread: M10 × 1 (standard metric)
- Temperature Range: –40 °C to +177 °C
- Weight: 1,080 g
- Output: Compatible with 3300 XL Proximitor® driver/monitor systems
- Approvals: CE, ATEX, FM (refer to official datasheet for full certification matrix)
Compatible Replacement & Equivalent Models
The following Bently Nevada part numbers are functionally equivalent or directly interchangeable with the 21000-16-10-15-105-03-02. Always verify probe tip diameter, cable length, thread specification, and connector suffix before substituting in a live system.
- 21000-16-10-20-035-03-02 — 16 mm, 1.0 m cable, M10 × 1 (shorter cable variant)
- 21000-16-10-05-035-03-02 — 16 mm, 0.5 m cable, M10 × 1 (compact installation)
- 21000-16-10-15-035-03-02 — 16 mm, 1.5 m cable, M10 × 1 (alternate sensitivity suffix)
- 21000-08-10-15-105-03-02 — 8 mm tip diameter variant (different gap range, not interchangeable)
- 21000-11-10-15-105-03-02 — 11 mm tip diameter variant (mid-range sensitivity)
Suffix codes (-03-02) denote connector type and housing material. Confirm full part number compatibility with your system integrator or contact our technical team for a free cross-reference check.
Why Choose the Original Model
- Exact OEM fit: Direct drop-in replacement for existing 3300 XL installations — no mechanical modification required
- Calibration integrity: Factory-calibrated gap voltage curve ensures measurement accuracy without field recalibration
- Hazardous area certification: ATEX/FM approvals are maintained only with genuine OEM assemblies
- System 1® compatibility: Full integration with Bently Nevada condition monitoring and optimization software
- Warranty preservation: Genuine parts protect your existing Bently Nevada system warranty
- Full traceability: Original serial numbers and certificates of conformance available upon request
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and axial thrust measurement
- Pump and motor bearing proximity sensing in petrochemical plants
- Gearbox and expander rotor dynamic analysis
- Power generation, LNG, and refinery machinery protection systems
- Pipeline compressor stations and offshore platform rotating equipment
System Compatibility
- Bently Nevada 3300 XL 8 mm / 11 mm / 14 mm / 16 mm Proximity Probes
- Bently Nevada 3300 XL Extension Cables (1 m, 5 m, 9 m)
- Bently Nevada 3300 XL Proximitor® Sensors (330180, 330181, 330185)
- Bently Nevada 3500 Series Monitoring Rack (3500/40M, 3500/42M, 3500/45, 3500/46)
- System 1® Condition Monitoring & Optimization Software
- Bently Nevada 3300 RAM (Rack Architecture Monitor) systems
Selection Guide
Use the following five-step process to confirm the correct part number for your application:
- Step 1 – Probe Tip Diameter: Match to your existing probe bore — 8 mm, 11 mm, 14 mm, or 16 mm
- Step 2 – Cable Length: Measure the distance from probe tip to Proximitor® sensor. Common lengths: 0.5 m, 1.0 m, 1.5 m, 5.0 m, 9.0 m
- Step 3 – Thread Specification: Confirm M10 × 1 or alternate thread from your housing drawing
- Step 4 – Connector Type: Verify suffix -03 (standard) or alternate connector code from your existing assembly label
- Step 5 – Certification Requirement: Confirm ATEX Zone, FM Division, or non-hazardous area classification for your installation
Not sure which part number is right? Send us your label photo and system drawing for a free cross-reference check.
Quality Assurance & Sourcing
- Verified Supply Chain: All units sourced from authorized distributors or OEM-certified channels — no grey-market or counterfeit parts
- Physical Inspection: Housing integrity, connector condition, labeling accuracy, and serial number traceability checked on receipt
- Part Number Cross-Reference: Verified against Bently Nevada’s official product catalog and revision history
- Documentation: Certificates of conformance, packing lists, and traceability records available upon request
- Packaging: Shipped in OEM or equivalent anti-static, shock-protected packaging to ISTA 2A standards
How to Order
- Online: Add to cart and complete checkout at Konmask.com
- Email RFQ: Send your purchase order or RFQ to support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Bulk / Project Orders: Contact us for volume pricing, blanket PO arrangements, and consignment stocking programs
Replacement & Compatibility FAQ
Q: Can I replace 21000-16-10-15-105-03-02 with a different cable length variant?
A: Yes, provided the total system cable length (probe + extension) matches the Proximitor® sensor’s specified range. Contact us to verify your system’s total cable length budget.
Q: Is an 8 mm probe housing interchangeable with a 16 mm unit?
A: No. Probe tip diameter determines the gap voltage curve and must match the Proximitor® sensor calibration. Mixing diameters will produce inaccurate measurements and may trigger false trips.
Q: Can I use a third-party equivalent instead of the genuine Bently Nevada part?
A: Third-party equivalents may fit mechanically but can void ATEX/FM certifications and System 1® compatibility. We strongly recommend genuine OEM parts for safety-critical applications.
Q: How do I decode the Bently Nevada 21000 part number?
A: The format is: 21000-[Diameter mm]-[Thread]-[Cable Length ×10 cm]-[Sensitivity code]-[Connector]-[Housing]. Our team can decode any 21000-series part number — just send us the label photo.
Q: What is the lead time for this part?
A: In-stock units ship within 3–7 business days. For out-of-stock or urgent requirements, contact us for expedited sourcing options.
Q: Does Konmask.com provide a certificate of conformance?
A: Yes. Certificates of conformance and traceability documentation are available upon request for all OEM units.
