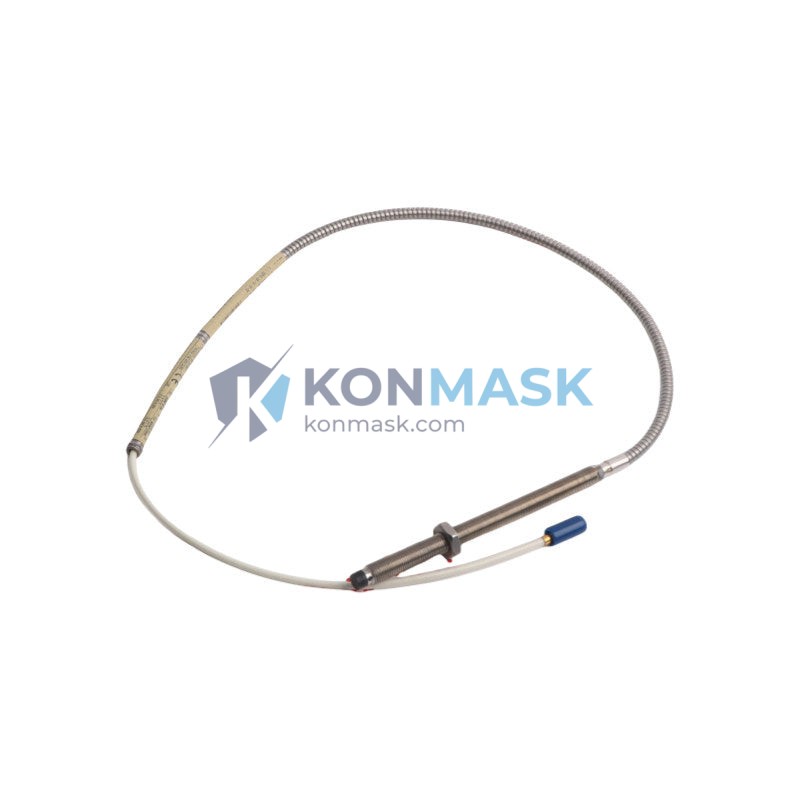

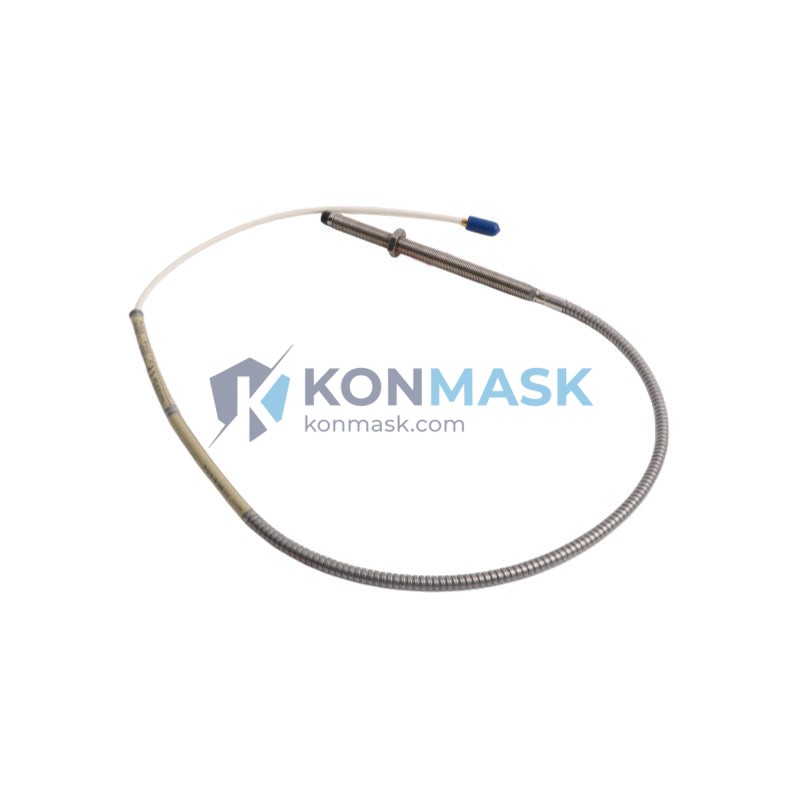

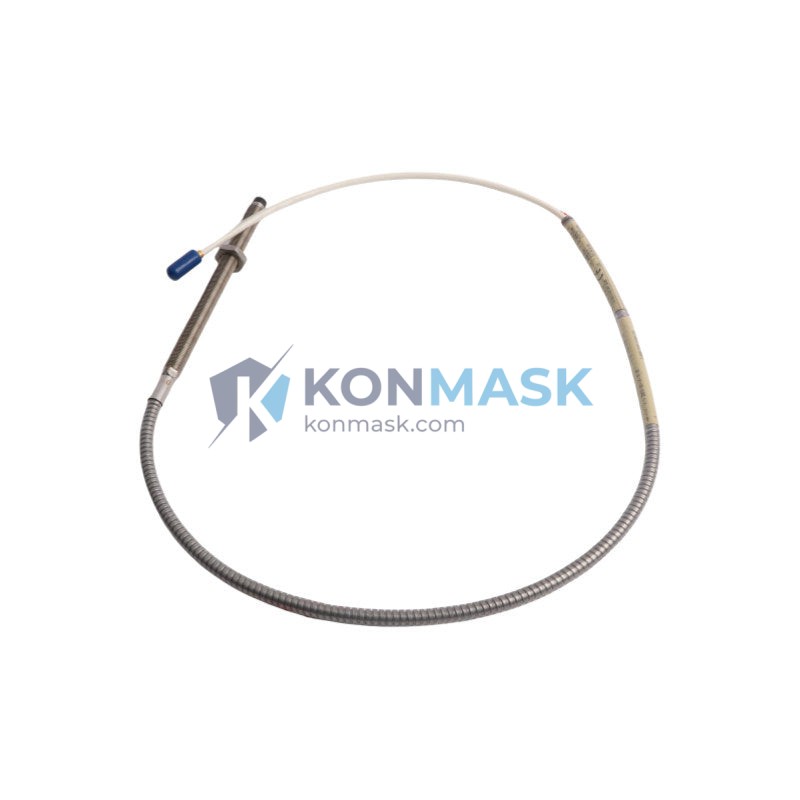

Bently Nevada 22810-00-14-10-02 Eddy Current Proximity Probe – 3300 Series
When a critical rotating machine loses its shaft vibration monitoring capability, the consequences are immediate and severe: undetected rotor imbalance, bearing wear, or shaft misalignment can escalate within minutes into catastrophic mechanical failure, unplanned downtime, and six-figure repair costs. In high-stakes environments — power generation turbines, compressors, pumps — the absence of a reliable proximity probe is not a maintenance gap; it is an operational liability. The Bently Nevada 22810-00-14-10-02 Proximity Probe is the precision sensing element that stands between normal operation and disaster.
The 22810-00-14-10-02 is a standard-range eddy current proximity probe within Bently Nevada’s globally trusted 3300 Series monitoring system. Engineered to deliver non-contact, continuous measurement of shaft radial vibration and axial position, this probe is the preferred choice for OEM turbomachinery builders and end-users operating under API 670 machinery protection standards. With millions of units deployed across refineries, power plants, and petrochemical facilities worldwide, the 3300 Series represents the gold standard in rotating machinery protection.
Technical Specifications
- Part Number: 22810-00-14-10-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 Series
- Sensor Type: Eddy Current Proximity Probe
- Measurement: Shaft radial vibration & axial position (non-contact)
- Tip Diameter: 8 mm (standard)
- Cable Length: 1.0 m (extension cable compatible)
- Thread: 3/8-24 UNF
- Target Material: Steel / Stainless Steel (AISI 4140 recommended)
- Operating Temperature: -35°C to +177°C
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 2.54 mm (10 to 100 mil)
- Connector: Coaxial, compatible with 3300 XL driver/monitor
- Compliance: API 670, CE
- Weight: 140 g
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear on the probe or shaft — continuous operation without degradation.
- High Sensitivity & Linearity: 7.87 V/mm output ensures precise, repeatable readings across the full linear range.
- API 670 Compliant: Meets the most stringent international standard for machinery protection systems.
- Wide Temperature Range: Reliable performance from cryogenic to high-temperature process environments.
- Plug-and-Play Compatibility: Direct replacement for existing 3300 Series installations — no recalibration of the monitor required.
- Robust Construction: Stainless steel housing with hermetically sealed tip for harsh industrial environments.
- Long Service Life: Solid-state design with no moving parts ensures decades of reliable service.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft vibration and eccentricity monitoring.
- Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — API 670 protection systems.
- Petrochemical & Refining: Reactor feed pumps, blowers, agitators — continuous process protection.
- Marine Propulsion: Ship propulsion shafts and auxiliary machinery monitoring.
- Pulp & Paper: High-speed rolls and dryer section drives.
- General Industrial: Any rotating machinery requiring ISO 13373 or API 670 compliant vibration monitoring.
System Integration & Compatible Parts
The 22810-00-14-10-02 probe is designed for seamless integration within the Bently Nevada 3300 Series ecosystem. Compatible components include:
- Extension Cables: 330130-045-00-CN, 330130-080-00-CN (matched pair required)
- Proximitor Sensors / Drivers: 3300 XL 8mm Proximitor (330180-X1-CN)
- Monitors: 3500/40M Proximitor / Seismic Monitor, 3300/16 Monitor
- Barriers (IS Applications): Bently Nevada 3300 Series Zener barriers for ATEX/IECEx zones
- Mounting Hardware: Standard 3/8-24 UNF probe holders and armored conduit fittings
Always use factory-matched probe and extension cable pairs to maintain system calibration and sensitivity accuracy.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada 22810-00-14-10-02 unit undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against manufacturer serial number databases and original packaging inspection.
- Visual & Dimensional Inspection: Tip condition, thread integrity, connector pin check, and cable jacket inspection.
- Functional Test: Sensitivity and linearity verified against a calibrated steel target using a precision gap gauge.
- Documentation: Each unit ships with a test report and, where available, original manufacturer certification.
- Secure Packaging: Anti-static, foam-lined packaging with moisture-barrier sealing for international transit.
How to Order
- Submit your inquiry via the Contact Us form or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm the order and receive proforma invoice for payment processing.
- Shipment dispatched with full tracking and export documentation.
We support T/T bank transfer, PayPal, and trade assurance payment terms. MOQ: 1 piece.
Why Choose Konmask.com?
- Specialized Inventory: Focused exclusively on industrial automation and control system components — we stock what generalist distributors don’t.
- Global Export Experience: Serving customers in 40+ countries with compliant export documentation and reliable logistics partners.
- Technical Support: Our team includes qualified automation engineers who can advise on compatibility, installation, and system integration.
- Fast Response: Inquiry-to-quotation in under 24 hours. Urgent orders accommodated.
- Competitive Pricing: Direct sourcing relationships enable pricing that reflects real market value — not inflated catalog rates.
- Traceability: Full documentation chain from source to delivery for compliance-sensitive industries.
Frequently Asked Questions
Q: Is the 22810-00-14-10-02 a direct replacement for older Bently Nevada 3300 Series probes?
A: Yes. The 22810-00-14-10-02 is backward compatible with the 3300 Series monitoring infrastructure. No monitor recalibration is required when replacing a like-for-like probe within a matched probe/cable/driver system.
Q: Can this probe be used with non-Bently Nevada monitors?
A: The probe outputs a standard eddy current signal (7.87 V/mm sensitivity), which is compatible with many third-party monitors that accept this input standard. However, full API 670 compliance requires use with a certified Bently Nevada driver and monitor.
Q: What is the difference between the probe and the Proximitor sensor?
A: The proximity probe is the sensing element installed near the shaft. The Proximitor sensor (driver) is the signal conditioning unit that powers the probe and converts the raw signal into a usable voltage output for the monitor. Both must be used as a matched, calibrated pair.
Q: Do you provide calibration certificates?
A: We provide functional test reports for all units. Original manufacturer calibration certificates are included where available. For applications requiring NIST-traceable calibration, we can arrange third-party calibration services upon request.
Q: What is the lead time for the 22810-00-14-10-02?
A: Lead time depends on current stock levels. Please submit an inquiry for a real-time availability check. In-stock units typically ship within 3–5 business days.
Q: Can you supply the complete 3300 Series loop (probe + cable + Proximitor)?
A: Yes. Konmask.com can supply complete matched sets. Please specify your required cable length and Proximitor model when inquiring.
