Bently Nevada 24701-33-05-00-024-04-02 – Proximity Probe Housing Assembly | 3300 XL Series Platform
Engineering Background: The Bently Nevada 3300 XL Series represents the industry benchmark for continuous shaft vibration monitoring in rotating machinery. Developed by Baker Hughes (Bently Nevada), this platform is deployed globally across power generation, oil & gas, petrochemical, and heavy industrial facilities where unplanned downtime carries catastrophic operational and financial consequences.

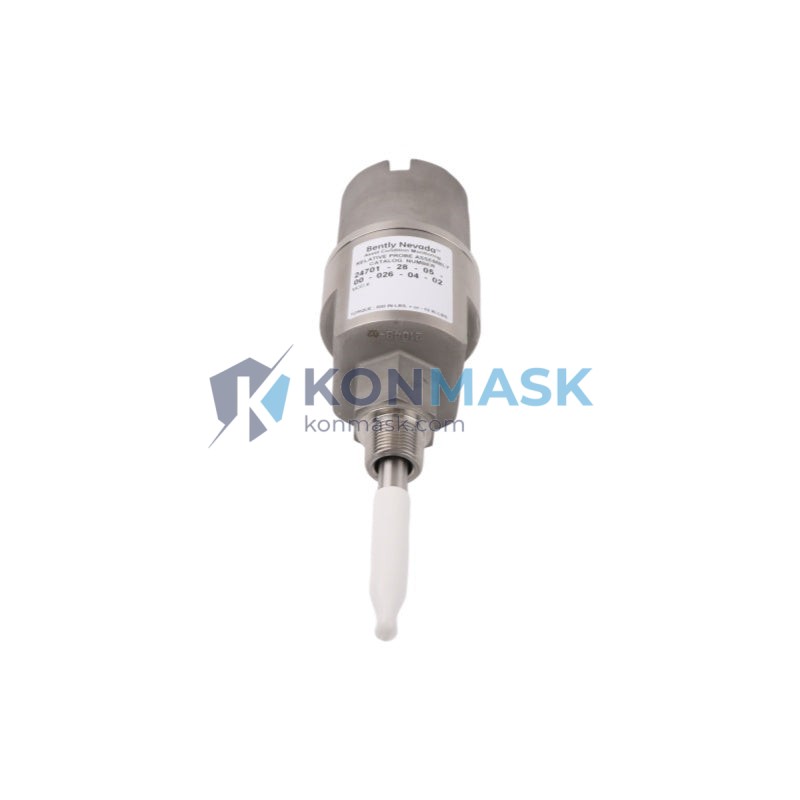

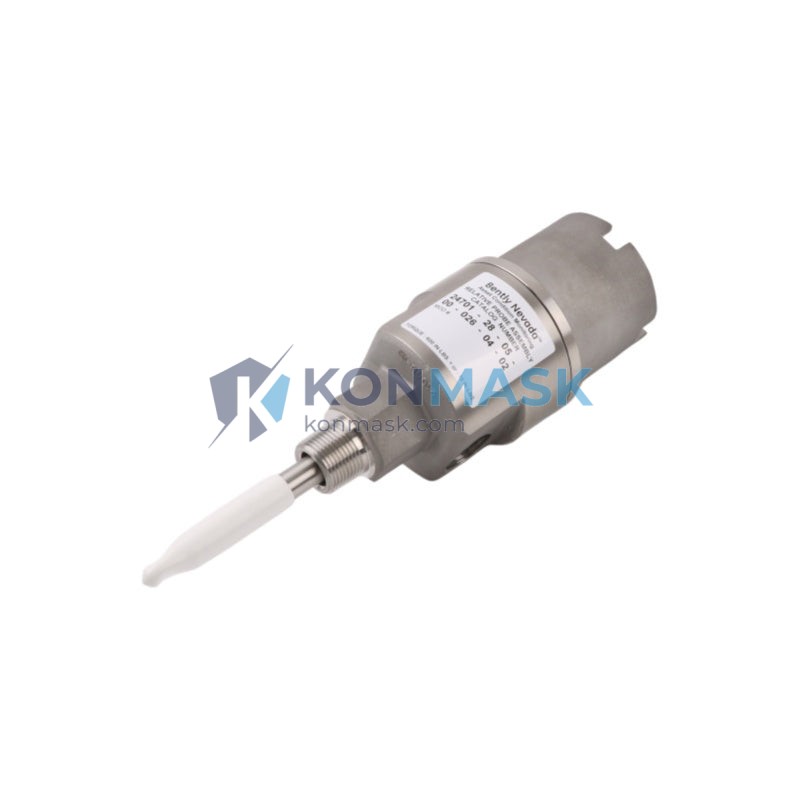

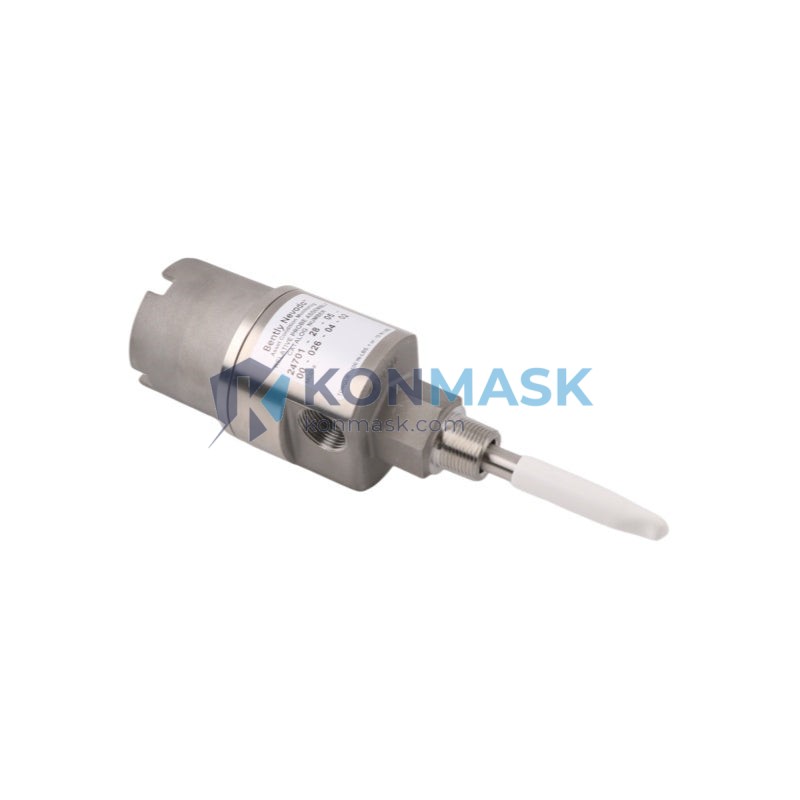

Product Positioning: The 24701-33-05-00-024-04-02 is a precision-engineered Proximity Probe Housing Assembly designed to mechanically protect and accurately position the eddy-current proximity probe tip relative to the rotating shaft. It ensures consistent gap distance, shields the probe from process fluids and mechanical interference, and maintains signal integrity under extreme thermal and vibration loads. This assembly is a critical field-replaceable unit (FRU) for maintenance engineers performing scheduled overhauls or emergency replacements on 3300 XL monitoring systems.
Complete Technical Specifications
| Part Number | 24701-33-05-00-024-04-02 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL Proximity Transducer System |
| Component Type | Proximity Probe Housing Assembly |
| Probe Tip Diameter | 8 mm (standard 3300 XL compatible) |
| Cable Length | Per part number suffix: 024 = 2.4 m integral cable |
| Thread / Mounting | M10 × 1.0 (standard), locknut included |
| Operating Temperature | –35 °C to +177 °C (–31 °F to +351 °F) |
| Ingress Protection | IP67 (dust-tight, immersion-resistant) |
| Housing Material | 316L Stainless Steel |
| Weight | 2,220 g (assembly with cable) |
| Compatible Driver / Monitor | 3300 XL 8 mm Proximitor® Sensor, 3500 Series Rack |
| Measurement Range | 0.25 mm – 2.25 mm (linear range) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10,000 Hz |
| Certifications | CE, ATEX, IECEx (consult factory for specific approval codes) |
| Country of Origin | USA |
Proven Application Environments
- Power Generation: Steam turbines, gas turbines, and hydro generators — continuous shaft radial vibration and axial position monitoring per API 670.
- Oil & Gas: Compressor trains, centrifugal pumps, and expanders in upstream/midstream/downstream facilities with hazardous area classification.
- Petrochemical & Refining: Critical rotating equipment where API 670 compliance is mandatory for insurance and regulatory purposes.
- Marine & Offshore: Propulsion shaft monitoring in high-humidity, salt-spray environments.
- Pulp & Paper / Mining: High-load, high-contamination environments requiring robust IP67 housing protection.
Engineering Advantages
- OEM Dimensional Accuracy: Machined to Bently Nevada factory tolerances — ensures drop-in replacement without re-calibration of the Proximitor® driver in most installations.
- 316L Stainless Steel Housing: Superior corrosion resistance versus standard 304 SS, critical for H₂S-rich or chloride-laden process environments.
- Integral Cable Design: Eliminates field-splice connection points, reducing signal noise and connector failure risk in high-vibration zones.
- Wide Thermal Range: Qualified to –35 °C / +177 °C, covering cryogenic LNG applications through high-temperature steam turbine bearing housings.
- API 670 Compliant: Meets the Machinery Protection Systems standard for radial vibration, axial position, and phase reference measurement.
System Architecture & Signal Flow
The 24701-33-05-00-024-04-02 operates as the field-sensing element within the Bently Nevada 3300 XL eddy-current transducer system:
- Probe Tip (this assembly) → generates an oscillating electromagnetic field at the shaft surface.
- Integral Coaxial Cable → transmits the high-frequency carrier signal to the Proximitor® driver with minimal impedance mismatch.
- 3300 XL Proximitor® Sensor → demodulates the carrier, outputs a DC voltage proportional to gap distance (–7.87 V/mm scale factor).
- 3500 Series Monitor Rack → digitizes, processes, and alarms on vibration amplitude, DC gap, and dynamic waveform data.
- DCS / SCADA Integration → 4–20 mA or digital outputs feed plant-wide condition monitoring and historian systems.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or directly from certified Bently Nevada / Baker Hughes partners.
- Each assembly undergoes incoming inspection: dimensional check, continuity test, and insulation resistance verification prior to dispatch.
- Original manufacturer documentation (datasheet, calibration certificate where applicable) included upon request.
- Traceability records maintained for 5 years in compliance with ISO 9001:2015 quality management requirements.
- Counterfeit-risk mitigation: part markings, date codes, and connector configurations verified against OEM reference standards before listing.
Procurement Process
- Confirm Part Number: Verify 24701-33-05-00-024-04-02 against your existing installation drawing or Bently Nevada system documentation.
- Request Quote / Lead Time: Contact [email protected] or call +0086 19859288691 for volume pricing, expedited shipping, and export documentation.
- Place Order: Add to cart and complete checkout, or submit a purchase order via email for net-terms arrangements.
- Shipping & Export: DHL / FedEx international express available; commercial invoice, packing list, and HS code documentation provided for customs clearance.
- Incoming Inspection Support: Konmask technical team available to assist with acceptance testing procedures upon delivery.
Technical FAQ
Q: Is this a genuine OEM part or an aftermarket equivalent?
A: Konmask supplies OEM-grade components sourced through verified industrial channels. Please contact us to confirm OEM vs. equivalent availability for your specific requirement.
Q: Can this probe housing be used with the 3500 Series monitor rack?
A: Yes. The 3300 XL 8 mm probe system is fully compatible with the Bently Nevada 3500 Series rack when paired with the correct 3300 XL Proximitor® sensor module.
Q: What is the recommended gap voltage for initial commissioning?
A: Per Bently Nevada standard practice, set the initial gap to –10.0 VDC ± 0.5 V (approximately 1.27 mm) using a non-conductive feeler gauge or gap-setting tool.
Q: Do you provide ATEX/IECEx documentation for hazardous area installations?
A: Yes. Certification documentation can be provided upon request. Please specify your area classification (Zone 1/2, Group IIC, T-class) when inquiring.
Q: What is the lead time for this part?
A: Typical lead time is 3–7 business days for in-stock units. Contact us for real-time availability confirmation.
