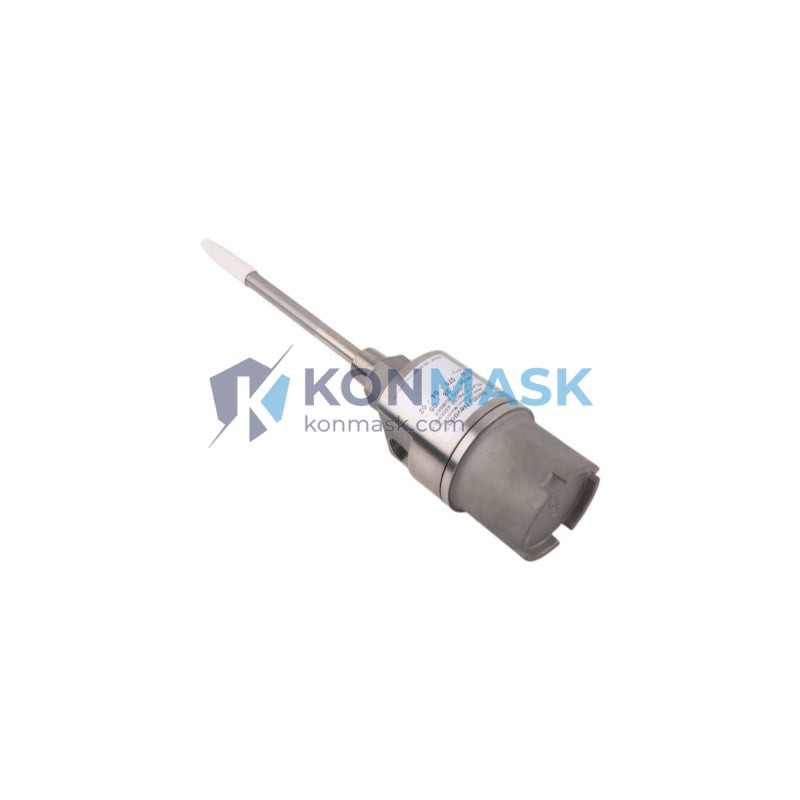

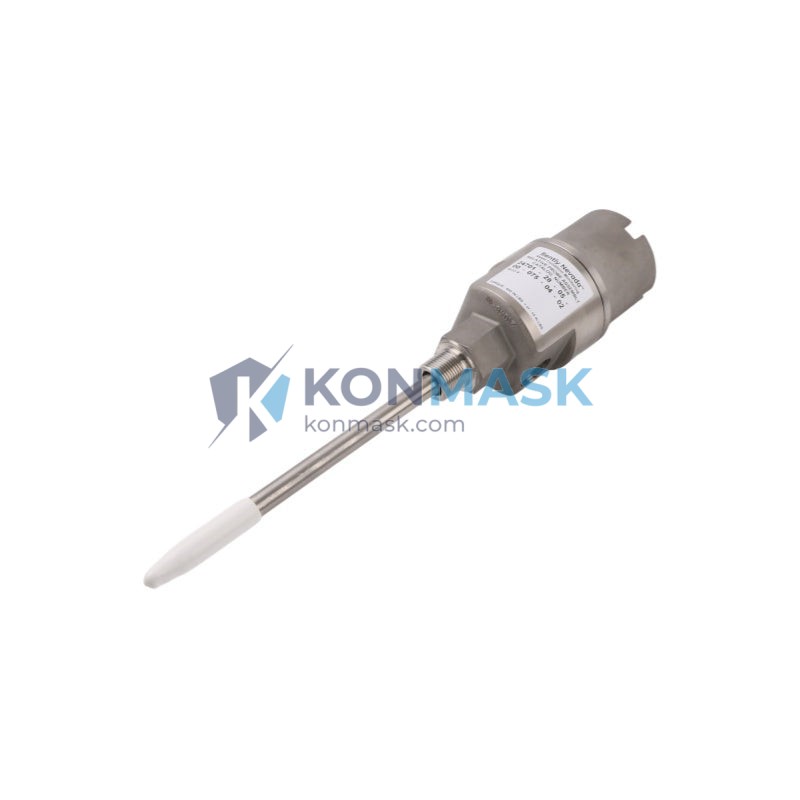

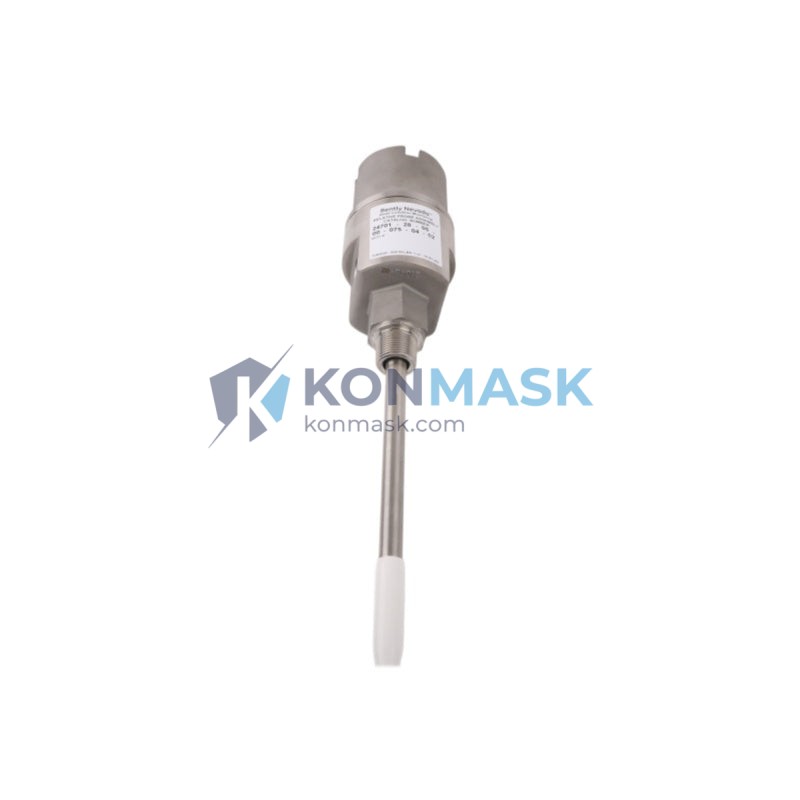

Genuine Bently Nevada 24701-33-05-00-029-04-02 Proximity Probe Housing Assembly | 3300 XL Series – Verified Source
Konmask.com is a trusted global distributor of Bently Nevada condition monitoring and machinery protection components. The 24701-33-05-00-029-04-02 is a factory-configured Proximity Probe Housing Assembly engineered for the Bently Nevada 3300 XL Series eddy-current measurement system — the industry benchmark for continuous shaft vibration and position monitoring in rotating machinery.
Every unit we supply is sourced through verified channels, individually inspected, and shipped with full traceability documentation. Procurement engineers and reliability teams worldwide rely on Konmask for authentic, shelf-ready Bently Nevada hardware.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 24701-33-05-00-029-04-02 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Family | 3300 XL Proximity Transducer System |
| Component Type | Proximity Probe Housing Assembly |
| Probe Cable Length | 0.29 m (29 cm) — encoded in part number |
| Extension Cable Length | 4.0 m — encoded in part number |
| Connector Type | 2-pin MIL-spec coaxial |
| Operating Temperature | −35 °C to +177 °C (probe tip) |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Measurement Range | 0.25 mm to 2.54 mm (10 to 100 mil) |
| Supply Voltage | −24 VDC (via Proximitor® driver) |
| Output Signal | DC voltage proportional to gap distance |
| Ingress Protection | IP67 (housing assembly) |
| Approvals | CE, ATEX, IECEx (zone-dependent configuration) |
| Weight (unit) | Approx. 2.22 kg (assembled with cable) |
| Country of Origin | United States |
Our 4-Step Quality Verification Process
At Konmask, authenticity is non-negotiable. Every Bently Nevada unit passes through our structured verification protocol before dispatch:
- Step 1 — Source Traceability: All units are procured from authorized distributors, OEM surplus channels, or certified industrial asset liquidators. Purchase records are retained for audit.
- Step 2 — Physical Inspection: Housing integrity, connector condition, cable jacket, and label legibility are verified against Bently Nevada factory standards. Units with any cosmetic or mechanical defect are quarantined.
- Step 3 — Part Number Validation: The full 22-character part number (24701-33-05-00-029-04-02) is cross-referenced against Bently Nevada’s published catalog to confirm cable lengths, connector type, and system compatibility.
- Step 4 — Functional Pre-check: Where test equipment is available, probe sensitivity and output linearity are verified using a calibrated Proximitor® driver and reference target.
A Certificate of Conformance (CoC) is available upon request for all orders.
Key Features & Benefits
- ✅ Genuine OEM hardware — not aftermarket or remanufactured
- ✅ Drop-in replacement for existing 3300 XL installations — no recalibration required when replacing like-for-like
- ✅ Pre-configured cable assembly — 0.29 m probe + 4.0 m extension, ready for direct installation
- ✅ Eddy-current non-contact measurement — immune to oil, dust, and vibration-induced signal noise
- ✅ High-temperature probe tip — rated to 177 °C for hot bearing housings and turbine pedestals
- ✅ IP67 housing — suitable for wash-down environments and outdoor installations
- ✅ Fast global dispatch — typically ships within 3–5 business days from verified stock
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial thrust position measurement on compressor trains
- Differential expansion monitoring on large rotating machinery
- Keyphasor® reference signal acquisition for phase-referenced vibration analysis
- Eccentricity and slow-roll monitoring during turbine startup/shutdown
- Bearing housing proximity measurement on centrifugal pumps and fans
- API 670 compliant machinery protection systems in oil & gas, power generation, and petrochemical plants
Compatible System Components
The 24701-33-05-00-029-04-02 is designed to operate within the Bently Nevada 3300 XL Proximity Transducer System. Verified compatible components include:
- Proximitor® Sensors: 3300 XL 8mm, 11mm, 14mm series (e.g., 330180, 330181, 330190)
- System Monitors: 3500/40M, 3500/42M, 3500/45, 3500/46M (Bently Nevada 3500 Machinery Protection System)
- I/O Modules: 3500 series rack-mounted I/O with standard BNC or MIL-spec coaxial inputs
- Extension Cables: 330130 series (where additional cable length is required beyond the 4.0 m assembly)
- Mounting Hardware: Standard 3300 XL probe holders and armored conduit fittings
Always verify system compatibility with your site’s Bently Nevada configuration drawing before ordering.
Global Sourcing & Shipping Capabilities
Konmask.com operates as a global industrial parts supplier headquartered in China, with sourcing networks across North America, Europe, and Asia-Pacific. We serve customers in over 40 countries including the United States, Germany, Saudi Arabia, India, Australia, and Southeast Asia.
- Lead Time: In-stock units ship within 3–5 business days; sourced units typically 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN where applicable)
- Customs Documentation: Commercial invoice, packing list, CoC, and HS code documentation provided as standard
- HS Code: 9031.80 (Measuring or checking instruments — other)
Certifications & Compliance Statement
- CE Marking: Compliant with EU Machinery Directive and EMC Directive
- ATEX / IECEx: Zone 1 & Zone 2 rated configurations available (verify suffix codes)
- API 670: Designed for use in API 670 compliant machinery protection systems
- RoHS: Bently Nevada 3300 XL series components comply with RoHS Directive 2011/65/EU
- ISO 9001: Konmask quality management processes are aligned with ISO 9001 principles
Konmask.com is an independent distributor and is not an authorized Bently Nevada / Baker Hughes dealer. All trademarks remain the property of their respective owners.
How to Order
- Confirm Part Number: Verify 24701-33-05-00-029-04-02 matches your site’s BOM or Bently Nevada configuration drawing.
- Request a Quote: Email [email protected] with your required quantity, delivery address, and any documentation requirements (CoC, MSDS, etc.).
- Receive Proforma Invoice: We issue a detailed proforma within 1 business day including unit price, shipping cost, and lead time.
- Payment & Dispatch: We accept T/T (bank transfer), PayPal, and major credit cards. Units are dispatched upon payment confirmation.
- Track & Receive: Full tracking information provided at dispatch. Our team remains available for post-delivery technical support.
Authenticity & Trust FAQ
Q: Are these genuine Bently Nevada parts?
A: Yes. All units are sourced as genuine OEM hardware. We do not sell aftermarket, counterfeit, or remanufactured parts. Source documentation is available upon request.
Q: Can you provide a Certificate of Conformance?
A: Yes. A CoC is available for all orders at no additional charge. Please request it at the time of ordering.
Q: What if the part doesn’t match my system?
A: Contact us before ordering with your system’s configuration drawing. Our technical team will verify compatibility. We also accept returns for incorrectly ordered parts within 14 days of receipt (unused, in original packaging).
Q: Do you offer warranty?
A: We offer a 90-day warranty against manufacturing defects on all Bently Nevada hardware supplied. Extended warranty options are available for volume orders.
Q: Can you source other Bently Nevada part numbers?
A: Yes. Konmask maintains an extensive sourcing network for the full Bently Nevada / Baker Hughes catalog including 3300, 3500, 3701, and Orbit series components. Contact us with your part list.
