Turbomachinery Vibration Monitoring Solution – Bently Nevada 32000-16-05-08-070-03-02 | 3300 Series

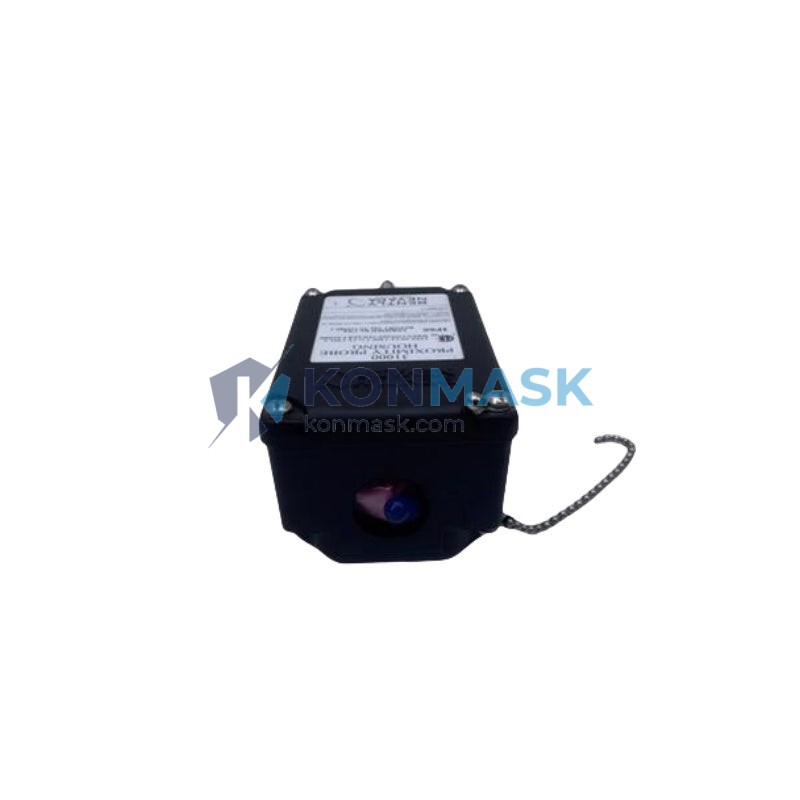

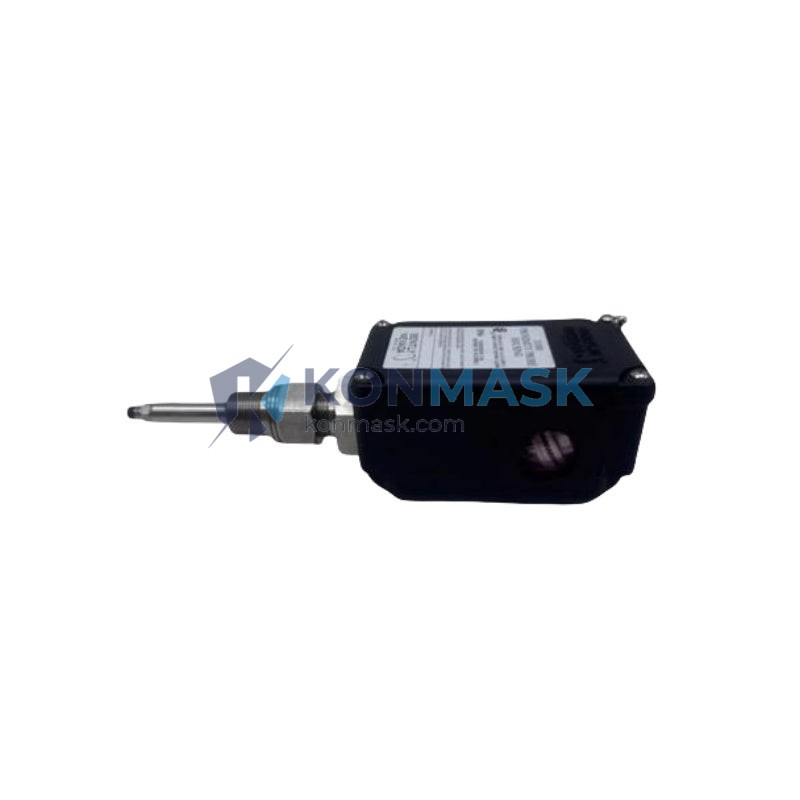

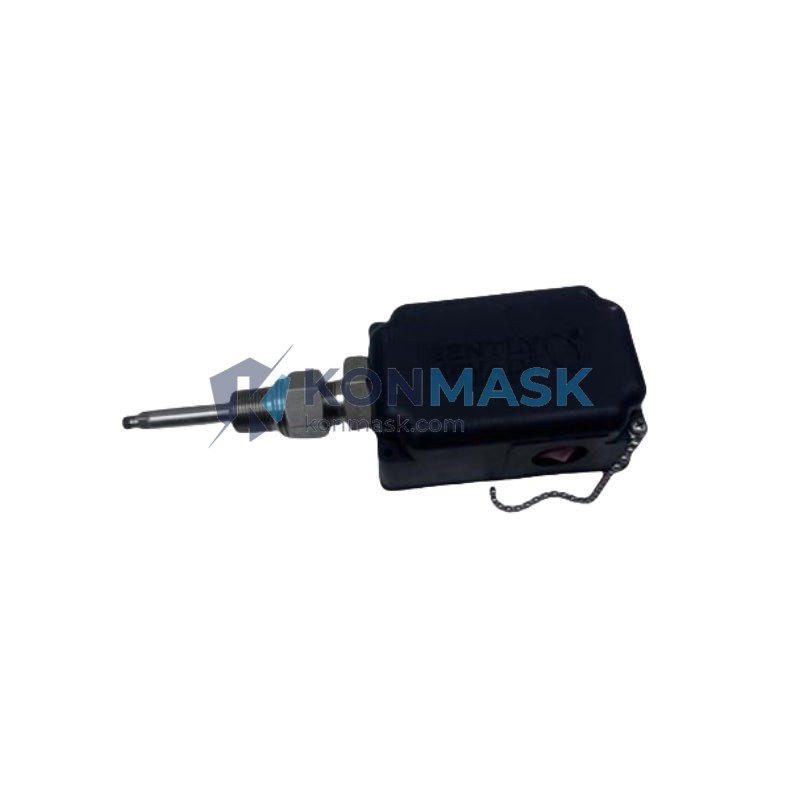

The Bently Nevada 32000-16-05-08-070-03-02 is a precision proximity probe housing assembly engineered for continuous, non-contact shaft vibration and position measurement in critical rotating machinery. Part of the industry-standard 3300 Series ecosystem, this housing provides the mechanical interface that protects and positions the eddy-current probe tip at the exact air gap required for accurate dynamic measurements.
Where This Product Is Used
- Steam & Gas Turbines – Radial shaft vibration monitoring on HP/LP turbine stages in power generation plants
- Centrifugal Compressors – Rotor orbit and eccentricity measurement in petrochemical and LNG facilities
- Pumps & Fans – Bearing journal monitoring in large BFW pumps and induced-draft fans
- Gearboxes – Gear mesh and shaft displacement tracking in high-speed industrial gearboxes
- Expanders & Turbochargers – Axial position and radial vibration in cryogenic and refinery expanders
- Motor-Generator Sets – Shaft centerline monitoring for predictive maintenance programs
Technical Specifications
- Part Number: 32000-16-05-08-070-03-02
- Series: Bently Nevada 3300 / 32000 Proximity Probe Housing Assemblies
- Probe Compatibility: 3300 XL 8mm eddy-current proximity probes
- Temperature Range: -50 to +177 degrees C (probe tip, standard)
- Weight: Approx. 1,700 g
- Compliance: API 670 4th/5th Edition compatible
- Country of Origin: USA (Baker Hughes / Bently Nevada)
Why Engineers Specify This Model
- API 670 Compliance – Meets the machinery protection standard required by EPC contractors globally
- Plug-and-Play with 3300/3500 Monitors – Direct compatibility eliminates signal conditioning complexity
- Precision Air-Gap Geometry – Maintains exact probe-to-target spacing for linear output across full measurement range
- Robust Construction – Stainless steel body withstands high-vibration, high-temperature, chemically aggressive environments
- Proven Field Reliability – Over 40 years of deployment in critical machinery protection worldwide
- Reduced Downtime Risk – Standardized part number enables fast like-for-like replacement without re-calibration
Complete System Bill of Materials
- Proximity Probe (e.g., 330103-00-06-10-02-00 or equivalent 8mm probe)
- Extension Cable (e.g., 330130-series, matched length)
- Proximitor Sensor / Driver (e.g., 3300 XL 8mm Proximitor, 330180-X1-05)
- 3300/16 or 3500/42M Monitor Module
- Rack Power Supply (3500/15 or equivalent)
- Keyphasor Module (if phase reference required)
- Junction Box / Field Wiring Termination Panel
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (4th & 5th Edition)
- IEC 61511 – Functional safety (SIL-rated system integration)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- ATEX / IECEx – Hazardous area classification (verify suffix for Ex-rated variants)
Quality Assurance & Sourcing
Konmask.com sources Bently Nevada 32000-series housing assemblies through verified industrial supply channels. Each unit is inspected for physical integrity, shipped in protective packaging, traceable to batch documentation on request, and covered by a 90-day return-to-base warranty. We supply genuine OEM components only.
How to Source This Part
- Add to Cart – Immediate checkout available
- Request a Quote – Email support@konmask.com with PO number and required delivery date
- Urgent Orders – Call/WhatsApp +0086 19859288691 for same-day stock confirmation
- Export Shipments – EXW, FOB Xiamen, and DDP available globally; HS Code 9031.80
Application-Specific FAQ
Q: Is the 32000-16-05-08-070-03-02 compatible with the Bently Nevada 3500 rack?
A: Yes. Compatible with both 3300 and 3500 series monitoring systems when paired with the correct Proximitor sensor and extension cable.
Q: What is the standard air gap for this probe housing?
A: Typically 1.0 mm (40 mil) for 8mm probes, yielding -10 VDC nominal output. Refer to Bently Nevada Installation Manual 141536-01.
Q: Can this housing be used in a hazardous area?
A: Depends on probe and Proximitor suffix. Contact us to confirm ATEX/IECEx certification for your zone.
Q: Do you offer calibration certificates?
A: Available for select stock. Contact us prior to ordering if required for QA records.
Q: What is the lead time?
A: In-stock units ship within 1-3 business days. Out-of-stock lead time is typically 4-8 weeks.
