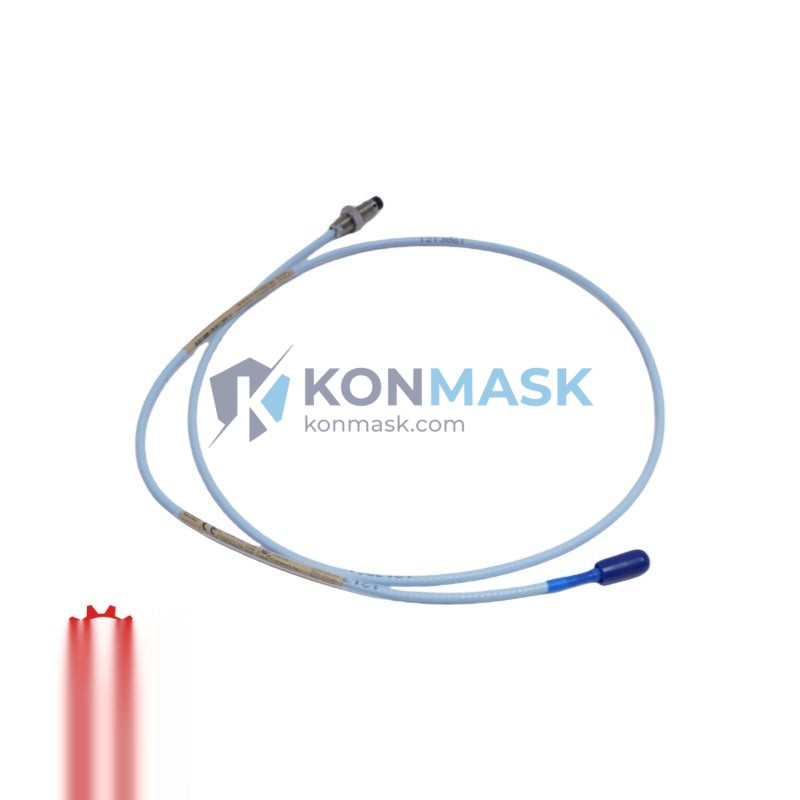

Bently Nevada 330101-00-14-10-02-00 – Eddy Current Proximity Sensor | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contact shaft vibration and position measurement in rotating machinery. Developed by Baker Hughes (Bently Nevada), this platform has been deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities worldwide for over three decades. The 330101-00-14-10-02-00 is a precision eddy current proximity sensor engineered for continuous, real-time monitoring of radial shaft vibration, axial position, and differential expansion in critical turbomachinery.
Product Positioning
This sensor is the primary field element in the 3300 XL transducer system, working in conjunction with the 330130 extension cable and 330180 proximitor/oscillator to deliver a calibrated, linear output signal. It is the preferred choice for OEM integrators, plant reliability engineers, and MRO procurement teams requiring API 670-compliant vibration monitoring solutions.
Complete Technical Specifications
| Part Number / SKU | 330101-00-14-10-02-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL Proximity Transducer System |
| Sensor Type | Eddy Current (Non-Contact) Proximity Sensor |
| Measurement Range | 0 – 5 mm (0 – 200 mil) |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Scale Factor (Output) | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | -24 VDC (nominal) |
| Frequency Response | DC – 10,000 Hz (±3 dB) |
| Temperature Range (Operating) | -35°C to +177°C (-31°F to +350°F) |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Cable Length (Integral) | 1.0 m (3.3 ft) — 14 in per part number suffix |
| Thread Size | M10 × 1.0 |
| Housing Material | 316L Stainless Steel |
| Connector Type | Integral coaxial cable with TNC connector |
| Target Material | AISI 4140 Steel (standard calibration) |
| Ingress Protection | IP67 |
| Compliance Standards | API 670, CE, ATEX (optional), IECEx (optional) |
| Weight | Approx. 350 g (sensor + cable assembly) |
| Country of Origin | United States |
Proven Application Environments
- Steam & Gas Turbines — Radial shaft vibration monitoring per API 670 requirements
- Centrifugal Compressors — Axial position and differential expansion measurement
- Pumps & Motors — Bearing journal orbit analysis and eccentricity ratio monitoring
- Gearboxes — Gear mesh frequency and shaft runout detection
- Expanders / Turbines (Petrochemical) — High-temperature, continuous-duty proximity sensing
- Power Generation (Nuclear, Hydro, Thermal) — Safety-critical machinery protection systems
Engineering Advantages
- Non-Contact Measurement — Zero mechanical wear; suitable for continuous 24/7 operation in harsh environments
- Wide Frequency Bandwidth — DC to 10 kHz response captures both slow-roll runout and high-frequency vibration events
- High Temperature Tolerance — Rated to +177°C, compatible with steam turbine bearing housings without external cooling
- 316L SS Construction — Corrosion-resistant housing withstands oil mist, process gases, and washdown environments
- API 670 Compliant — Drop-in replacement for existing 3300 XL installations; no recalibration required when matched with OEM proximitor
- Plug-and-Play System Integration — Direct compatibility with Bently Nevada 3500 Series rack monitors and System 1 software
System Architecture & Signal Flow
The 330101-00-14-10-02-00 operates as the field element within a three-component transducer system:
- Proximity Probe (330101-00-14-10-02-00) — Generates eddy current field; converts gap distance to raw impedance change
- Extension Cable (330130 Series) — Transmits signal from probe to proximitor; total system cable length must match calibration (typically 5 m or 9 m)
- Proximitor / Oscillator (330180 Series) — Conditions signal; outputs -24 VDC biased voltage proportional to gap (scale: 200 mV/mil)
Output signal feeds directly into Bently Nevada 3500/40M or 3500/42M monitor modules for alarm, danger, and trip logic processing.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with full traceability documentation
- Each sensor undergoes incoming inspection: visual check, dimensional verification, and functional impedance test prior to shipment
- Original manufacturer labeling, date codes, and serial numbers preserved and documented
- Certificate of Conformance (CoC) available upon request
- 30-day return policy for DOA units; 90-day functional warranty on all tested stock
Procurement Process
- Confirm Compatibility — Verify your proximitor model (330180 series) and total cable length match this probe’s calibration parameters
- Request Quote / Stock Check — Contact [email protected] for lead time, quantity pricing, and CoC availability
- Place Order — Secure checkout via Konmask.com; wire transfer and credit card accepted
- Shipping — DHL / FedEx Express worldwide; export documentation (EAR99) included; typical lead time 3–7 business days
- Incoming Inspection Support — Technical datasheet and test report provided with each shipment
Technical FAQ
Q: Is the 330101-00-14-10-02-00 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. When paired with the correct 330180 proximitor and matched extension cable, this probe delivers a calibrated output fully compatible with all 3500 Series monitor modules.
Q: What does the part number suffix “-00-14-10-02-00” indicate?
A: The suffix encodes configuration details: probe tip diameter (8 mm), integral cable length (14 in / ~0.35 m to connector), thread type (M10×1.0), and housing/connector options. Always verify the full part number when ordering to ensure system compatibility.
Q: Can this sensor be used on non-steel target materials?
A: The standard calibration is optimized for AISI 4140 steel. Use on other materials (Inconel, titanium, aluminum) requires a material correction factor or a custom-calibrated proximitor. Contact our engineering team for guidance.
Q: Do you offer expedited shipping for emergency plant shutdowns?
A: Yes. Contact [email protected] or call +0086 19859288691 to arrange same-day dispatch for in-stock units.
Q: Is a Certificate of Conformance included?
A: CoC is available upon request at no additional charge. Please specify at time of order.
