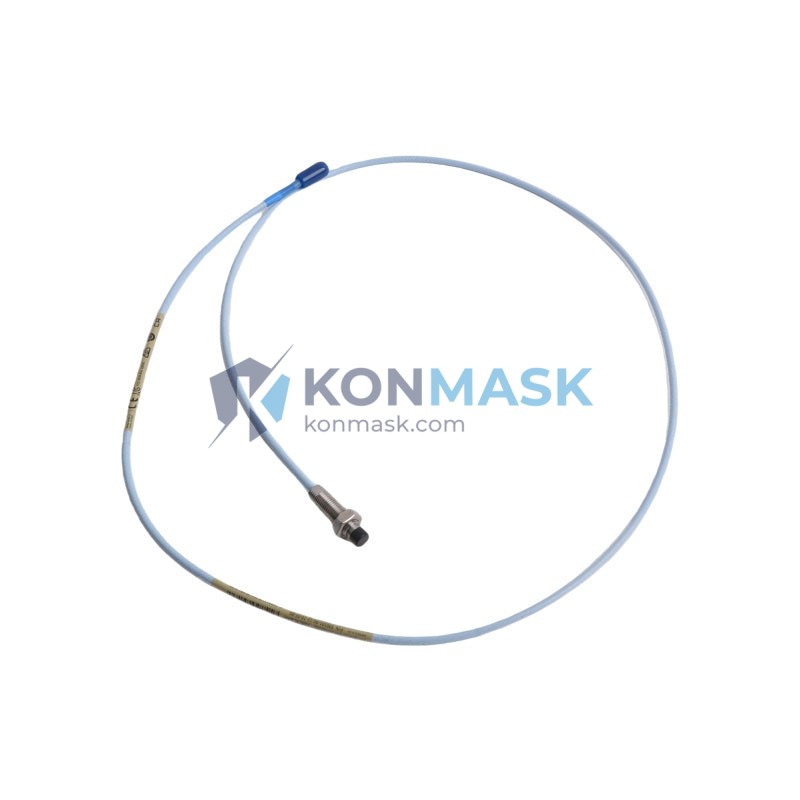

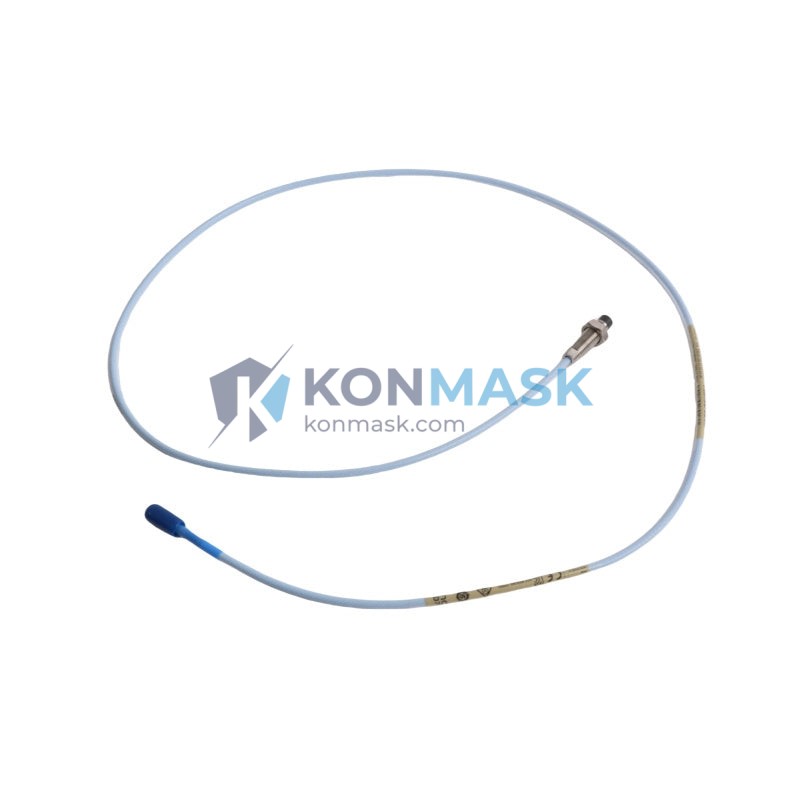

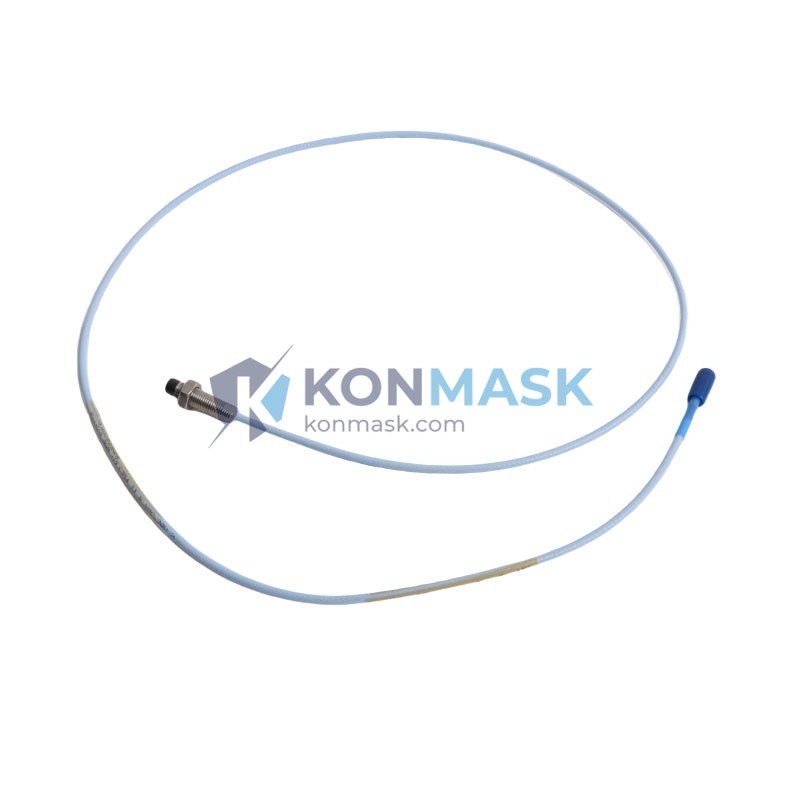

Bently Nevada 330101-00-15-10-01-05 Eddy Current Proximity Probe – 3300 XL 8mm Series
Imagine a high-speed turbine running at 10,000 RPM with no shaft vibration feedback. A bearing failure begins as a microscopic imbalance — invisible to the naked eye, silent until catastrophic. Without a precision proximity probe in the loop, the first sign of trouble is often a multi-million-dollar unplanned shutdown. The Bently Nevada 330101-00-15-10-01-05 eliminates that blind spot, delivering continuous, non-contact shaft displacement data that keeps your rotating machinery protected around the clock.
Within the 3300 XL Series — Bently Nevada’s gold standard for machinery protection — the 330101-00-15-10-01-05 occupies a critical position as the 8mm eddy current probe optimized for general-purpose radial and axial vibration measurement. Trusted by petrochemical plants, power generation facilities, and OEM turbomachinery builders across six continents, this probe is specified by name in API 670 machinery protection standards and remains one of the most widely deployed proximity sensors in industrial automation history.
Technical Specifications
- Part Number: 330101-00-15-10-01-05
- Series: 3300 XL 8mm Proximity Probe System
- Probe Tip Diameter: 8 mm
- Nominal Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 2.26 mm (10 to 89 mil)
- Frequency Response: 0 Hz (DC) to 10,000 Hz
- Operating Temperature: –35°C to +177°C (–31°F to +351°F)
- Cable Length: 5m (extension cable dependent on ordering suffix)
- Connector: Integral coaxial, armored cable
- Target Material: AISI 4140 steel (standard); other alloys with calibration
- Agency Approvals: CE, ATEX, FM (intrinsically safe configurations available)
- Compliance: API 670, ISO 10816
Note: Specifications are based on published Bently Nevada documentation. Always verify against the official datasheet for your specific application.
Key Features & Benefits
- Non-Contact Measurement: Eddy current technology eliminates mechanical wear, ensuring probe longevity exceeding 20 years in continuous service.
- DC to 10 kHz Bandwidth: Captures both slow-roll runout and high-frequency vibration events in a single sensor — no range switching required.
- API 670 Compliant: Drop-in compatible with existing 3300 XL monitoring systems; no recalibration of the monitor required when replacing like-for-like.
- Armored Cable Construction: Stainless steel armor protects against mechanical damage in harsh plant environments including high-pressure steam and chemical splash zones.
- Wide Temperature Range: Rated to 177°C, suitable for hot-section installations near compressor casings and steam turbine bearing pedestals.
- System Interoperability: Fully compatible with 3300 XL extension cables and 3300 XL proximitor/oscillator drivers — maintains factory-calibrated sensitivity across the complete probe system.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline booster stations
- Power Generation: Steam turbines, hydro generators, gas turbine-generators
- Petrochemical: Reactor agitators, process compressors, pump trains
- Marine & Offshore: Propulsion turbines, LNG compressor trains
- Pulp & Paper: High-speed refiners, turbo-blowers
- General Manufacturing: High-speed spindles, blowers, fans requiring API-grade monitoring
System Integration & Compatible Parts
The 330101-00-15-10-01-05 probe is designed to operate as part of the complete Bently Nevada 3300 XL 8mm Proximity Probe System. Typical system components include:
- Extension Cable: 330130-080-00-00 (8m) / 330130-045-00-00 (4.5m)
- Proximitor/Oscillator: 3300 XL 8mm Proximitor (e.g., 330180-X1-05)
- Monitoring System: Bently Nevada 3500 Series Machinery Protection System
- Junction Box: 3300 XL field-mount junction enclosures
Contact Konmask.com to source the complete probe system or individual replacement components.
Our Quality Assurance Process
- All units sourced from authorized distribution channels or verified surplus with full traceability documentation.
- Pre-shipment inspection: visual examination, connector integrity check, and packaging verification.
- Each order ships with a Certificate of Conformance (CoC) upon request.
- Secure anti-static packaging with moisture barrier for long-term storage protection.
- Batch and serial number records maintained for full supply chain traceability.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours.
- Upon PO confirmation, we arrange secure export packaging and international freight.
For urgent requirements, email support@konmask.com or call +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, and machinery protection components — not a generalist marketplace.
- Global Export Experience: Serving buyers in 40+ countries with compliant export documentation and reliable international logistics.
- Technical Pre-Sales Support: Our engineers can verify compatibility with your existing 3300 XL system before you commit to an order.
- Competitive Lead Times: Extensive supplier network enables fast sourcing of both current-production and legacy Bently Nevada parts.
- Transparent Quotation: No hidden fees — clear pricing, freight terms, and payment options provided upfront.
Frequently Asked Questions
- Q: Is the 330101-00-15-10-01-05 compatible with the Bently Nevada 3500 monitoring rack?
- A: Yes. When paired with the correct 3300 XL Proximitor and extension cable, this probe integrates directly with the 3500 Series Machinery Protection System without additional calibration.
- Q: What is the difference between the 330101 and 330103 probe series?
- A: The 330101 series uses a standard armored cable construction, while the 330103 series features a high-temperature cable jacket rated for more extreme thermal environments. For most standard turbomachinery applications, the 330101 is the correct choice.
- Q: Can this probe measure axial position as well as radial vibration?
- A: Yes. The 3300 XL 8mm probe system supports both radial vibration and axial (thrust) position measurement depending on installation orientation and the monitor channel configuration.
- Q: Do you provide a warranty on surplus or refurbished units?
- A: We offer a 90-day functional warranty on all units shipped. Please contact us for extended warranty options on new-in-box stock.
- Q: How long does international shipping take?
- A: Standard international express delivery is 5–10 business days depending on destination. Expedited options are available upon request.
