Rotating Machinery Vibration Monitoring Solution – Bently Nevada 330101-00-18-05-02-05 | 3300 XL Series
Where This Product Is Used

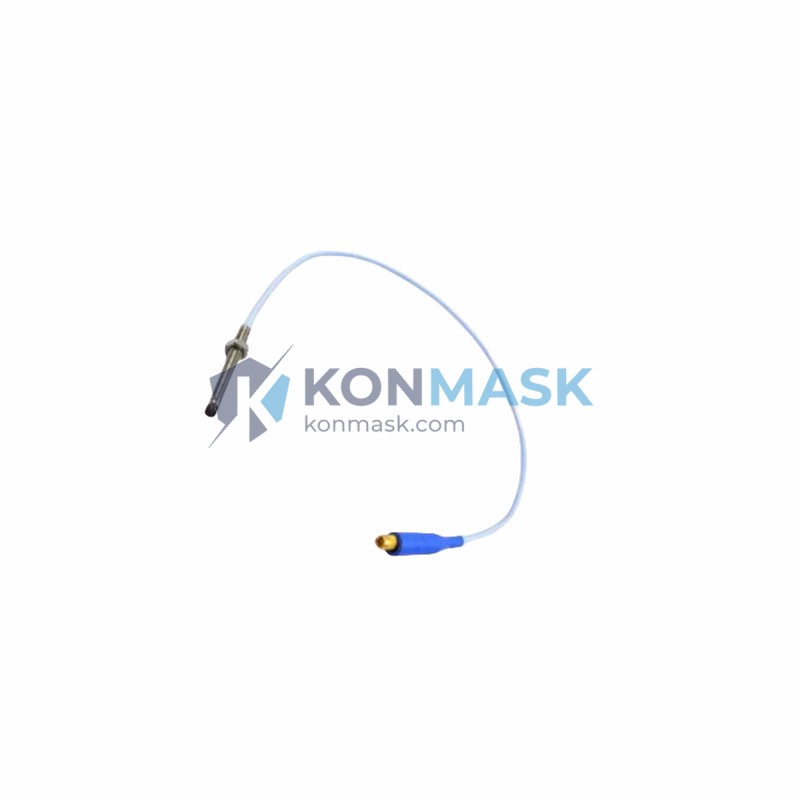

The Bently Nevada 330101-00-18-05-02-05 is a high-precision eddy-current proximity transducer system engineered for continuous, non-contact vibration and position measurement on rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – shaft radial vibration, differential expansion, and eccentricity measurement on power-generation units up to 1,500 MW.
- Centrifugal Compressors – real-time rotor orbit monitoring in petrochemical, LNG, and refinery trains to detect instability before catastrophic failure.
- Pumps & Fans – bearing journal displacement tracking in critical BFW pumps, cooling-water pumps, and induced-draft fans.
- Gearboxes – axial thrust position monitoring to protect thrust bearings in high-speed gear trains.
- Marine Propulsion Systems – shaft-line vibration surveillance on diesel-electric and LNG-fuelled vessels.
Industries served: Oil & Gas, Power Generation, Petrochemical, Pulp & Paper, Marine, and Water Treatment.
Technical Specifications
- Part Number: 330101-00-18-05-02-05
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Type: Eddy-Current (Non-Contact)
- Cable Length: 18 inches (457 mm) integral armored cable
- Probe Tip Diameter: 5 mm
- Thread Size: M8 × 1.0
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC – 10,000 Hz (–3 dB)
- Operating Temperature: –35 °C to +177 °C (–31 °F to +350 °F)
- Supply Voltage: –24 VDC (nominal), –18 VDC to –26 VDC
- Output: –2 VDC to –18 VDC
- Connector: 2-pin MIL-C-5015 style
- Weight: 210 g (approx.)
- Approvals: FM, CSA, ATEX, IECEx
Why Engineers Specify This Model
- Proven 3300 XL Platform: The 3300 XL series is the global standard for API 670-compliant machinery protection, trusted in over 100,000 installations worldwide.
- 5 mm Tip for Tight Clearances: The compact M8 probe body fits bearing housings where larger probes cannot be retrofitted without machining.
- 18-inch Integral Cable: Factory-terminated armored cable eliminates field-splice failure points and maintains calibration traceability.
- Wide Temperature Range: Rated to +177 °C, suitable for hot-section turbine bearing pedestals without additional thermal isolation.
- Direct Compatibility: Plug-and-play with Bently Nevada 3300 XL extension cables (330130 series) and 3500/3300 rack monitors — no re-calibration required.
- Hazardous-Area Certified: ATEX / IECEx Zone 1 approval supports installation in explosive atmospheres without additional barriers in most configurations.
Complete System Bill of Materials
A fully functional 3300 XL proximity measurement loop requires the following components:
- Probe: 330101-00-18-05-02-05 (this item)
- Extension Cable: 330130-045-00-00 (3300 XL, 4.5 m) or equivalent length
- Proximitor® Sensor / Driver: 330180-91-00 (3300 XL 8 mm, –24 VDC)
- Monitor Rack: Bently Nevada 3500/40M Proximitor® Monitor or 3300/16 Rack
- Junction Box: 02120028-01 (stainless, field-mount)
- Mounting Hardware: M8 lock nut, jam nut, and bracket per API 670 Annex D
Contact Konmask.com for complete loop pricing and availability.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition): fully compliant probe/driver system
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- ATEX Directive 2014/34/EU – II 2G Ex ia IIC T6 Ga
- IECEx – IECEx BAS 05.0001X
- FM & CSA – North American hazardous location approvals
- RoHS – Compliant
Quality Assurance & Sourcing
Konmask.com specializes in sourcing genuine and surplus industrial automation components for critical-infrastructure applications. Every unit offered undergoes:
- Visual and dimensional inspection against OEM drawings
- Functional verification of output voltage and scale factor where test equipment permits
- Serialization check and documentation review
- Anti-static packaging with humidity indicator card
We source from authorized distributors, decommissioned plant inventories, and OEM overstock channels. Condition (new, surplus-new, or refurbished) is clearly stated on each listing. Certificates of conformance available on request.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly.
- Request a Quote – Email support@konmask.com for volume pricing, lead time, or condition clarification.
- Urgent Requirement – Call or WhatsApp +0086 19859288691 for same-day response on critical shutdowns.
- Cross-Reference – If you have an alternate part number or tag number, send it to us and we will confirm compatibility before shipment.
Application-Specific FAQ
Q: Is the 330101-00-18-05-02-05 compatible with the Bently Nevada 3500 rack?
A: Yes. The 3300 XL probe is fully compatible with the 3500/40M Proximitor® Monitor when paired with the correct 3300 XL extension cable and driver. No re-calibration is required.
Q: What is the difference between the 330101 and 330103 probe series?
A: The 330101 is the standard 3300 XL probe (5 mm tip, M8 thread). The 330103 is the 3300 XL 8 mm probe with a larger tip diameter for longer linear range. Selection depends on bearing clearance and required measurement gap.
Q: Can this probe be used in a hydrogen-cooled generator?
A: Yes, provided the installation complies with the applicable hazardous-area classification. The ATEX/IECEx certification covers hydrogen (Group IIC) atmospheres.
Q: What is the maximum cable run from probe to monitor?
A: The 3300 XL system supports a total cable length (integral + extension) of up to 9 m (30 ft) while maintaining calibrated scale factor. Longer runs require system re-calibration.
Q: Do you provide a warranty?
A: All items are sold with a 90-day functional warranty unless otherwise stated. Extended warranty and exchange programs are available — contact us for details.
