Bently Nevada 330701-00-15-10-02-05 – Eddy Current Proximity Transducer System | 3300 XL Series
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contact shaft vibration and position measurement in rotating machinery. Engineered for continuous operation in harsh industrial environments, this proximity transducer system delivers the signal fidelity and long-term stability demanded by API 670-compliant machinery protection systems worldwide.
Product Positioning

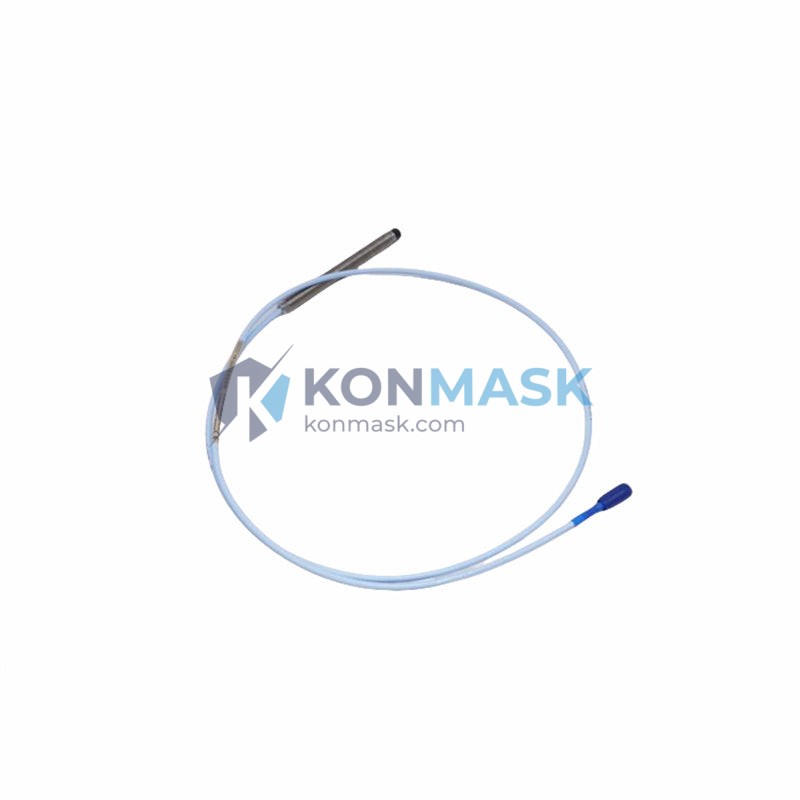

The 330701-00-15-10-02-05 is a complete eddy current proximity transducer system comprising a 5mm probe tip, 5-metre (16.4 ft) armored integral cable, and 2-metre (6.6 ft) extension cable — factory-matched and calibrated as a system. It is the preferred choice for procurement engineers specifying vibration, axial position, differential expansion, and eccentricity measurements on turbines, compressors, pumps, and motors.
Complete Technical Specifications
| Part Number / SKU | 330701-00-15-10-02-05 |
| Series / Platform | Bently Nevada 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 5 mm (0.197 in) |
| Integral Cable Length | 5 m (16.4 ft) |
| Extension Cable Length | 2 m (6.6 ft) |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Scale Factor (Sensitivity) | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (–20 to –26 VDC) |
| Output Voltage Range | –1 to –17 VDC |
| Temperature Range (Probe) | –35°C to +177°C (–31°F to +351°F) |
| Temperature Range (Driver) | –35°C to +85°C (–31°F to +185°F) |
| Target Material | AISI 4140 Steel (standard); other alloys available |
| Connector Type | Integral coaxial, factory-matched |
| Approvals / Standards | API 670, CE, ATEX (consult datasheet for zone ratings) |
| Country of Origin | United States |
| Weight | Approx. 200 g (probe + cable assembly) |
Proven Application Environments
- Steam & Gas Turbines — Shaft radial vibration and axial thrust position per API 670
- Centrifugal & Reciprocating Compressors — Continuous bearing clearance and vibration monitoring
- Pumps & Motors — Eccentricity and differential expansion measurement
- Gearboxes — High-speed shaft runout and gear mesh frequency analysis
- Petrochemical & Refinery Plants — SIL-rated machinery protection loops
- Power Generation — Combined cycle and nuclear auxiliary machinery
Engineering Advantages
- Factory-Matched System — Probe, cable, and driver calibrated together; eliminates field calibration errors
- Wide Frequency Bandwidth — DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency events
- Non-Contact Measurement — Zero mechanical wear; suitable for continuous 24/7 operation
- High Temperature Probe — Rated to +177°C for hot-section and exhaust-end installations
- API 670 Compliant — Drop-in compatible with Bently Nevada 3500 and 3300 series monitor racks
- Armored Cable — Stainless steel armor protects against mechanical damage and EMI in industrial environments
System Architecture & Signal Flow
The 330701-00-15-10-02-05 operates as a three-component eddy current system:
- Probe (330701 series) — Generates a high-frequency electromagnetic field at the tip; eddy currents induced in the target shaft modulate the field proportional to gap distance.
- Extension Cable (330130 / 330180 series) — Transmits the RF signal from probe to driver with matched impedance; length is factory-specified in the part number.
- Driver / Oscillator-Demodulator — Converts the modulated RF signal to a DC voltage output (–1 to –17 VDC); output feeds directly to Bently Nevada 3500 or 3300 monitor input cards.
The complete system is calibrated on AISI 4140 steel targets. For non-standard target materials (Inconel, titanium, stainless), a material correction factor must be applied — consult the Bently Nevada application engineering team or reference TIL-073.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or verified surplus with full traceability documentation
- Each unit inspected for physical integrity, connector condition, and cable continuity prior to shipment
- Original Bently Nevada part labels, date codes, and serial numbers preserved and verified
- Certificate of Conformance (CoC) available upon request
- Counterfeit-risk mitigation: units cross-referenced against Bently Nevada authorized part number database
Procurement Process
- Confirm Part Number — Verify 330701-00-15-10-02-05 matches your system’s cable length and tip size requirements
- Request Quote — Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Submit PO — Standard payment terms available for qualified industrial buyers; T/T, L/C accepted
- Shipping — DHL / FedEx express worldwide; EXW Xiamen or CIF destination available
- Documentation — Commercial invoice, packing list, CoC, and HS code 9031.80 declaration included
Technical FAQ
Q: Is this a complete system or just the probe?
A: This listing is for the complete factory-matched system: probe + integral cable (5 m) + extension cable (2 m). The driver/oscillator-demodulator is sold separately if not already installed in your monitor rack.
Q: Which Bently Nevada monitors is this compatible with?
A: Compatible with Bently Nevada 3500/40M, 3500/42M, 3300/16, and all standard 3300 XL monitor cards that accept –24 VDC powered proximity inputs.
Q: Can I use this with a non-Bently Nevada monitor?
A: Yes, provided the monitor accepts a –1 to –17 VDC output at 200 mV/mil sensitivity. Consult your monitor manufacturer’s input specifications.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us for current inventory status.
Q: Do you provide calibration certificates?
A: Factory calibration is inherent to the matched system. Third-party recalibration certificates can be arranged upon request at additional cost.
