Turbomachinery Vibration Monitoring Solution – Bently Nevada 330101-00-19-10-02-05 | 3300 XL Series
Where This Product Is Used

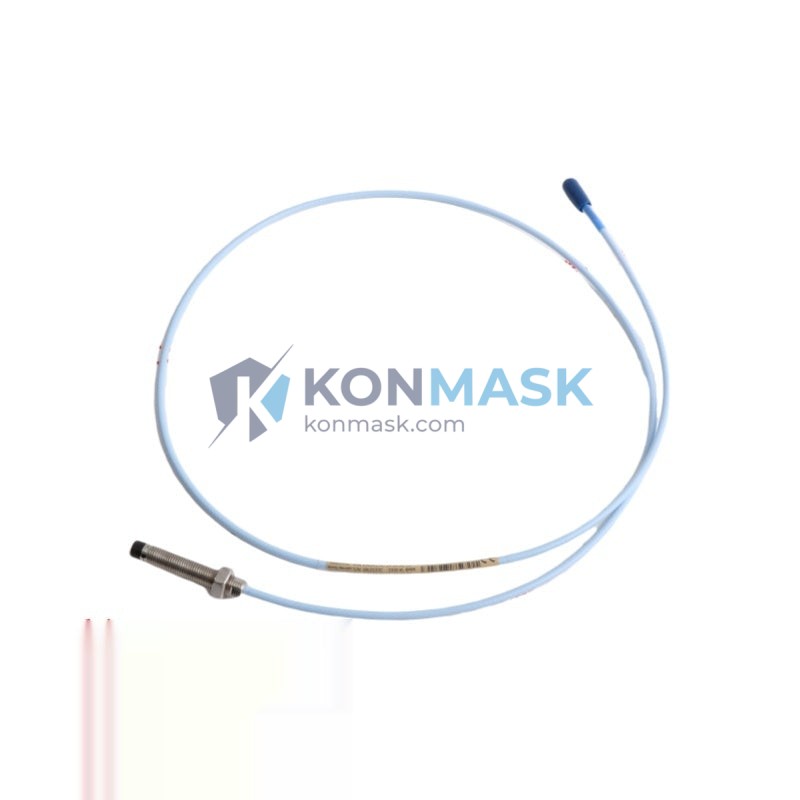

The Bently Nevada 330101-00-19-10-02-05 is an 8mm eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous, non-contact vibration and position measurement on rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – shaft radial vibration and differential expansion monitoring
- Centrifugal Compressors – rotor dynamic instability detection in petrochemical and LNG plants
- Pumps & Fans – bearing journal orbit analysis in power generation and water treatment facilities
- Gearboxes – gear mesh frequency and eccentricity measurement
- Electric Motors (>500 kW) – API 670-compliant shaft monitoring in critical drive trains
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330101-00-19-10-02-05 |
| Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8 mm |
| Extension Cable Length | 19 inches (0.5 m) |
| Overall Cable Length Code | 10 (driver-to-probe) |
| Connector Type | 02 – Standard BNC |
| Armor / Jacket | 05 – Stainless steel armored |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 10–90 mil (0.25–2.29 mm) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | -35 °C to +177 °C |
| Supply Voltage | -24 VDC (nominal) |
| Compatible Driver | Bently Nevada 3300 XL Driver (330180 series) |
| Weight | ~60 g |
Why Engineers Specify This Model
- API 670 Compliant – meets the mandatory standard for machinery protection systems in oil & gas facilities
- Non-contact measurement – zero mechanical wear, suitable for continuous 24/7 operation
- High-temperature armored cable – stainless steel jacket (code 05) withstands harsh turbine environments
- Plug-and-play with 3300 XL ecosystem – direct replacement for existing installations without recalibration
- Proven field reliability – Bently Nevada 3300 XL probes are the global benchmark for turbomachinery condition monitoring
Complete System Bill of Materials
For a fully functional proximity measurement loop, the following components are required:
- Proximity Probe: 330101-00-19-10-02-05 (this item)
- Extension Cable: 330130-045-00-00 (if longer reach is needed)
- Driver / Oscillator: 330180-X1-05 (3300 XL 8mm driver)
- Monitor Rack: Bently Nevada 3500 Series or 3300 Series rack
- Power Supply: -24 VDC regulated (e.g., 3500/15 Power Supply)
Compliance & Industry Standards
- API 670 – Machinery Protection Systems
- API 670 Annex D – Eddy-Current Transducer Systems
- IEC 60068-2 – Environmental testing (vibration, shock, temperature)
- CE Marking – EMC Directive 2014/30/EU
- RoHS Compliant
Quality Assurance & Sourcing
All units sourced by Konmask.com undergo a multi-point verification process:
- Visual inspection of probe tip, cable jacket, and connector integrity
- Functional gap voltage test against Bently Nevada calibration curves
- Traceability documentation provided upon request
- Packaging inspected for tamper evidence and OEM labeling authenticity
We source from authorized distributors and verified surplus channels. Condition (new / reconditioned / tested surplus) is clearly stated on each listing.
How to Source This Part
Ready to order or need a quote? Contact our industrial automation team:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: Typically 3–7 business days for in-stock units; expedited options available
- MOQ: 1 piece
- Export: Worldwide shipping with commercial invoice and packing list
Application-Specific FAQ
Q: Is the 330101-00-19-10-02-05 a direct replacement for the older 330101-00-19-10-02-00?
A: Yes. The suffix -05 denotes stainless steel armored cable; all electrical and dimensional parameters are identical. It is a drop-in replacement.
Q: Can this probe be used with a 3500 Series monitor?
A: Yes, when paired with the correct 3300 XL driver (330180 series). The 3500 monitor accepts the driver output signal directly.
Q: What gap voltage should I set during installation?
A: The nominal gap for 8mm probes is 50 mil (1.27 mm), corresponding to approximately -10.0 VDC output. Always verify against the specific driver calibration sheet.
Q: Does Konmask provide calibration certificates?
A: Calibration documentation can be provided for new OEM units. For tested surplus units, functional test reports are available upon request.
Q: What is the minimum order quantity?
A: 1 piece. Bulk pricing is available for orders of 5 or more units.
