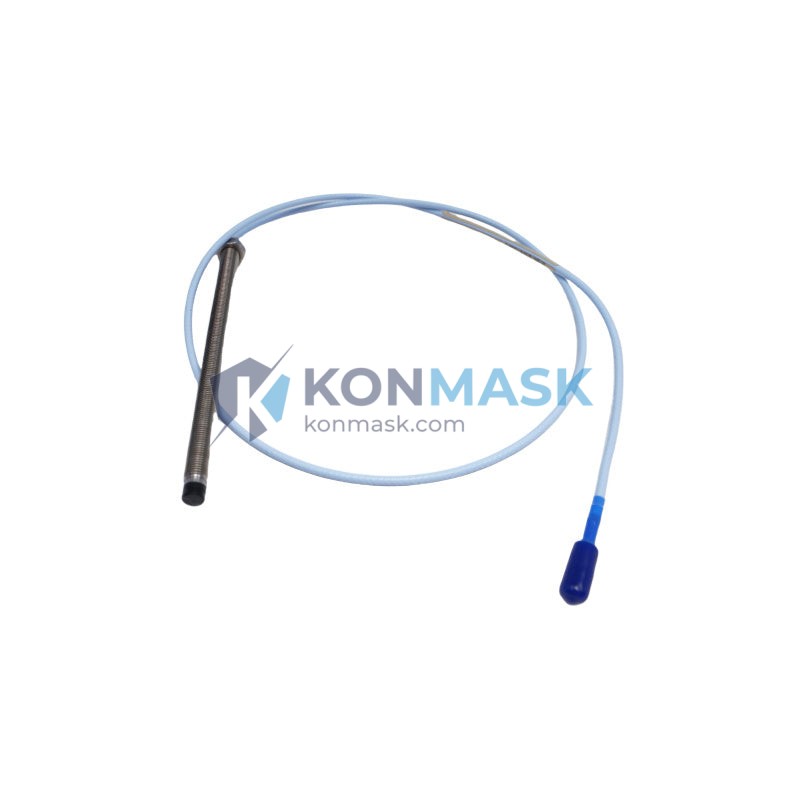

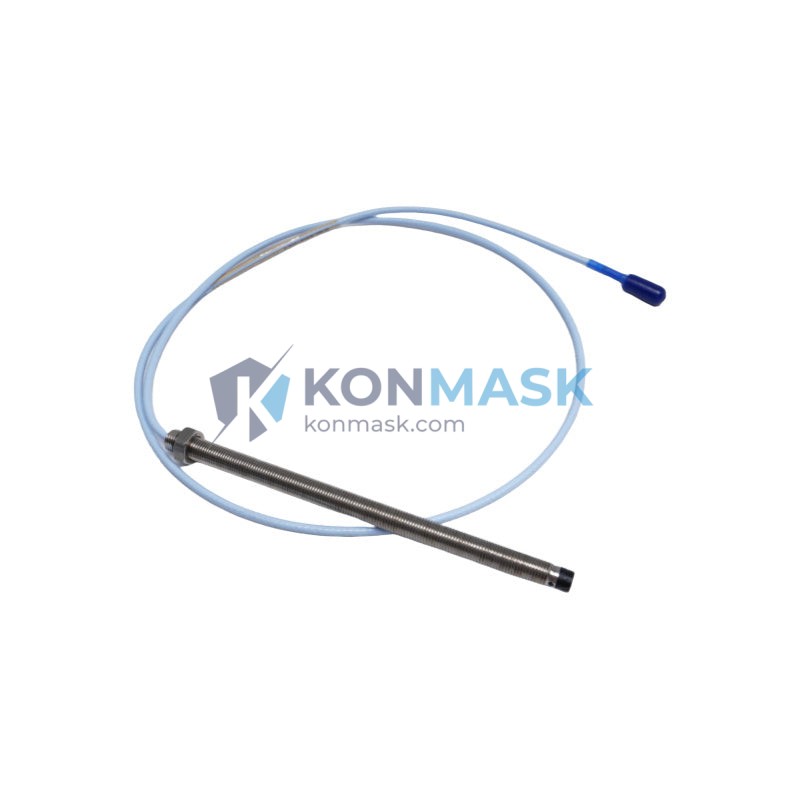

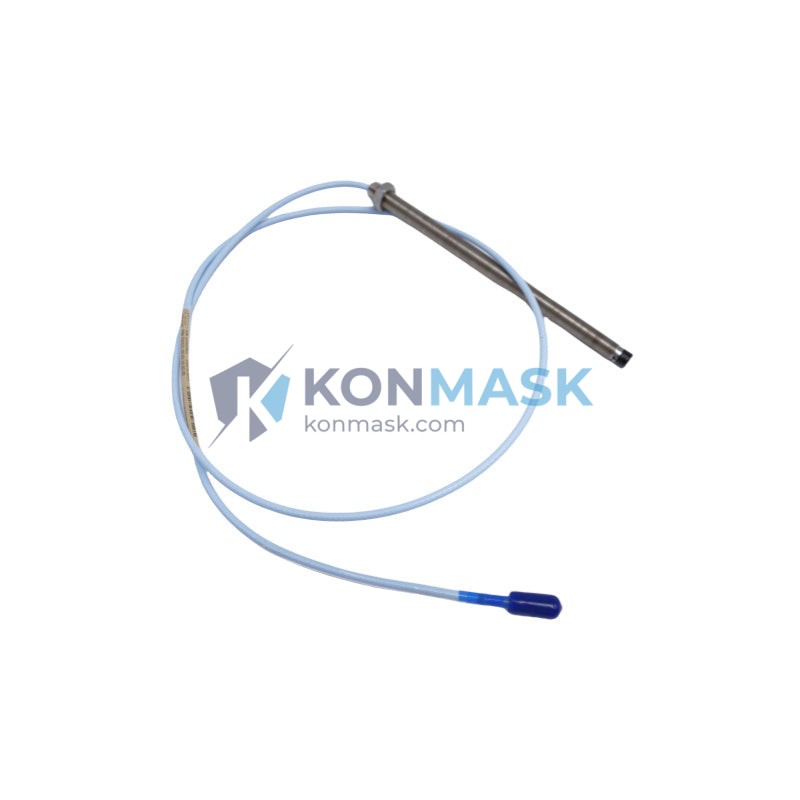

Bently Nevada 330101-00-71-05-01-05 Proximity Transducer System – 3300 XL Series Eddy Current Sensor
When a critical rotating machine — a steam turbine, compressor, or pump — loses its vibration monitoring capability, the consequences are immediate and severe. Without a functioning proximity transducer system, operators are blind to shaft displacement, radial vibration, and axial position changes that precede catastrophic bearing failure. Unplanned downtime in heavy industry can cost tens of thousands of dollars per hour, and more critically, it puts personnel safety at risk. The Bently Nevada 330101-00-71-05-01-05 is the precision instrument that keeps those machines visible, measurable, and safe.
The 330101-00-71-05-01-05 belongs to Bently Nevada’s industry-defining 3300 XL Proximity Transducer System — a platform trusted by power generation, oil & gas, and petrochemical facilities worldwide for over three decades. Within the 3300 XL family, this specific configuration (71 mil range, 5-meter extension cable, standard driver) represents the most widely deployed variant for general-purpose radial vibration and position measurement on large rotating machinery. It is fully compatible with Bently Nevada 3500 Series monitoring racks and meets API 670 requirements for machinery protection systems.
Technical Specifications
- Part Number: 330101-00-71-05-01-05
- Series: 3300 XL Proximity Transducer System
- Measurement Range: 71 mil (1.8 mm) linear range
- Cable Length (Extension): 5 meters
- Output: -18 VDC nominal (standard Bently Nevada eddy current output)
- Sensitivity: 200 mV/mil (7.87 V/mm)
- Target Material: AISI 4140 steel or equivalent
- Operating Temperature: -35°C to +177°C (probe); -35°C to +85°C (driver)
- Connector: Standard Bently Nevada coaxial
- Compliance: API 670, CE
- Manufacturer: Bently Nevada (Baker Hughes)
Key Features & Benefits
- Non-contact measurement — no mechanical wear, no maintenance downtime from sensor degradation
- High-frequency response — accurately captures shaft vibration events up to several kHz, critical for detecting early-stage bearing defects
- API 670 compliant — meets the international standard for machinery protection systems, accepted by EPC contractors and end-users globally
- Plug-and-play with 3500 Series racks — direct replacement for existing Bently Nevada installations with no recalibration required when using matched system components
- Robust construction — stainless steel probe body rated for high-temperature, high-pressure, and chemically aggressive environments
- Proven field reliability — millions of operating hours logged across global power and process industries
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — radial shaft vibration and axial position monitoring
- Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — continuous machinery health surveillance
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, critical process compressors
- Pulp & Paper / Steel: Large motor-driven equipment requiring API 670-grade protection
- Marine & Offshore: Propulsion turbines and auxiliary rotating equipment
System Integration & Compatible Parts
The 330101-00-71-05-01-05 is designed to operate as a complete system. For full API 670 compliance and optimal performance, it is used with:
- Bently Nevada 3500/40M – Proximitor/Seismic Monitor module (primary rack card)
- Bently Nevada 3500/42M – Proximitor/Seismic Monitor (dual-channel)
- Bently Nevada 330130 – Proximitor sensor (driver unit, field-mountable)
- Bently Nevada 330180 – Extension cable assemblies (various lengths)
- Bently Nevada 3500/20 – Power supply module for 3500 rack
Contact our technical team to confirm system compatibility for your specific rack configuration and target material.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component is sourced through verified supply channels. Our QA process includes:
- Visual inspection against OEM documentation and part marking standards
- Verification of serial number and date code authenticity
- Functional check where applicable prior to shipment
- Secure anti-static packaging with full traceability documentation
We supply both new original and factory-refurbished units. Condition is clearly stated on each order confirmation.
How to Order
- Submit your inquiry via the Contact Us page or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Receive a formal quotation within 1 business day
- Confirm order — we handle export documentation, customs paperwork, and international freight
For urgent requirements or large-volume procurement, call/WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- Specialized in industrial automation & control systems — not a general electronics distributor
- Global export experience — serving buyers in Southeast Asia, Middle East, Europe, and the Americas
- Fast response — technical inquiries answered within 24 hours by engineers, not sales scripts
- Competitive pricing — direct sourcing relationships enable better margins for your projects
- Full documentation support — COO, packing list, commercial invoice, and test reports available on request
Frequently Asked Questions
Q: Is the 330101-00-71-05-01-05 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The 3300 XL Proximity Transducer System is the standard sensor platform for Bently Nevada 3500 Series racks. The 330101-00-71-05-01-05 connects directly to 3500/40M and 3500/42M monitor modules.
Q: What is the difference between the 330101 and 330103 series?
A: The 330101 uses a standard 8mm probe tip diameter and is the most common general-purpose variant. The 330103 is a 5mm probe for installations with tighter clearance constraints. Both are part of the 3300 XL family.
Q: Can you supply a calibration certificate with this unit?
A: Yes, calibration documentation can be provided upon request. Please specify this requirement when submitting your inquiry.
Q: What is the lead time for this part?
A: Lead time depends on current stock status. Please contact us for real-time availability. We maintain stock of high-demand Bently Nevada parts to support urgent shutdown and maintenance requirements.
Q: Do you accept orders from outside China?
A: Absolutely. Konmask.com is an export-focused supplier. We ship worldwide and handle all export documentation and international logistics coordination.
