The Bently Nevada 330102-00-60-05-02-05 is a high-precision eddy-current proximity transducer system engineered for continuous, non-contact vibration and position measurement on rotating machinery. Part of the industry-standard 3300 XL Series, this system delivers the reliability and accuracy that plant engineers demand in critical asset protection applications.
Where This Product Is Used
This proximity transducer system is specified across a wide range of heavy-industry and process-critical environments:
- Steam & Gas Turbines – Shaft radial vibration and axial position monitoring to protect high-value rotating assets.
- Centrifugal & Reciprocating Compressors – Real-time displacement measurement for API 670-compliant machinery protection systems.
- Pumps & Fans – Early-warning vibration detection to prevent unplanned downtime in continuous-process plants.
- Gearboxes & Expanders – Differential expansion and eccentricity measurement in power generation and petrochemical facilities.
- Marine Propulsion Systems – Shaft monitoring in shipboard machinery where space and reliability are paramount.
- Pulp & Paper Mills – Monitoring of critical dryer rolls and refiners in high-humidity environments.
Technical Specifications
- Part Number: 330102-00-60-05-02-05
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Cable Length: 5 m (standard)
- Extension Cable Length: 5 m
- Measurement Type: Non-contact eddy-current displacement
- Output Signal: -24 VDC nominal (compatible with 3300 series monitors)
- Frequency Range: 0 – 10,000 Hz
- Temperature Range: -35°C to +177°C (probe tip)
- Connector Type: Standard BNC / integral connector
- Weight: 4,460 g (system)
- Compliance: API 670, CE, RoHS
Why Engineers Specify This Model
- Proven 3300 XL Platform – Drop-in compatible with existing Bently Nevada 3300 series monitors and racks; no re-cabling required.
- Exact Cable Lengths (60 + 05 + 02 + 05) – Factory-configured probe, extension, and driver combination eliminates field trimming and calibration errors.
- High-Temperature Probe Tip – Rated to 177°C, suitable for hot-section turbine bearing housings without additional thermal protection.
- Non-Contact Measurement – Zero mechanical wear; ideal for continuous 24/7 operation in API 670 machinery protection loops.
- Direct Monitor Compatibility – Plug-and-play with 3300/16 and 3500 series monitors; simplifies spare-parts management.
Complete System Bill of Materials
The 330102-00-60-05-02-05 ships as a matched, factory-calibrated system comprising:
- 1× 3300 XL 8 mm Proximity Probe (330102 series)
- 1× Extension Cable – 5 m armored

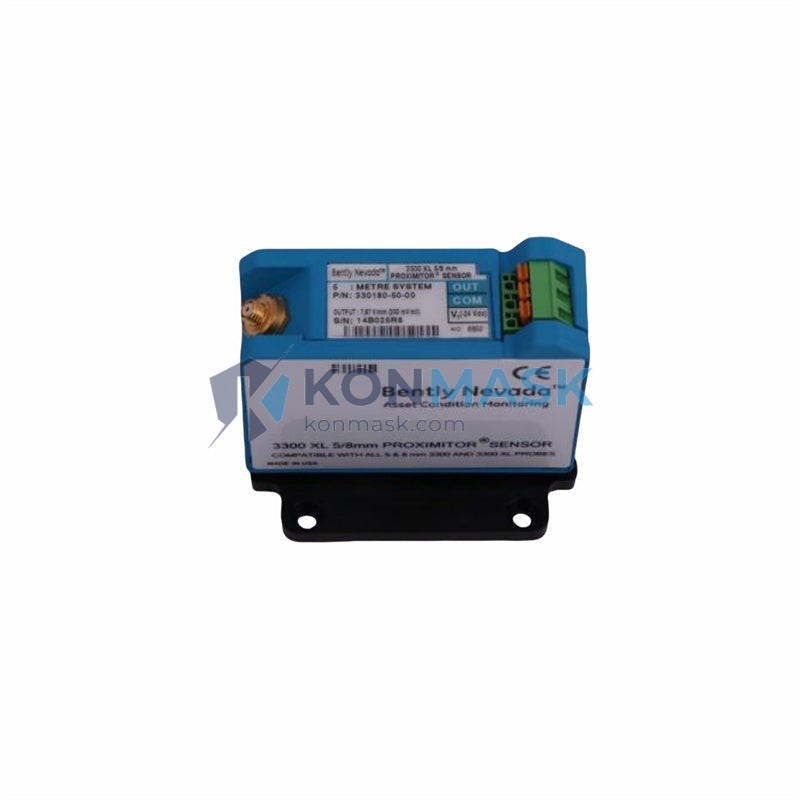

- 1× Proximitor® Sensor / Driver module
- Calibration certificate & documentation package
Complementary components: Bently Nevada 3300/16 Monitor, 3500/42M Proximitor Monitor, 330130 Proximitor Sensor.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety for Process Industry
- CE Marking – EU Electromagnetic Compatibility Directive
- RoHS Compliant – Restriction of Hazardous Substances
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation standards
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured incoming-inspection process:
- Visual and dimensional inspection against OEM drawings
- Functional output verification at -24 VDC nominal
- Calibration traceability documentation review
- Secure anti-static packaging for international shipment
We source from authorized distributors and verified surplus channels. All units are supplied with available documentation and a Konmask quality inspection report.
How to Source This Part
Stock availability for the 330102-00-60-05-02-05 is updated regularly. To confirm lead time, quantity, and pricing:
- 📧 Email: support@konmask.com
- 📞 Phone / WhatsApp: +0086 19859288691
- 🌐 Online: konmask.com – Add to cart or request a quote directly.
We support DDP, DAP, and EXW Incoterms for international B2B orders. Export documentation (CO, packing list, commercial invoice) available on request.
Application-Specific FAQ
Q: Is the 330102-00-60-05-02-05 compatible with the Bently Nevada 3500 series monitors?
A: Yes. The 3300 XL proximity transducer system is electrically compatible with 3500 series Proximitor monitors when used with the appropriate input module. Confirm your monitor card part number before ordering.
Q: Can this transducer be used for axial position (thrust) measurement?
A: Yes. With the appropriate monitor channel configuration, the 330102 probe can measure both radial vibration and axial shaft position, subject to gap and scale factor settings per API 670.
Q: What is the target material requirement?
A: The eddy-current probe is calibrated for AISI 4140 steel. For other shaft materials (stainless, titanium, Inconel), a material correction factor must be applied. Contact our technical team for guidance.
Q: Do you supply the complete matched system or individual components?
A: We supply the complete factory-matched system (probe + extension cable + Proximitor driver) as a unit. Individual components can be quoted separately upon request.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days internationally. For urgent requirements, contact us for expedited options.
