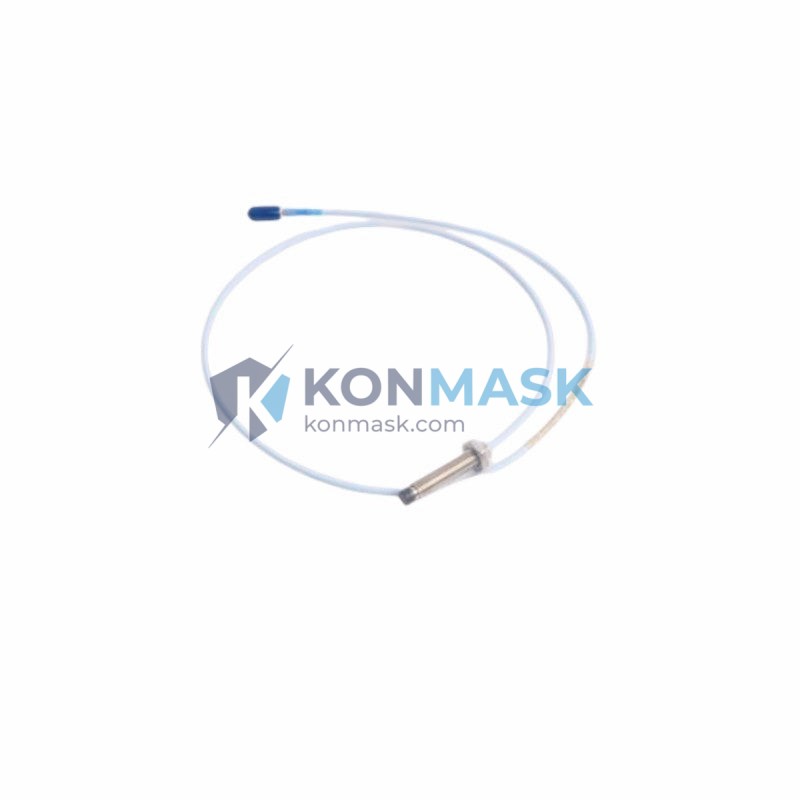

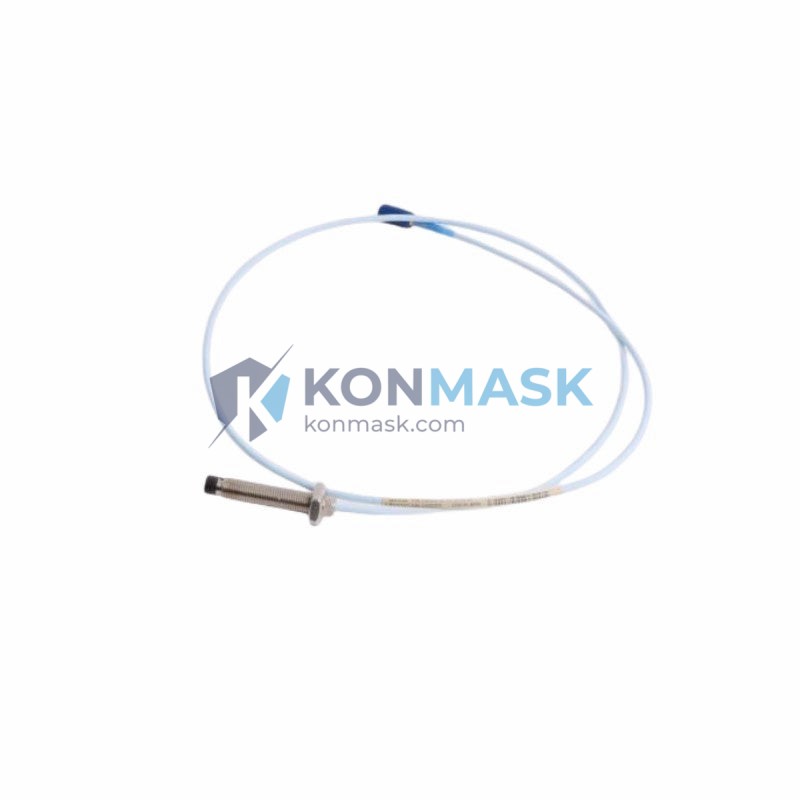

Genuine BENTLY NEVADA 330103-00-06-10-02-05 Eddy-Current Proximity Sensor | 3300 Series – Verified Source
Konmask.com is a dedicated B2B industrial automation supplier specializing in genuine, traceable components from leading global brands. The BENTLY NEVADA 330103-00-06-10-02-05 is a high-precision eddy-current proximity sensor from the renowned 3300 Series, engineered for continuous shaft vibration and position monitoring in critical rotating machinery. Every unit we supply is sourced through verified channels and undergoes our rigorous 4-step quality verification process before dispatch.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number: 330103-00-06-10-02-05
- Series: 3300 XL 8mm Proximity Transducer System
- Sensing Technology: Eddy-Current (Non-contact)
- Probe Tip Diameter: 8 mm
- Cable Length: 5 m (integral cable)
- Operating Temperature: -35°C to +121°C
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 2.54 mm (10 mil to 100 mil)
- Supply Voltage: -24 VDC (nominal)
- Output: -1 VDC to -17 VDC
- Connector: Integral coaxial cable with MIL-C-17 specification
- Weight: 420 g (packaged)
- Compliance: CE, RoHS, API 670
Our 4-Step Quality Verification Process
Every BENTLY NEVADA component shipped from Konmask.com passes through our standardized verification protocol:
- Step 1 – Source Traceability Check: We verify the supply chain origin and cross-reference batch documentation against manufacturer records to confirm authenticity.
- Step 2 – Physical Inspection: Trained technicians inspect housing, connector pins, cable sheathing, and label markings for conformance to OEM specifications.
- Step 3 – Functional Bench Test: Where applicable, units are bench-tested for output signal linearity and sensitivity within factory-specified tolerances.
- Step 4 – Packaging & Documentation Audit: Original or equivalent protective packaging is confirmed, and all accompanying documentation (datasheets, calibration records) is reviewed before shipment.
Key Features & Benefits
- ✅ Non-contact measurement eliminates mechanical wear for long service life
- ✅ High sensitivity (7.87 V/mm) enables detection of sub-micron shaft displacement
- ✅ Wide temperature range suitable for harsh industrial environments
- ✅ API 670 compliant — meets the gold standard for machinery protection systems
- ✅ Plug-and-play compatibility with existing 3300 Series monitor racks
- ✅ Integral cable design reduces connection points and signal interference
- ✅ Traceable sourcing — full supply chain documentation available on request
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Compressor rotor position and axial thrust measurement
- Pump and motor bearing displacement sensing
- Gearbox and expander shaft orbit analysis
- Critical rotating machinery protection per API 670 / ISO 10816
Compatible System Components
This proximity sensor is designed to operate as part of the Bently Nevada 3300 XL Proximity Transducer System. Typical compatible components include:
- Extension Cables: 330130 Series (matched cable required for system calibration)
- Proximitor® Sensors: 3300 XL NSv Proximitor (e.g., 330180 Series)
- Monitor Racks: 3500 Series Machinery Protection System
- Junction Boxes: 3300 Series field-mount enclosures
Note: Probe, extension cable, and Proximitor must be ordered as a matched system for accurate calibration. Contact us to configure a complete assembly.
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — with global forwarding partners
- Lead Time: In-stock items typically ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin available
- Customs Support: HS Code guidance and export licensing assistance provided
- Minimum Order: 1 unit (bulk pricing available for 5+ units — contact us)
Certifications & Compliance Statement
The BENTLY NEVADA 330103-00-06-10-02-05 is manufactured to comply with the following standards:
- API 670 – Machinery Protection Systems (5th Edition)
- CE Marking – European conformity for electromagnetic compatibility
- RoHS Directive – Restriction of Hazardous Substances
- ISO 10816 – Mechanical vibration evaluation standards
Konmask.com does not manufacture this product. We are an authorized reseller and distributor of industrial automation components. All trademarks remain the property of their respective owners.
How to Order
- Add to Cart — Select quantity and proceed to checkout directly on this page.
- Request a Quote — For bulk orders (5+ units), email support@konmask.com with your required quantity and delivery timeline.
- Confirm Compatibility — Unsure if this part fits your system? Send us your existing part number or system configuration and our technical team will advise.
- Payment & Invoicing — We accept T/T bank transfer, PayPal, and major credit cards. VAT invoices and commercial documentation issued upon request.
Authenticity & Trust FAQ
Q: Are these genuine Bently Nevada parts?
A: Yes. All units are sourced from verified supply channels. We provide supply chain documentation upon request and welcome third-party inspection arrangements for large orders.
Q: Can I verify the part number before purchasing?
A: Absolutely. Contact us with your system’s existing part number and we will confirm compatibility and provide a product photo or datasheet before you commit to purchase.
Q: What if the part is defective on arrival?
A: We offer a 30-day DOA (Dead on Arrival) replacement guarantee. Items must be returned in original condition with packaging intact. Please contact support@konmask.com within 7 days of receipt.
Q: Do you provide calibration certificates?
A: Calibration documentation from the original manufacturer is provided where available. For critical applications requiring fresh calibration, we can recommend accredited third-party calibration services.
Q: Can I order a matched probe-cable-Proximitor system?
A: Yes. We can configure and supply complete matched assemblies. Contact us with your gap voltage and linear range requirements.
