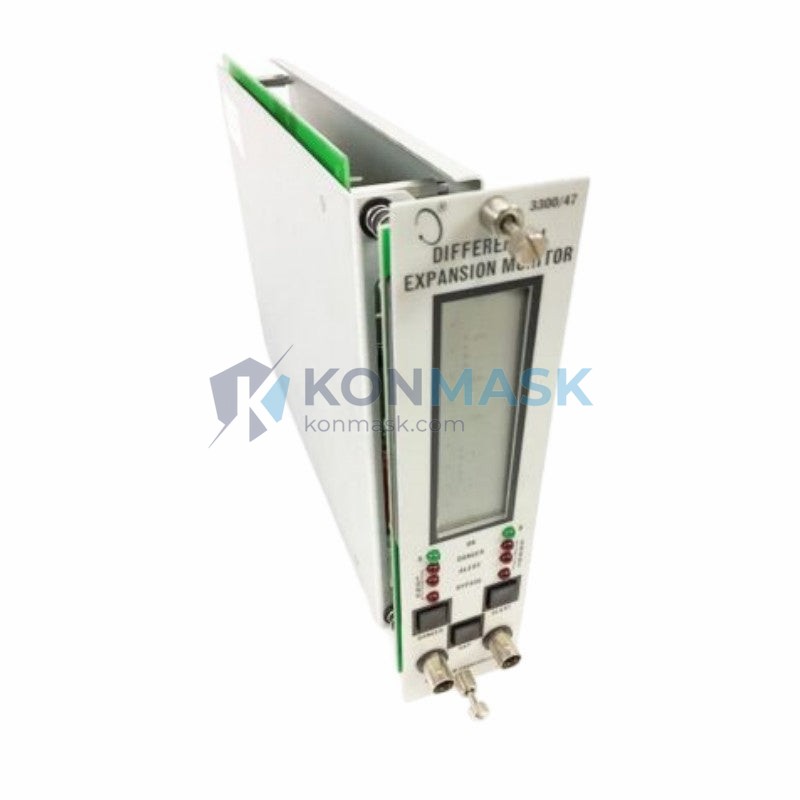

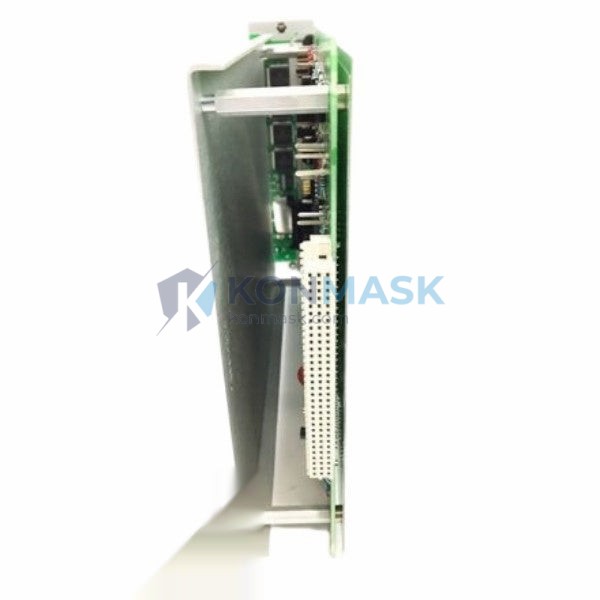

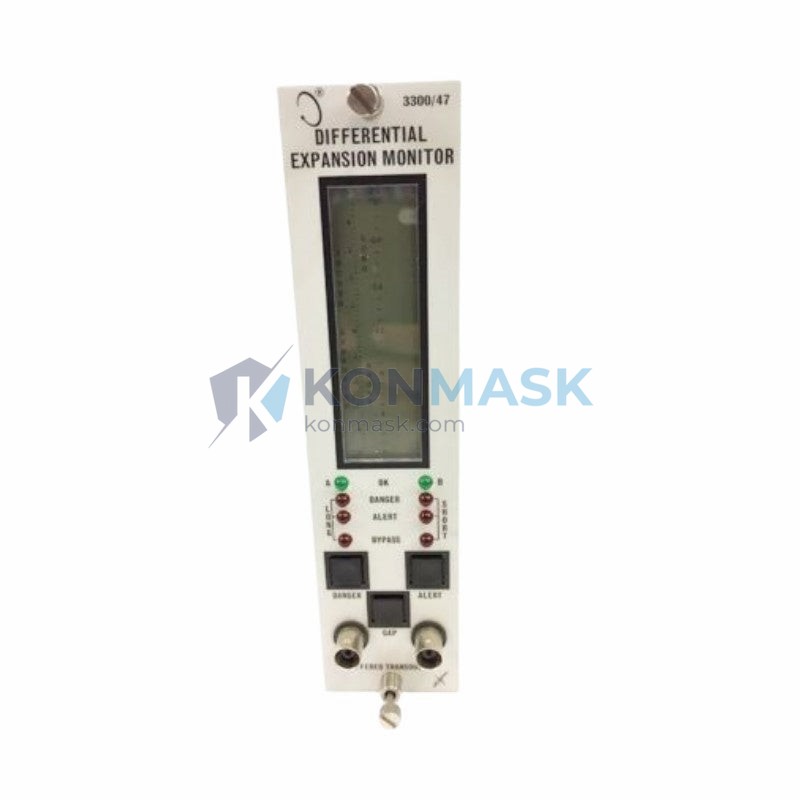

Bently Nevada 3300/47 Differential Expansion Monitor | 3300 Series Machinery Protection Platform
Engineering Background
The Bently Nevada 3300 Series is the industry-standard modular machinery protection platform deployed across power generation, petrochemical, and heavy industrial facilities worldwide. Engineered to API 670 requirements, the 3300 system provides continuous, real-time monitoring of critical rotating machinery parameters — safeguarding turbines, compressors, and pumps from catastrophic failure.
Product Positioning
The 3300/47 Differential Expansion Monitor is a dedicated single-channel module designed to measure the relative axial displacement between a turbine rotor and its casing. This measurement is critical for detecting thermal growth mismatches during startup, load changes, and shutdown sequences — conditions that, if undetected, lead to blade-to-casing contact and irreversible mechanical damage. The 3300/47 is the preferred solution for procurement engineers specifying turbine protection upgrades, spare-parts inventories, and OEM replacement programs.
Complete Technical Specifications
| Part Number | 3300/47 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3300 Machinery Protection System |
| Module Type | Differential Expansion Monitor |
| Measurement Channels | 1 Channel |
| Measurement Range | Configurable per transducer scale factor |
| Transducer Compatibility | Bently Nevada 3300 XL 8mm / 11mm Proximity Probes |
| Output Signal | 4–20 mA analog; relay contact outputs (Alert / Danger) |
| Relay Configuration | SPDT, configurable energize/de-energize on alarm |
| Power Supply | 18–30 VDC (from 3300 rack power supply) |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Form Factor | 3300 Series rack-mount module |
| Weight | Approx. 1,100 g |
| Compliance | API 670, CE, RoHS |
| Communication | Compatible with 3300/20 System Monitor (RS-232/RS-485) |
Proven Application Environments
- Steam Turbines — Monitoring rotor-to-casing differential growth during cold/hot start sequences and load transients
- Gas Turbines — Axial displacement protection during rapid thermal cycling and emergency shutdowns
- Centrifugal Compressors — Detecting rotor walk and casing distortion in high-pressure service
- Power Generation Plants — Continuous online monitoring integrated with DCS/SCADA trip logic
- Petrochemical & Refinery Units — API 670-compliant protection for critical rotating equipment trains
- LNG & Offshore Platforms — Harsh-environment installations requiring high-reliability instrumentation
Engineering Advantages
- API 670 Compliant — Meets the international standard for machinery protection systems; accepted by major EPCs and insurance underwriters
- Modular Architecture — Hot-swappable within the 3300 rack; minimizes downtime during maintenance windows
- Dual Setpoint Alarming — Independent Alert and Danger relay outputs allow staged response without additional relay logic
- High Noise Immunity — Differential input design rejects common-mode electrical interference in industrial environments
- Proven Field Reliability — Installed base spanning 30+ years across global power and process industries
- Seamless System Integration — Native compatibility with the full 3300 Series ecosystem including keyphasors, I/O modules, and system monitors
System Architecture & Signal Flow
The 3300/47 operates within the modular 3300 rack architecture. A proximity probe (typically 3300 XL 8mm or 11mm) is installed at the turbine casing, measuring the gap to a target on the rotor shaft. The probe signal is conditioned by a 3300/05 or 3300/16 proximitor, which outputs a DC voltage proportional to gap distance. This voltage is fed to the 3300/47 monitor module, which:
- Converts the raw gap voltage to engineering units (mm or mils) based on the configured scale factor
- Compares the live value against programmed Alert and Danger setpoints
- Drives relay outputs and the 4–20 mA analog output to the DCS/PLC
- Transmits data to the 3300/20 System Monitor for centralized display and logging
Sourcing & Quality Verification
All Bently Nevada 3300/47 modules offered by Konmask.com are sourced through verified industrial supply channels. Each unit undergoes the following pre-shipment process:
- Visual inspection for physical damage, label integrity, and connector condition
- Functional power-on test confirming module initialization and LED status
- Firmware version documentation where accessible
- Anti-static packaging with humidity indicator card
- Photographic documentation available upon request
Certificates of conformance and test reports are available for qualified procurement orders. Contact support@konmask.com for documentation packages.
Procurement Process
- Submit RFQ — Email support@konmask.com with your part number, required quantity, and delivery timeline
- Receive Quotation — Formal quotation issued within 1 business day including unit price, lead time, and shipping options
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for prepayment or NET terms (qualified accounts)
- Inspection & Dispatch — Unit inspected, photographed, and packed; tracking number provided within 24 hours of dispatch
- After-Sales Support — Technical support available post-delivery for installation verification and commissioning questions
Expedited processing available for urgent plant requirements. WhatsApp: +0086 19859288691
Technical FAQ
Q: Is the 3300/47 compatible with older 3300 Series racks?
A: Yes. The 3300/47 is backward-compatible with all standard 3300 Series rack configurations. Verify rack power supply capacity before installation.
Q: Can the 3300/47 be used with non-Bently Nevada proximity probes?
A: The module is optimized for Bently Nevada 3300 XL proximity systems. Use with third-party probes requires scale factor validation and is not recommended for API 670-certified installations.
Q: What is the difference between differential expansion and axial position monitoring?
A: Axial position (3300/15) measures absolute rotor position relative to a fixed reference. Differential expansion (3300/47) measures the relative growth between rotor and casing — a critical distinction for thermal transient protection.
Q: Do you provide warranty on used or refurbished units?
A: All units are sold with a 90-day functional warranty. Extended warranty and exchange programs are available — contact us for details.
Q: Can you supply the complete 3300 system including rack, power supply, and I/O modules?
A: Yes. Konmask.com maintains inventory across the full 3300 Series product line. Submit your BOM for a consolidated quotation.
