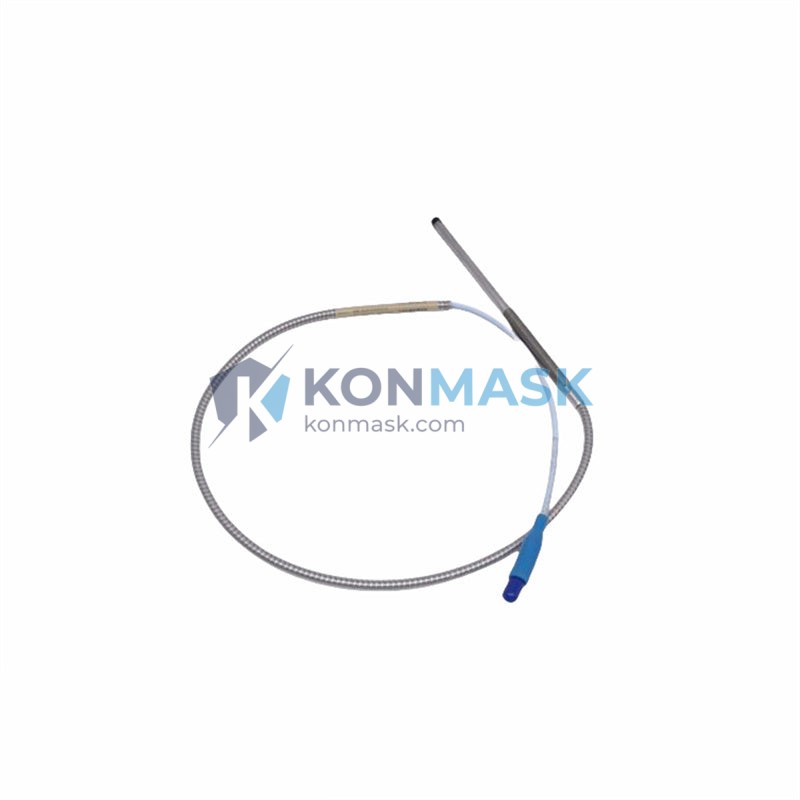

Bently Nevada 330103-06-15-05-02-05 Proximity Transducer System – 3300 XL Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, and unplanned downtime that can cost industrial facilities tens of thousands of dollars per hour. The Bently Nevada 330103-06-15-05-02-05 Proximity Transducer System is the precision instrument that stands between normal operation and disaster — continuously measuring radial shaft vibration, axial position, and differential expansion with micron-level accuracy.
Within the Bently Nevada 3300 XL Series — the industry benchmark for machinery protection — the 330103-06-15-05-02-05 occupies a well-defined technical position: a complete proximity transducer system configured with a 5 mm probe tip, 5-metre extension cable, and Proximitor® sensor, delivering a sensitivity of 7.87 V/mm (200 mV/mil) across a linear range of 0.25 mm to 2.26 mm (10–89 mil). This system is trusted in turbines, compressors, pumps, and generators across petrochemical, power generation, and heavy manufacturing sectors worldwide.
Technical Specifications
- Part Number: 330103-06-15-05-02-05
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Tip Diameter: 5 mm
- Cable Length (Extension): 5 metres (15 ft)
- Proximitor® Sensor: Included
- Output Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm – 2.26 mm (10–89 mil)
- Supply Voltage: -24 VDC (nominal)
- Operating Temperature: -35°C to +85°C (probe); -40°C to +85°C (Proximitor)
- Target Material: AISI 4140 steel (or equivalent)
- Frequency Response: 0 Hz (DC) to 10,000 Hz
- Approvals: CE, ATEX, FM (refer to current datasheet for regional certifications)
- Weight: Approx. 230 g
Key Features & Benefits
- Complete System Solution: Probe, extension cable, and Proximitor® sensor supplied as a matched, calibrated set — eliminating field-matching errors.
- High Sensitivity & Linearity: 7.87 V/mm output ensures precise shaft position measurement with minimal signal noise.
- Wide Temperature Range: Engineered for harsh industrial environments including high-heat turbine bearing housings.
- Eddy-Current Technology: Non-contact measurement eliminates mechanical wear and enables continuous 24/7 monitoring.
- Direct Compatibility: Plug-and-play integration with Bently Nevada 3500 Series machinery protection racks and System 1® software.
- Long Service Life: Robust construction with stainless steel probe housing rated for demanding petrochemical and power plant environments.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — radial vibration and axial position monitoring.
- Oil & Gas / Petrochemical: Centrifugal compressors, expanders, boiler feed pumps — API 670 compliant installations.
- Pulp & Paper / Steel Mills: Large induction motors, gearboxes, and rolling mill drives.
- Marine & Offshore: Propulsion turbines and auxiliary machinery on FPSO vessels and offshore platforms.
- General Heavy Industry: Any rotating machinery requiring continuous, non-contact shaft displacement measurement.
System Integration & Compatible Parts
The 330103-06-15-05-02-05 is designed for seamless integration within the Bently Nevada ecosystem. Compatible and commonly paired components include:
- Bently Nevada 3500/40M Proximitor®/Seismic Monitor Module
- Bently Nevada 3500/22M Transient Data Interface
- Bently Nevada 330130 Series Proximitor® Sensors
- Bently Nevada 330180 Series Proximity Probes
- System 1® Condition Monitoring Software (GE Vernova)
- Bently Nevada 3500 Rack Power Supplies (136180-01, 136188-01)
Contact Konmask.com for cross-reference assistance and compatible spare parts sourcing.
Our Quality Assurance Process
Every Bently Nevada 330103-06-15-05-02-05 unit supplied by Konmask.com undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Part number, date code, and manufacturer markings inspected against OEM documentation.
- Visual & Physical Inspection: Probe tip, cable jacket, connector pins, and Proximitor® housing checked for damage or tampering.
- Functional Testing: Where applicable, output voltage and linearity verified against Bently Nevada factory specifications.
- Secure Packaging: Anti-static packaging with moisture barrier, shock-absorbing foam, and tamper-evident sealing for international freight.
- Documentation: Certificate of conformance and inspection report available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, shipping options, and payment terms within 24 business hours.
- Confirm the order and receive a proforma invoice.
- Shipment dispatched with full tracking and export documentation.
We support T/T bank transfer, L/C, and other B2B payment methods. Minimum order quantity: 1 unit.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, and condition monitoring components — not a generalist marketplace.
- Global B2B Supply: Serving engineering firms, EPC contractors, and MRO teams across Asia, the Middle East, Europe, and the Americas.
- Verified Inventory: All parts inspected and documented before dispatch.
- Fast Response: Dedicated B2B team responds to RFQs within 24 hours.
- Competitive Pricing: Direct sourcing relationships enable cost-effective pricing for bulk and urgent orders.
- Export Expertise: Experienced in international freight, customs documentation, and compliance for industrial components.
Frequently Asked Questions
Q: Is the 330103-06-15-05-02-05 a complete system or individual component?
A: It is a complete, matched proximity transducer system including the probe, extension cable, and Proximitor® sensor — all factory-calibrated as a set.
Q: Can this system be used with non-Bently Nevada monitoring racks?
A: The 3300 XL system outputs a standard -24 VDC eddy-current signal compatible with most third-party vibration monitors, though full functionality and API 670 compliance are assured only with Bently Nevada 3500 Series racks.
Q: What is the lead time for this part?
A: Lead time depends on current stock levels. Please submit an RFQ for a confirmed availability and delivery schedule.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a quality guarantee on all supplied parts. Terms are specified in the quotation documentation.
Q: Can you supply multiple units for a plant-wide spare parts program?
A: Absolutely. We regularly supply bulk quantities for MRO programs and plant turnarounds. Contact us for volume pricing.
