Genuine Bently Nevada 330103-17-23-05-02-05 Proximity Probe | 3300 Series – Verified Source

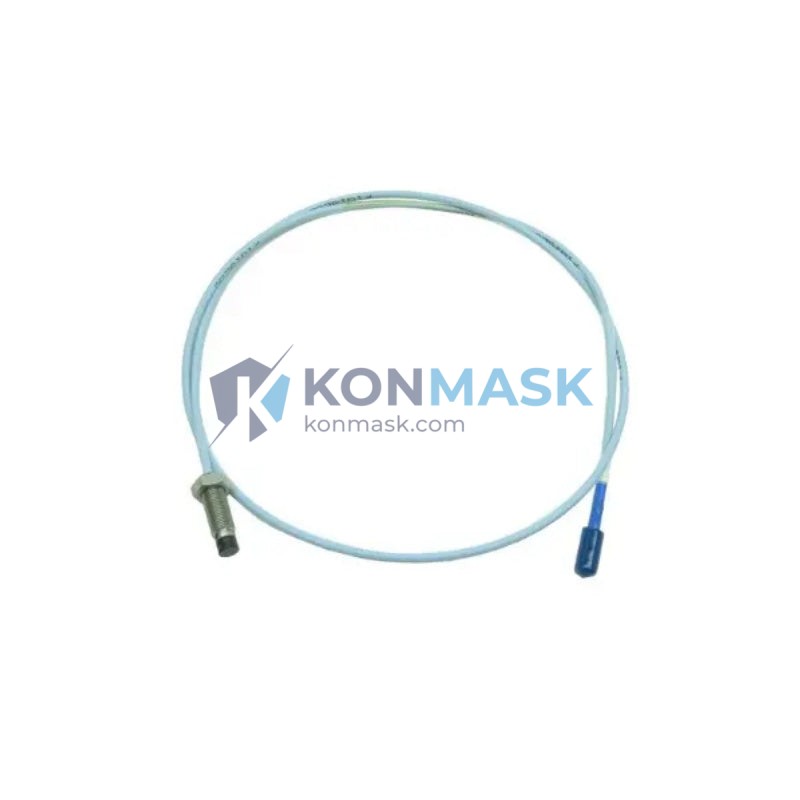

The Bently Nevada 330103-17-23-05-02-05 is a high-precision eddy-current proximity probe from the industry-standard 3300 Series vibration monitoring system. Konmask.com supplies this part directly from verified channels, ensuring authenticity, traceability, and reliable performance in critical rotating machinery applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330103-17-23-05-02-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Type | Eddy-Current Proximity Probe |
| Probe Diameter | 8 mm |
| Cable Length | 0.5 m (integral cable) |
| Extension Cable Length | 5.0 m |
| Total System Length | 5.5 m |
| Connector Type | 5-pin radial |
| Temperature Range | -35°C to +177°C (probe tip) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.54 mm (10 to 100 mil) |
| Target Material | AISI 4140 steel (standard) |
| Agency Approvals | CE, ATEX, FM, CSA |
| Weight | Approx. 210 g |
Our 4-Step Quality Verification Process
Every Bently Nevada 330103-17-23-05-02-05 unit shipped by Konmask.com passes through our rigorous 4-step verification protocol before dispatch:
- Step 1 – Source Authentication: Parts are procured exclusively from authorized distributors or verified surplus channels with full documentation trails.
- Step 2 – Physical Inspection: Each unit is inspected for label integrity, housing condition, connector pin alignment, and cable sheath quality.
- Step 3 – Documentation Review: Serial numbers, date codes, and country-of-origin markings are cross-referenced against manufacturer records where available.
- Step 4 – Functional Pre-check: Electrical continuity and impedance checks are performed to confirm the probe is within specification prior to packaging.
Key Features & Benefits
- Industry-proven eddy-current sensing technology for non-contact shaft displacement measurement
- High sensitivity (7.87 V/mm) for accurate detection of radial and axial vibration
- Robust stainless-steel housing rated for harsh industrial environments
- Direct drop-in replacement for existing 3300 XL 8mm system installations
- Wide operating temperature range suitable for turbine and compressor environments
- ATEX / FM certified for use in hazardous areas (Zone 1 / Division 1)
- Integral cable design eliminates field-assembly errors and improves signal integrity
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor displacement measurement
- Pump and motor bearing clearance monitoring
- Gearbox and expander shaft position sensing
- Critical rotating machinery in oil & gas, power generation, and petrochemical plants
- Continuous emissions monitoring systems (CEMS) integration
Compatible System Components
The 330103-17-23-05-02-05 probe is designed to operate within the Bently Nevada 3300 XL Proximity Transducer System. Compatible components include:
- Extension Cables: 330130 Series (matched to probe cable length)
- Proximitors / Signal Conditioners: 3300 XL 8mm Proximitor (e.g., 330180, 330181)
- Monitoring Modules: 3500/40M, 3500/42M, 3500/44M, 3500/45 (Bently Nevada 3500 Rack System)
- Junction Boxes: 3300 Series field-mount junction boxes
- Keyphasors: 3300 XL Keyphasor Transducer System
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock and ex-stock units available for immediate dispatch
- Lead Time: Standard orders ship within 3–7 business days; expedited options available
- Shipping Destinations: Worldwide — including USA, EU, Middle East, Southeast Asia, and Australia
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ITAR where applicable)
- Packaging: Anti-static, moisture-barrier packaging with foam cushioning for safe transit
- Documentation: Commercial invoice, packing list, and certificate of conformance provided upon request
Certifications & Compliance Statement
- CE Marking: Compliant with EU Machinery Directive and EMC Directive
- ATEX: Certified for explosive atmospheres (Group II, Category 1G)
- FM Approved: Factory Mutual approval for hazardous locations (Class I, Division 1)
- CSA: Canadian Standards Association certified
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- ISO 9001: Konmask.com operates under ISO 9001-aligned quality management practices for sourcing and inspection
How to Order
- Confirm Part Number: Verify that 330103-17-23-05-02-05 matches your system’s existing probe configuration (cable length, connector type, and target material).
- Request a Quote: Contact us via email at support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Confirm Stock & Lead Time: Our team will confirm availability, pricing in your preferred currency, and estimated ship date within 24 hours.
- Place Order: Add to cart directly or proceed via purchase order (PO) for B2B customers.
- Receive & Verify: Inspect the unit upon arrival using our provided documentation. Contact us immediately if any discrepancy is found.
Authenticity & Trust FAQ
Q: Is this a genuine Bently Nevada part or an aftermarket equivalent?
A: Konmask.com supplies genuine OEM Bently Nevada parts. We do not sell counterfeit or unauthorized replicas. All units are sourced from verified supply channels.
Q: Can you provide a certificate of conformance (CoC)?
A: Yes. A CoC is available upon request for all orders. Please specify this requirement when placing your order.
Q: What is your return policy if the part does not match my system?
A: We offer a 30-day return window for unused, uninstalled parts in original packaging. Contact support@konmask.com to initiate a return.
Q: Do you offer warranty on this part?
A: Yes. All genuine Bently Nevada parts supplied by Konmask.com carry a 12-month warranty against manufacturing defects under normal operating conditions.
Q: Can you source other Bently Nevada 3300 or 3500 Series components?
A: Absolutely. We maintain an extensive inventory of Bently Nevada products. Contact us with your full BOM or part list for a consolidated quote.
