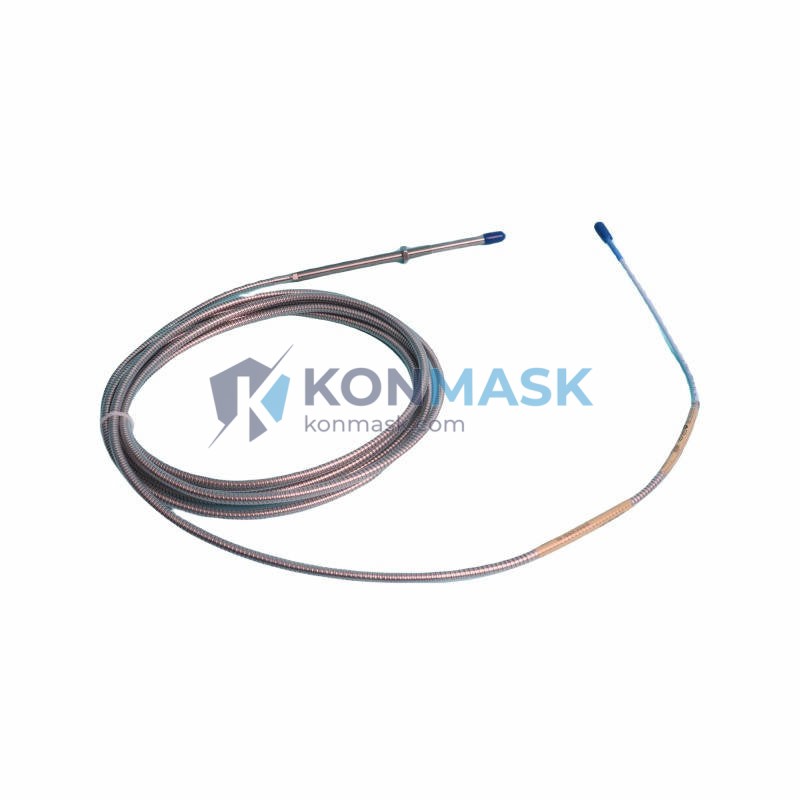

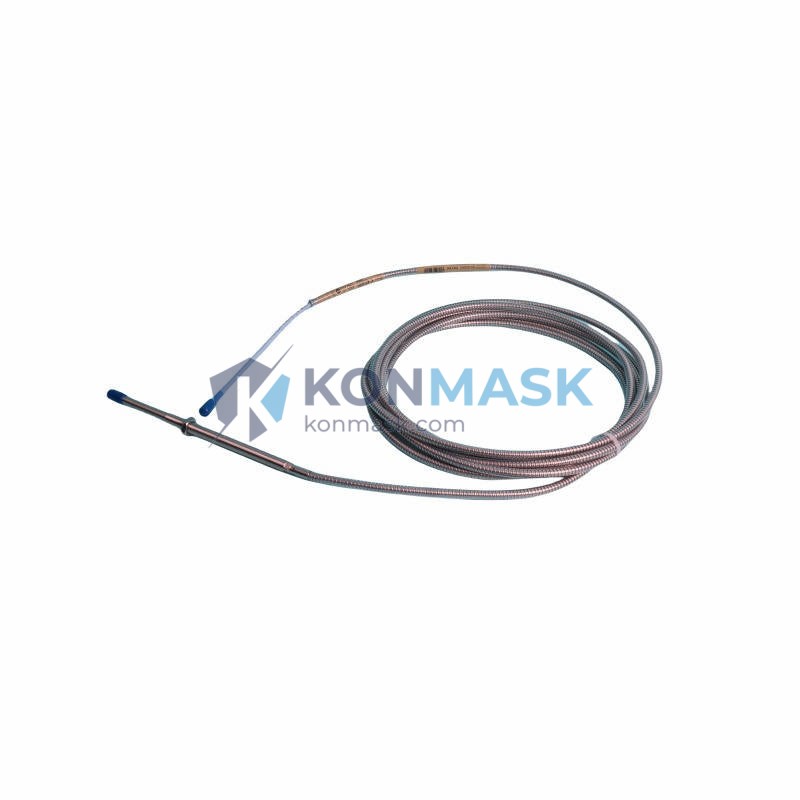

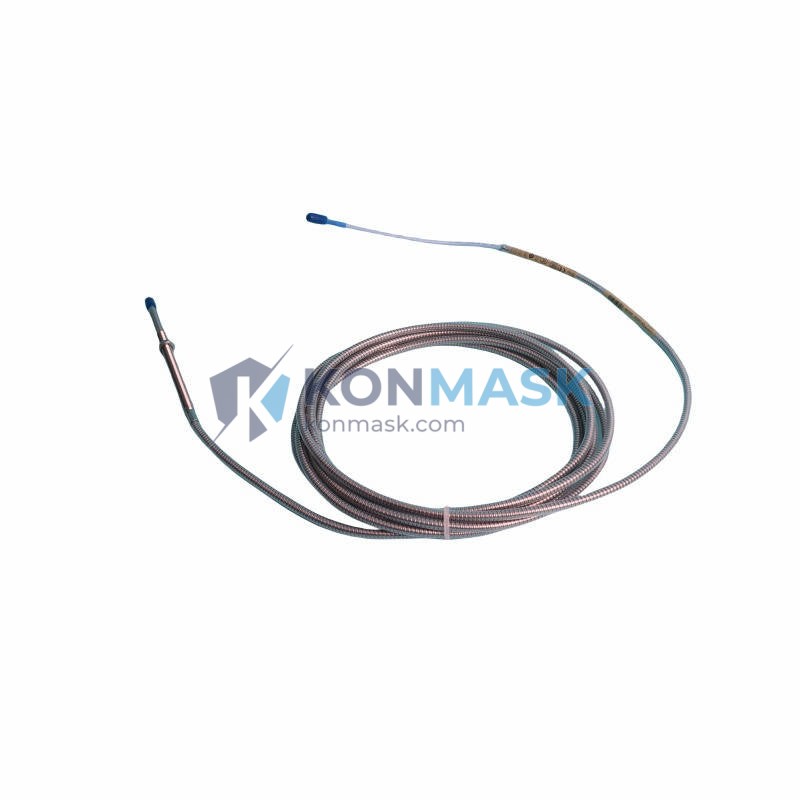

Bently Nevada 330104-00-14-90-02-00 Proximity Transducer – 3300 Series Eddy Current System
When a critical rotating machine loses its shaft position and vibration monitoring capability, the consequences cascade rapidly: undetected rotor displacement, accelerated bearing wear, and ultimately catastrophic mechanical failure that can halt production for days or weeks. In power plants, compressor stations, and petrochemical facilities, every minute of unplanned downtime translates directly into lost revenue and safety risk. The Bently Nevada 330104-00-14-90-02-00 proximity transducer is the precision sensing element that prevents this scenario — delivering continuous, non-contact measurement of shaft radial vibration and position to your machinery protection system.
Within the globally trusted Bently Nevada 3300 Series, the 330104-00-14-90-02-00 represents a standard 14 mm probe configuration with a 90° cable exit and the -02-00 connector/termination variant, purpose-built for installations where cable routing geometry demands a right-angle departure from the probe body. The 3300 Series has been the international benchmark for turbomachinery protection for over four decades, deployed across power generation, oil & gas, petrochemical, and heavy industrial plants in more than 100 countries. Its compatibility with the Bently Nevada 3300 XL 8mm proximity transducer system ensures seamless integration into both legacy monitoring architectures and modern 3500 Series Machinery Protection Systems.
Technical Specifications
- Part Number: 330104-00-14-90-02-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 Series Proximity Transducer System
- Probe Type: Eddy Current (Non-contact)
- Probe Tip Diameter: 14 mm
- Cable Exit Angle: 90° (right-angle)
- Connector/Termination: -02-00 standard configuration
- Measurement: Radial shaft vibration & position
- Target Material: AISI 4140 steel or equivalent
- Output: Compatible with 3300 XL driver/monitor systems
- Weight: Approx. 40 g
- Compliance: API 670 compatible
Key Features & Benefits
- Non-contact eddy current measurement — zero mechanical wear on the sensing element, unlimited service life
- 90° right-angle cable exit — ideal for space-constrained bearing housings and tight installation geometries
- 14 mm probe body — provides a wider sensing field than 8 mm probes, improving signal stability on larger shaft diameters
- API 670 compatible — meets international machinery protection standards for turbines, compressors, and pumps
- Plug-and-play with 3300 XL system — no recalibration required when replacing like-for-like within the same transducer system
- High-frequency response — accurately captures shaft vibration, eccentricity, and axial position at high RPM
- Robust construction — resists oil, coolant, and mechanical abrasion in harsh plant environments
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators, turbo-alternators
- Oil & Gas: Centrifugal compressors, pipeline pumps, LNG trains, gas injection units
- Petrochemical: Reactor feed pumps, cracked gas compressors, ethylene plant machinery
- Pulp & Paper: High-speed rolls, refiners, dryer section drives
- Marine & Offshore: Propulsion turbines, auxiliary machinery, FPSO rotating equipment
- General Industry: Any rotating equipment requiring API 670-compliant radial vibration monitoring
System Integration & Compatible Parts
The 330104-00-14-90-02-00 is designed to operate as part of the complete Bently Nevada 3300 XL proximity transducer system. Verified compatible components include:
- Proximitor / Driver: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180-X1-05) — verify driver compatibility for 14 mm probe
- Extension Cable: Matched 3300 Series armored extension cables (length to suit installation)
- Monitor Modules: 3500 Series Machinery Protection System cards (3500/40M, 3500/42M, etc.)
- Interconnect: Standard BNC or proprietary Bently Nevada connectors per -02-00 specification
Always verify the complete probe + extension cable + driver combination to ensure system calibration integrity before installation.
Our Quality Assurance Process
- Every unit sourced from authorized distributors or verified surplus channels with documented traceability
- Visual and dimensional inspection upon receipt — probe tip, cable jacket, and connector integrity checked
- Connector and cable continuity verification before shipment
- Original manufacturer packaging preserved where available
- Traceability documentation (COC, test reports) provided on request
How to Order
- Confirm your part number: 330104-00-14-90-02-00
- Submit an inquiry via the Contact Us page or email [email protected]
- Receive a formal quotation with lead time and shipping options within 24 hours
- Confirm order and arrange payment via T/T, PayPal, or agreed terms
- Shipment via DHL / FedEx / UPS with full tracking provided
Why Choose Konmask.com?
- Specialized in industrial automation and condition monitoring components — Bently Nevada is a core focus
- Global sourcing network for obsolete, hard-to-find, and long-lead Bently Nevada parts
- Fast response: formal quotations within 24 hours, worldwide express shipping
- Technical support from engineers familiar with turbomachinery protection systems and API 670 requirements
- Trusted by maintenance and reliability teams in power, oil & gas, and petrochemical industries globally
Frequently Asked Questions
Q: Is the 330104-00-14-90-02-00 a new or refurbished part?
A: We supply both new and certified-surplus units. The condition is clearly stated in every quotation. All units pass our incoming inspection process before shipment.
Q: What does the 90° designation mean in this part number?
A: The “90” in the part number indicates a 90-degree (right-angle) cable exit from the probe body. This is critical for installations where a straight cable exit would conflict with adjacent machinery or bearing housing geometry.
Q: Is this probe compatible with the Bently Nevada 3500 monitoring system?
A: Yes, when used with the appropriate 3300 XL Proximitor driver, the output is compatible with 3500 Series monitor cards. Please confirm your specific driver and monitor card combination with our technical team.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. For sourced units, lead time is typically 2–4 weeks. Contact us for current availability and stock status.
Q: Do you provide a warranty?
A: Yes. We offer a 90-day warranty against defects in materials and workmanship for all units supplied by Konmask.com.
Q: Can you supply the complete 3300 XL transducer system?
A: Yes. We can source the full system including probe, extension cable, and Proximitor driver. Please submit your complete BOM for a package quotation.
