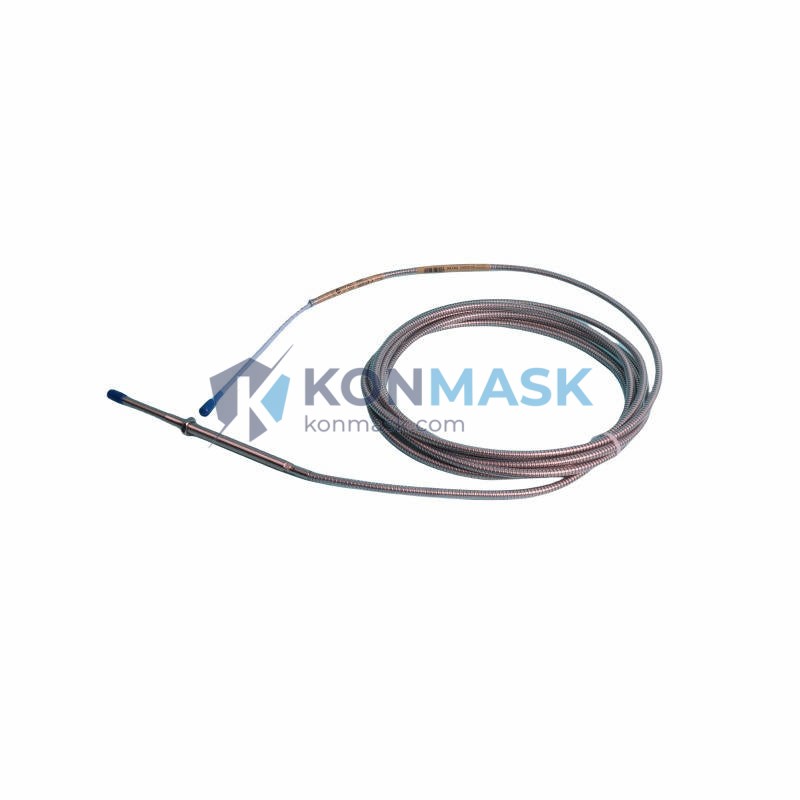

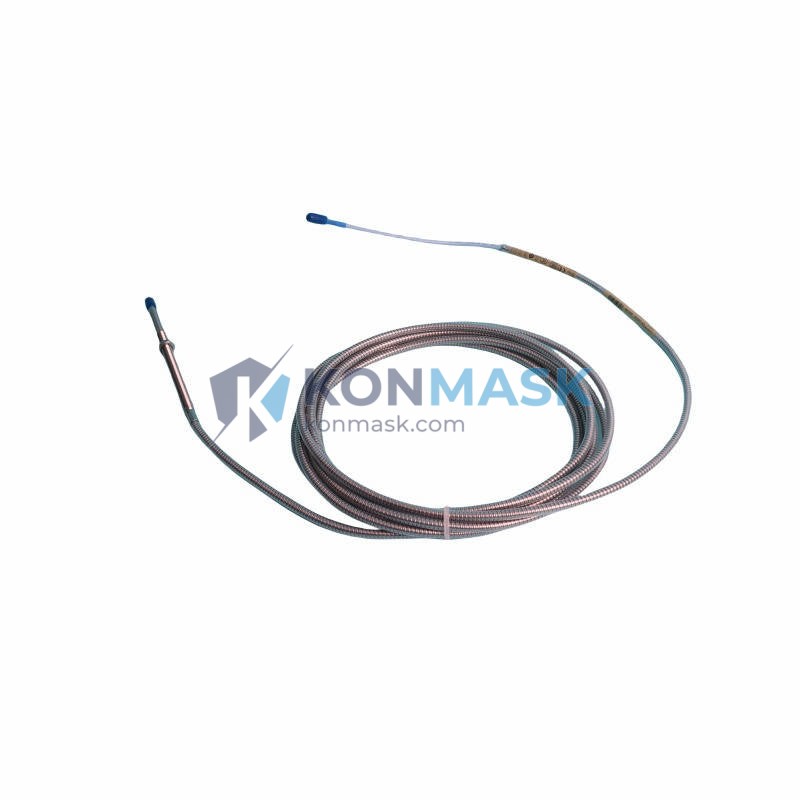

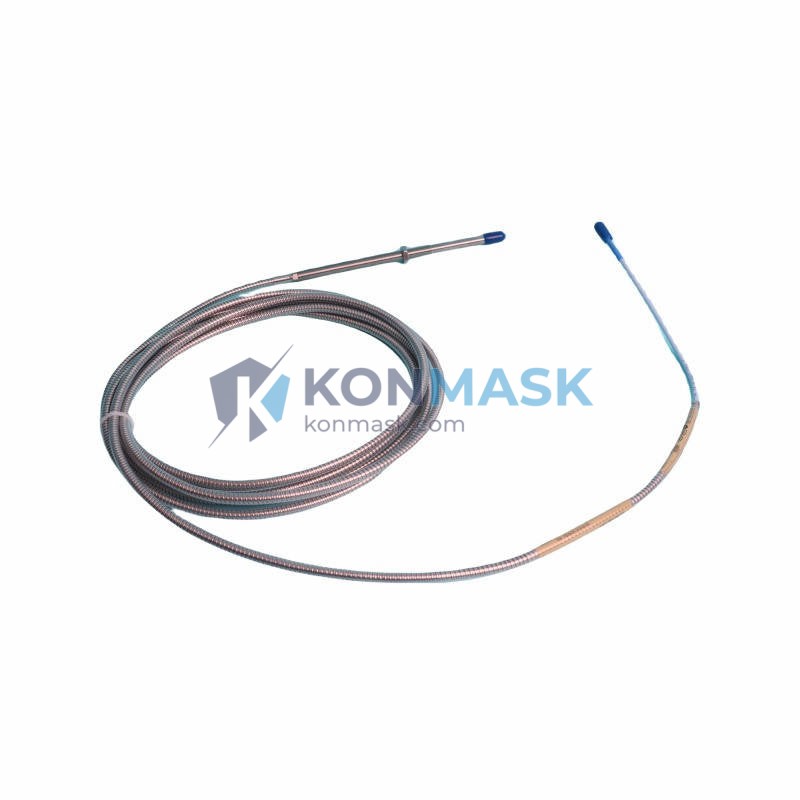

Bently Nevada 330104-00-23-10-02-00 – 8mm Eddy-Current Proximity Transducer | 3300 XL Series Platform
Engineering Background: The Bently Nevada 3300 XL Series represents the industry benchmark for non-contacting eddy-current measurement in rotating machinery protection. Developed by Baker Hughes (Bently Nevada), this platform has been deployed across gas turbines, steam turbines, compressors, and pumps in critical process industries worldwide for over three decades.
Product Positioning: The 330104-00-23-10-02-00 is an 8mm diameter proximity transducer engineered for radial shaft vibration, axial position (thrust), and differential expansion measurement. It operates as part of a three-component system (transducer + extension cable + proximitor/oscillator) and is fully compatible with the 3300 XL signal conditioning ecosystem. This part number is a direct OEM replacement and is widely specified in turbomachinery OEM documentation and API 670 compliant monitoring systems.
Complete Technical Specifications
- Part Number: 330104-00-23-10-02-00
- Series / Platform: Bently Nevada 3300 XL
- Sensor Type: Eddy-Current (Non-Contacting) Proximity Transducer
- Probe Diameter: 8 mm
- Cable Length: 1.0 m (integral cable, per part number suffix)
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Linear Range: 0.25 mm – 2.54 mm (10 – 100 mil)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Operating Temperature: –35°C to +177°C (–31°F to +350°F)
- Supply Voltage: –24 VDC (via proximitor)
- Output Voltage Range: –1 VDC to –21 VDC
- Connector Type: 2-pin MIL-C-5015 style (per suffix -02-00)
- Housing Material: Stainless Steel
- Ingress Protection: IP67
- Approvals / Certifications: CE, ATEX, IECEx (consult datasheet for zone ratings)
- Compatible Proximitor: 3300 XL NSv Proximitor (330180 series)
- Weight: ~80 g
- Country of Origin: USA
Proven Application Environments
- Gas turbine radial shaft vibration monitoring (API 670 compliant installations)
- Steam turbine axial thrust position measurement
- Centrifugal compressor differential expansion and eccentricity
- High-speed pump and motor shaft orbit analysis
- Petrochemical, LNG, power generation, and offshore platform machinery protection systems
- OEM skid-mounted turbomachinery with factory-specified Bently Nevada instrumentation
Engineering Advantages
- Non-contacting measurement: Zero mechanical wear; suitable for continuous 24/7 operation in critical machinery protection loops
- High-frequency response: DC to 10 kHz bandwidth captures sub-synchronous, synchronous, and super-synchronous vibration components
- Wide temperature tolerance: Rated to +177°C for high-temperature bearing housing installations without derating
- Direct OEM replacement: Plug-and-play compatibility with existing 3300 XL wiring, proximitors, and Bently Nevada 3500 rack systems
- Stainless steel housing: Corrosion-resistant for wet, oily, or chemically aggressive environments
- API 670 compliance: Meets machinery protection standard for critical and essential machinery classifications
System Architecture & Signal Flow
The 330104-00-23-10-02-00 operates within the standard Bently Nevada three-component eddy-current measurement chain:
- Proximity Transducer (330104-00-23-10-02-00): Generates a high-frequency electromagnetic field; detects shaft surface eddy-current perturbations and converts displacement to a proportional voltage signal via the integral coil and cable.
- Extension Cable (330130 series): Transmits the raw oscillator signal from the transducer tip to the proximitor; total system cable length must be matched to the proximitor calibration (typically 5 m or 9 m system).
- Proximitor / Oscillator-Demodulator (330180 XL NSv): Conditions the raw signal, provides –24 VDC excitation, and outputs a calibrated DC voltage (–1 to –21 VDC) proportional to gap distance for input to the 3500 monitoring rack or DCS/PLC.
Note: Total system cable length (transducer integral cable + extension cable) must match the proximitor’s calibrated system length. Mixing unmatched cable lengths will introduce sensitivity error.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with full traceability documentation
- Pre-shipment inspection includes visual examination, connector integrity check, and coil resistance verification
- Original Baker Hughes / Bently Nevada labeling and part number markings preserved and verified
- Calibration certificates and factory test reports available upon request for new-in-box units
- Counterfeit-risk mitigation: physical markings, coil impedance, and dimensional checks performed against OEM specifications
Procurement Process
- Confirm compatibility: Verify your existing proximitor model (330180 series) and total system cable length before ordering to ensure matched-system calibration.
- Request a quote: Contact support@konmask.com for volume pricing, lead time, and documentation packages.
- Order & payment: Secure checkout via Konmask.com; T/T wire transfer available for B2B orders above threshold.
- Shipping: DHL / FedEx express international; export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-sales support: Technical assistance available for installation, commissioning, and system integration queries.
Technical FAQ
Q: Is the 330104-00-23-10-02-00 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The transducer outputs a standard –1 to –21 VDC signal via the 330180 XL NSv proximitor, which is fully compatible with 3500/40M and 3500/42M proximity monitor modules.
Q: What is the difference between the -02-00 and -00-00 connector suffix?
A: The -02-00 suffix designates a 2-pin MIL-C-5015 style armored connector. The -00-00 suffix uses a standard unarmored connector. Specify based on your installation environment and existing cable termination.
Q: Can this transducer be used for axial position (thrust) measurement?
A: Yes. The 330104 series is suitable for both radial vibration and axial position applications when paired with the appropriate proximitor and 3500 rack monitor card configured for position measurement.
Q: What target material is required for accurate measurement?
A: The standard calibration is for AISI 4140 steel. For other target materials (stainless steel, titanium, Inconel), a material-specific calibration curve or correction factor must be applied. Consult Bently Nevada application note for non-standard target materials.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified units. New-in-box units carry the original manufacturer warranty where applicable.
