Bently Nevada 330104-00-10-50-02-CN – Eddy Current Proximity Transducer System | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contact vibration and position measurement in rotating machinery. Engineered to meet the rigorous demands of API 670 machinery protection standards, this platform has been deployed across power generation, petrochemical, and oil & gas facilities worldwide for over three decades.
Product Positioning

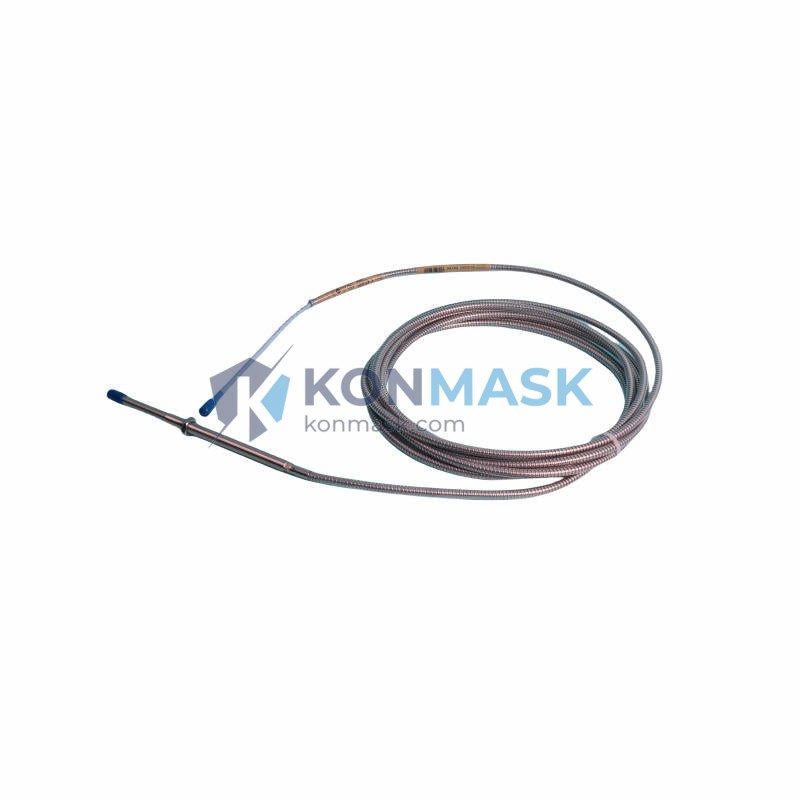

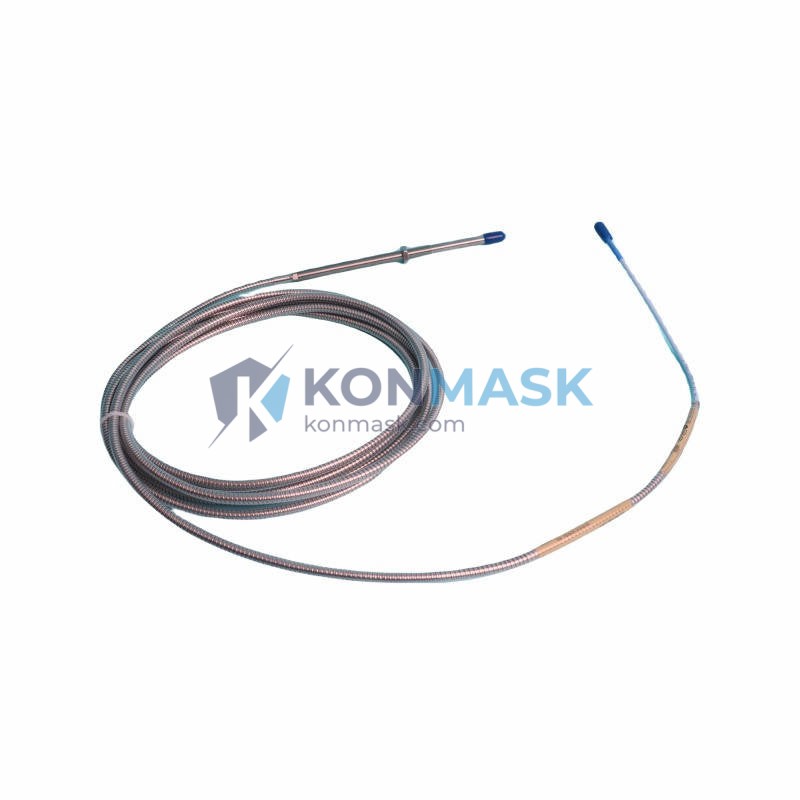

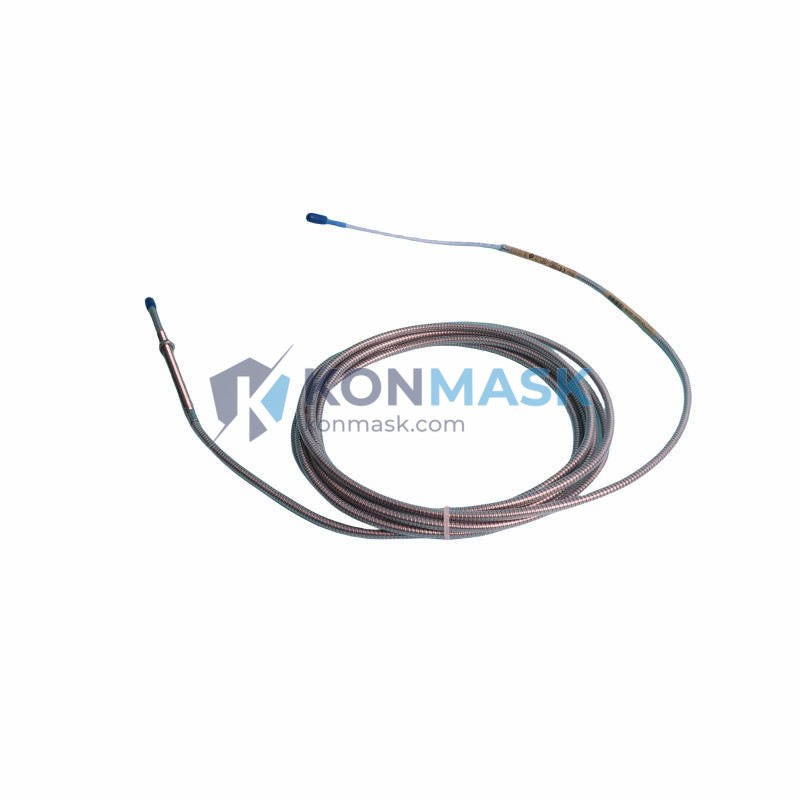

The 330104-00-10-50-02-CN is a complete eddy current proximity transducer system comprising a probe, extension cable, and Proximitor® sensor. It is purpose-built for continuous shaft vibration, axial position, and differential expansion monitoring on critical turbomachinery including steam turbines, gas turbines, compressors, and pumps. The “-CN” suffix denotes the China-market configuration with localized compliance documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330104-00-10-50-02-CN |
| Series / Platform | Bently Nevada 3300 XL |
| Measurement Type | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Probe Length | 10 mm (per part number suffix) |
| Extension Cable Length | 5.0 m (50 dm, per part number suffix) |
| Proximitor® Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.54 mm (10 – 100 mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (nominal) |
| Output Signal | –2 to –18 VDC (proportional to gap) |
| Target Material | AISI 4140 steel (standard); other alloys with calibration |
| Operating Temperature (Probe) | –35°C to +177°C (–31°F to +350°F) |
| Operating Temperature (Proximitor) | –35°C to +85°C (–31°F to +185°F) |
| Ingress Protection | IP66 (Proximitor housing) |
| Connector Type | Integral coaxial, reverse-polarity protected |
| Compliance | API 670, CE, RoHS, China GB standards |
| Weight | Approx. 80 g (probe + cable assembly) |
| Country of Origin | USA (Baker Hughes / Bently Nevada) |
Proven Application Environments
- Steam & Gas Turbines – Shaft radial vibration and axial thrust position monitoring per API 670
- Centrifugal Compressors – Continuous rotor dynamic surveillance in petrochemical trains
- Boiler Feed Pumps – High-temperature bearing journal monitoring in power plants
- Gearboxes & Expanders – Differential expansion and eccentricity measurement
- Marine Propulsion Systems – Shaft position feedback in harsh offshore environments
- Hydro Turbines – Low-speed shaft runout and position tracking
Engineering Advantages
- Non-contact measurement – Zero mechanical wear; continuous operation without maintenance intervals
- Wide frequency bandwidth – DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency fault signatures
- High EMI immunity – Shielded coaxial cable and differential Proximitor® circuit reject common-mode noise
- API 670 compliant – Drop-in replacement for existing 3300 XL installations; no recalibration required for same-alloy targets
- Integral cable design – Eliminates field-assembled connectors; reduces installation error and signal loss
- Reverse-polarity protection – Prevents damage during field wiring; reduces commissioning risk
System Architecture & Signal Flow
The 330104-00-10-50-02-CN operates as a three-component eddy current system:
- Probe (330104 series) – Generates a high-frequency electromagnetic field (1.0 MHz nominal) directed at the rotating shaft target. Gap changes modulate field impedance.
- Extension Cable (330130 series, 5 m) – Transmits the modulated RF signal from the probe to the Proximitor® with controlled impedance; maintains system calibration over the specified cable length.
- Proximitor® Sensor (3300 XL) – Demodulates the RF signal and outputs a DC-proportional voltage (–2 to –18 VDC). This signal feeds directly into Bently Nevada 3500 series rack monitors or third-party DCS/PLC inputs via 4–20 mA converters.
Signal chain: Shaft gap → Probe impedance change → Extension cable → Proximitor® demodulation → DC voltage output → Monitor/DCS input
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels with full traceability to Baker Hughes / Bently Nevada manufacturing records
- Each assembly inspected for connector integrity, cable continuity, and Proximitor® output linearity prior to dispatch
- Original OEM packaging, labels, and documentation preserved — no repackaging or remarking
- Certificate of Conformance (CoC) and test reports available upon request
- Shelf life managed under controlled storage conditions (temperature 15–25°C, humidity <60% RH)
Procurement Process
- Confirm part number – Verify 330104-00-10-50-02-CN matches your existing system configuration (probe tip size, cable length, Proximitor® model)
- Submit inquiry – Contact support@konmask.com with quantity, delivery timeline, and destination port
- Quotation & lead time – Formal quotation issued within 24 hours; typical lead time 3–7 business days for in-stock units
- Order confirmation – Pro forma invoice issued; payment via T/T, L/C, or agreed terms
- Shipping & documentation – Export packing list, commercial invoice, CoC, and packing declaration provided; DHL / FedEx / sea freight per buyer preference
- After-sales support – Technical commissioning support available via email or video call
Technical FAQ
Q: Is the 330104-00-10-50-02-CN a direct replacement for the 330104-00-10-50-02-00?
A: Yes. The “-CN” suffix indicates China-market documentation and compliance labeling only. Electrical and mechanical specifications are identical; it is a drop-in replacement.
Q: Can this transducer system be used with non-Bently Nevada monitors?
A: Yes. The –2 to –18 VDC output is compatible with any monitor accepting this signal range. A 4–20 mA signal conditioner is required for DCS/PLC integration.
Q: What target materials are supported without recalibration?
A: AISI 4140 steel is the standard calibration target. Other alloys (Inconel, 17-4 PH, etc.) require a material-specific calibration factor — consult Bently Nevada Application Note 141228.
Q: What is the maximum operating temperature for the probe?
A: The probe is rated to +177°C (+350°F). For higher-temperature applications, consult the 330900 high-temperature probe series.
Q: Do you provide ATEX / IECEx certified units?
A: Hazardous-area certified variants are available. Please specify your zone classification and gas group when inquiring.
Q: What is the warranty policy?
A: Konmask.com provides a 12-month warranty against manufacturing defects from the date of shipment, consistent with OEM warranty terms.
